XM Part Number	Image	Spec Sheet	Buy Direct (Intl. add 15%)	Feature Mfr	Type	Low Freq	High Freq	Atten Range	Atten Step	IL	Control	RoHS	Request Quote

XM-A3K6-0604C-01	0604A	PE43704	$662.00	pSemi	7-Bit	0.009 MHz	8000 MHz	31.75 dB	0.25 dB	2.8 dB	N/A	XR-A3K6-0604C-01	Request Quote

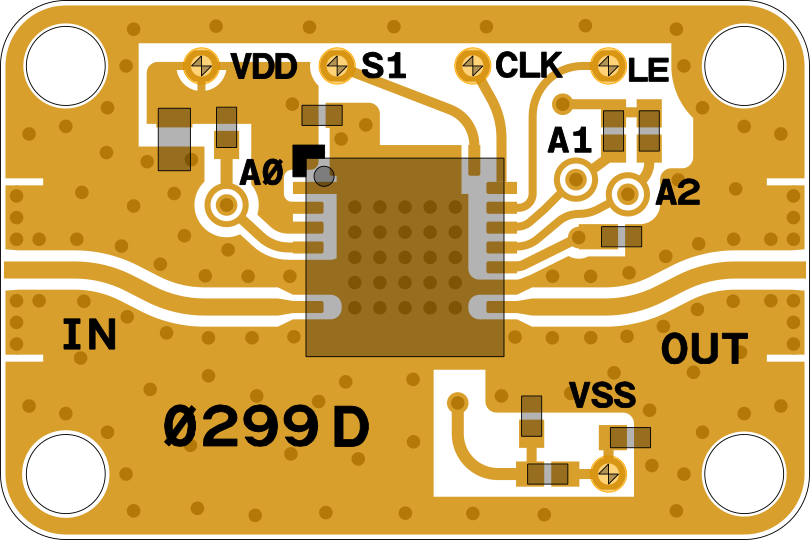

XM-A3K6-0604D	0299_WEB	PE43704	$151.00	pSemi	7-Bit	0.009 MHz	8000 MHz	31.75 dB	0.25 dB	2.8 dB	N/A	XR-A3K6-0604D	Request Quote
XM-A3K7-0604C-01	0604A	PE43705	$601.00	pSemi	7-Bit	50 MHz	8000 MHz	31.75 dB	0.25 dB	2.8 dB	N/A	XR-A3K7-0604C-01	Request Quote

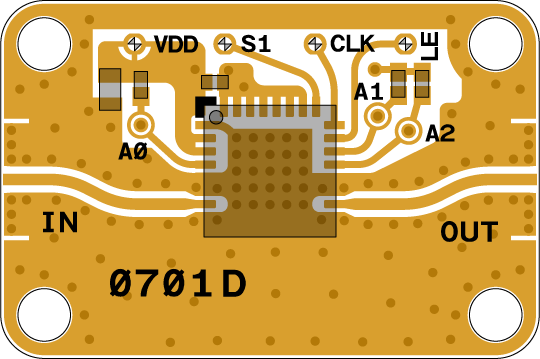

XM-A3K7-0604D	0701_WEB	PE43705	$156.00	pSemi	7-Bit	50 MHz	8000 MHz	31.75 dB	0.25 dB	2.8 dB	N/A	XR-A3K7-0604D	Request Quote
XM-A3K8-0604C-01	0604A	PE43712	$582.00	pSemi	7-Bit	0.009 MHz	6000 MHz	31.75 dB	0.25 dB	2.8 dB	N/A	XR-A3K8-0604C-01	Request Quote
XM-A3K8-0604D	0701_WEB	PE43712	$136.00	pSemi	7-Bit	0.009 MHz	6000 MHz	31.75 dB	0.25 dB	2.8 dB	N/A	XR-A3K8-0604D	Request Quote
XM-A3K9-0604C-01	0604A	PE43713	$683.00	pSemi	7-Bit	0.009 MHz	6000 MHz	31.75 dB	0.25 dB	2.8 dB	N/A	XR-A3K9-0604C-01	Request Quote
XM-A3K9-0604D	0701_WEB	PE43713	$170.00	pSemi	7-Bit	0.009 MHz	6000 MHz	31.75 dB	0.25 dB	2.8 dB	N/A	XR-A3K9-0604D	Request Quote

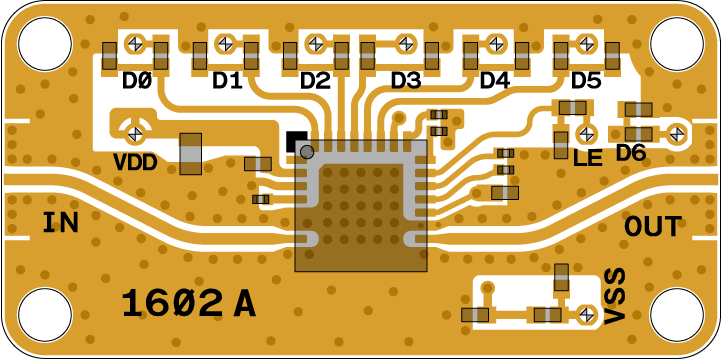

XM-A497-0804D	1602_WEB	PE43713	$174.00	pSemi	7-Bit	0.009 MHz	6000 MHz	31.75 dB	0.25 dB	2.8 dB	Parallel	XR-A497-0804D	Request Quote
XM-A5D6-0604C-01	0604A	HMC1018ALP4E	$931.00	ADI	5-Bit	100 MHz	30000 MHz	31 dB	1 dB	5 dB	N/A	XR-A5D6-0604C-01	Request Quote

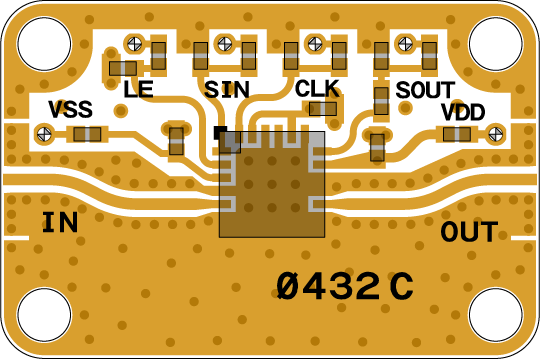

XM-A5D6-0604D	0432_WEB	HMC1018ALP4E	$422.00	ADI	5-Bit	100 MHz	30000 MHz	31 dB	1 dB	5 dB	N/A	XR-A5D6-0604D	Request Quote
XM-A5D7-0604C-01	0604A	HMC1019ALP4E	$905.00	ADI	5-Bit	100 MHz	30000 MHz	15.5 dB	0.5 dB	5 dB	N/A	XR-A5D7-0604C-01	Request Quote
XM-A5D7-0604D	0432_WEB	HMC1019ALP4E	$424.00	ADI	5-Bit	100 MHz	30000 MHz	15.5 dB	0.5 dB	5 dB	N/A	XR-A5D7-0604D	Request Quote
XM-A689-0604C-01	0604A	HMC424ALP3E	$676.00	ADI	Parallel	0 MHz	13000 MHz	31.5 dB	0.5 dB	3.9 dB	N/A	XR-A689-0604C-01	Request Quote

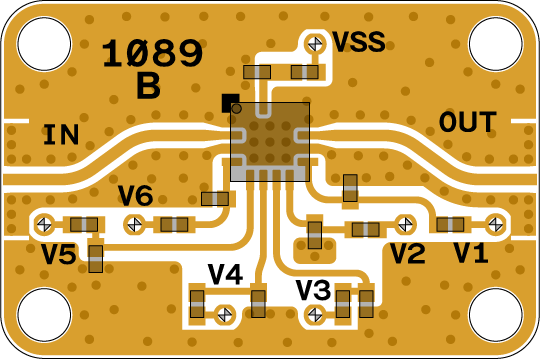

XM-A689-0604D	1089_WEB	HMC424ALP3E	$208.00	ADI	Parallel	0 MHz	13000 MHz	31.5 dB	0.5 dB	3.9 dB	N/A	XR-A689-0604D	Request Quote
XM-A6A7-0604C-01	0604A	HMC540SLP3E	$599.00	ADI	4-Bit	100 MHz	8000 MHz	15 dB	1 dB	1.7 dB	N/A	XR-A6A7-0604C-01	Request Quote

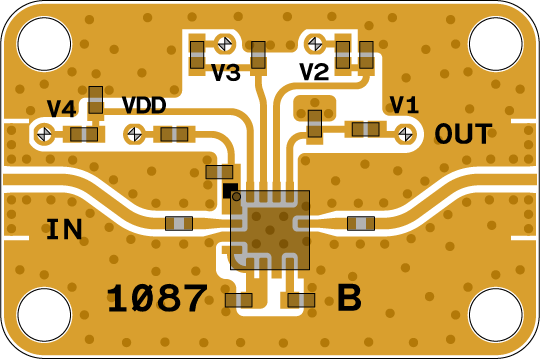

XM-A6A7-0604D	1087_WEB	HMC540SLP3E	$151.00	ADI	4-Bit	100 MHz	8000 MHz	15 dB	1 dB	1.7 dB	N/A	XR-A6A7-0604D	Request Quote
XM-A6E3-0604C-01	0604A	HMC939ALP4E	$769.00	ADI	5-Bit	100 MHz	33000 MHz	31 dB	1 dB	6 dB	N/A	XR-A6E3-0604C-01	Request Quote

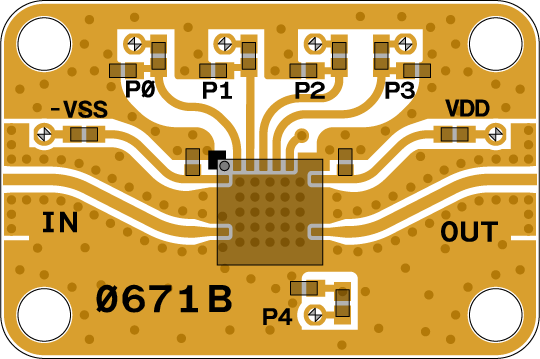

XM-A6E3-0604D	0671_WEB	HMC939ALP4E	$356.00	ADI	5-Bit	100 MHz	33000 MHz	31 dB	1 dB	6 dB	N/A	XR-A6E3-0604D	Request Quote
XM-A6E4-0604C-01	0604A	HMC941ALP4E	$835.00	ADI	5-Bit	100 MHz	33000 MHz	15.5 dB	0.5 dB	4 dB	N/A	XR-A6E4-0604C-01	Request Quote
XM-A6E4-0604D	0671_WEB	HMC941ALP4E	$355.00	ADI	5-Bit	100 MHz	33000 MHz	15.5 dB	0.5 dB	4 dB	N/A	XR-A6E4-0604D	Request Quote

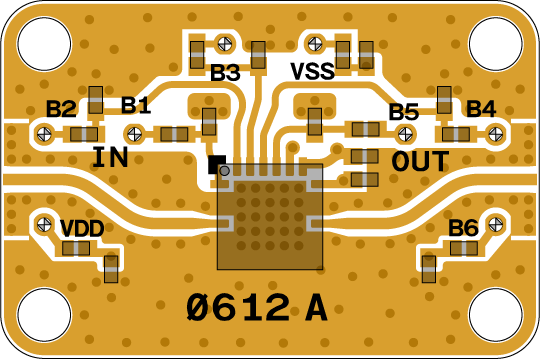

XM-A761-0604D	0612_WEB	CHT4012-QDG	$307.00	UMS	6-bit	0 MHz	6000 MHz	31.5 dB	0.5 dB	2.5 dB	N/A	XR-A761-0604D	Request Quote
XM-A7D2-0404C-01	0404A	F1953	$501.00	IDT	6-bit	400 MHz	4000 MHz	31.5 dB	0.5 dB	1.4 dB	N/A	XR-A7D2-0404C-01	Request Quote

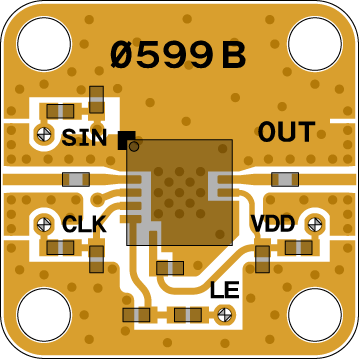

XM-A7D2-0404D	0599_WEB	F1953	$120.00	IDT	6-bit	400 MHz	4000 MHz	31.5 dB	0.5 dB	1.4 dB	N/A	XR-A7D2-0404D	Request Quote
XM-A7D4-0604C-01	0604A	F1956	$569.00	IDT	7-Bit	1 MHz	6000 MHz	31.75 dB	0.25 dB	1.3 dB	N/A	XR-A7D4-0604C-01	Request Quote

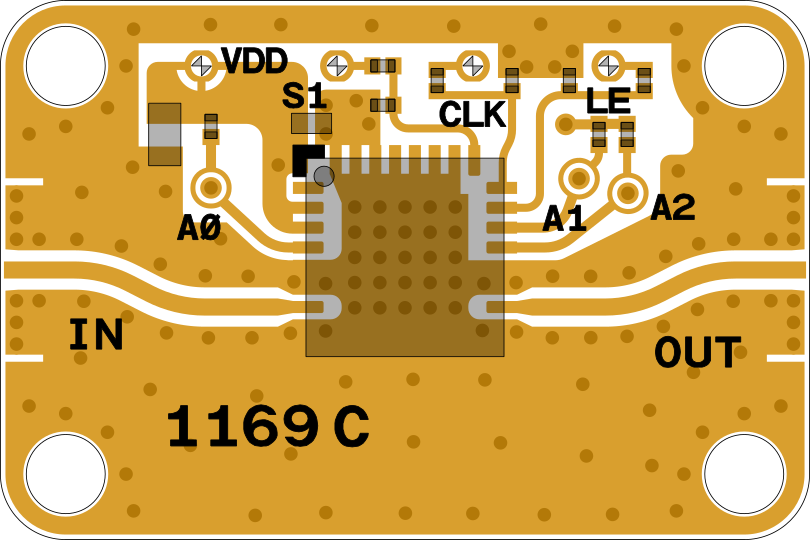

XM-A7D4-0604D	1169_WEB	F1956	$139.00	IDT	7-Bit	1 MHz	6000 MHz	31.75 dB	0.25 dB	1.3 dB	N/A	XR-A7D4-0604D	Request Quote
XM-A7M1-0604C-01	0604A	MAAD-011021	$822.00	Macom	Parallel	0 MHz	30000 MHz	31.5 dB	0.5 dB	7.2 dB	N/A	XR-A7M1-0604C-01	Request Quote
XM-A7M1-0604D	0509_WEB	MAAD-011021	$347.00	Macom	Parallel	0 MHz	30000 MHz	31.5 dB	0.5 dB	7.2 dB	N/A	XR-A7M1-0604D	Request Quote
XM-A8F2-0604C-01	0604A	PE43508	QUOTE	pSemi	6-bit	0.009 MHz	55000 MHz	31.5 dB	0.5 dB	5.9 dB	Parallel or Serial	XR-A8F2-0604C-01	Request Quote

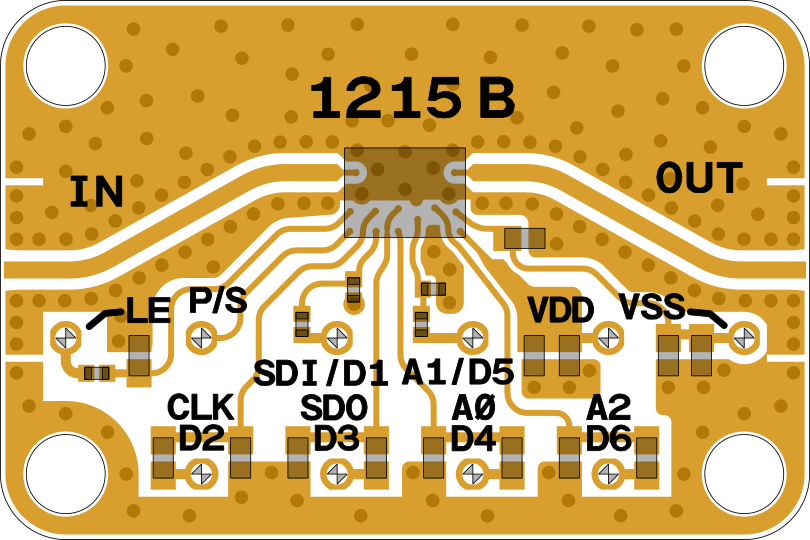

XM-A8F2-0604D	1215_WEB	PE43508	QUOTE	pSemi	6-bit	0.009 MHz	55000 MHz	31.5 dB	0.5 dB	5.9 dB	N/A	XR-A8F2-0604D	Request Quote
XM-B1C5-0604C-01	0604A	ADRF5730BCCZN	$919.00	ADI	6-bit	100 MHz	40000 MHz	31.5 dB	0.5 dB	4.8 dB	N/A	XR-B1C5-0604C-01	Request Quote

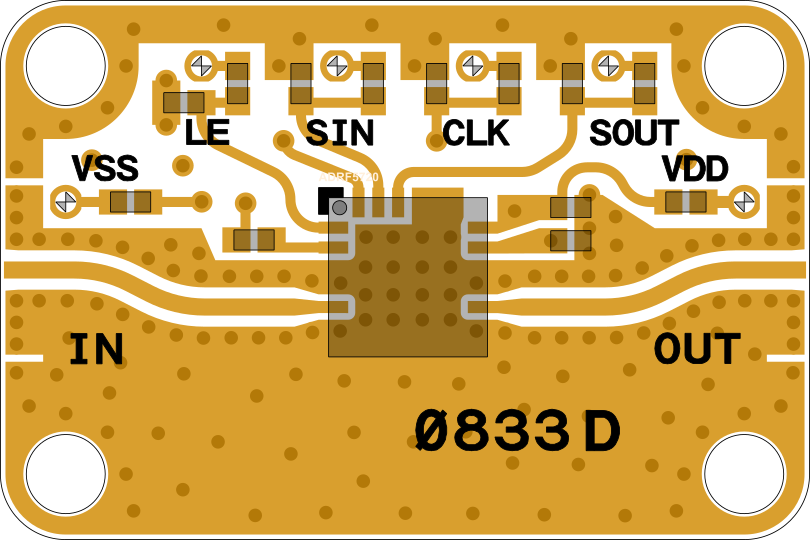

XM-B1C5-0604D	0833_WEB	ADRF5730BCCZN	$386.00	ADI	6-bit	100 MHz	40000 MHz	31.5 dB	0.5 dB	4.8 dB	N/A	XR-B1C5-0604D	Request Quote
XM-B1M3-0604C-01	0604A	ADRF5720	$949.00	ADI	6-bit	0.009 MHz	40000 MHz	31.5 dB	0.5 dB	4.5 dB	N/A	XR-B1M3-0604C-01	Request Quote
XM-B1M3-0604D	0833_WEB	ADRF5720	$384.00	ADI	6-bit	0.009 MHz	40000 MHz	31.5 dB	0.5 dB	4.5 dB	N/A	XR-B1M3-0604D	Request Quote
XM-B2E1-0804C-01	0804A	HMC1119LP4ME	$689.00	ADI	7-Bit	100 MHz	6000 MHz	31.75 dB	0.25 dB	1.3 dB	N/A	XR-B2E1-0804C-01	Request Quote

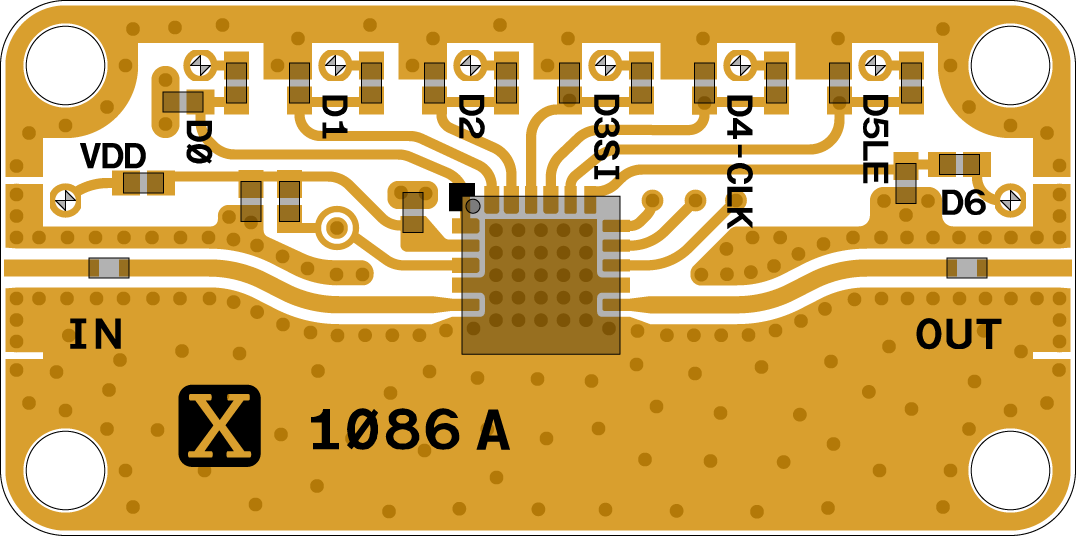

XM-B2E1-0804D	1086_WEB	HMC1119LP4ME	$190.00	ADI	7-Bit	100 MHz	6000 MHz	31.75 dB	0.25 dB	1.3 dB	N/A	XR-B2E1-0804D	Request Quote
XM-B2J3-0804C-01	0804A	ADRF5730BCCZN	$990.00	ADI	6-bit	100 MHz	40000 MHz	31.5 dB	0.5 dB	4.8 dB	N/A	XR-B2J3-0804C-01	Request Quote

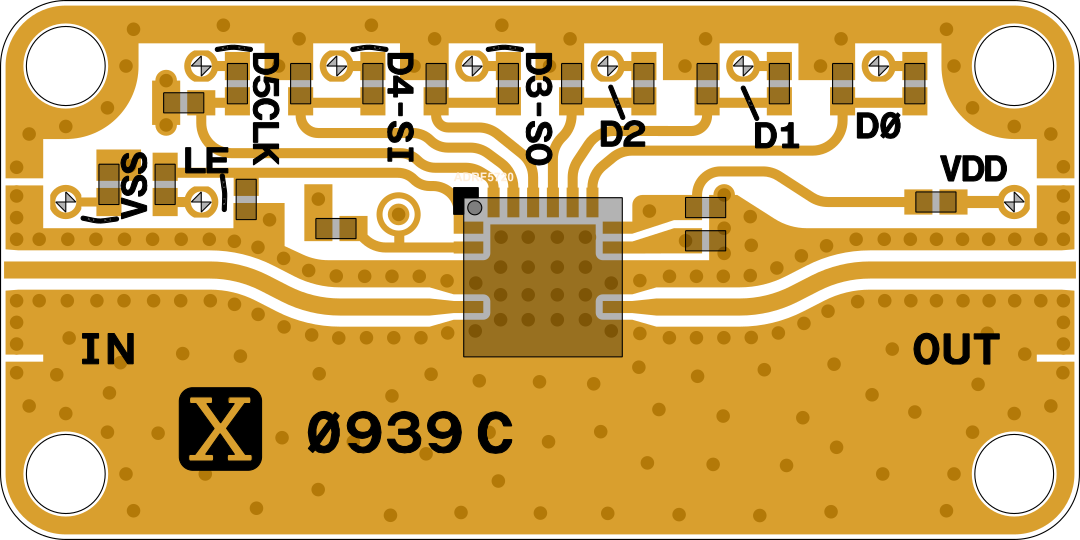

XM-B2J3-0804D	0939_WEB	ADRF5730BCCZN	$424.00	ADI	6-bit	100 MHz	40000 MHz	31.5 dB	0.5 dB	4.8 dB	N/A	XR-B2J3-0804D	Request Quote
XM-B2R5-0604C-01	0604A	HMC1122LP4ME	$676.00	ADI	6-bit	100 MHz	6000 MHz	31.5 dB	0.5 dB	1.3 dB	N/A	XR-B2R5-0604C-01	Request Quote

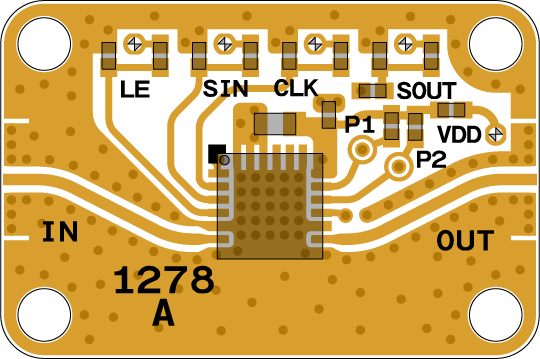

XM-B2R5-0604D	1278_WEB	HMC1122LP4ME	$162.00	ADI	6-bit	100 MHz	6000 MHz	31.5 dB	0.5 dB	1.3 dB	N/A	XR-B2R5-0604D	Request Quote
XM-B5G2-0604C-01	0604A	HMC624ALP4E	$692.00	ADI	6-bit	100 MHz	6000 MHz	31.5 dB	0.5 dB	1.6 dB	N/A	XR-B5G2-0604C-01	Request Quote

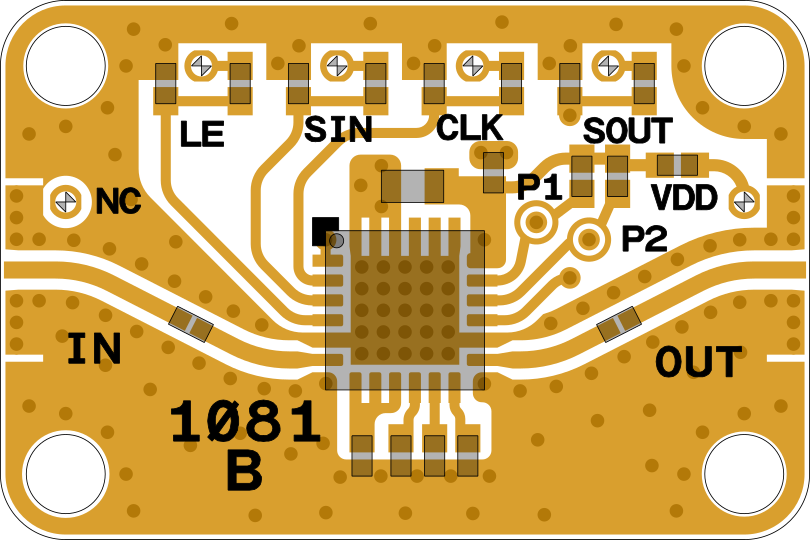

XM-B5G2-0604D	1081_WEB	HMC624ALP4E	$175.00	ADI	6-bit	100 MHz	6000 MHz	31.5 dB	0.5 dB	1.6 dB	N/A	XR-B5G2-0604D	Request Quote
XM-B6E4-0404C-01	0404A	QPC3223	$494.00	Qorvo	2-Bit	50 MHz	6000 MHz	18 dB	6 dB	0.8 dB	N/A	XR-B6E4-0404C-01	Request Quote

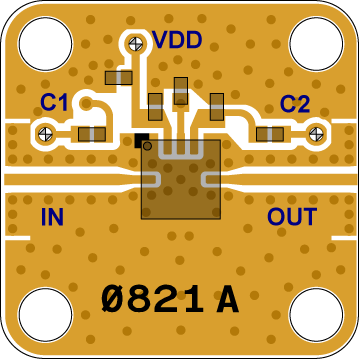

XM-B6E4-0404D	0821_WEB	QPC3223	$106.00	Qorvo	2-Bit	50 MHz	6000 MHz	18 dB	6 dB	0.8 dB	N/A	XR-B6E4-0404D	Request Quote
XM-B6E5-0604C-01	0604A	RFSA3413	$568.00	Qorvo	4-Bit	5 MHz	6000 MHz	15 dB	1 dB	1.4 dB	N/A	XR-B6E5-0604C-01	Request Quote

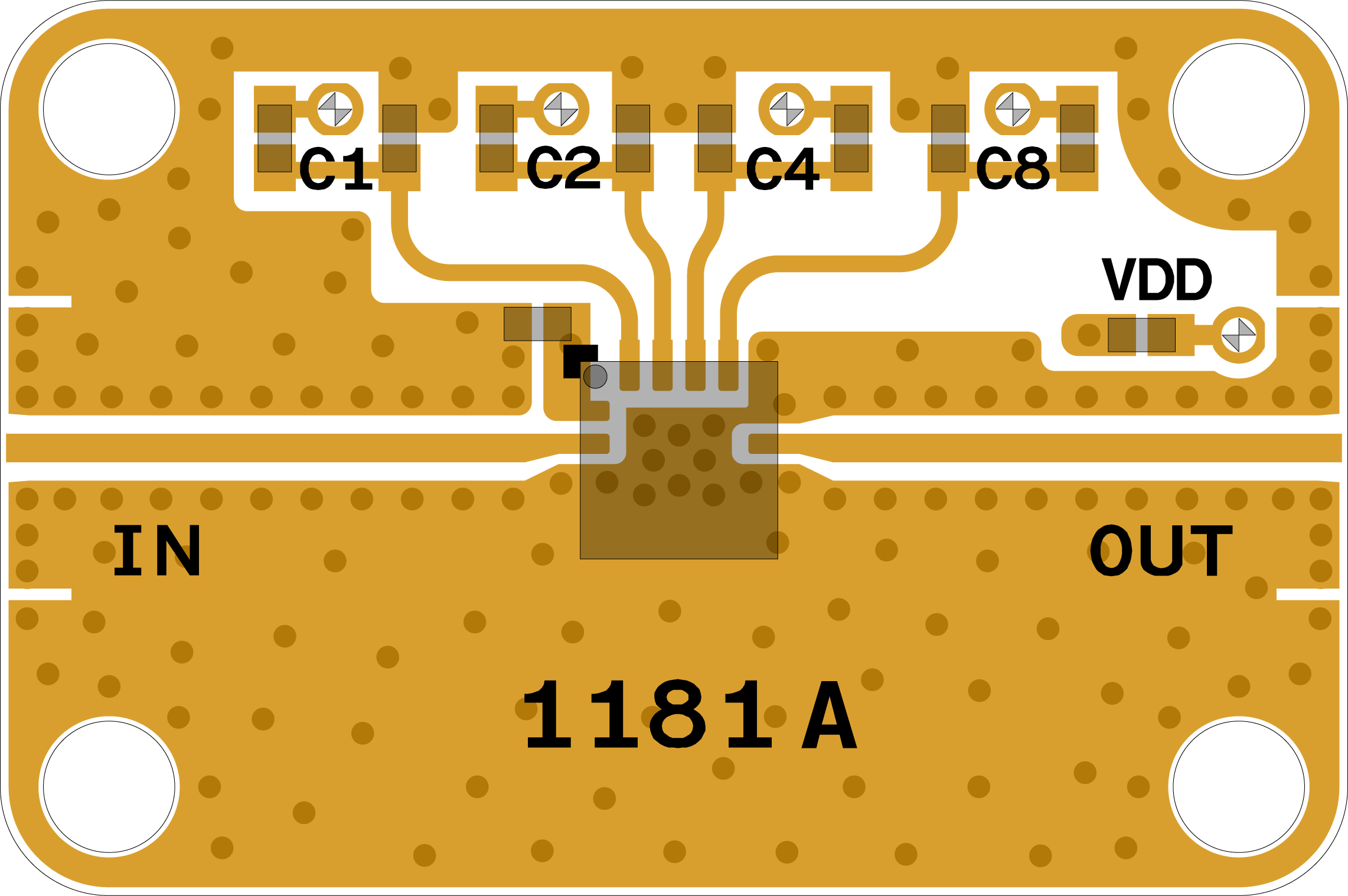

XM-B6E5-0604D	1181_WEB	RFSA3413	$120.00	Qorvo	4-Bit	5 MHz	6000 MHz	15 dB	1 dB	1.4 dB	N/A	XR-B6E5-0604D	Request Quote
XM-B6E6-0604C-01	0604A	RFSA3513	$346.00	Qorvo	5-Bit	5 MHz	6000 MHz	31 dB	1 dB	1.4 dB	N/A	XR-B6E6-0604C-01	Request Quote

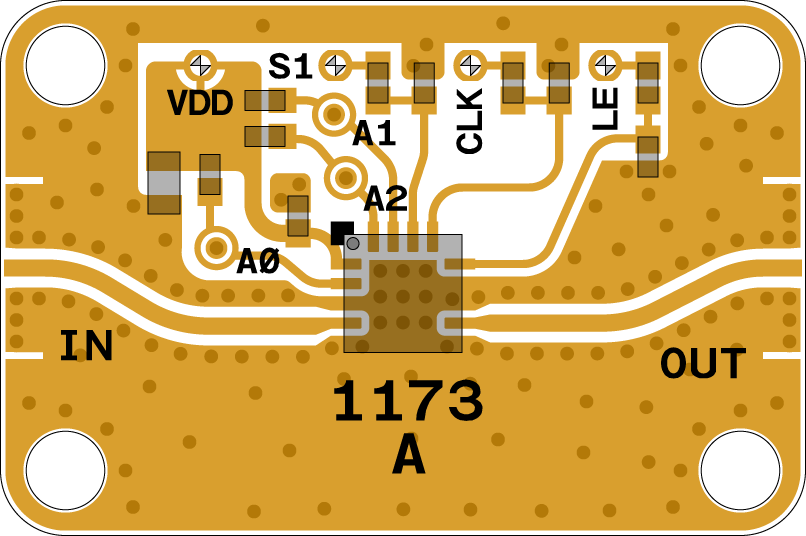

XM-B6E6-0604D	1173_WEB	RFSA3513	$143.00	Qorvo	5-Bit	5 MHz	6000 MHz	31 dB	1 dB	1.4 dB	N/A	XR-B6E6-0604D	Request Quote
XM-B6E7-0604C-01	0604A	RFSA3613	$324.00	Qorvo	6-bit	5 MHz	6000 MHz	31.5 dB	0.5 dB	1.4 dB	N/A	XR-B6E7-0604C-01	Request Quote
XM-B6E7-0604D	1173_WEB	RFSA3613	$112.00	Qorvo	6-bit	5 MHz	6000 MHz	31.5 dB	0.5 dB	1.4 dB	N/A	XR-B6E7-0604D	Request Quote
XM-B6E8-0604C-01	0604A	RFSA3713	$324.00	Qorvo	7-Bit	5 MHz	6000 MHz	31.75 dB	0.25 dB	1.4 dB	N/A	XR-B6E8-0604C-01	Request Quote
XM-B6E8-0604D	1173_WEB	RFSA3713	$112.00	Qorvo	7-Bit	5 MHz	6000 MHz	31.75 dB	0.25 dB	1.4 dB	N/A	XR-B6E8-0604D	Request Quote
XM-B6E9-0804C-01	0804A	RFSA3714	$694.00	Qorvo	7-Bit	50 MHz	6000 MHz	31.75 dB	0.25 dB	1.5 dB	N/A	XR-B6E9-0804C-01	Request Quote
XM-B6E9-0804D	1086_WEB	RFSA3714	$185.00	Qorvo	7-Bit	50 MHz	6000 MHz	31.75 dB	0.25 dB	1.5 dB	N/A	XR-B6E9-0804D	Request Quote
XM-B6F1-0604C-01	0604A	RFSA3715	$550.00	Qorvo	7-Bit	5 MHz	4000 MHz	31.75 dB	0.25 dB	1.5 dB	N/A	XR-B6F1-0604C-01	Request Quote
XM-B6F1-0604D	0701_WEB	RFSA3715	$120.00	Qorvo	7-Bit	5 MHz	4000 MHz	31.75 dB	0.25 dB	1.5 dB	N/A	XR-B6F1-0604D	Request Quote
XM-B6J7-0604C-01	0604A	ADRF5731	$977.00	ADI	4-Bit	100 MHz	40000 MHz	30 dB	2 dB	3.5 dB	N/A	XR-B6J7-0604C-01	Request Quote
XM-B6J7-0604C-02	0604A	ADRF5731	$843.00	ADI	4-Bit	100 MHz	27000 MHz	30 dB	2 dB	3.5 dB	N/A	XR-B6J7-0604C-02	Request Quote

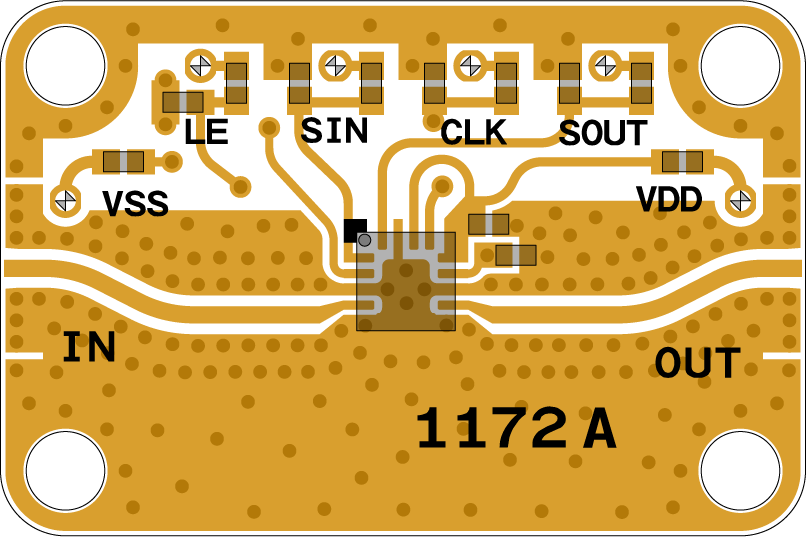

XM-B6J7-0604D	1172_WEB	ADRF5731	$410.00	ADI	4-Bit	100 MHz	40000 MHz	30 dB	2 dB	3.5 dB	N/A	XR-B6J7-0604D	Request Quote
XM-B6J8-0604C-01	0604A	ADRF5721	$969.00	ADI	4-Bit	0.009 MHz	40000 MHz	30 dB	2 dB	3.4 dB	N/A	XR-B6J8-0604C-01	Request Quote
XM-B6J8-0604D	1172_WEB	ADRF5721	$438.00	ADI	4-Bit	0.009 MHz	40000 MHz	30 dB	2 dB	3.4 dB	N/A	XR-B6J8-0604D	Request Quote
XM-B7P2-0804C-01	0804A	ADRF5740	$1,096.00	ADI	4-Bit	100 MHz	40000 MHz	22 dB	2 dB	2.9 dB	N/A	XR-B7P2-0804C-01	Request Quote
XM-B7P2-0804D	1171_WEB	ADRF5740	$458.00	ADI	4-Bit	100 MHz	60000 MHz	22 dB	2 dB	2.9 dB	N/A	XR-B7P2-0804D	Request Quote
XM-B7P7-0804C-01	0804A	ADRF5720	$950.00	ADI	6-bit	0.009 MHz	40000 MHz	31.5 dB	0.5 dB	4.5 dB	N/A	XR-B7P7-0804C-01	Request Quote
XM-B7P7-0804D	0939_WEB	ADRF5720	$406.00	ADI	6-bit	0.009 MHz	40000 MHz	31.5 dB	0.5 dB	4.5 dB	N/A	XR-B7P7-0804D	Request Quote
XM-B8C7-0604C-01	0604A	CMD279	QUOTE	Qorvo	5-Bit	2000 MHz	30000 MHz	15.5 dB	0.2 dB	3.5 dB	N/A	XR-B8C7-0604C-01	Request Quote
XM-B8C7-0604D	1210_WEB	CMD279	QUOTE	Qorvo	5-Bit	2000 MHz	30000 MHz	15.5 dB	0.2 dB	3.5 dB	N/A	XR-B8C7-0604D	Request Quote
XM-B8C8-0604C-01	0604A	CMD279C3	$677.00	Qorvo	5-Bit	2000 MHz	18000 MHz	15.5 dB	0.2 dB	3.5 dB	N/A	XR-B8C8-0604C-01	Request Quote

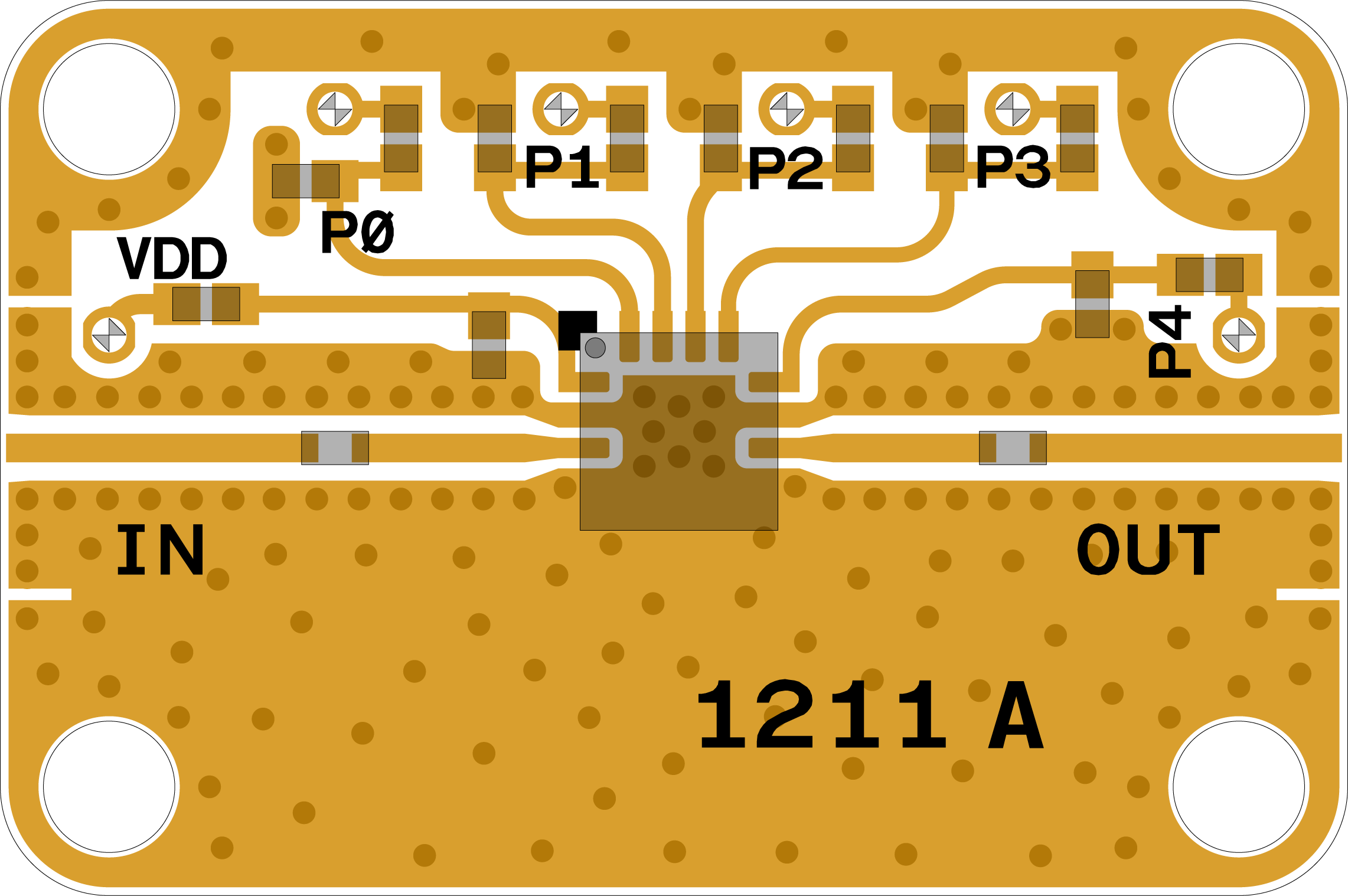

XM-B8C8-0604D	1211_WEB	CMD279C3	$224.00	Qorvo	5-Bit	2000 MHz	18000 MHz	15.5 dB	0.2 dB	3.5 dB	N/A	XR-B8C8-0604D	Request Quote
XM-B8C9-0604C-01	0604A	CMD280C3	$605.00	Qorvo	5-Bit	0 MHz	18000 MHz	15.5 dB	0.1 dB	3.0 dB	N/A	XR-B8C9-0604C-01	Request Quote

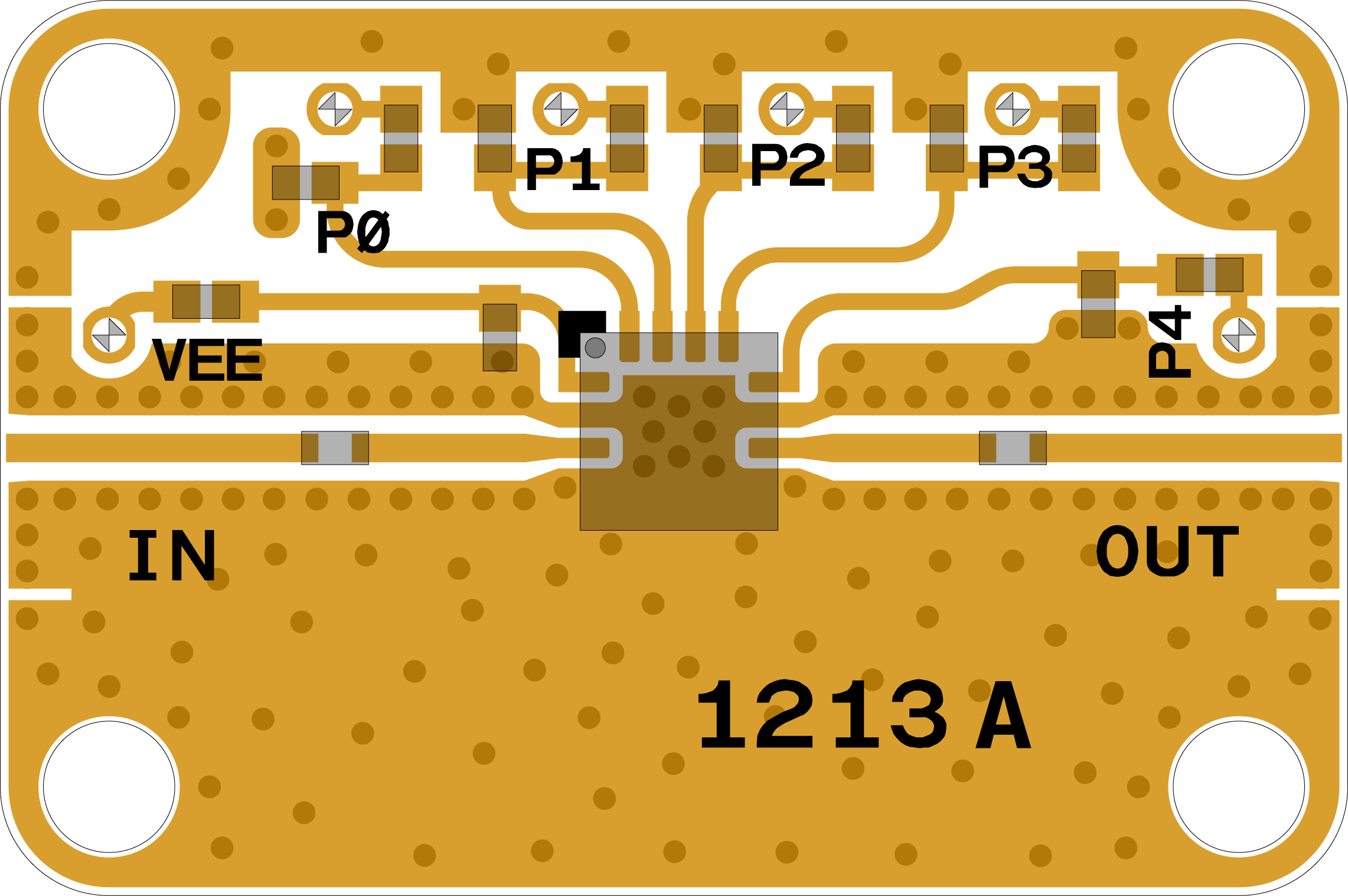

XM-B8C9-0604D	1213_WEB	CMD280C3	$224.00	Qorvo	5-Bit	0 MHz	18000 MHz	15.5 dB	0.1 dB	3.0 dB	N/A	XR-B8C9-0604D	Request Quote
XM-B8D1-0404C-01	0404A	CMD281C3	$383.00	Qorvo	2-Bit	0 MHz	22000 MHz	6 dB	0.1 dB	1.5 dB	N/A	XR-B8D1-0404C-01	Request Quote
XM-B8D1-0404D	1214_WEB	CMD281C3	$169.00	Qorvo	2-Bit	0 MHz	22000 MHz	6 dB	0.1 dB	1.5 dB	N/A	XR-B8D1-0404D	Request Quote
XM-B8D2-0404C-01	0404A	CMD282C3	$370.00	Qorvo	2-Bit	0 MHz	22000 MHz	12 dB	0.2 dB	1.9 dB	N/A	XR-B8D2-0404C-01	Request Quote
XM-B8D2-0404D	1214_WEB	CMD282C3	$156.00	Qorvo	2-Bit	0 MHz	22000 MHz	12 dB	0.2 dB	1.9 dB	N/A	XR-B8D2-0404D	Request Quote
XM-B9U9-0804C-01	0804A	ADRF5730BCCZN	$944.00	ADI	6-bit	100 MHz	40000 MHz	31.5 dB	0.5 dB	4.8 dB	N/A	XR-B9U9-0804C-01	Request Quote
XM-B9U9-0804C-02	0804A-1	ADRF5730BCCZN	$1,086.00	ADI	6-bit	100 MHz	40000 MHz	31.5 dB	0.5 dB	4.8 dB	N/A	XR-B9U9-0804C-02	Request Quote
XM-B9U9-0804D	0939_WEB	ADRF5730BCCZN	$408.00	ADI	6-bit	100 MHz	40000 MHz	31.5 dB	0.5 dB	4.8 dB	N/A	XR-B9U9-0804D	Request Quote
XM-C377-0804C-01	0804A	ADRF5731	$1,060.00	ADI	4-Bit	100 MHz	40000 MHz	30 dB	2 dB	3.5 dB	N/A	XR-C377-0804C-01	Request Quote

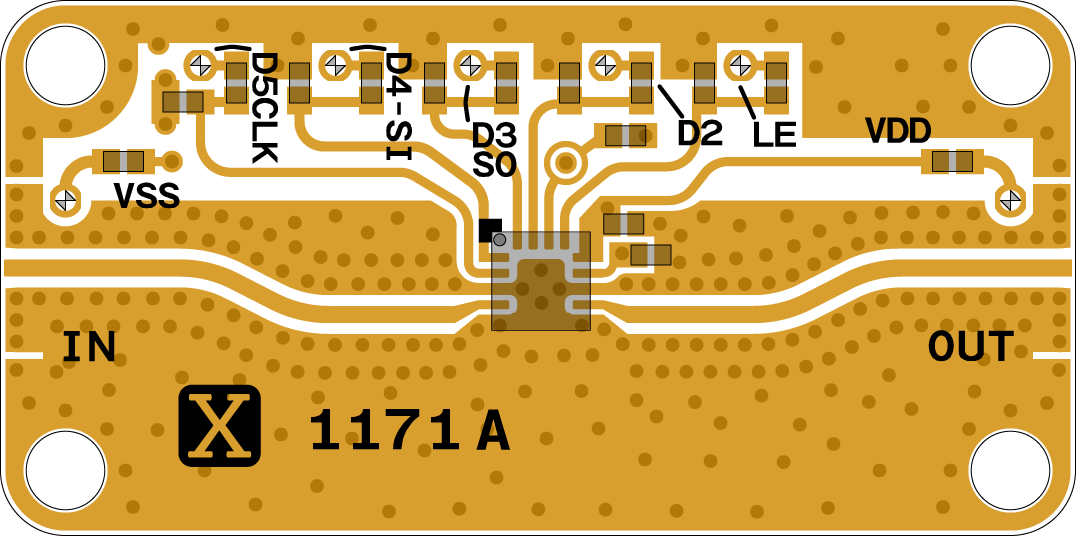

XM-C377-0804D	1171_WEB	ADRF5731	$435.00	ADI	4-Bit	100 MHz	40000 MHz	30 dB	2 dB	3.5 dB	N/A	XR-C377-0804D	Request Quote
XM-C378-0804C-01	0804A	ADRF5721	$915.00	ADI	4-Bit	0.009 MHz	40000 MHz	30 dB	2 dB	3.4 dB	N/A	XR-C378-0804C-01	Request Quote
XM-C378-0804D	1171_WEB	ADRF5721	$462.00	ADI	4-Bit	0.009 MHz	40000 MHz	30 dB	2 dB	3.4 dB	N/A	XR-C378-0804D	Request Quote
XM-C3T2-0804C-01	0804A	RFSA3715	$591.00	Qorvo	7-Bit	5 MHz	4000 MHz	31.75 dB	0.25 dB	1.5 dB	N/A	XR-C3T2-0804C-01	Request Quote
XM-C3T2-0804D	1602_WEB	RFSA3715	$196.00	Qorvo	7-Bit	5 MHz	4000 MHz	31.75 dB	0.25 dB	1.5 dB	N/A	XR-C3T2-0804D	Request Quote

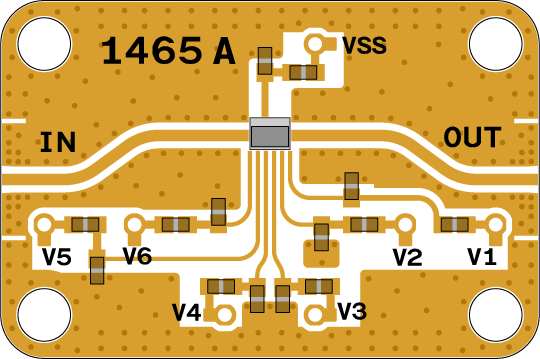

XM-C3U9-0604D	1465_WEB	HMC424A-DIE	QUOTE	ADI	Parallel	0 MHz	13000 MHz	31.5 dB	0.5 dB	4.2 dB	N/A	XR-C3U9-0604D	Request Quote

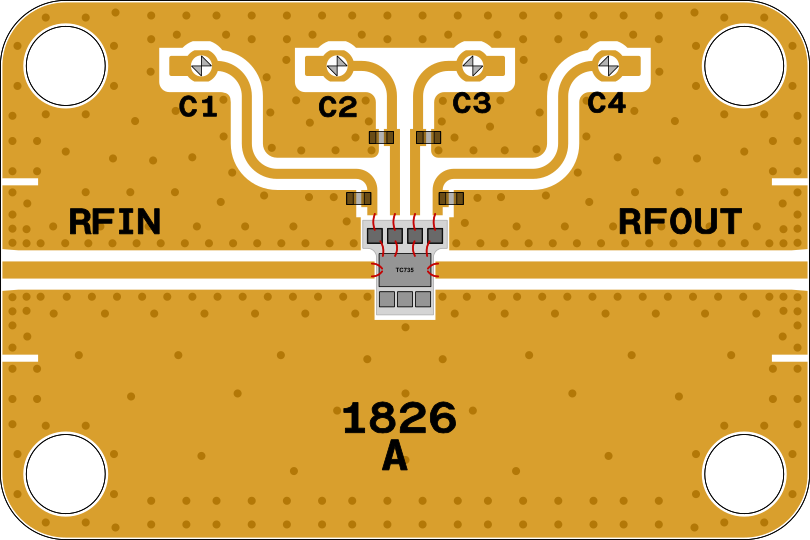

XM-C4R4-0604D	1826_WEB	TC297P / 1GC1-4289	QUOTE	Keysight	N/A	0 MHz	6000 MHz	15 dB	5 dB	N/A	Parallel		Request Quote

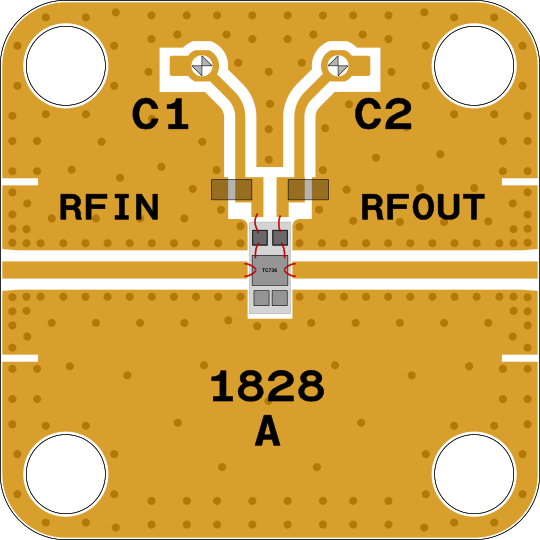

XM-C4R5-0404D	1828_WEB	TC297P / 1GC1-4289	QUOTE	Keysight	N/A	0 MHz	6000 MHz	20 dB	20 dB	N/A	Parallel		Request Quote

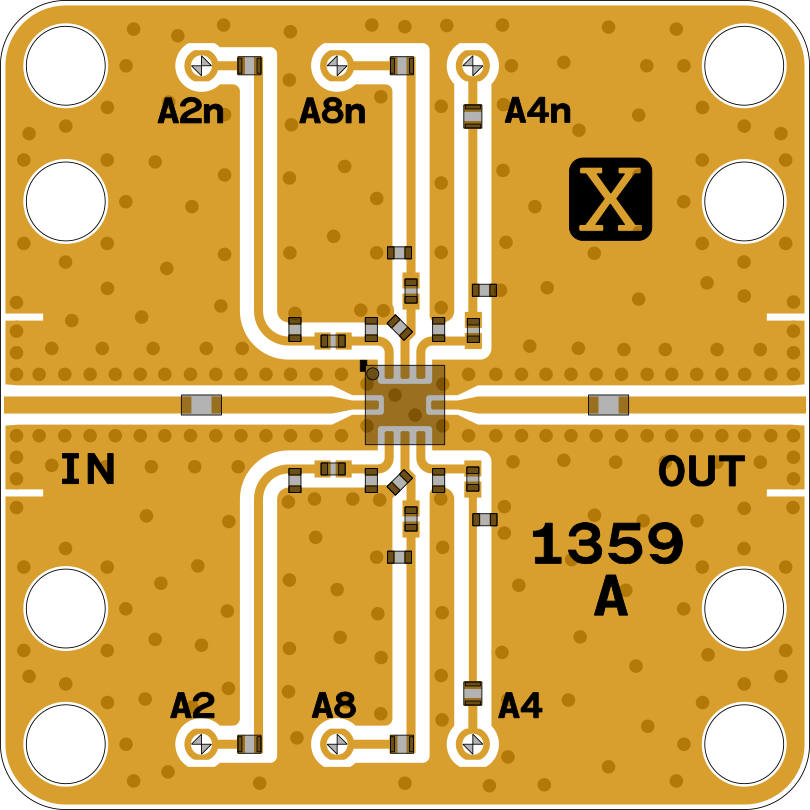

XM-C774-0606D	1359_WEB	TC297P / 1GC1-4289	QUOTE	Keysight	nanoFET	0 MHz	25000 MHz	14 dB	2 dB	N/A	Parallel		Request Quote

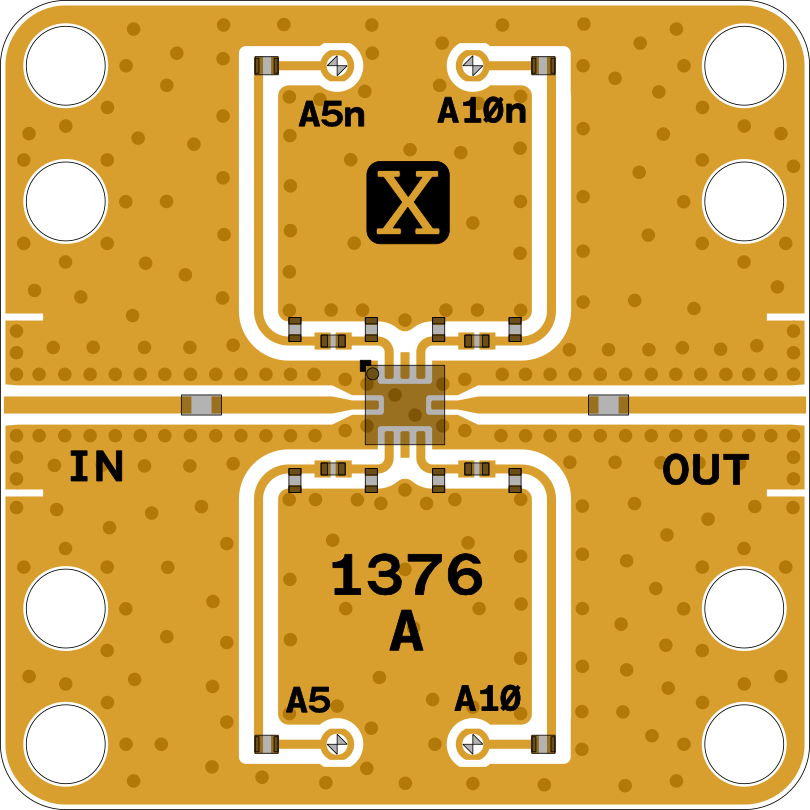

XM-C775-0606D	1376_WEB	TC297P / 1GC1-4289	QUOTE	Keysight	nanoFET	0 MHz	30000 MHz	10 dB	5 dB	N/A	Parallel		Request Quote

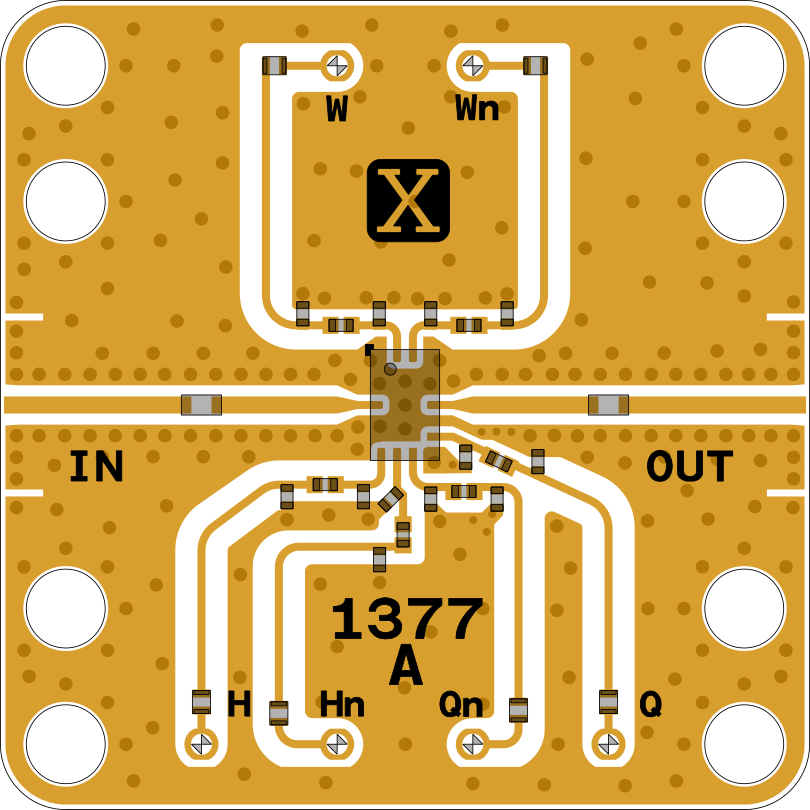

XM-C776-0606D	1377_WEB	TC297P / 1GC1-4289	$694.00	Keysight	nanoFET	0 MHz	40000 MHz	1.75 dB	0.25 dB	N/A	Parallel		Request Quote

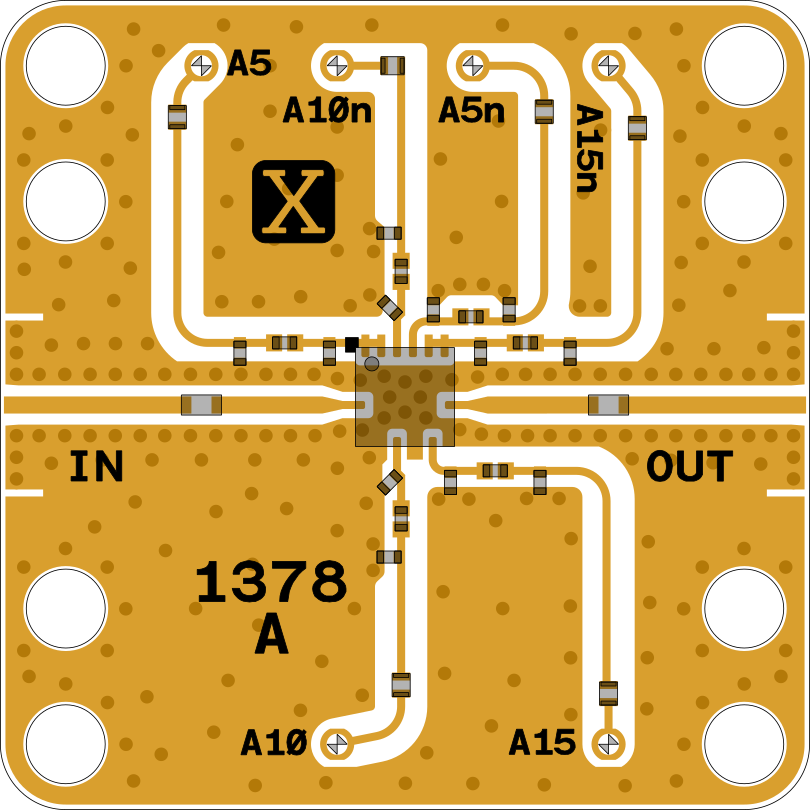

XM-C777-0606D	1378_WEB	TC297P / 1GC1-4289	QUOTE	Keysight	nanoFET	0 MHz	50000 MHz	30 dB	5 dB	N/A	Parallel		Request Quote
XM-C9G4-0804D	0939_WEB	ADRF5720	$406.00	ADI	6-bit	0.009 MHz	40000 MHz	31.5 dB	0.5 dB	4.5 dB	Parallel	XR-C9G4-0804D	Request Quote
XM-D326-0804D	2089	ADRF5473	$518.00	ADI	6-bit	100 MHz	40000 MHz	31.5 dB	0.5 dB	1.7 dB	N/A	XR-D326-0804D	Request Quote
XM-D3A1-0804D	0804A-1	ADRF5730BCCZN	QUOTE	ADI	N/A	100 MHz	40000 MHz	31.5 dB	0.5 dB	4.8 dB	N/A	XR-D3A1-0804D	Request Quote
XM-D4J4-0604D	2085	ADRF5474	QUOTE	ADI	4-Bit	10 MHz	60000 MHz	22 dB	2 dB	2.7 dB	Parallel	XR-D4J4-0604D	Request Quote
