• Limiter
1 - 45 of 45 | Results Per Page | View |
1
Request Information Compare Items
Clear Filter

Feature Part

Feature Mfr

Drop-In/CON

Type

Low Freq (MHz)

Min:Max:
Available Range: 0 to 8000

High Freq (MHz)

Min:Max:
Available Range: 512 to 65000

IL (dB)

Min:Max:
Available Range: 0.05 to 1.4

Flat Leakage (dBm)

Min:Max:
Available Range: 0 to 23.5

Pmax (dBm)

Min:Max:
Available Range: 19 to 50

Connector Series

  • 1.85mm
  • SuperSMA

XM Part Number


Feature Part

Feature Mfr

Type

Low Freq

High Freq

IL

Flat Leakage

Pmax

RoHS

Buy Direct
(Intl. add 15%)

Request Quote
XM-A258-0404C
0404A
 		N/A RLM-33+ N/A Mini-Circuits N/A Distributed N/A 30 MHz N/A 3000 MHz N/A 0.23 dB N/A 11.5 dBm N/A 30 dBm N/A
XR-A258-0404C 		$301.00 Request Quote
XM-A258-0404D
0039_WEB
 		N/A RLM-33+ N/A Mini-Circuits N/A Distributed N/A 30 MHz N/A 3000 MHz N/A 0.23 dB N/A 11.5 dBm N/A 30 dBm N/A
XR-A258-0404D 		$122.00 Request Quote
XM-A259-0404C
0404A
 		N/A RLM-33-2W+ N/A Mini-Circuits N/A Distributed N/A 0.2 MHz N/A 3000 MHz N/A 0.25 dB N/A 13 dBm N/A 33 dBm N/A
XR-A259-0404C 		$317.00 Request Quote
XM-A259-0404D
0039_WEB
 		N/A RLM-33-2W+ N/A Mini-Circuits N/A Distributed N/A 0.2 MHz N/A 3000 MHz N/A 0.25 dB N/A 13 dBm N/A 33 dBm N/A
XR-A259-0404D 		$131.00 Request Quote
XM-A261-0404C
0404A
 		N/A RLM-63-2W+ N/A Mini-Circuits N/A Distributed N/A 30 MHz N/A 6000 MHz N/A 0.3 dB N/A 11.5 dBm N/A 32 dBm N/A
XR-A261-0404C 		$341.00 Request Quote
XM-A261-0404D
0039_WEB
 		N/A RLM-63-2W+ N/A Mini-Circuits N/A Distributed N/A 30 MHz N/A 6000 MHz N/A 0.3 dB N/A 11.5 dBm N/A 32 dBm N/A
XR-A261-0404D 		$144.00 Request Quote
XM-A262-0404C
0404A
 		N/A RLM-521-2WL+ N/A Mini-Circuits N/A Distributed N/A 0.5 MHz N/A 520 MHz N/A 0.2 dB N/A 7 dBm N/A 32 dBm N/A
XR-A262-0404C 		$321.00 Request Quote
XM-A262-0404D
0039_WEB
 		N/A RLM-521-2WL+ N/A Mini-Circuits N/A Distributed N/A 0.5 MHz N/A 520 MHz N/A 0.2 dB N/A 7 dBm N/A 32 dBm N/A
XR-A262-0404D 		$136.00 Request Quote
XM-A263-0404C
0404A
 		N/A RLM-751-2WL+ N/A Mini-Circuits N/A Distributed N/A 3 MHz N/A 750 MHz N/A 0.2 dB N/A 8 dBm N/A 33 dBm N/A
XR-A263-0404C 		$325.00 Request Quote
XM-A263-0404D
0039_WEB
 		N/A RLM-751-2WL+ N/A Mini-Circuits N/A Distributed N/A 3 MHz N/A 750 MHz N/A 0.2 dB N/A 8 dBm N/A 33 dBm N/A
XR-A263-0404D 		$132.00 Request Quote
XM-A264-0404C
0404A
 		N/A CLM-83-2W+ N/A Mini-Circuits N/A N/A 30 MHz N/A 8200 MHz N/A 0.5 dB N/A 11.5 dBm N/A 32 dBm N/A
XR-A264-0404C 		QUOTE Request Quote
XM-A3L1-0404C-01
0404A
 		N/A PE45140 N/A pSemi N/A Power N/A 20 MHz N/A 2000 MHz N/A 0.2 dB N/A 23.5 dBm N/A 32 dBm N/A
XR-A3L1-0404C-01 		$249.00 Request Quote
XM-A3L1-0404D
0226_WEB
 		N/A PE45140 N/A pSemi N/A Power N/A 20 MHz N/A 2000 MHz N/A 0.2 dB N/A 23.5 dBm N/A 32 dBm N/A
XR-A3L1-0404D 		$141.00 Request Quote
XM-A765-0404C-01
0404A
 		N/A PE45361 N/A pSemi N/A Power N/A 10 MHz N/A 6000 MHz N/A 0.4 dB N/A 7 to 13 dBm N/A 30 dBm N/A
XR-A765-0404C-01 		$436.00 Request Quote
XM-A765-0404D
0226_WEB
 		N/A PE45361 N/A pSemi N/A Power N/A 10 MHz N/A 6000 MHz N/A 0.4 dB N/A 7 to 13 dBm N/A 30 dBm N/A
XR-A765-0404D 		$144.00 Request Quote
XM-A774-0404C
0404A
 		N/A TGL2208-SM N/A Qorvo N/A Dual Stage N/A 2000 MHz N/A 20000 MHz N/A 1 dB N/A 18 dBm N/A 35 dBm N/A
XR-A774-0404C 		$375.00 Request Quote
XM-A774-0404D
0773_WEB
 		N/A TGL2208-SM N/A Qorvo N/A Dual Stage N/A 2000 MHz N/A 20000 MHz N/A 1 dB N/A 18 dBm N/A 35 dBm N/A
XR-A774-0404D 		$224.00 Request Quote
XM-B1L7-0404C
0404A
 		N/A DLM-10SM N/A Marki Microwave N/A Dual Stage N/A 0 MHz N/A 10000 MHz N/A 0.75 dB N/A 10 dBm N/A 27 dBm N/A
XR-B1L7-0404C 		$392.00 Request Quote
XM-B1L7-0404C-01
0404A
 		N/A DLM-10SM N/A Marki Microwave N/A Dual Stage N/A 0 MHz N/A 10000 MHz N/A 0.75 dB N/A 10 dBm N/A 27 dBm N/A
XR-B1L7-0404C-01 		$596.00 Request Quote
XM-B1L7-0404D
0902_WEB
 		N/A DLM-10SM N/A Marki Microwave N/A Tunable N/A 0 MHz N/A 10000 MHz N/A 0.75 dB N/A 10 dBm N/A 27 dBm N/A
XR-B1L7-0404D 		$208.00 Request Quote
XM-B1P6-0204C
0204A
 		N/A TGL2217 N/A Qorvo N/A High Pwr N/A 100 MHz N/A 20000 MHz N/A 0.7 dB N/A 18.5 dBm N/A 33 dBm N/A
XR-B1P6-0204C 		$610.00 Request Quote
XM-B1P6-0204D
0938_WEB
 		N/A TGL2217 N/A Qorvo N/A High Pwr N/A 100 MHz N/A 20000 MHz N/A 0.7 dB N/A 18.5 dBm N/A 33 dBm N/A
XR-B1P6-0204D 		$463.00 Request Quote
XM-B1W8-0404C-01
0404A
 		N/A TC231 / 1GC1-8053 N/A Keysight N/A Diode N/A 0 MHz N/A 65000 MHz N/A N/A N/A 19 dBm N/A
XR-B1W8-0404C-01 		$1,003.00 Request Quote
XM-B1W8-0404D
0903_WEB
 		N/A TC231 / 1GC1-8053 N/A Keysight N/A Diode N/A 0 MHz N/A 65000 MHz N/A N/A N/A 19 dBm N/A
XR-B1W8-0404D 		$762.00 Request Quote
XM-B2D2-0404C
0404A
 		N/A TGL2217-SM N/A Qorvo N/A High Pwr N/A 100 MHz N/A 20000 MHz N/A 0.9 dB N/A 18.5 dBm N/A 33 dBm N/A
XR-B2D2-0404C 		$346.00 Request Quote
XM-B2D2-0404D
0709_WEB
 		N/A TGL2217-SM N/A Qorvo N/A High Pwr N/A 100 MHz N/A 20000 MHz N/A 0.9 dB N/A 18.5 dBm N/A 33 dBm N/A
XR-B2D2-0404D 		$181.00 Request Quote
XM-B5Y4-0404C
0404A
 		N/A RLM-33H+ N/A Mini-Circuits N/A Distributed N/A 30 MHz N/A 3000 MHz N/A 0.23 dB N/A 18 dBm N/A 30 dBm N/A
XR-B5Y4-0404C 		$325.00 Request Quote
XM-B5Y4-0404D
0039_WEB
 		N/A RLM-33H+ N/A Mini-Circuits N/A Distributed N/A 30 MHz N/A 3000 MHz N/A 0.23 dB N/A 18 dBm N/A 30 dBm N/A
XR-B5Y4-0404D 		$132.00 Request Quote
XM-B7M9-0404D

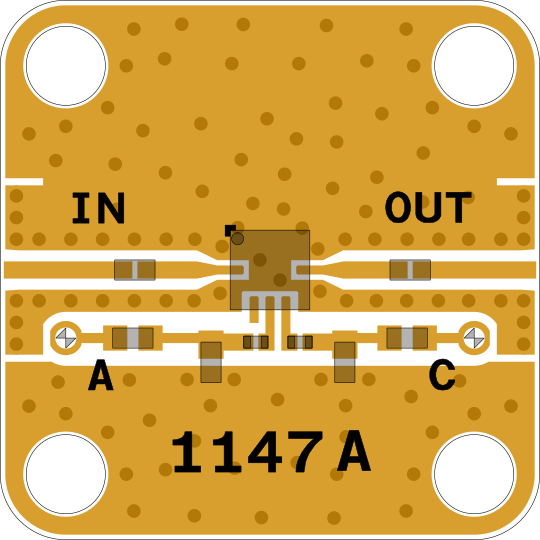

1147_WEB
 		N/A TC231P N/A Keysight N/A N/A 0 MHz N/A 20000 MHz N/A 0.2 dB N/A 10 dBm N/A 19 dBm N/A
XR-B7M9-0404D 		QUOTE Request Quote
XM-B975-0404D
1380PCB
 		N/A TGL2210-SM N/A Qorvo N/A High Pwr N/A 50 MHz N/A 6000 MHz N/A 0.7 dB N/A 17 dBm N/A 48.45 dBm N/A
XR-B975-0404D 		$228.00 Request Quote
XM-B9A4-0404C-01
0404A
 		N/A RLM-43-5W+ N/A Mini-Circuits N/A N/A 20 MHz N/A 4000 MHz N/A 0.36 dB N/A 12 dBm N/A 37 dBm N/A
XR-B9A4-0404C-01 		$254.00 Request Quote
XM-B9A4-0404D
0039_WEB
 		N/A RLM-43-5W+ N/A Mini-Circuits N/A N/A 20 MHz N/A 4000 MHz N/A 0.36 dB N/A 12 dBm N/A 37 dBm N/A
XR-B9A4-0404D 		$156.00 Request Quote
XM-C1A4-0204D
1949
 		N/A HLM-40CH N/A Marki Microwave N/A High Pwr N/A 0 MHz N/A 40000 MHz N/A 0.5 dB N/A 18 dBm N/A 36 dBm N/A
XR-C1A4-0204D 		$596.00 Request Quote
XM-C465-0204D

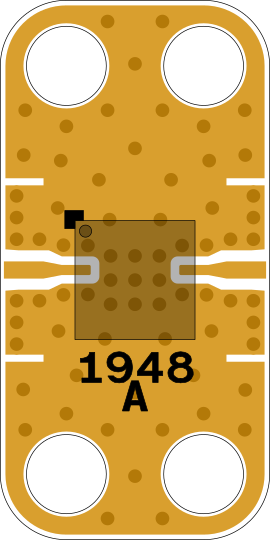

1948_WEB
 		N/A TC626P/1GG5-6205 N/A Keysight N/A N/A 0 MHz N/A 26500 MHz N/A 0.15 dB N/A N/A 33 dBm N/A
XR-C465-0204D 		QUOTE Request Quote
XM-C8H2-0706D
1911_WEB
 		N/A RLM-23-1WL+ N/A Mini-Circuits N/A N/A 100 MHz N/A 2500 MHz N/A 0.7 dB N/A 0 dBm N/A 30 dBm N/A
XR-C8H2-0706D 		$220.00 Request Quote
XM-C9Y4-0404D
1697_WEB
 		N/A TGL2209-SM N/A Qorvo N/A High Pwr N/A 8000 MHz N/A 12000 MHz N/A 0.5 dB N/A 18.5 dBm N/A 40 dBm N/A
XR-C9Y4-0404D 		$217.00 Request Quote
XM-D1U7-0304D
2290
 		N/A CLA4606-085LF N/A Skyworks N/A High Pwr N/A 10 MHz N/A 6000 MHz N/A 0.2 dB N/A 18 dBm N/A 37 dBm N/A
XR-D1U7-0304D 		$60.00 Request Quote
XM-D368-0304D

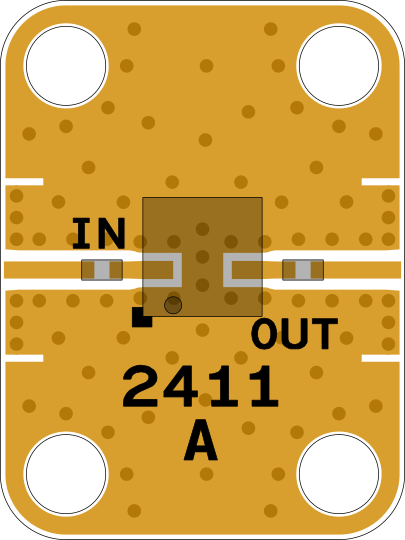

2411_WEB
 		N/A CLM-83-2W+ N/A Mini-Circuits N/A N/A 30 MHz N/A 8200 MHz N/A 0.5 dB N/A 11.5 dBm N/A 32 dBm N/A
XR-D368-0304D 		QUOTE Request Quote
XM-D459-0304D

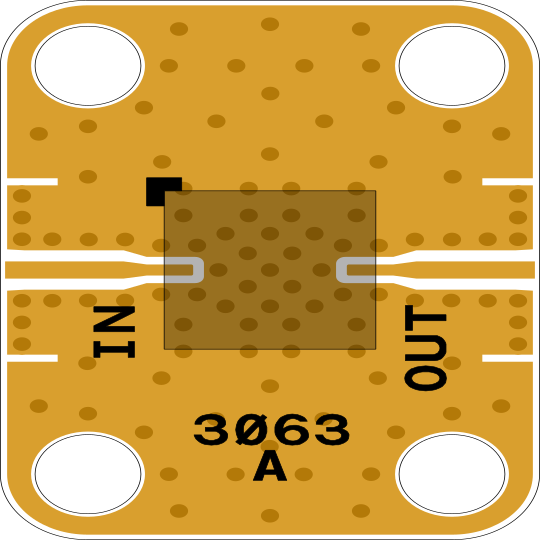

3063_WEB
 		N/A HLM-20PSM N/A Marki Microwave N/A N/A 0 MHz N/A 20000 MHz N/A 0.5 dB N/A 13 dBm N/A 37 dBm N/A
XR-D459-0304D 		QUOTE Request Quote
XM-D4C7-0604D

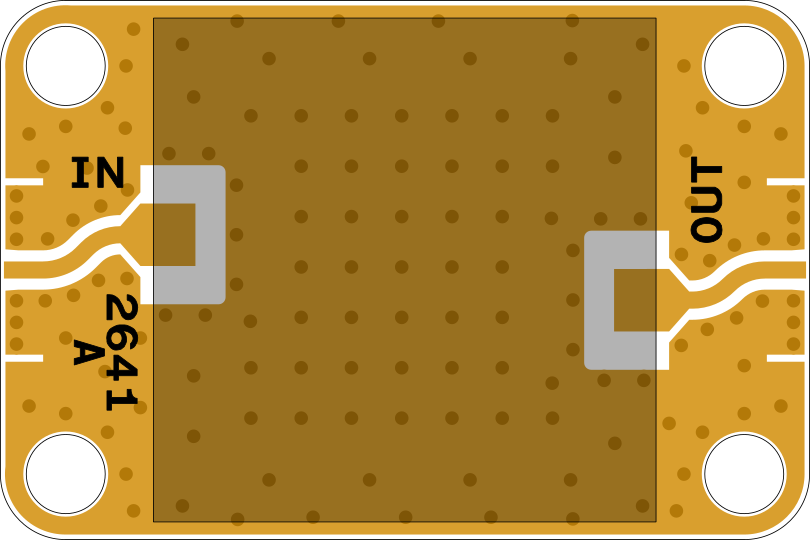

2641_WEB
 		N/A RLM-512-4WL+ N/A Mini-Circuits N/A N/A 50 MHz N/A 512 MHz N/A 0.58 dB N/A 3 dBm N/A 36 dBm N/A
XR-D4C7-0604D 		QUOTE Request Quote
XM-D4H7-0304D
2620_WEB
 		N/A HLM-40PSM N/A Marki Microwave N/A High Pwr N/A 0 MHz N/A 40000 MHz N/A 0.05 dB N/A 15 dBm N/A 34 dBm N/A
XR-D4H7-0304D 		$204.00 Request Quote
XM-D564-0404D

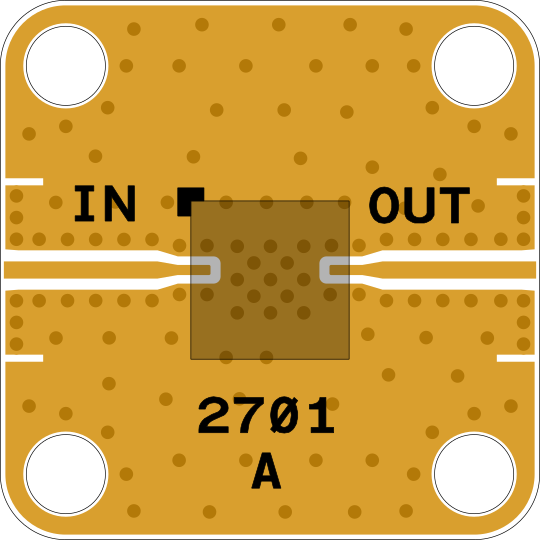

2701_WEB
 		N/A TGL2205-SM N/A Qorvo N/A N/A 2000 MHz N/A 6000 MHz N/A 0.6 dB N/A 16.5 dBm N/A 50 dBm N/A
XR-D564-0404D 		QUOTE Request Quote
XM-D789-0405D

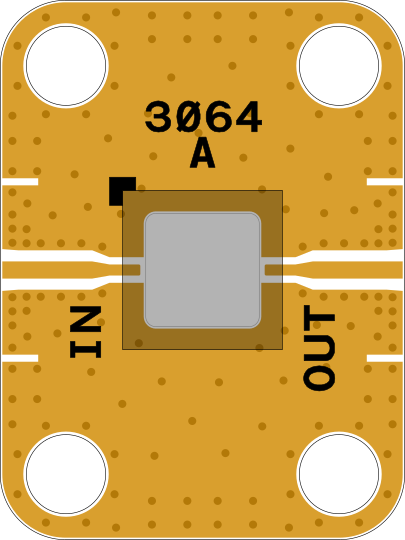

3064_WEB
 		N/A QPP0100 N/A Qorvo N/A N/A 6000 MHz N/A 12000 MHz N/A 1.2 dB N/A 21 dBm N/A 44 dBm N/A
XR-D789-0405D 		QUOTE Request Quote
XM-D7C4-0204D

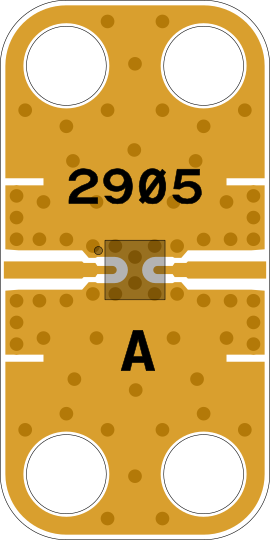

2905_WEB
 		N/A HLM-8010CSP1 N/A Marki Microwave N/A N/A 0 MHz N/A 40000 MHz N/A 1 dB N/A 8 dBm N/A 32.8 dBm N/A
XR-D7C4-0204D 		QUOTE Request Quote
XM-D7P1-0404D

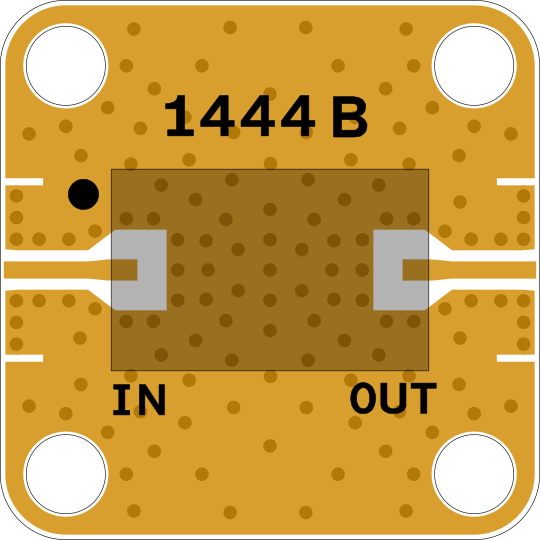

1444_WEB
 		N/A LM200802-M-A-300-T N/A Macom N/A N/A 20 MHz N/A 8000 MHz N/A 1.4 dB N/A 20 dBm N/A 43 dBm N/A
XR-D7P1-0404D 		QUOTE Request Quote
1 - 45 of 45 | Results Per Page | View |
1
