Downconverters On X-Microwave, LLC

1 - 10 of 10 | Results Per Page | View |

Request Information Compare Items

Clear Filter

Feature Part

Feature Mfr

Drop-In/CON

Type

LO Level (dBm)

Min:Max:
Available Range: 0 to 6

LO Low Freq (MHz)

Min:Max:
Available Range: 5400 to 10000

LO High Freq (MHz)

Min:Max:
Available Range: 10250 to 16000

RF Low Freq (MHz)

Min:Max:
Available Range: 10000 to 24000

RF High Freq (MHz)

Min:Max:
Available Range: 16000 to 44000

IF Low Freq (MHz)

Min:Max:
Available Range: 0 to 800

IF High Freq (MHz)

Min:Max:
Available Range: 3500 to 6000

Gain (dB)

Min:Max:
Available Range: 12 to 17

Connector Series

2.4mm
SuperSMA

XM Part Number	Image	Feature Part	Feature Mfr	Type	LO Level	LO Low Freq	LO High Freq	RF Low Freq	RF High Freq	IF Low Freq	IF High Freq	Gain	RoHS	Buy Direct (Intl. add 15%)	Request Quote

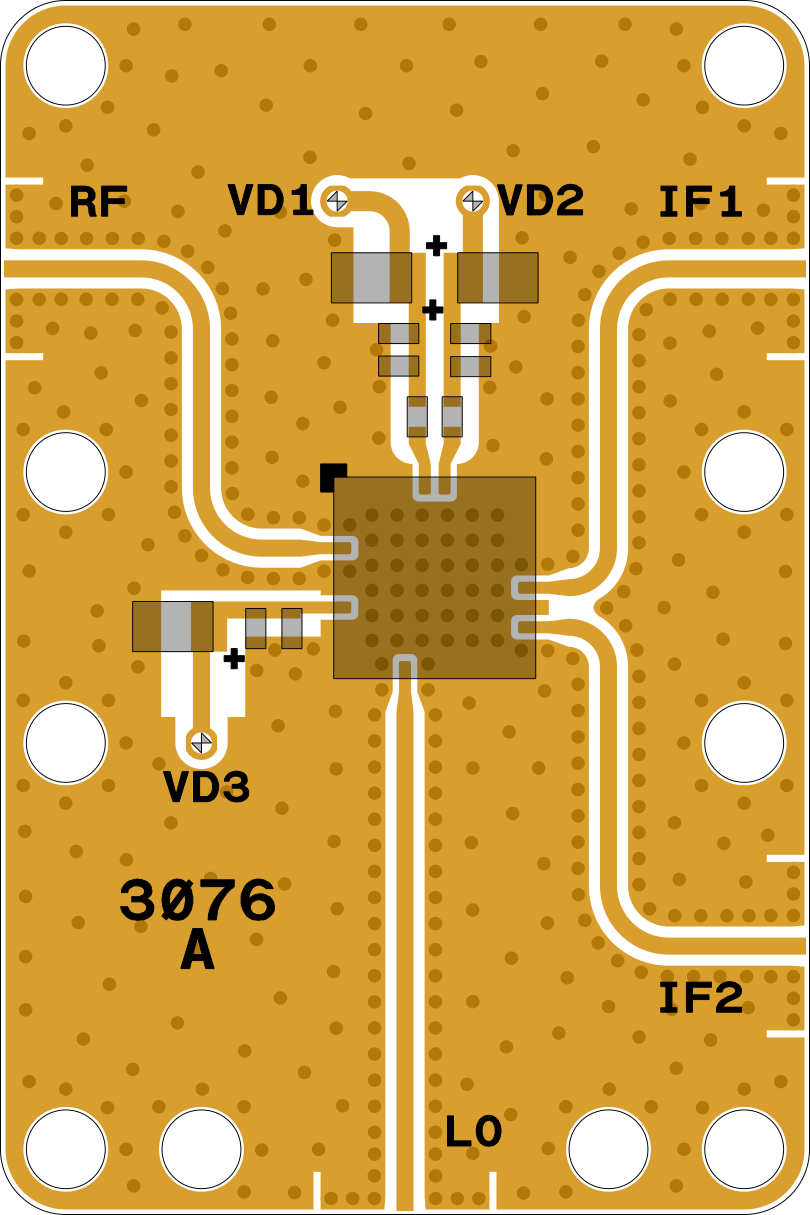

XM-B4U6-0409D	3076_WEB	N/A HMC1113LP5E	N/A ADI	N/A	N/A 6 dBm	N/A 10000 MHz	N/A 16000 MHz	N/A 10000 MHz	N/A 16000 MHz	N/A 0 MHz	N/A 3500 MHz	N/A 12 dB	N/A XR-B4U6-0409D	QUOTE	Request Quote

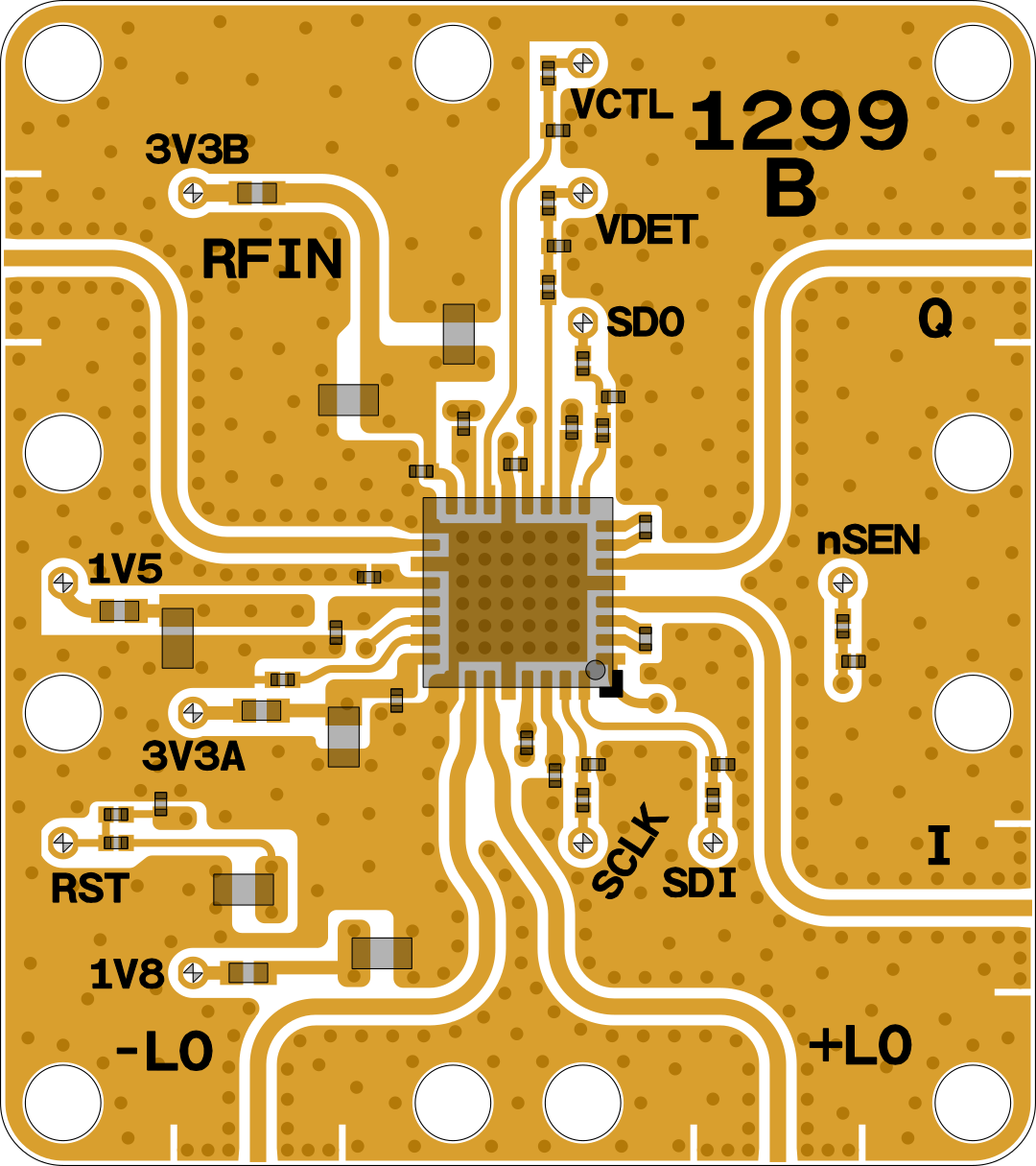

XM-B914-0809D	1299_WEB	N/A ADMV1014ACCZ	N/A ADI	N/A	N/A 0 dBm	N/A 5400 MHz	N/A 10250 MHz	N/A 24000 MHz	N/A 44000 MHz	N/A 800 MHz	N/A 6000 MHz	N/A 17 dB	N/A XR-B914-0809D	QUOTE	Request Quote
XM-B9U6-0919C-01	TBD	N/A ADMV1014ACCZ	N/A ADI	N/A IQ	N/A 0 dBm	N/A 5400 MHz	N/A 10250 MHz	N/A 24000 MHz	N/A 44000 MHz	N/A 800 MHz	N/A 6000 MHz	N/A 17 dB	N/A XR-B9U6-0919C-01	$2,186.00	Request Quote
XM-B9U6-0919D	1525_WEB	N/A ADMV1014ACCZ	N/A ADI	N/A IQ	N/A 0 dBm	N/A 5400 MHz	N/A 10250 MHz	N/A 24000 MHz	N/A 44000 MHz	N/A 800 MHz	N/A 6000 MHz	N/A 17 dB	N/A XR-B9U6-0919D	$712.00	Request Quote
XM-B9U7-0909C-01	TBD	N/A ADMV1014ACCZ	N/A ADI	N/A IQ	N/A 0 dBm	N/A 5400 MHz	N/A 10250 MHz	N/A 24000 MHz	N/A 44000 MHz	N/A 800 MHz	N/A 6000 MHz	N/A 17 dB	N/A XR-B9U7-0909C-01	$1,854.00	Request Quote
XM-B9U7-0909D	1526_WEB	N/A ADMV1014ACCZ	N/A ADI	N/A IQ	N/A 0 dBm	N/A 5400 MHz	N/A 10250 MHz	N/A 24000 MHz	N/A 44000 MHz	N/A 800 MHz	N/A 6000 MHz	N/A 17 dB	N/A XR-B9U7-0909D	$630.00	Request Quote
XM-C6H9-0409D	1557_WEB	N/A HMC977LP4E	N/A ADI	N/A IQ	N/A 6 dBm	N/A 8300 MHz	N/A 15700 MHz	N/A 20000 MHz	N/A 28000 MHz	N/A 0 MHz	N/A 3500 MHz	N/A 14 dB	N/A XR-C6H9-0409D	$222.00	Request Quote

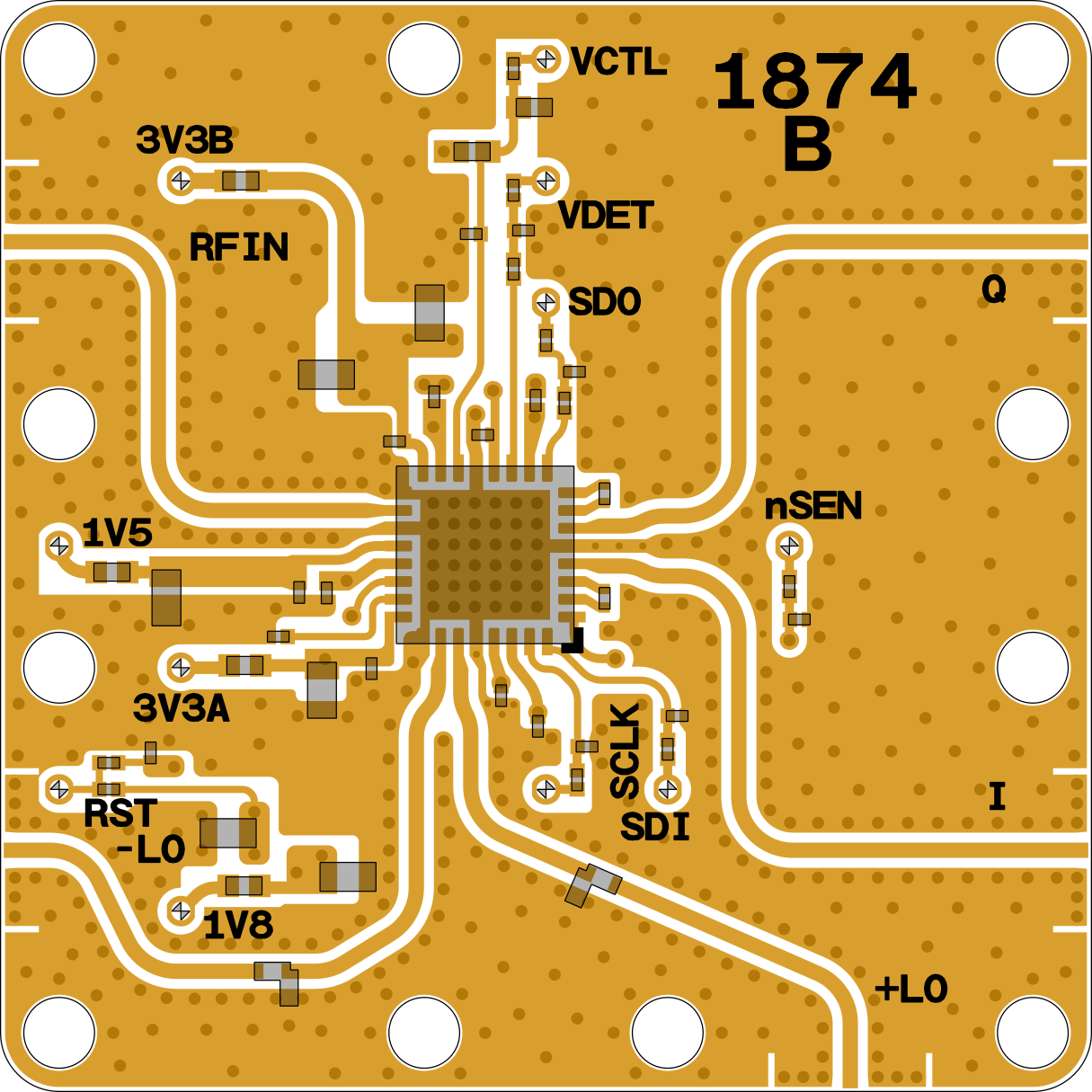

XM-C9K8-0909D	1874_WEB	N/A ADMV1014ACCZ	N/A ADI	N/A	N/A 0 dBm	N/A 5400 MHz	N/A 10250 MHz	N/A 24000 MHz	N/A 44000 MHz	N/A 800 MHz	N/A 6000 MHz	N/A 17 dB	N/A XR-C9K8-0909D	QUOTE	Request Quote

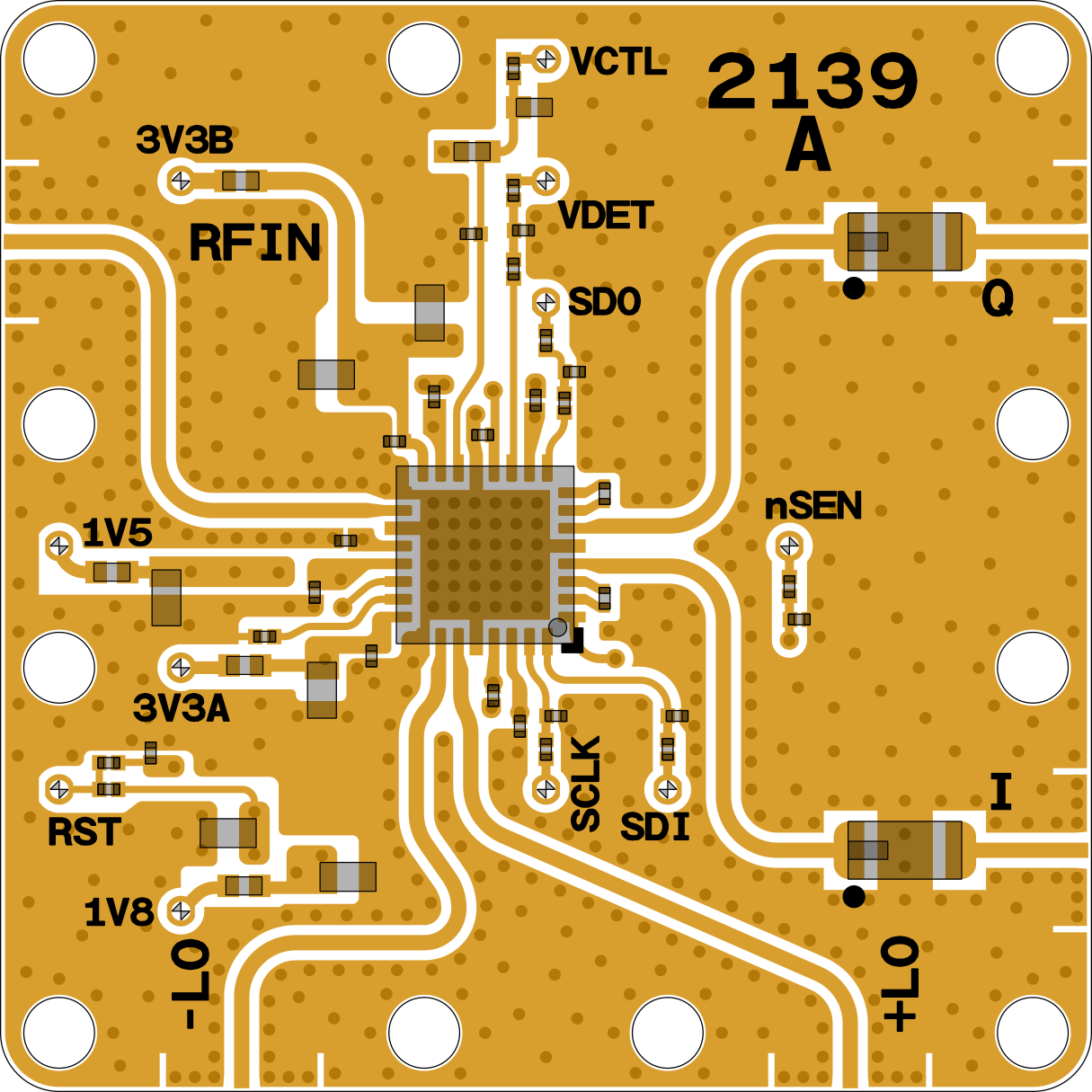

XM-D149-0909D	2139_WEB	N/A ADMV1014ACCZ	N/A ADI	N/A	N/A 0 dBm	N/A 5400 MHz	N/A 10250 MHz	N/A 24000 MHz	N/A 44000 MHz	N/A 800 MHz	N/A 6000 MHz	N/A 17 dB	N/A XR-D149-0909D	QUOTE	Request Quote

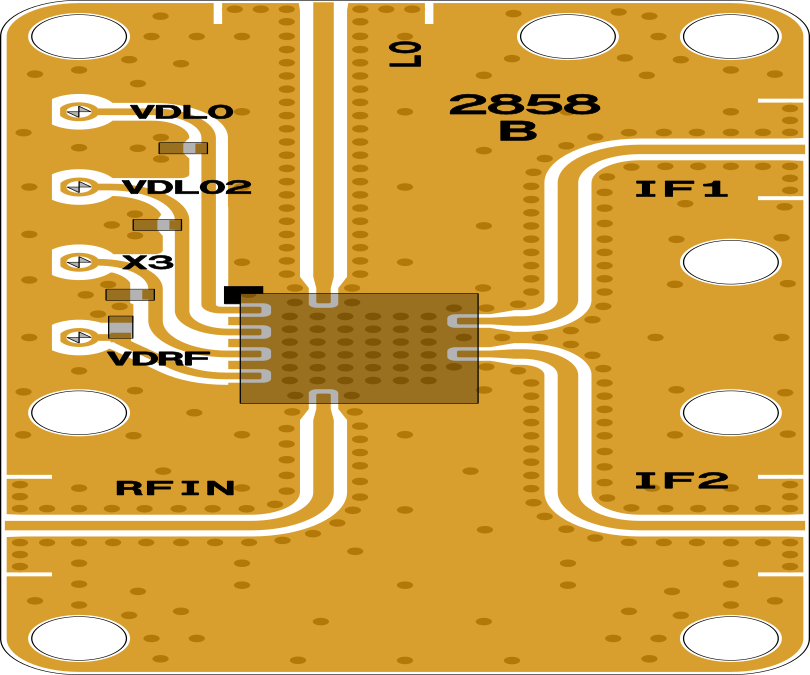

XM-D647-0509D	2858_WEB	N/A HMC904LC5	N/A ADI	N/A	N/A 4 dBm	N/A 7500 MHz	N/A 12300 MHz	N/A 17000 MHz	N/A 24000 MHz	N/A 0 MHz	N/A 3500 MHz	N/A 12 dB	N/A XR-D647-0509D	QUOTE	Request Quote
