XM-D149-0909D
XR-D149-0909D ROHS

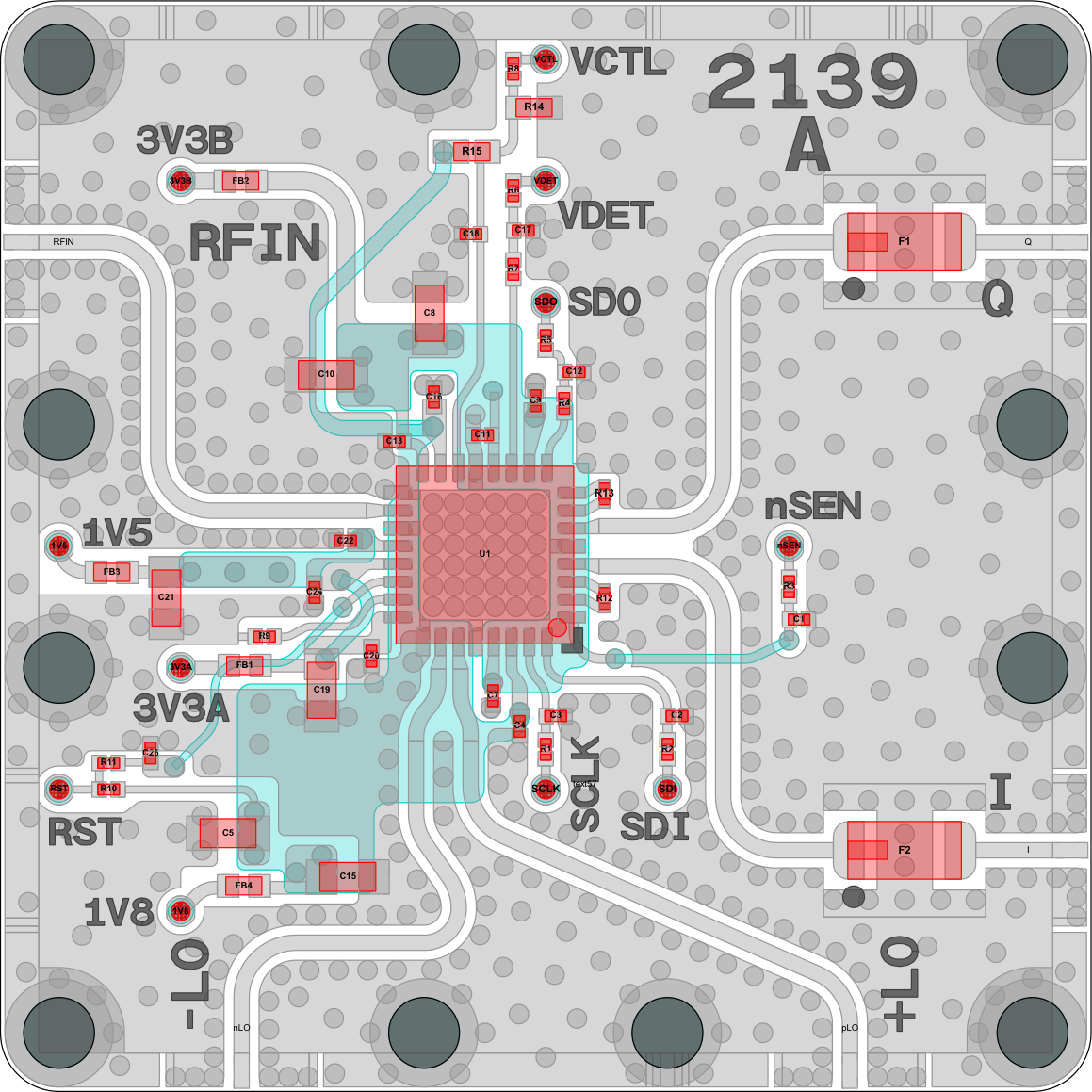

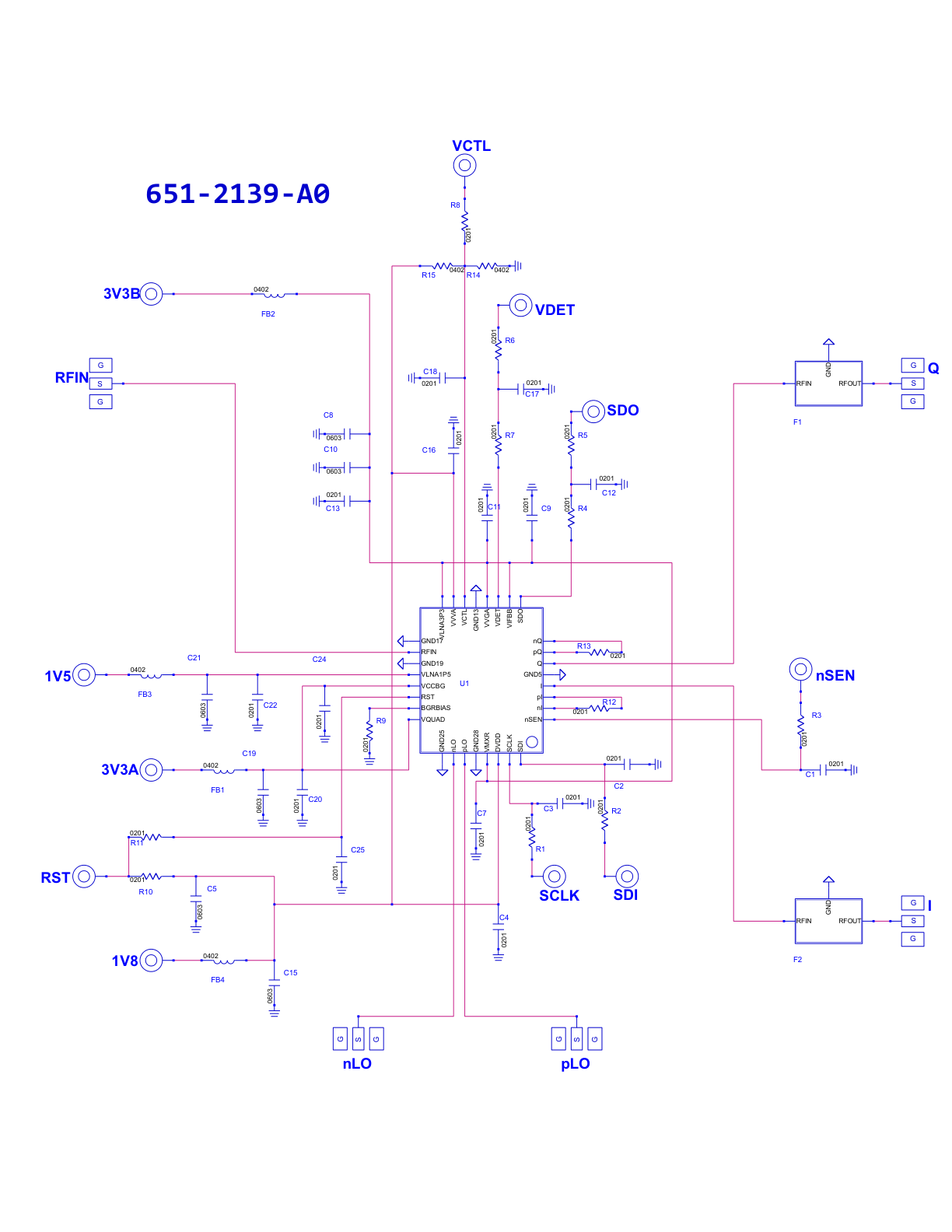

Downconverter, ADMV1014ACCZ [PCB: 2139]
Recommended Bias Controller: XM-B916-0809D-SP
Product Page |
N/A ADI |
Spec Sheet |
N/A ADMV1014ACCZ |
LO Level |
N/A 0 dBm |
LO Low Freq |
N/A 5400 MHz |
LO High Freq |
N/A 10250 MHz |
RF Low Freq |
N/A 24000 MHz |
RF High Freq |
N/A 44000 MHz |
IF Low Freq |
N/A 800 MHz |
IF High Freq |
N/A 6000 MHz |
Gain |
N/A 17 dB |
Part Number |
N/A XR-D149-0909D |
