• Detector
1 - 49 of 49 | Results Per Page | View |
1
Request Information Compare Items
Clear Filter

Feature Part

Feature Mfr

Drop-In/CON

Connector Series

  • 2.4mm
  • 2.92mm
  • SuperSMA

Type

Low Freq (MHz)

Min:Max:
Available Range: 1 to 10000

High Freq (MHz)

Min:Max:
Available Range: 4000 to 67000

Pin Low (dBm)

Min:Max:
Available Range: -70 to -15

Pin High (dBm)

Min:Max:
Available Range: -10 to 54

XM Part Number


Feature Part

Feature Mfr

Type

Low Freq

High Freq

Pin Low

Pin High

Buy Direct
(Intl. add 15%)

RoHS

Request Quote
XM-A2U5-0404C-01
0404A
 		N/A AD8319ACPZ N/A ADI N/A Logarithmic N/A 1 MHz N/A 10000 MHz N/A -44 dBm N/A -4 dBm $458.00 N/A
XR-A2U5-0404C-01 		Request Quote
XM-A2U5-0404D
0133_WEB
 		N/A AD8319ACPZ N/A ADI N/A Logarithmic N/A 1 MHz N/A 10000 MHz N/A -44 dBm N/A -4 dBm $111.00 N/A
XR-A2U5-0404D 		Request Quote
XM-A411-0404D
1423_WEB
 		N/A HMC602LP4E N/A ADI N/A N/A 1 MHz N/A 8000 MHz N/A -70 dBm N/A 10 dBm $173.00 N/A
XR-A411-0404D 		Request Quote
XM-A412-0404D
1959-A
 		N/A HMC662LP3E N/A ADI N/A Logarithmic N/A 8000 MHz N/A 30000 MHz N/A -60 dBm N/A 10 dBm $1,972.00 N/A
XR-A412-0404D 		Request Quote
XM-A593-0404D
2015_WEB
 		N/A GRF1201 N/A Guerrilla RF N/A Log Average N/A 10 MHz N/A 6000 MHz N/A -20 dBm N/A 20 dBm $91.00 N/A
XR-A593-0404D 		Request Quote
XM-A5W4-0404C-01
0404A
 		N/A AD8317ACPZ-R7 N/A ADI N/A Logarithmic N/A 1 MHz N/A 10000 MHz N/A -54 dBm N/A -4 dBm $467.00 N/A
XR-A5W4-0404C-01 		Request Quote
XM-A5W4-0404D
0133_WEB
 		N/A AD8317ACPZ-R7 N/A ADI N/A Logarithmic N/A 1 MHz N/A 10000 MHz N/A -54 dBm N/A -4 dBm $120.00 N/A
XR-A5W4-0404D 		Request Quote
XM-A5W5-0404C-01
0404A
 		N/A AD8318ACPZ N/A ADI N/A Logarithmic N/A 1 MHz N/A 8000 MHz N/A -58 dBm N/A -1 dBm $466.00 N/A
XR-A5W5-0404C-01 		Request Quote
XM-A5W5-0404D
0625_WEB
 		N/A AD8318ACPZ N/A ADI N/A Logarithmic N/A 1 MHz N/A 8000 MHz N/A -58 dBm N/A -1 dBm $119.00 N/A
XR-A5W5-0404D 		Request Quote

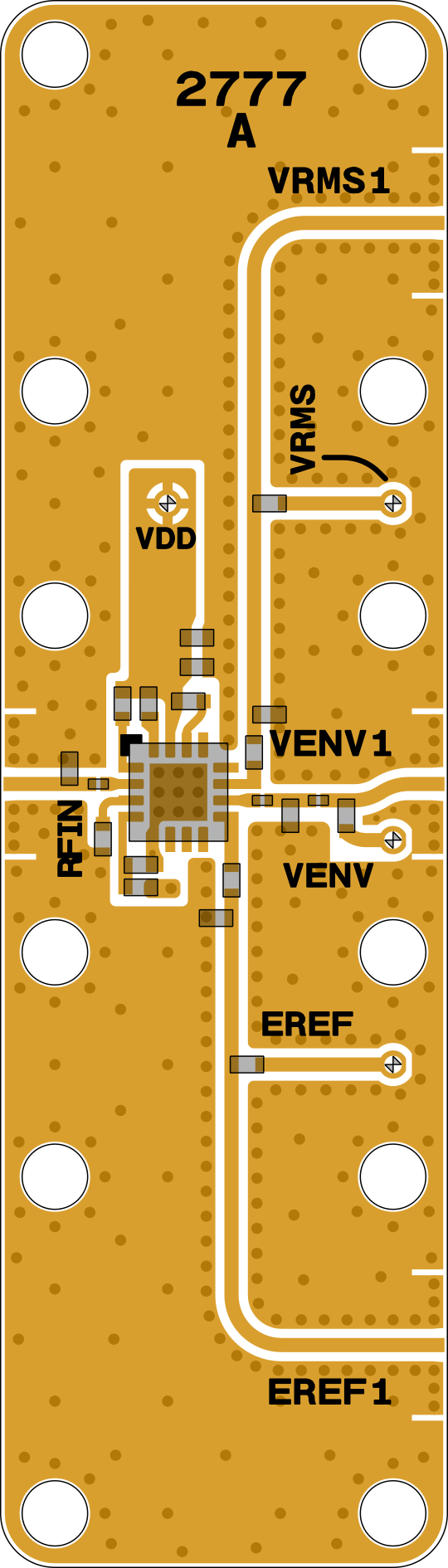

XM-A619-0414D
2777_WEB
 		N/A ADL5506ACBZ-R7 N/A ADI N/A N/A 30 MHz N/A 4500 MHz N/A -45 dBm N/A 5 dBm QUOTE N/A
XR-A619-0414D 		Request Quote
XM-A635-0404C-01
0404A
 		N/A ADL6010ACPZN N/A ADI N/A Envelope N/A 500 MHz N/A 43500 MHz N/A -30 dBm N/A 15 dBm $813.00 N/A
XR-A635-0404C-01 		Request Quote
XM-A635-0404D
0885_WEB
 		N/A ADL6010ACPZN N/A ADI N/A Envelope N/A 500 MHz N/A 43500 MHz N/A -30 dBm N/A 15 dBm $398.00 N/A
XR-A635-0404D 		Request Quote
XM-A6E6-0404C-01
0404A
 		N/A HMC948LP3E N/A ADI N/A Logarithmic N/A 1000 MHz N/A 23000 MHz N/A -47 dBm N/A 10 dBm $1,080.00 N/A
XR-A6E6-0404C-01 		Request Quote
XM-A6E6-0404D
0683_WEB
 		N/A HMC948LP3E N/A ADI N/A Logarithmic N/A 1000 MHz N/A 23000 MHz N/A -47 dBm N/A 10 dBm $973.00 N/A
XR-A6E6-0404D 		Request Quote
XM-A797-0404C-01
0404A
 		N/A HMC948LP3E N/A ADI N/A Logarithmic N/A 1000 MHz N/A 23000 MHz N/A -47 dBm N/A 10 dBm $1,080.00 N/A
XR-A797-0404C-01 		Request Quote
XM-A797-0404D
0683_WEB
 		N/A HMC948LP3E N/A ADI N/A Logarithmic N/A 1000 MHz N/A 23000 MHz N/A -47 dBm N/A 10 dBm $973.00 N/A
XR-A797-0404D 		Request Quote
XM-A7T2-0404D
1958_WEB
 		N/A MADT-011000 N/A Macom N/A Power N/A 5000 MHz N/A 44000 MHz N/A -15 dBm N/A 15 dBm $124.00 N/A
XR-A7T2-0404D 		Request Quote
XM-B599-0404D
1126_WEB
 		N/A LTC5596 N/A ADI N/A N/A 100 MHz N/A 40000 MHz N/A -40 dBm N/A 4 dBm QUOTE N/A
XR-B599-0404D 		Request Quote
XM-B5M1-0404C
0404A
 		N/A LTC5596 N/A ADI N/A N/A 100 MHz N/A 40000 MHz N/A -40 dBm N/A 4 dBm QUOTE N/A
XR-B5M1-0404C 		Request Quote
XM-B5M1-0404C-01
0404A
 		N/A LTC5596 N/A ADI N/A Power N/A 100 MHz N/A 40000 MHz N/A -39 dBm N/A 4.2 dBm $613.00 N/A
XR-B5M1-0404C-01 		Request Quote
XM-B5M1-0404D
1126_WEB
 		N/A LTC5596 N/A ADI N/A Power N/A 100 MHz N/A 40000 MHz N/A -39 dBm N/A 4.2 dBm $236.00 N/A
XR-B5M1-0404D 		Request Quote

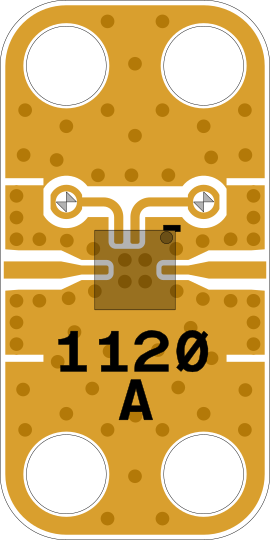

XM-B6C6-0204D
1120_WEB
 		N/A TC627P N/A Keysight N/A N/A 10 MHz N/A 26500 MHz N/A N/A 30 dBm QUOTE N/A
XR-B6C6-0204D 		Request Quote
XM-B7H8-0204C-01
0204A
 		N/A TC621P N/A Keysight N/A N/A 200 MHz N/A 20000 MHz N/A N/A $505.00 N/A
XR-B7H8-0204C-01 		Request Quote
XM-B7H8-0204D
0959_WEB
 		N/A TC621P N/A Keysight N/A N/A 200 MHz N/A 20000 MHz N/A N/A $346.00 N/A
XR-B7H8-0204D 		Request Quote
XM-B7R4-0404C-01
0404A
 		N/A MACP-010573 N/A Macom N/A Power N/A 10000 MHz N/A 30000 MHz N/A -18 dBm N/A 20 dBm $493.00 N/A
XR-B7R4-0404C-01 		Request Quote
XM-B7R4-0404D
1197_WEB
 		N/A MACP-010573 N/A Macom N/A Power N/A 10000 MHz N/A 30000 MHz N/A -18 dBm N/A 20 dBm $104.00 N/A
XR-B7R4-0404D 		Request Quote
XM-B822-0604C-01
0604A
 		N/A ADL5902ACPZ N/A ADI N/A True RMS N/A 50 MHz N/A 9000 MHz N/A -60 dBm N/A 1 dBm $450.00 N/A
XR-B822-0604C-01 		Request Quote
XM-B822-0604D
1281_WEB
 		N/A ADL5902ACPZ N/A ADI N/A True RMS N/A 50 MHz N/A 9000 MHz N/A -60 dBm N/A 1 dBm $178.00 N/A
XR-B822-0604D 		Request Quote
XM-B939-0404C-01
1370_WEB
 		N/A MACP-010572 N/A Macom N/A Power N/A 6000 MHz N/A 18000 MHz N/A -16 dBm N/A 30 dBm $310.00 N/A
XR-B939-0404C-01 		Request Quote
XM-B939-0404D
1370_WEB
 		N/A MACP-010572 N/A Macom N/A Power N/A 6000 MHz N/A 18000 MHz N/A -16 dBm N/A 30 dBm $99.00 N/A
XR-B939-0404D 		Request Quote
XM-B9H3-0404C-01
0404A
 		N/A LTC5596 N/A ADI N/A Power N/A 100 MHz N/A 40000 MHz N/A -39 dBm N/A 4.2 dBm $613.00 N/A
XR-B9H3-0404C-01 		Request Quote
XM-B9H3-0404D
1126_WEB
 		N/A LTC5596 N/A ADI N/A Power N/A 100 MHz N/A 40000 MHz N/A -39 dBm N/A 4.2 dBm $236.00 N/A
XR-B9H3-0404D 		Request Quote
XM-C361-0404C-01
0404A
 		N/A HMC611LP4E N/A ADI N/A Logarithmic N/A 1 MHz N/A 10000 MHz N/A -50 dBm N/A 0 dBm $388.00 N/A
XR-C361-0404C-01 		Request Quote
XM-C361-0404D
1423_WEB
 		N/A HMC611LP4E N/A ADI N/A Logarithmic N/A 1 MHz N/A 10000 MHz N/A -50 dBm N/A 0 dBm $137.00 N/A
XR-C361-0404D 		Request Quote
XM-C455-0404C-01
0404F
 		N/A ADL6012 N/A ADI N/A Envelope N/A 2000 MHz N/A 67000 MHz N/A -25 dBm N/A 15 dBm $666.00 N/A
XR-C455-0404C-01 		Request Quote
XM-C455-0404D
1518_WEB
 		N/A ADL6012 N/A ADI N/A Envelope N/A 2000 MHz N/A 67000 MHz N/A -25 dBm N/A 15 dBm $292.00 N/A
XR-C455-0404D 		Request Quote
XM-C584-0404C-01
0404B
 		N/A MACP-010571 N/A Macom N/A Power N/A 2000 MHz N/A 6000 MHz N/A -15 dBm N/A 30 dBm $308.00 N/A
XR-C584-0404C-01 		Request Quote
XM-C584-0404D
1370_WEB
 		N/A MACP-010571 N/A Macom N/A Power N/A 2000 MHz N/A 6000 MHz N/A -15 dBm N/A 30 dBm $97.00 N/A
XR-C584-0404D 		Request Quote
XM-C6A2-0509D
1516_WEB
 		N/A ADL6012 N/A ADI N/A Envelope N/A 2000 MHz N/A 67000 MHz N/A -25 dBm N/A 15 dBm $351.00 N/A
XR-C6A2-0509D 		Request Quote
XM-C9F5-0404D
1705_WEB
 		N/A LTC5582HDD#PBF N/A ADI N/A RMS Power N/A 40 MHz N/A 10000 MHz N/A -57 dBm N/A 2 dBm $155.00 N/A
XR-C9F5-0404D 		Request Quote
XM-D2P9-0404D
2258
 		N/A HMC913LC4B N/A ADI N/A N/A 600 MHz N/A 20000 MHz N/A -54 dBm N/A 5 dBm QUOTE N/A
XR-D2P9-0404D 		Request Quote
XM-D4K2-0404C-01
0404A
 		N/A LT5581 N/A ADI N/A Power N/A 10 MHz N/A 6000 MHz N/A -34 dBm N/A 6 dBm QUOTE N/A
XR-D4K2-0404C-01 		Request Quote
XM-D4K2-0404D
2585_WEB
 		N/A LT5581 N/A ADI N/A Power N/A 10 MHz N/A 6000 MHz N/A -34 dBm N/A 6 dBm QUOTE N/A
XR-D4K2-0404D 		Request Quote

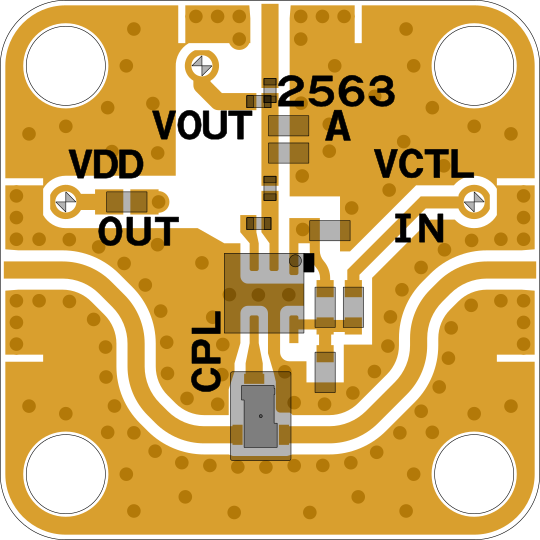

XM-D4Y3-0404D
2563_WEB
 		N/A LTC5596 N/A ADI N/A N/A 100 MHz N/A 40000 MHz N/A -39 dBm N/A 4.2 dBm QUOTE N/A
XR-D4Y3-0404D 		Request Quote

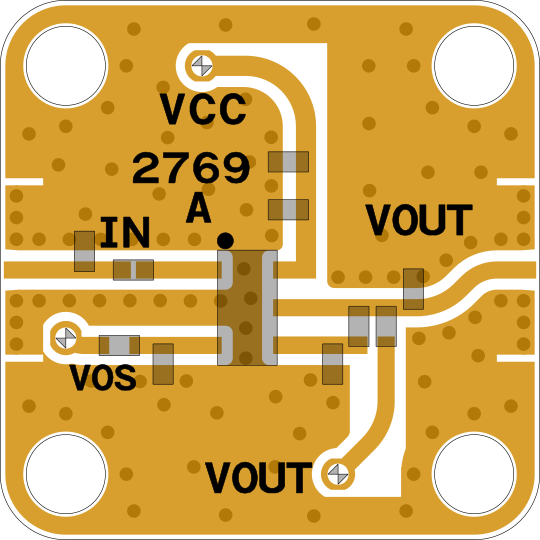

XM-D571-0404D
2769_WEB
 		N/A LTC5535ES6#TRMPBF N/A ADI N/A N/A 600 MHz N/A 7000 MHz N/A -32 dBm N/A 10 dBm QUOTE N/A
XR-D571-0404D 		Request Quote
XM-E2K8-0404C-01
0404A
 		N/A HMC1094LP3E N/A ADI N/A N/A 1000 MHz N/A 23000 MHz N/A -26 dBm N/A 54 dBm QUOTE N/A
XR-E2K8-0404C-01 		Request Quote

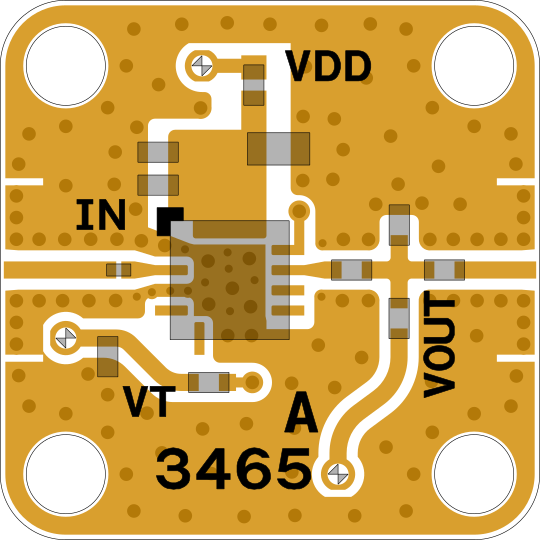

XM-E2K8-0404D
3465_WEB
 		N/A HMC1094LP3E N/A ADI N/A N/A 1000 MHz N/A 23000 MHz N/A -26 dBm N/A 54 dBm QUOTE N/A
XR-E2K8-0404D 		Request Quote
XM-E2K9-0404C-01
0404A
 		N/A ADL5513ACPZ-R7 N/A ADI N/A N/A 1 MHz N/A 4000 MHz N/A -50 dBm N/A -10 dBm QUOTE N/A
XR-E2K9-0404C-01 		Request Quote

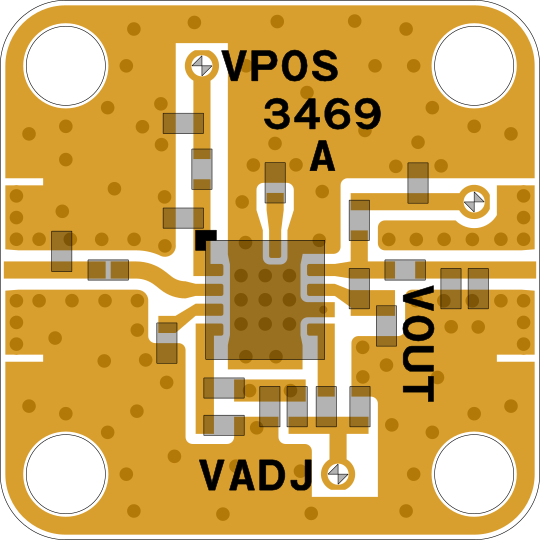

XM-E2K9-0404D
3469_WEB
 		N/A ADL5513ACPZ-R7 N/A ADI N/A N/A 1 MHz N/A 4000 MHz N/A -50 dBm N/A -10 dBm QUOTE N/A
XR-E2K9-0404D 		Request Quote
