XM-A772-0604D
XR-A772-0604D ROHS

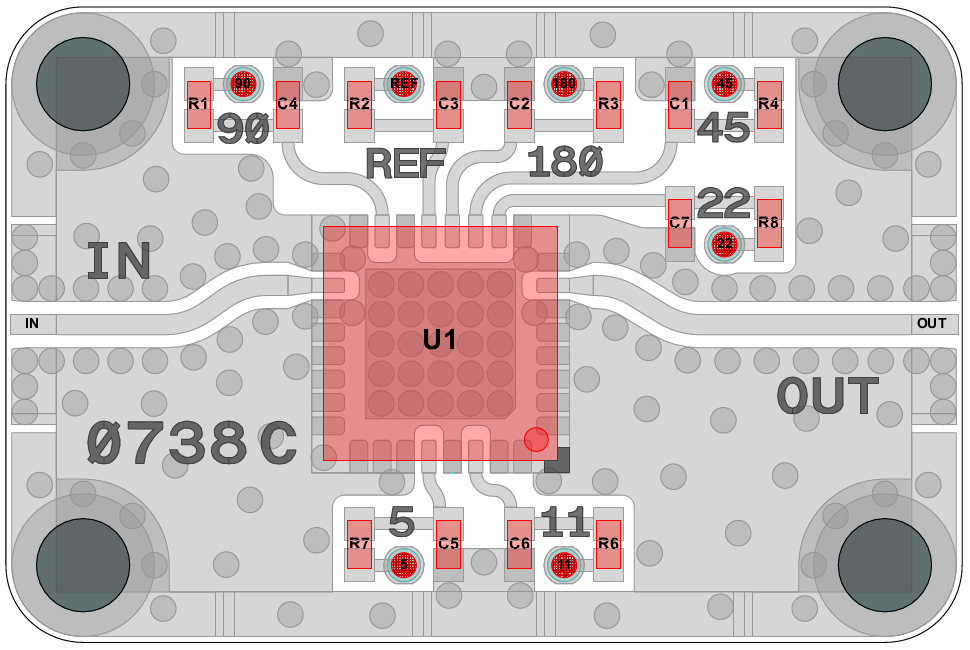

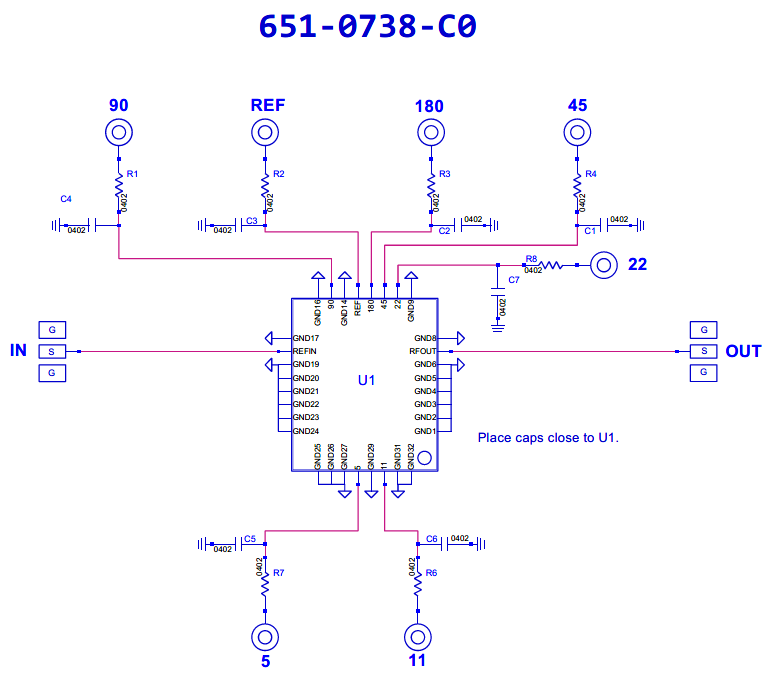

Phase Shifter, TGP2105-SM [PCB: 0738]
Recommended Bias Controller: XM-A773-0604D-SP
Product Page |
N/A Qorvo |
Spec Sheet |
N/A TGP2105-SM |
Low Freq |
N/A 6000 MHz |
High Freq |
N/A 18000 MHz |
Range |
N/A 360 Deg |
Phase Step |
N/A 5.62 Deg |
IL |
N/A 10 dB |
Bits |
N/A 6 |
|
N/A |
Part Number |
N/A XR-A772-0604D |
