XM-A4Y5-0604D
XR-A4Y5-0604D ROHS

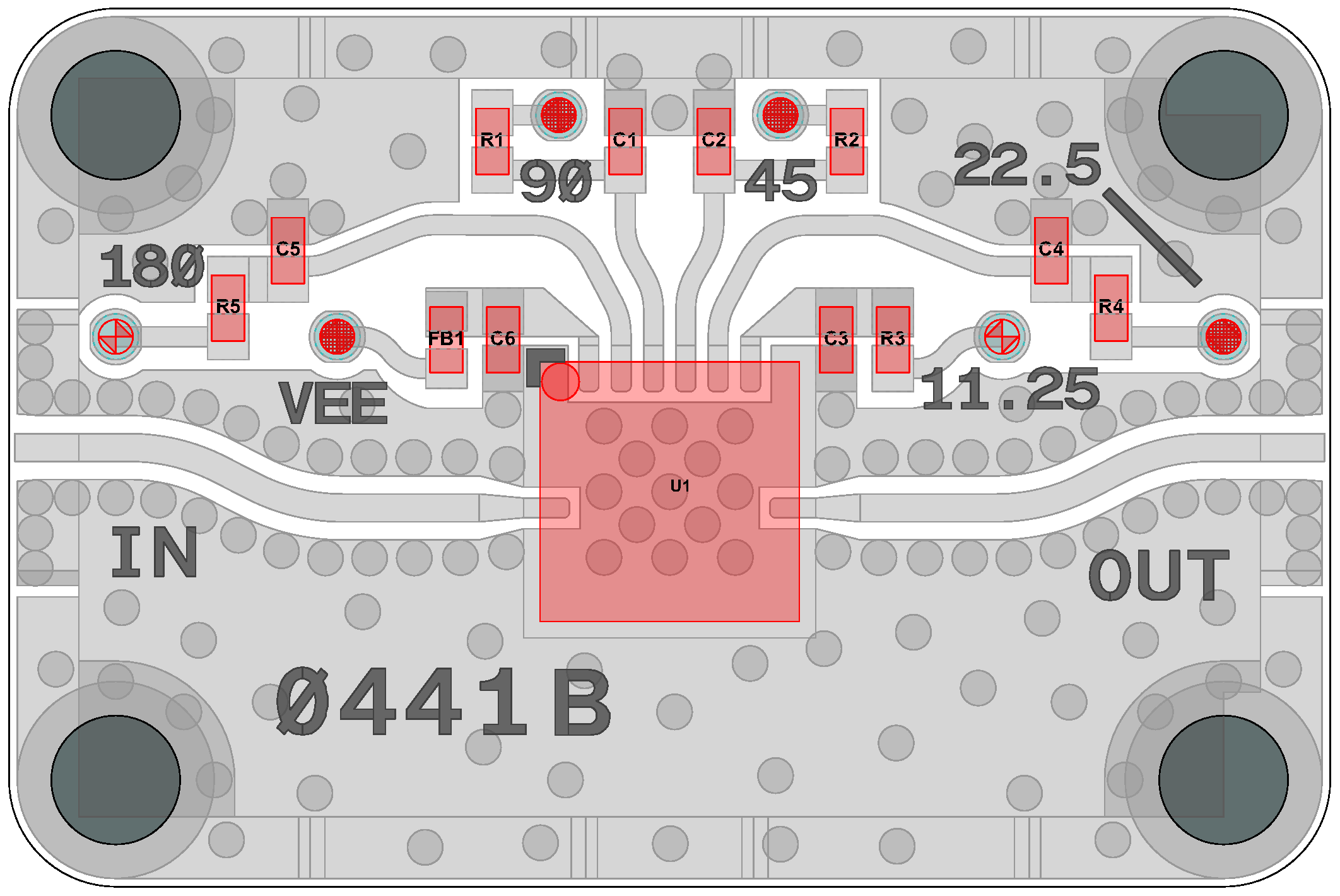

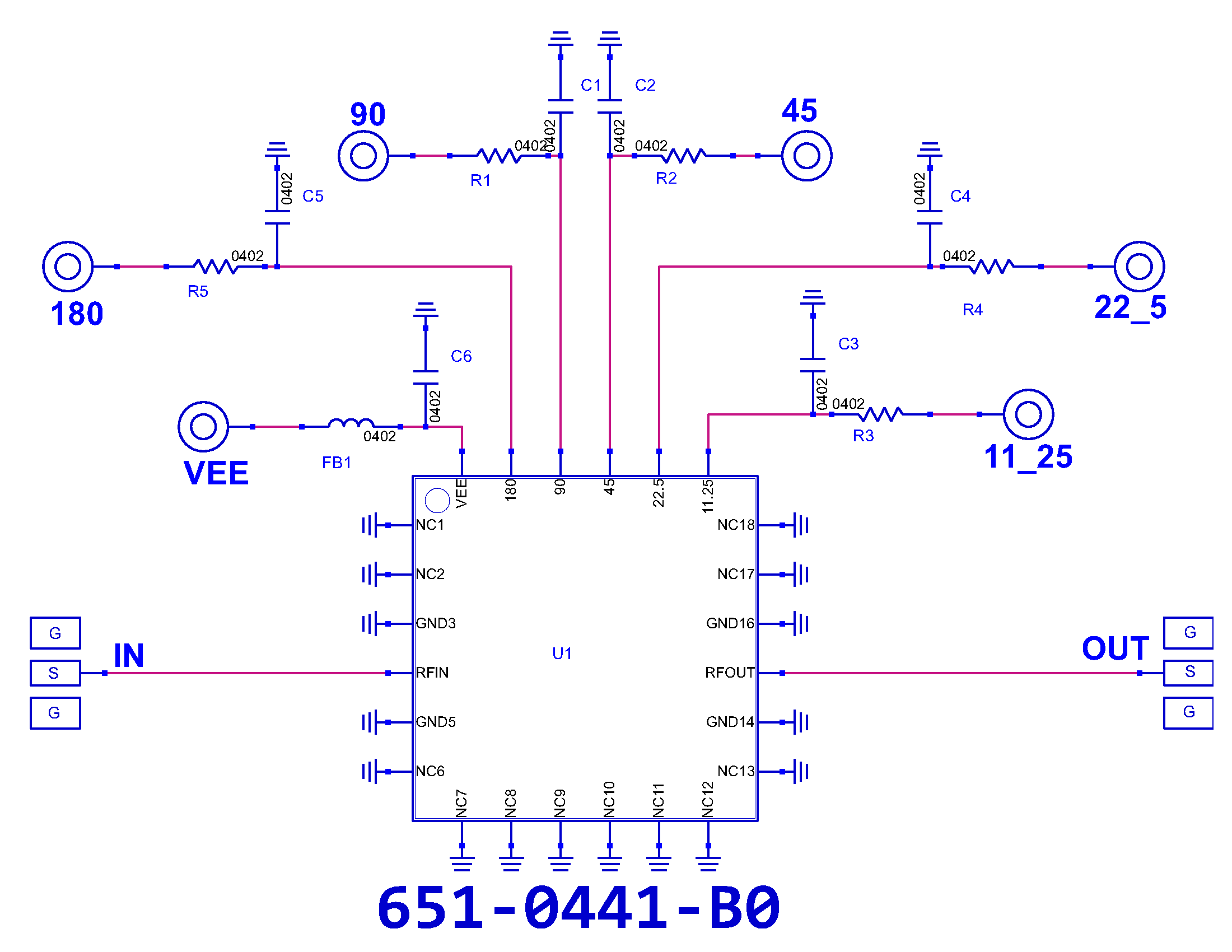

Phase Shifter, CMD174P4 [PCB: 0441]
Recommended Bias Controller: XM-A4Y6-0604D-SP
Low Freq |
N/A 3000 MHz |
High Freq |
N/A 6000 MHz |
Range |
N/A 360 Deg |
Phase Step |
N/A 11.25 Deg |
IL |
N/A 7.6 dB |
Bits |
N/A 5 |
Part Number |
N/A XR-A4Y5-0604D |
