1 - 44 of 44 | Results Per Page | View

Request Information Compare Items

XM Part Number	Image	Spec Sheet	Buy Direct (Intl. add 15%)	Feature Mfr	Type	Low Freq	High Freq	IL	P1dB	IP3	RoHS	Request Quote

XM-A335-0404C-01	0404B	PE42524	$755.00	pSemi	SP2T	10 MHz	27000 MHz	2.5 dB	31.5 dBm	41.5 dBm	XR-A335-0404C-01	Request Quote
XM-A335-0404C-02	0404B	PE42524	$755.00	pSemi	SP2T	10 MHz	40000 MHz	2.5 dB	31.5 dBm	41.5 dBm	XR-A335-0404C-02	Request Quote

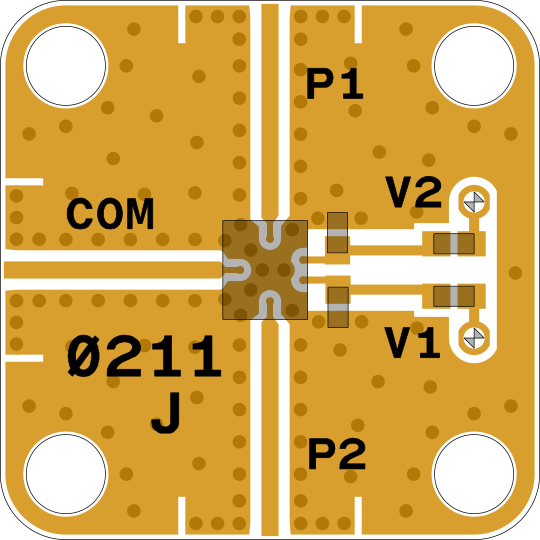

XM-A335-0404D	0211_WEB	PE42524	$251.00	pSemi	SP2T	10 MHz	40000 MHz	2.5 dB	31.5 dBm	41.5 dBm	XR-A335-0404D	Request Quote
XM-A3B2-0409C-01	0409A	PE42520	$759.00	pSemi	SP2T	0.009 MHz	13000 MHz	2 dB	39 dBm	66 dBm	XR-A3B2-0409C-01	Request Quote

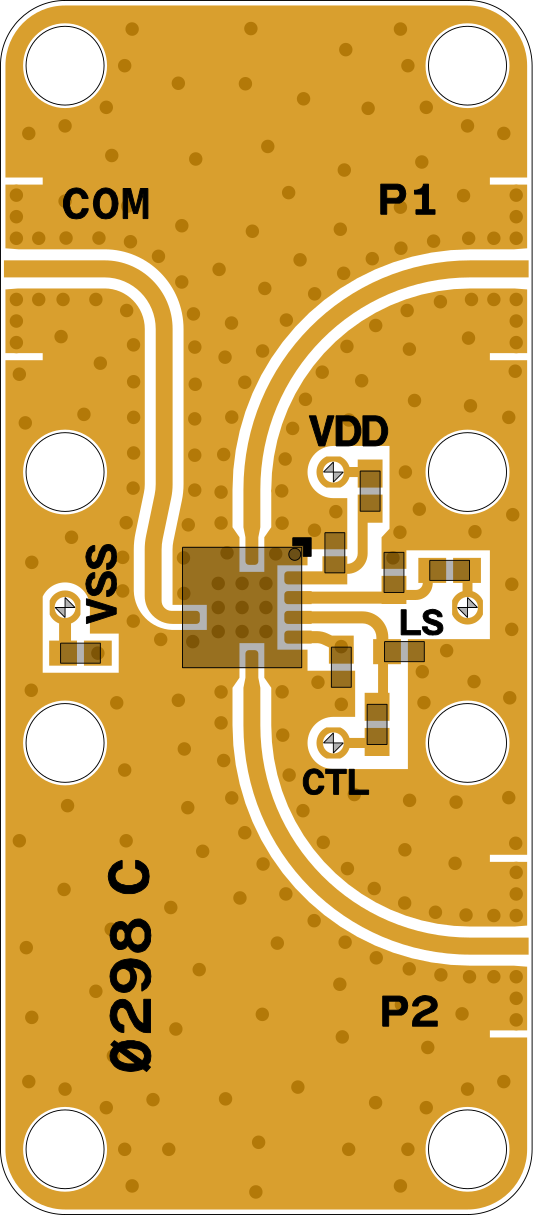

XM-A3B2-0409D	0298_WEB	PE42520	$203.00	pSemi	SP2T	0.009 MHz	13000 MHz	2 dB	39 dBm	66 dBm	XR-A3B2-0409D	Request Quote
XM-A3B3-0409C-01	0409A	PE42522	$963.00	pSemi	SP2T	0.009 MHz	26500 MHz	5.3 dB	N/A	59 dBm	XR-A3B3-0409C-01	Request Quote

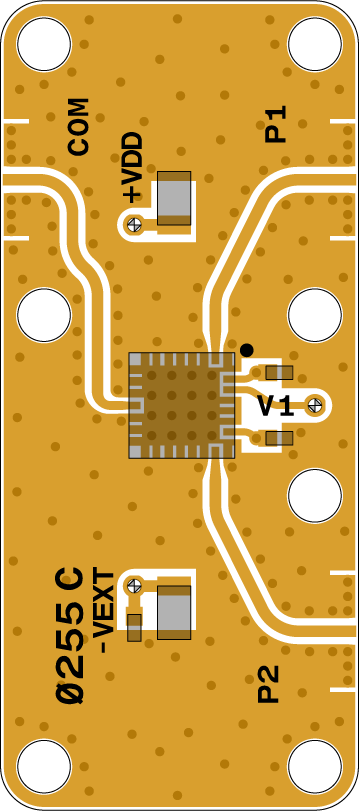

XM-A3B3-0409D	0255_WEB	PE42522	$1,230.00	pSemi	SP2T	0.009 MHz	26500 MHz	5.3 dB	N/A	59 dBm	XR-A3B3-0409D	Request Quote
XM-A3N2-0409C-01	0409A	PE42820	$500.00	pSemi	SP2T	30 MHz	2700 MHz	0.8 dB	N/A	85 dBm	XR-A3N2-0409C-01	Request Quote

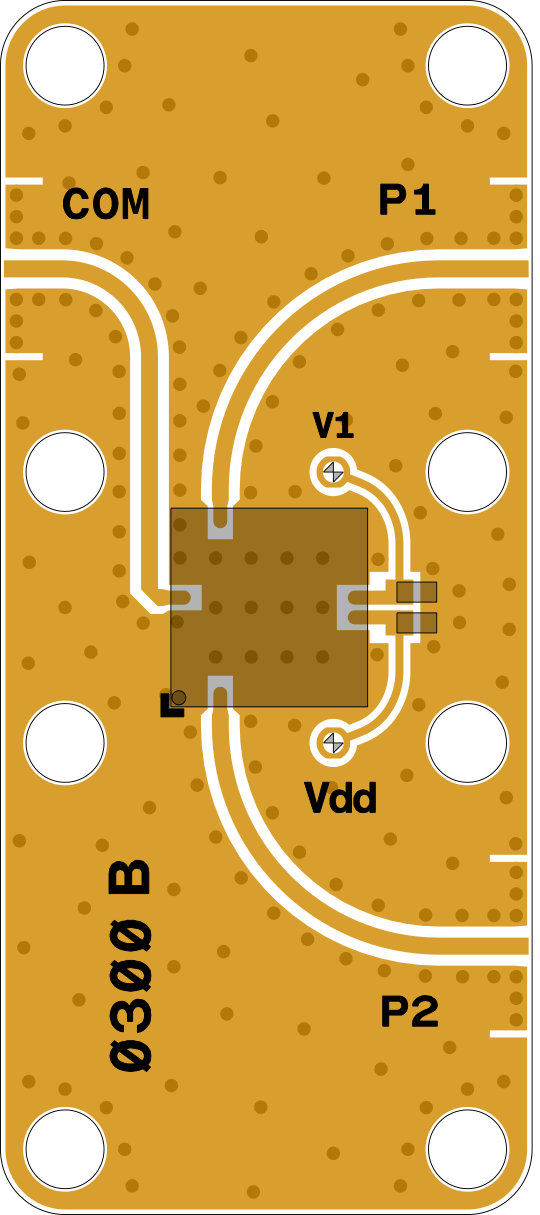

XM-A3N2-0409D	0300_WEB	PE42820	$268.00	pSemi	SP2T	30 MHz	2700 MHz	0.8 dB	N/A	85 dBm	XR-A3N2-0409D	Request Quote
XM-A3N3-0409D	0300_WEB	PE42722	$387.00	pSemi	SP2T	5 MHz	2794 MHz	0.8 dB	N/A	84 dBm	XR-A3N3-0409D	Request Quote
XM-A3N5-0409C-01	0409A	PE42521	$761.00	pSemi	SP2T	0.009 MHz	13000 MHz	2 dB	N/A	65 dBm	XR-A3N5-0409C-01	Request Quote
XM-A3N5-0409D	0298_WEB	PE42521	$206.00	pSemi	SP2T	0.009 MHz	13000 MHz	2 dB	N/A	65 dBm	XR-A3N5-0409D	Request Quote
XM-A3N6-0819C-01	0819A	PE42542	$990.00	pSemi	SP4T	0.009 MHz	13000 MHz	3.1 dB	N/A	58 dBm	XR-A3N6-0819C-01	Request Quote

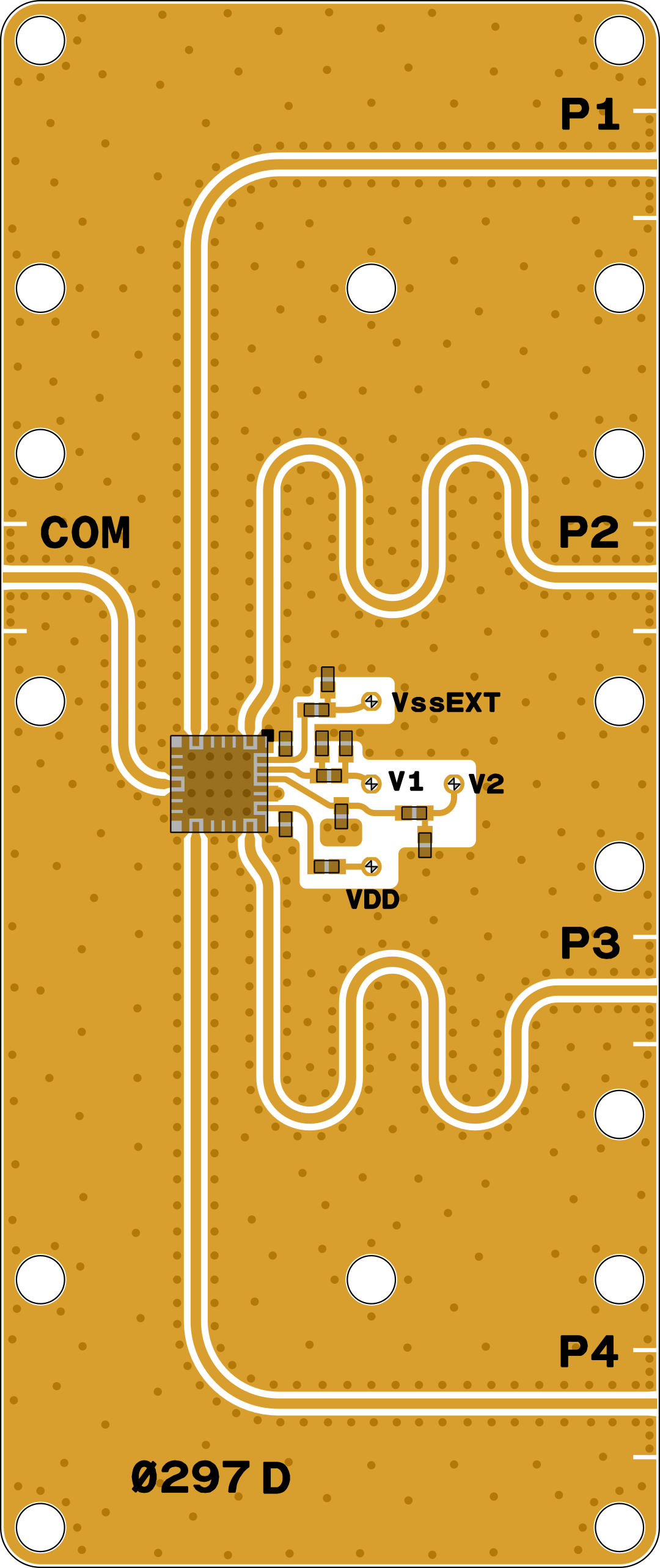

XM-A3N6-0819D	0297_WEB	PE42542	$469.00	pSemi	SP4T	0.009 MHz	13000 MHz	3.1 dB	N/A	58 dBm	XR-A3N6-0819D	Request Quote
XM-A3N7-0819C-01	0819A	PE42543	$1,001.00	pSemi	SP4T	0.009 MHz	18000 MHz	3.2 dB	N/A	59 dBm	XR-A3N7-0819C-01	Request Quote
XM-A3N7-0819D	0297_WEB	PE42543	$485.00	pSemi	SP4T	0.009 MHz	18000 MHz	3.2 dB	N/A	59 dBm	XR-A3N7-0819D	Request Quote
XM-A3N9-0409C-01	0409A	PE42524	$1,053.00	pSemi	SP2T	10 MHz	40000 MHz	2.5 dB	31.5 dBm	41.5 dBm	XR-A3N9-0409C-01	Request Quote

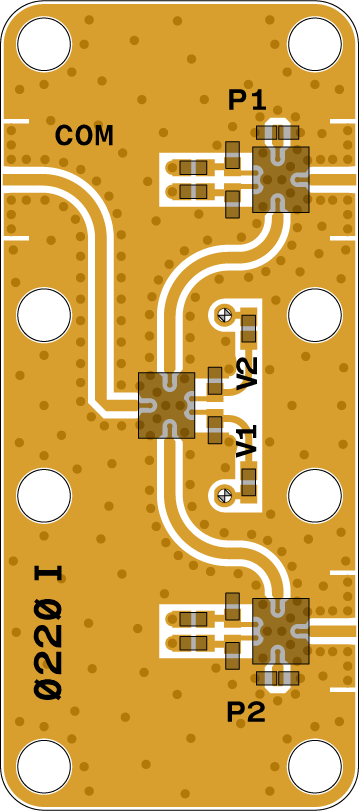

XM-A3N9-0409D	0220_WEB	PE42524	$493.00	pSemi	SP2T	10 MHz	40000 MHz	2.5 dB	31.5 dBm	41.5 dBm	XR-A3N9-0409D	Request Quote
XM-A4E5-0419C-01	0419A	PE42525	$1,919.00	pSemi	SP4T	0.009 MHz	27000 MHz	4 dB	35 dBm	46 dBm	XR-A4E5-0419C-01	Request Quote

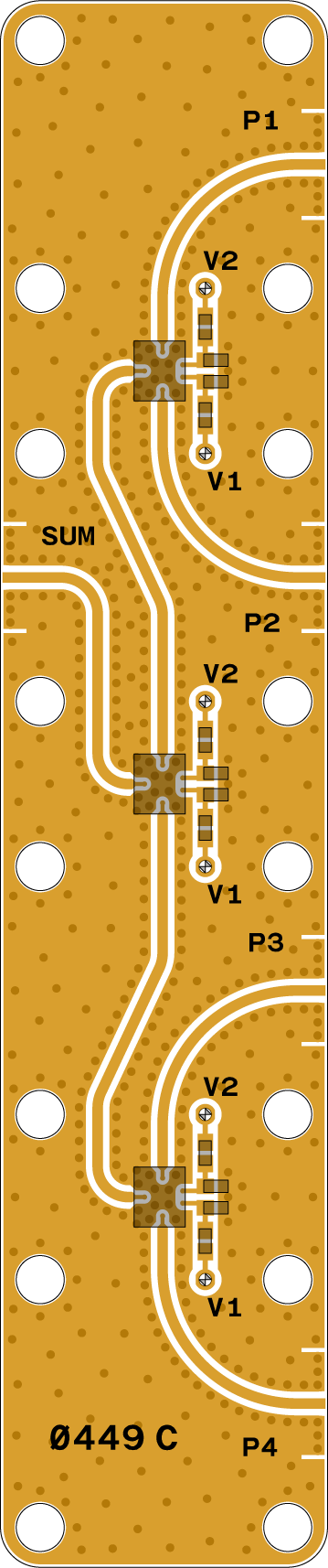

XM-A4E5-0419D	0449_WEB	PE42525	$750.00	pSemi	SP4T	0.009 MHz	50000 MHz	4 dB	35 dBm	46 dBm	XR-A4E5-0419D	Request Quote
XM-A6J9-0409C-01	0409A	PE42525	$1,062.00	pSemi	SP2T	0.009 MHz	40000 MHz	4 dB	35 dBm	46 dBm	XR-A6J9-0409C-01	Request Quote
XM-A6J9-0409C-02	0409A	PE42525	$1,062.00	pSemi	SP2T	0.009 MHz	27000 MHz	4 dB	35 dBm	46 dBm	XR-A6J9-0409C-02	Request Quote
XM-A6J9-0409C-03	0409A	PE42525	$1,062.00	pSemi	SP2T	0.009 MHz	60000 MHz	4 dB	35 dBm	46 dBm	XR-A6J9-0409C-03	Request Quote

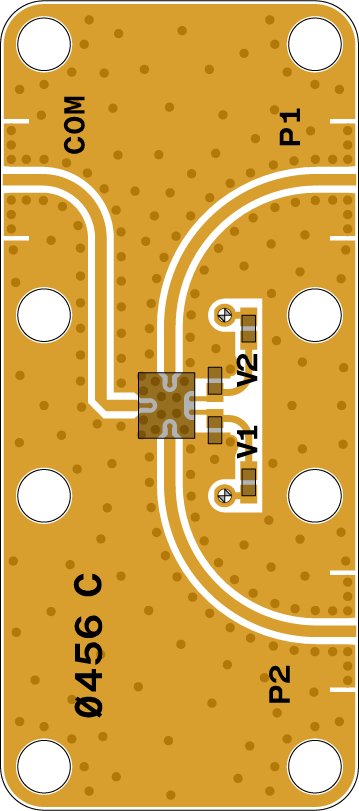

XM-A6J9-0409D	0456_WEB	PE42525	$346.00	pSemi	SP2T	0.009 MHz	60000 MHz	4 dB	35 dBm	46 dBm	XR-A6J9-0409D	Request Quote
XM-A7A9-0404C-01	0404B	PE42525	$931.00	pSemi	SP2T	0.009 MHz	27000 MHz	4 dB	35 dBm	46 dBm	XR-A7A9-0404C-01	Request Quote

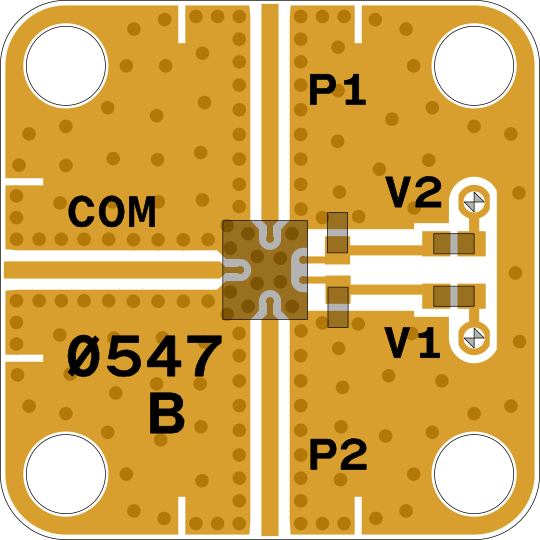

XM-A7A9-0404D	0547_WEB	PE42525	$303.00	pSemi	SP2T	0.009 MHz	60000 MHz	4 dB	35 dBm	46 dBm	XR-A7A9-0404D	Request Quote
XM-A7C3-0404C-01	0404C	PE42525	$884.00	pSemi	SP2T	0.009 MHz	27000 MHz	4 dB	35 dBm	46 dBm	XR-A7C3-0404C-01	Request Quote

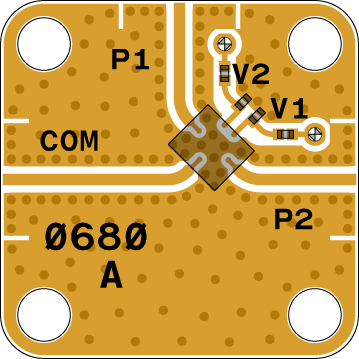

XM-A7C3-0404D	0680_WEB	PE42525	$301.00	pSemi	SP2T	0.009 MHz	60000 MHz	4 dB	35 dBm	46 dBm	XR-A7C3-0404D	Request Quote
XM-A7C4-0404C-01	0404D	PE42525	$884.00	pSemi	SP2T	0.009 MHz	27000 MHz	4 dB	35 dBm	46 dBm	XR-A7C4-0404C-01	Request Quote

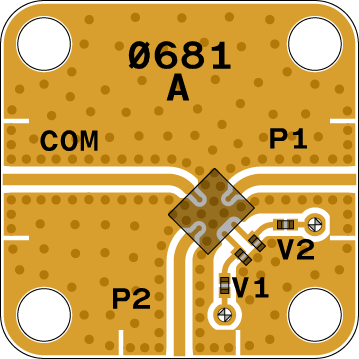

XM-A7C4-0404D	0681_WEB	PE42525	$301.00	pSemi	SP2T	0.009 MHz	60000 MHz	4 dB	35 dBm	46 dBm	XR-A7C4-0404D	Request Quote
XM-B7J4-0619C-01	0619A	PE42442	$1,163.00	pSemi	SP4T	30 MHz	6000 MHz	3.25 dB	35 dBm	58 dBm	XR-B7J4-0619C-01	Request Quote

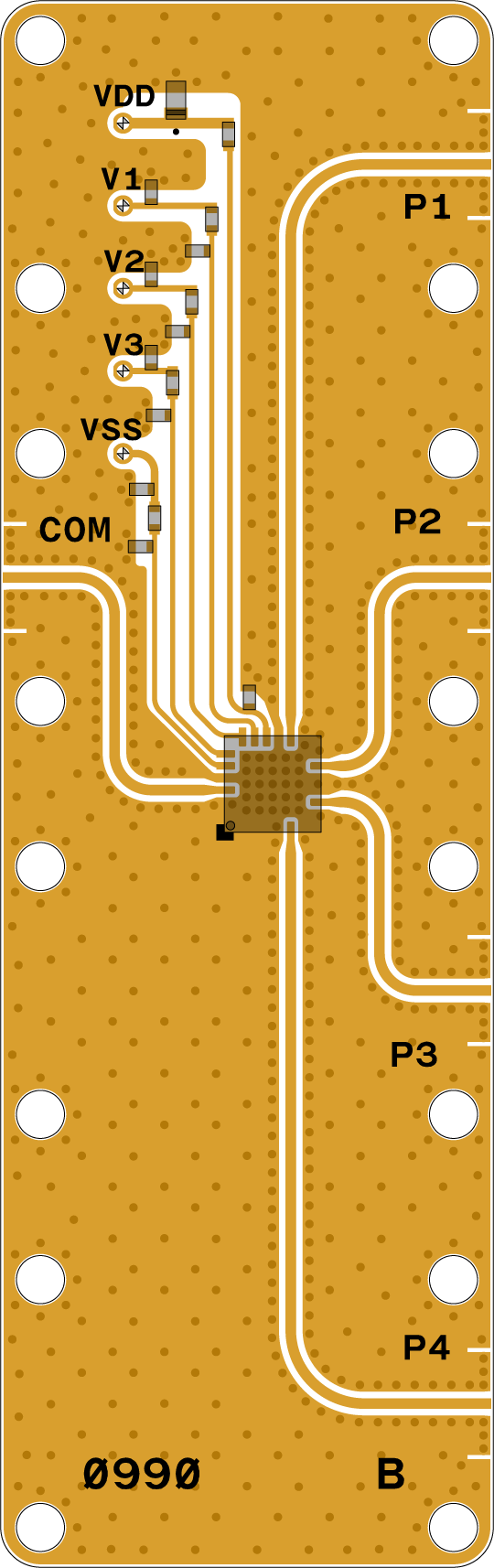

XM-B7J4-0619D	0990_WEB	PE42442	$338.00	pSemi	SP4T	30 MHz	6000 MHz	3.25 dB	35 dBm	58 dBm	XR-B7J4-0619D	Request Quote

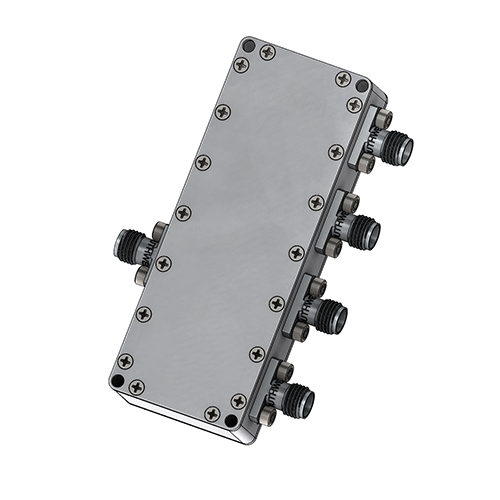

XM-B7P8-0619C-01	0619B	PE42442	$1,188.00	pSemi	SP4T	30 MHz	6000 MHz	3.25 dB	35 dBm	58 dBm	XR-B7P8-0619C-01	Request Quote

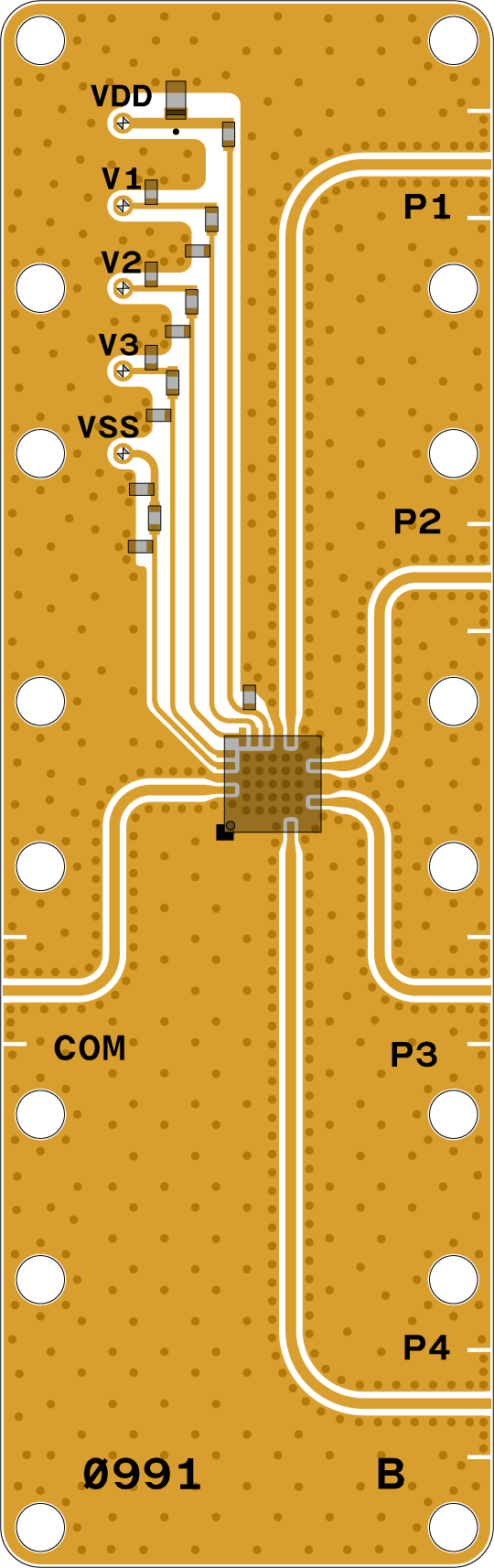

XM-B7P8-0619D	0991_WEB	PE42442	$362.00	pSemi	SP4T	30 MHz	6000 MHz	3.25 dB	35 dBm	58 dBm	XR-B7P8-0619D	Request Quote
XM-C432-0409C-01	0409A	PE42525	$830.00	pSemi	SP2T	0.009 MHz	50000 MHz	4 dB	35 dBm	46 dBm	XR-C432-0409C-01	Request Quote

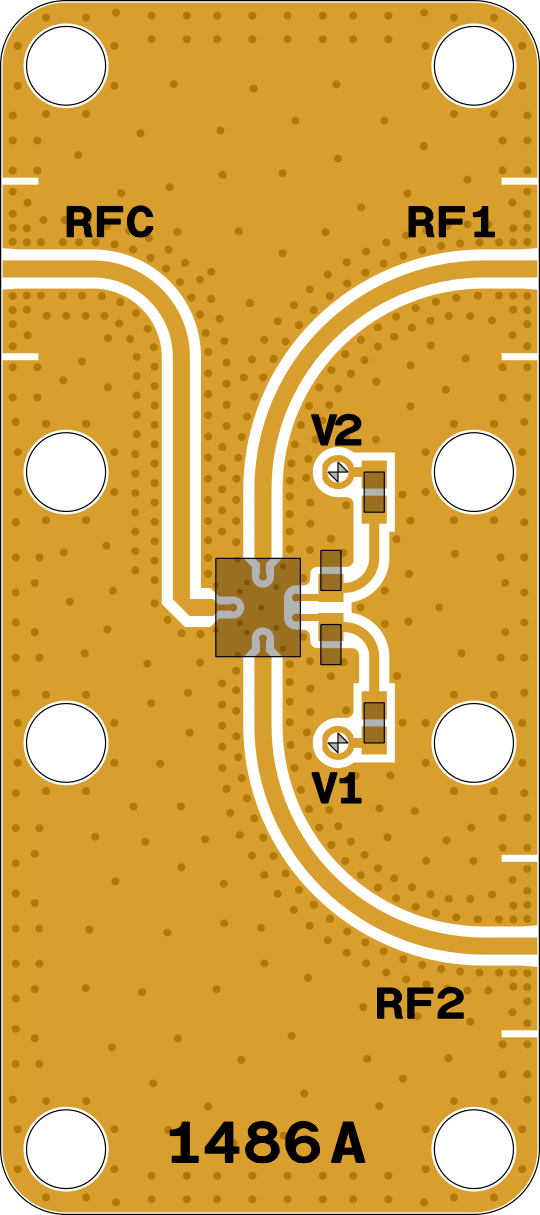

XM-C432-0409D	1486_WEB	PE42525	$325.00	pSemi	SP2T	0.009 MHz	50000 MHz	4 dB	35 dBm	46 dBm	XR-C432-0409D	Request Quote

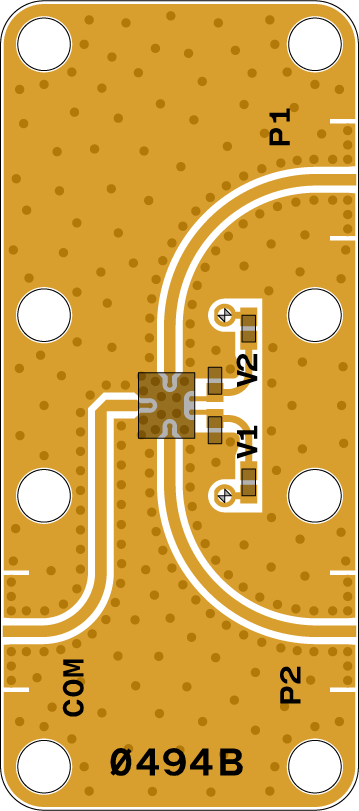

XM-C6L8-0409D	0494_WEB	PE42525	$346.00	pSemi	SP2T	0 MHz	60000 MHz	4 dB	35 dBm	46 dBm	XR-C6L8-0409D	Request Quote
XM-C7P3-0409D	0456_WEB	PE426525	$332.00	pSemi	SP2T	N/A	N/A	N/A	N/A	N/A	XR-C7P3-0409D	Request Quote
XM-C7P4-0419D	0449_WEB	PE426525	$717.00	pSemi	SP4T	N/A	N/A	N/A	N/A	N/A	XR-C7P4-0419D	Request Quote
XM-C7P6-0404D	0547_WEB	PE426525	$293.00	pSemi	SP2T	N/A	N/A	N/A	N/A	N/A	XR-C7P6-0404D	Request Quote
XM-C8J4-0404C-01	0404A	PE42525	$783.00	pSemi	SP2T	0.009 MHz	50000 MHz	4 dB	35 dBm	46 dBm	XR-C8J4-0404C-01	Request Quote

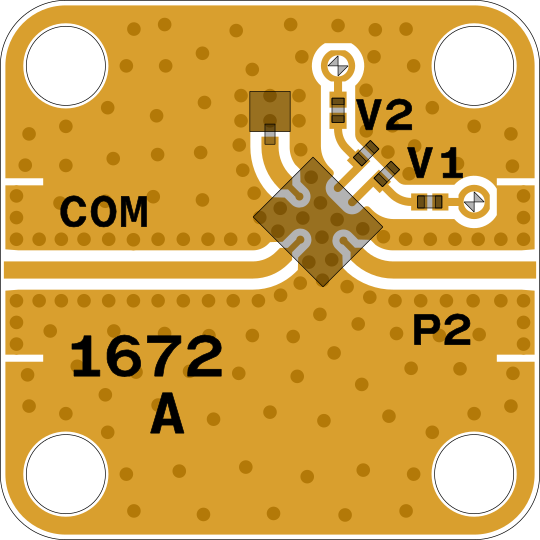

XM-C8J4-0404D	1672_WEB	PE42525	$303.00	pSemi	SP2T	0.009 MHz	60000 MHz	4 dB	35 dBm	46 dBm	XR-C8J4-0404D	Request Quote
XM-C8J5-0404C-01	0404A	PE42525	$643.00	pSemi	SP2T	0.009 MHz	50000 MHz	4 dB	35 dBm	46 dBm	XR-C8J5-0404C-01	Request Quote

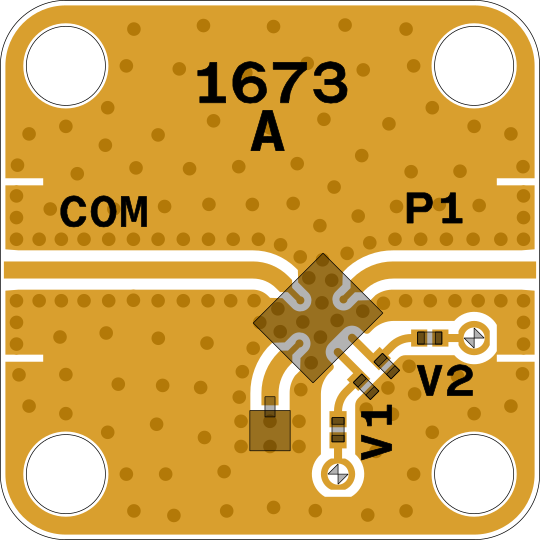

XM-C8J5-0404D	1673_WEB	PE42525	$241.00	pSemi	SP2T	0.009 MHz	60000 MHz	4 dB	35 dBm	46 dBm	XR-C8J5-0404D	Request Quote
