| XM Part Number | Image | Spec Sheet |
Buy Direct (Intl. add 15%) |
Feature Mfr | Type | CF | 3 dB BW | IL | 20 dB Rej Low Side | 20 dB Rej High Side | 40 dB Rej Low Side | 40 dB Rej High Side | RoHS | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XM-D7E2-0304D |

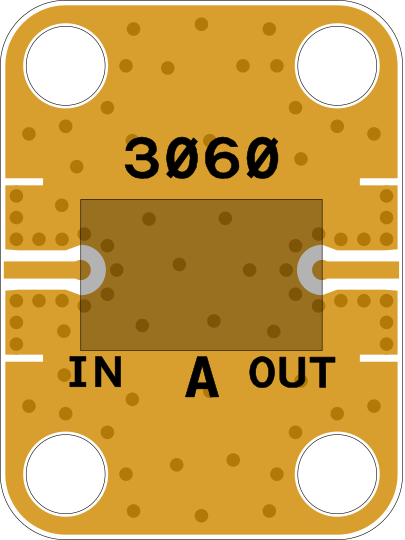

 3060_WEB |
6PFX-15000/R6000-M |
QUOTE | Smiths Interconnect, a Molex Company | Planar | 15000 MHz | N/A | 1.5 dB | N/A | 20000 MHz | 10800 MHz | 19000 MHz | Request Quote | |
| XM-D7E3-0604D |

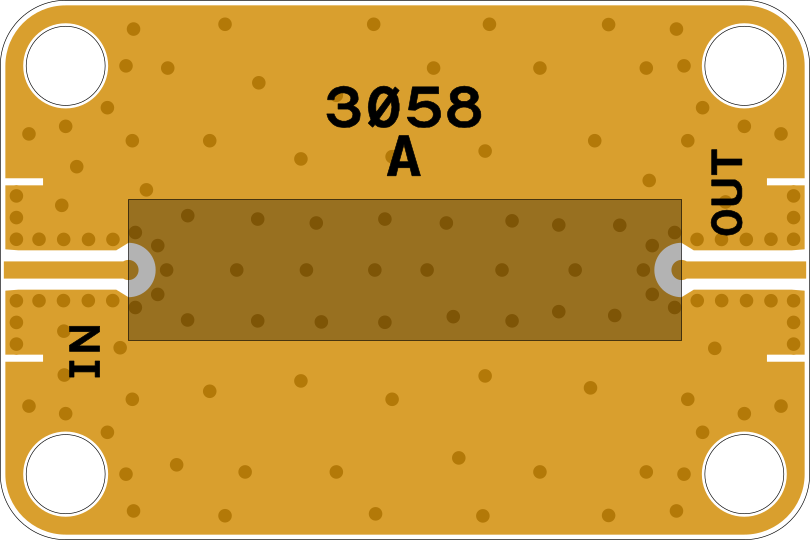

 3058_WEB |
6PFX-28000/R1000-M |
QUOTE | Smiths Interconnect, a Molex Company | Planar | 28000 MHz | N/A | 4.5 dB | N/A | 29500 MHz | 27000 MHz | 29000 MHz | Request Quote |
