XM-E1U9-0409D
XR-E1U9-0409D ROHS

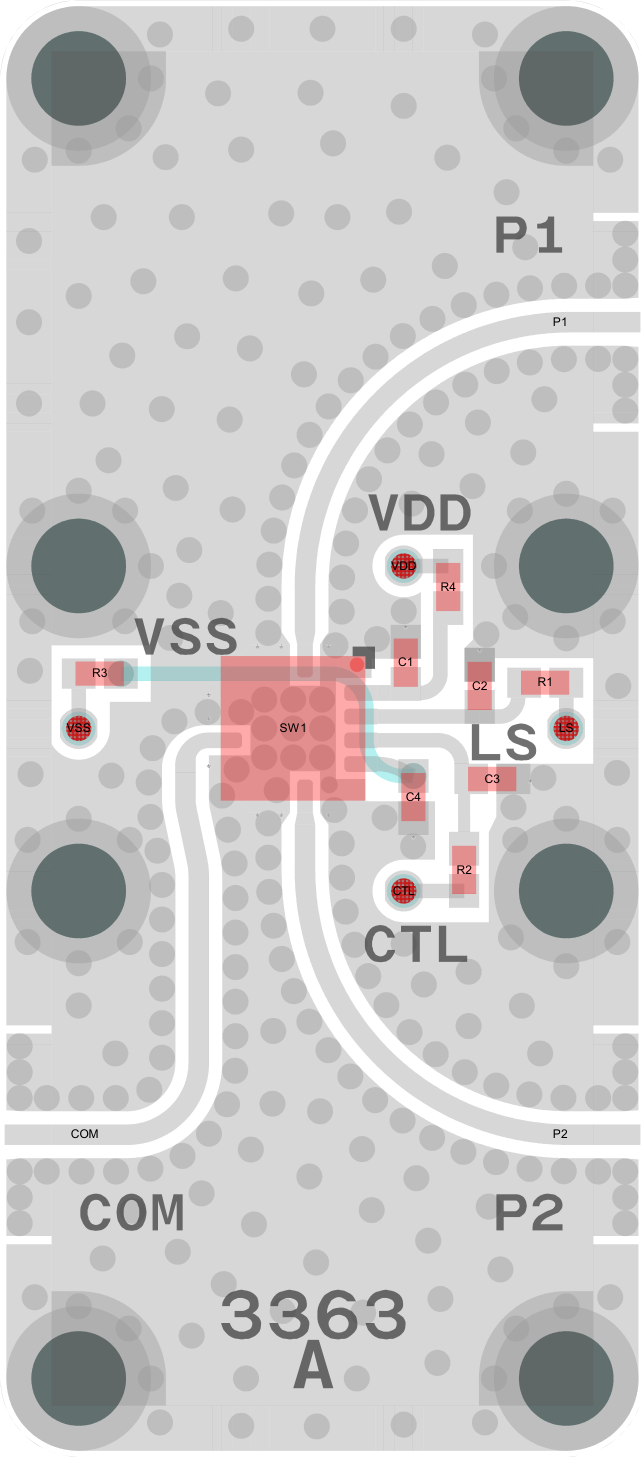

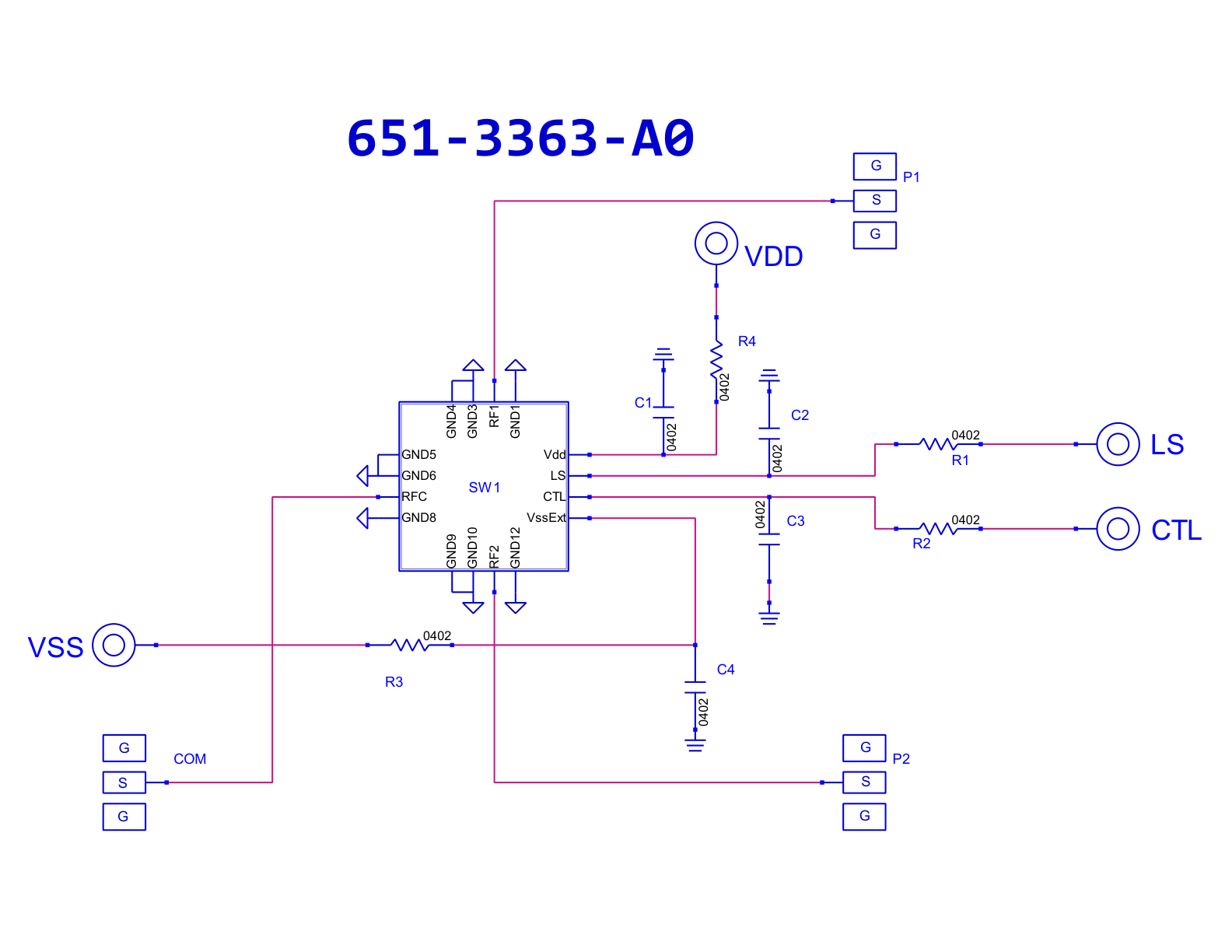

Switch, PE42520C-Z [PCB: 3363]
Recommended Bias Controller: XM-C3T4-0409D-SP

Product Page

 N/A pSemi

Spec Sheet

 N/A PE42520C-Z

Low Freq

 N/A 0.01 MHz

High Freq

 N/A 13000 MHz

IL

 N/A 0.8 dB

P1dB

 N/A 39 dBm

IP3

 N/A 66 dBm

N/A

Bias Instruction

 N/A

Notes: VDD = +3.4V@120µA with VSS=0V (NORMAL MODE)
VDD=+3.4V@50µA with VSS = -3.4V (BYPASS MODE)
VSSext = -3.4V@16µA (BYPASS MODE) or VSSext=0V to enable internal negative Vreg (NORMAL MODE)
VCTL = 0V or VDD @ 10µA max (LVTTL LOGIC)

State 1: [LS = LOW] [CTL = LOW] [P1 = OFF] [P2 = ON]
State 2: [LS = LOW] [CTL = HIGH] [P1 = ON] [P2 = OFF]
State 3: [LS = HIGH] [CTL = LOW] [P1 = ON] [P2 = OFF]
State 4: [LS = HIGH] [CTL = HIGH] [P1 = OFF] [P2 = ON]

Part Number

 N/A XR-E1U9-0409D
