XM-E1H6-0409D
XR-E1H6-0409D ROHS

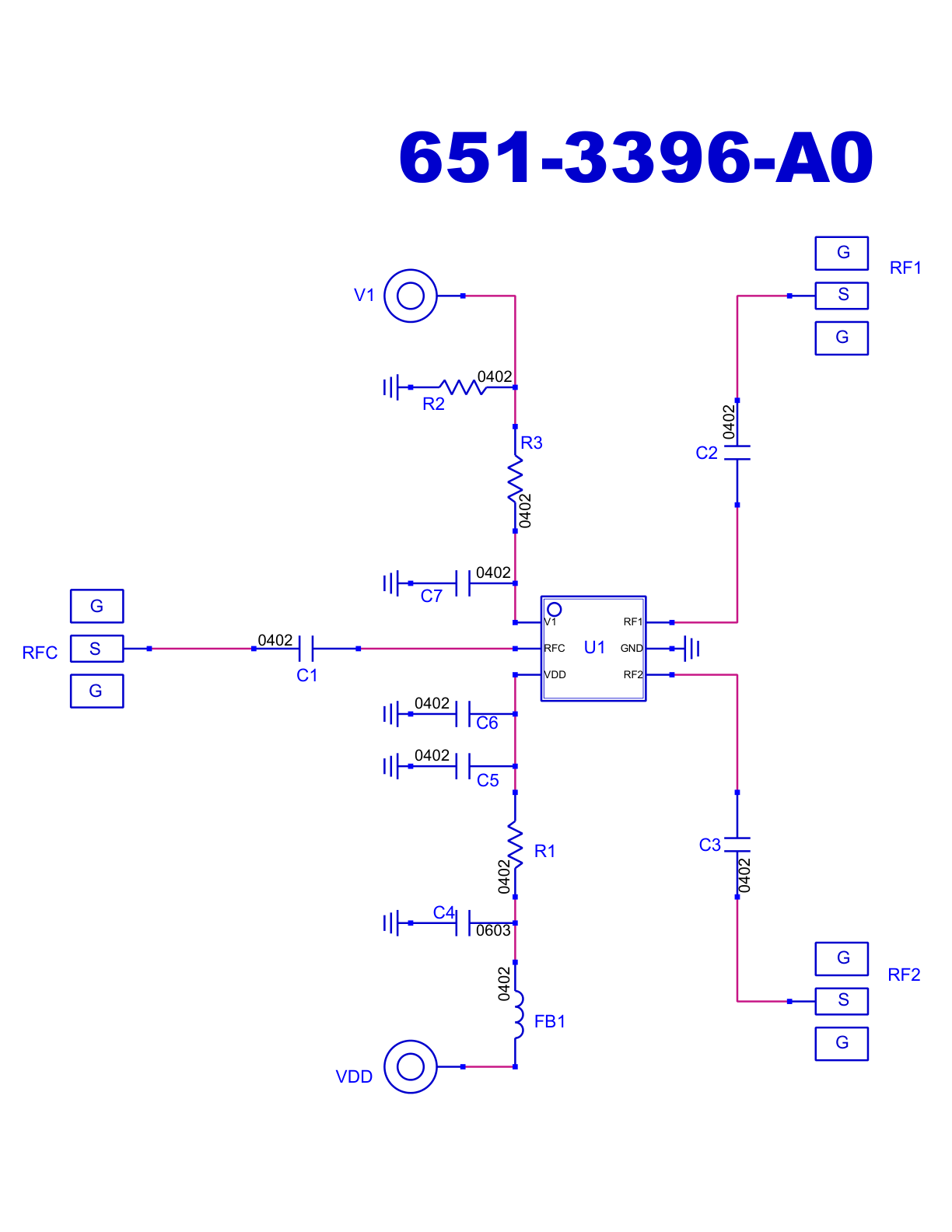

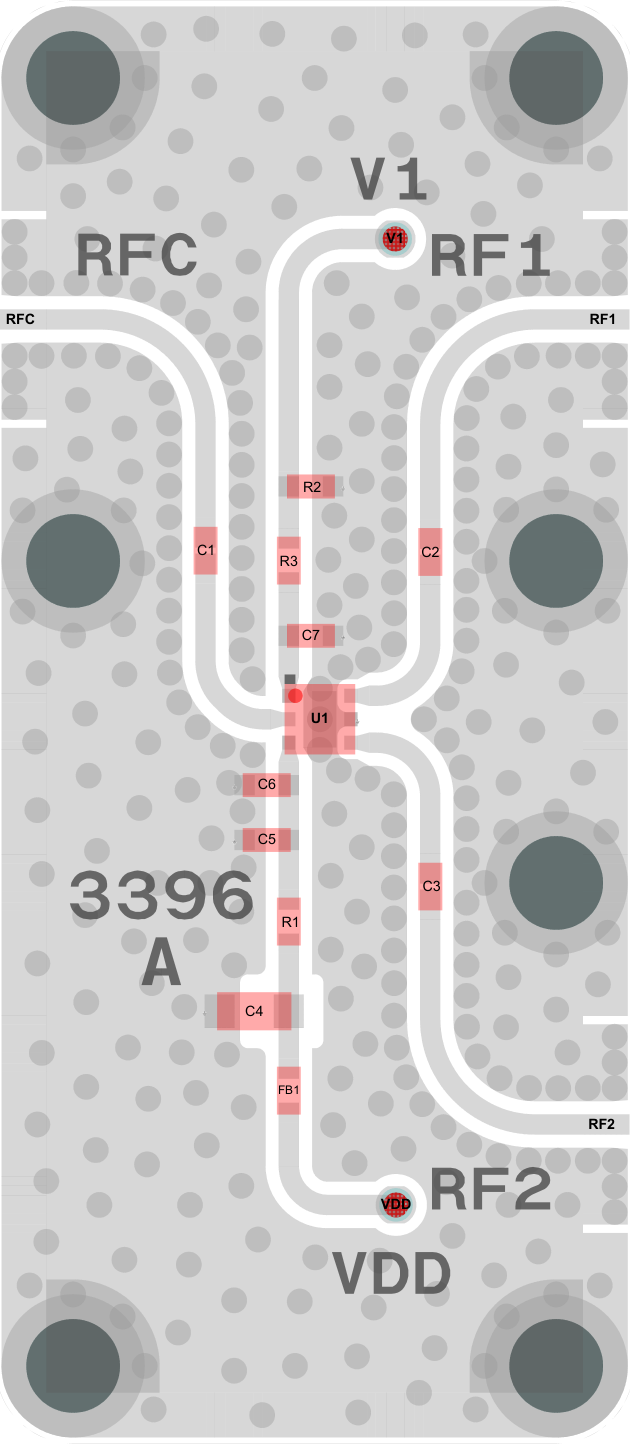

Switch, PE42424A-Z [PCB: 3396]
Recommended Bias Controller: XM-D4M4-0409D-SP

Product Page

 N/A pSemi

Spec Sheet

 N/A PE42424A-Z

Low Freq

 N/A 100 MHz

High Freq

 N/A 8500 MHz

IL

 N/A 0.8 dB

P1dB

 N/A 41 dBm

IP3

 N/A 61 dBm

N/A

Bias Instruction

 N/A

Notes: VDD = +3.3V
V1 = 0V (LOW) or +3.3V (HIGH)
V1 to be connected to ENIN of recommended control board D4M4

State 1: [V1 = LOW] [RF1 = OFF] [RF2 = ON]
State 2: [V1 = HIGH] [RF1 = ON] [RF2 = OFF]

Part Number

 N/A XR-E1H6-0409D
