XM-E1A8-0404D
XR-E1A8-0404D ROHS

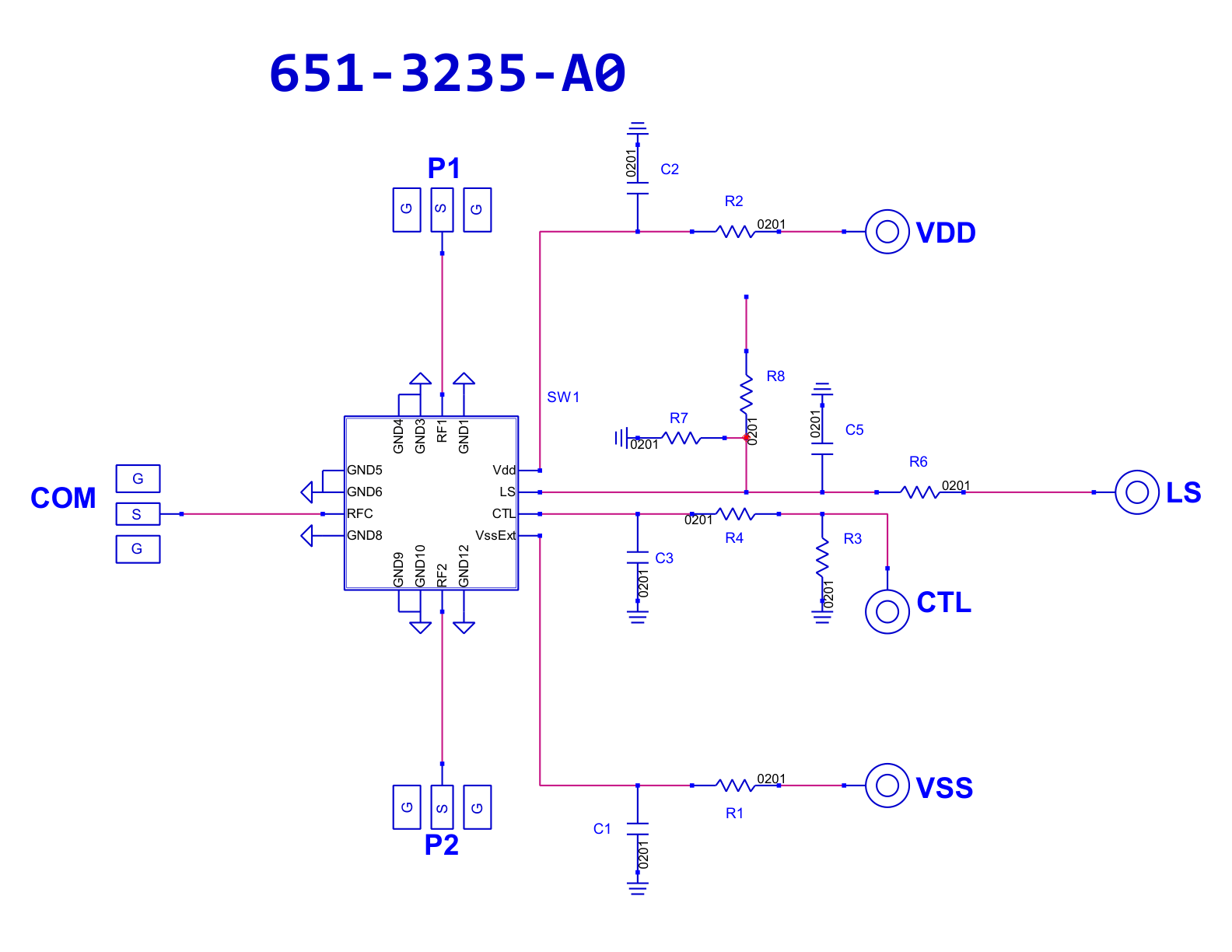

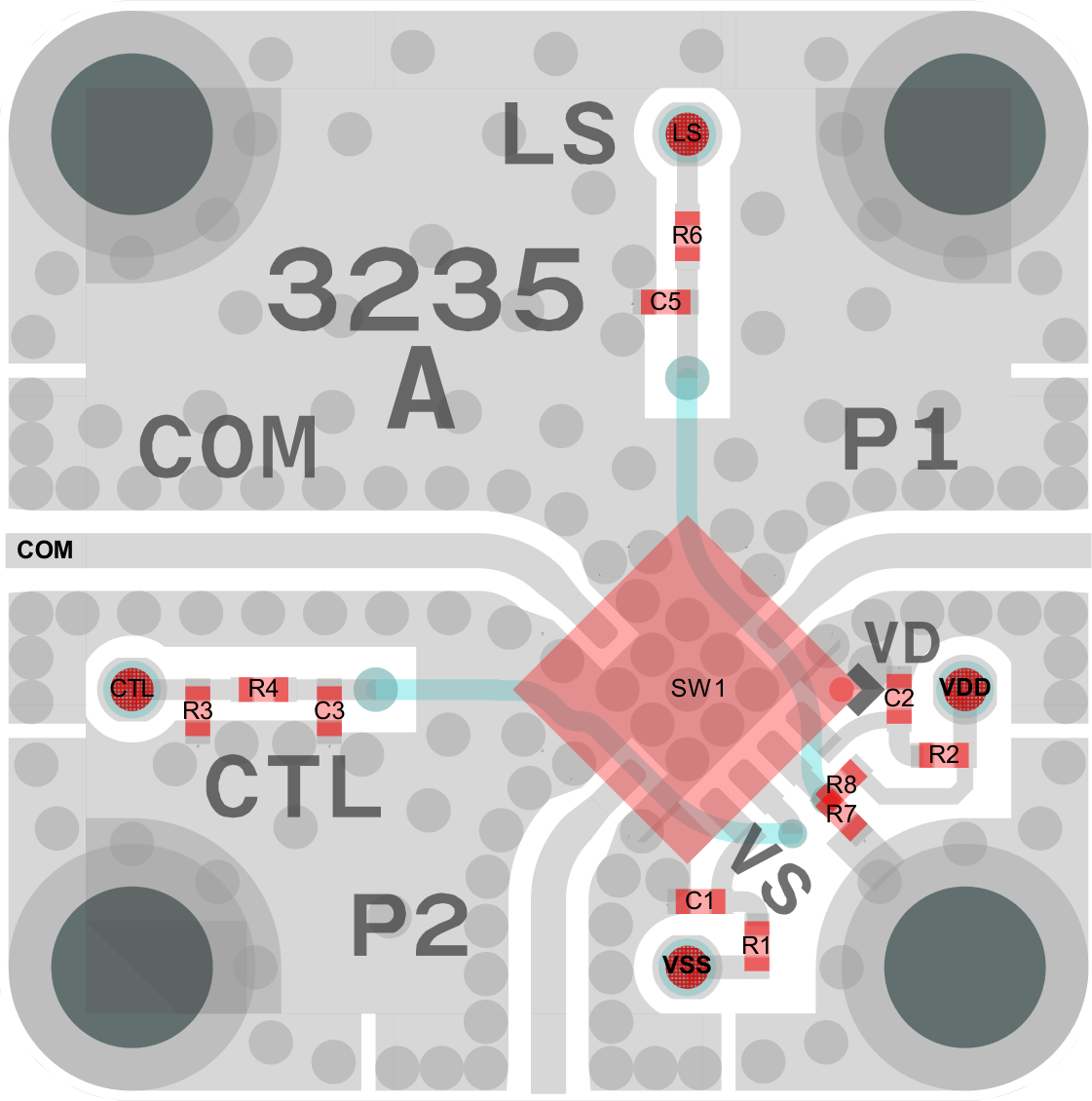

Switch, PE42520C-Z [PCB: 3235]

Product Page

 N/A pSemi

Spec Sheet

 N/A PE42520C-Z

Low Freq

 N/A 0.01 MHz

High Freq

 N/A 13000 MHz

IL

 N/A 0.8 dB

P1dB

 N/A 39 dBm

IP3

 N/A 66 dBm

Bias Instruction

 N/A

Notes: Normal mode detailed below
Normal mode: Connect VSS_EXT (pin 13) to GND (VSS_EXT = 0V) to enable the internal negative voltage generator.
VD = +2.3V to +5V @120uA typ.
CTL, LS HIGH = +1.17V to +3.6V
CTL, LS LOW = -0.3V to +0.6V

State 1: [LS = LOW] [CTL = LOW] [P1 = OFF] [P2 = ON]
State 2: [LS = LOW] [CTL = HIGH] [P1 = ON] [P2 = OFF]
State 3: [LS = HIGH] [CTL = LOW] [P1 = ON] [P2 = OFF]
State 4: [LS = HIGH] [CTL = HIGH] [P1 = OFF] [P2 = ON]

Part Number

 N/A XR-E1A8-0404D
