XM-E156-0404D
XR-E156-0404D ROHS

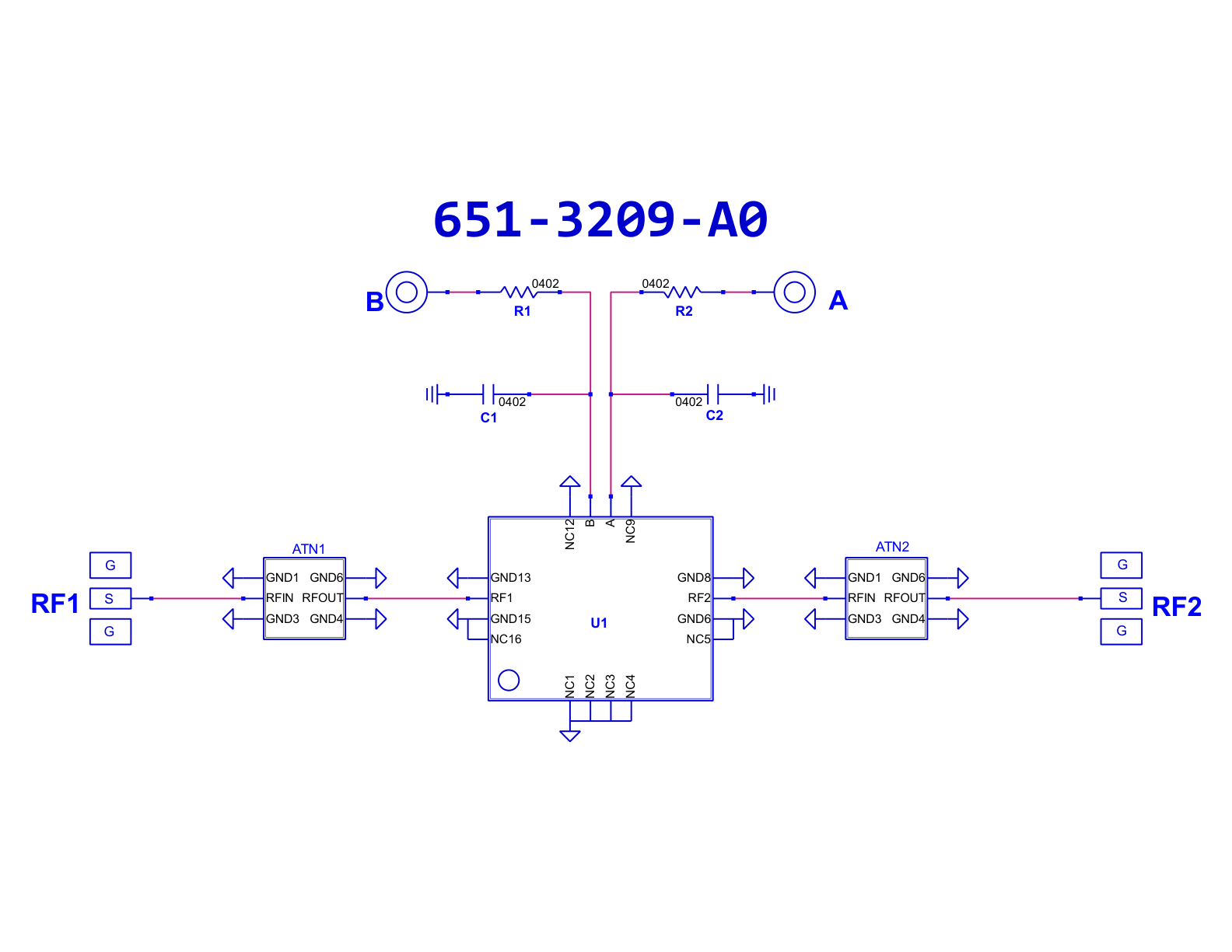

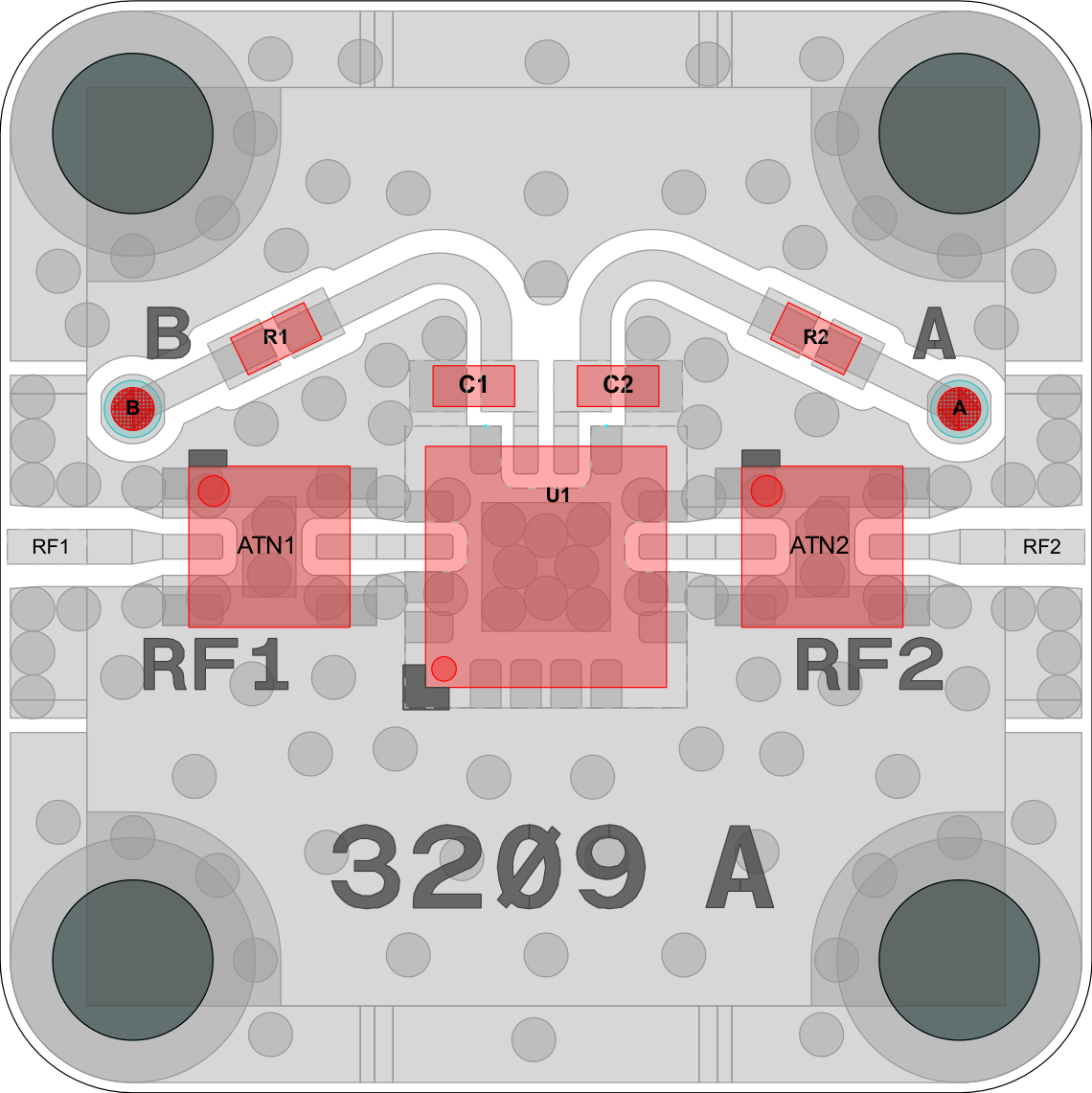

Switch, CMD204C3 [PCB: 3209]
Recommended Bias Controller: XM-A5A9-0404D-SP

Product Page

 N/A Qorvo

Spec Sheet

 N/A CMD204C3

Low Freq

 N/A 0 MHz

High Freq

 N/A 20000 MHz

IL

 N/A 13 dB

P1dB

 N/A 25 dBm

IP3

 N/A 38 dBm

Bias Instruction

 N/A

Notes: VA,B LOW = 0V @ 1 uA typ
VA,B HIGH = -5V @ 6 uA typ.

State 1: [A = HIGH] [B = LOW] [RF1 to RF2 ON]
State 2: [A = LOW] [B = HIGH] [RF1 to RF2 OFF]

Part Number

 N/A XR-E156-0404D
