XM-D8B9-0409D
XR-D8B9-0409D ROHS

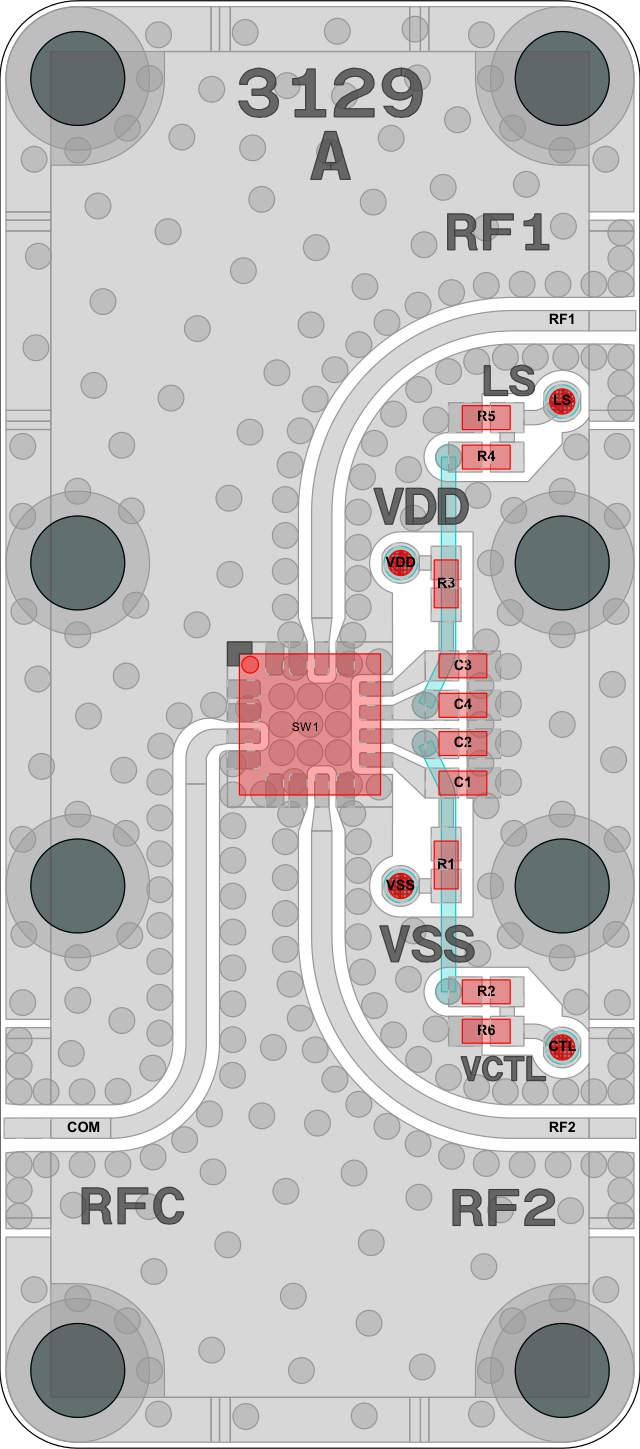

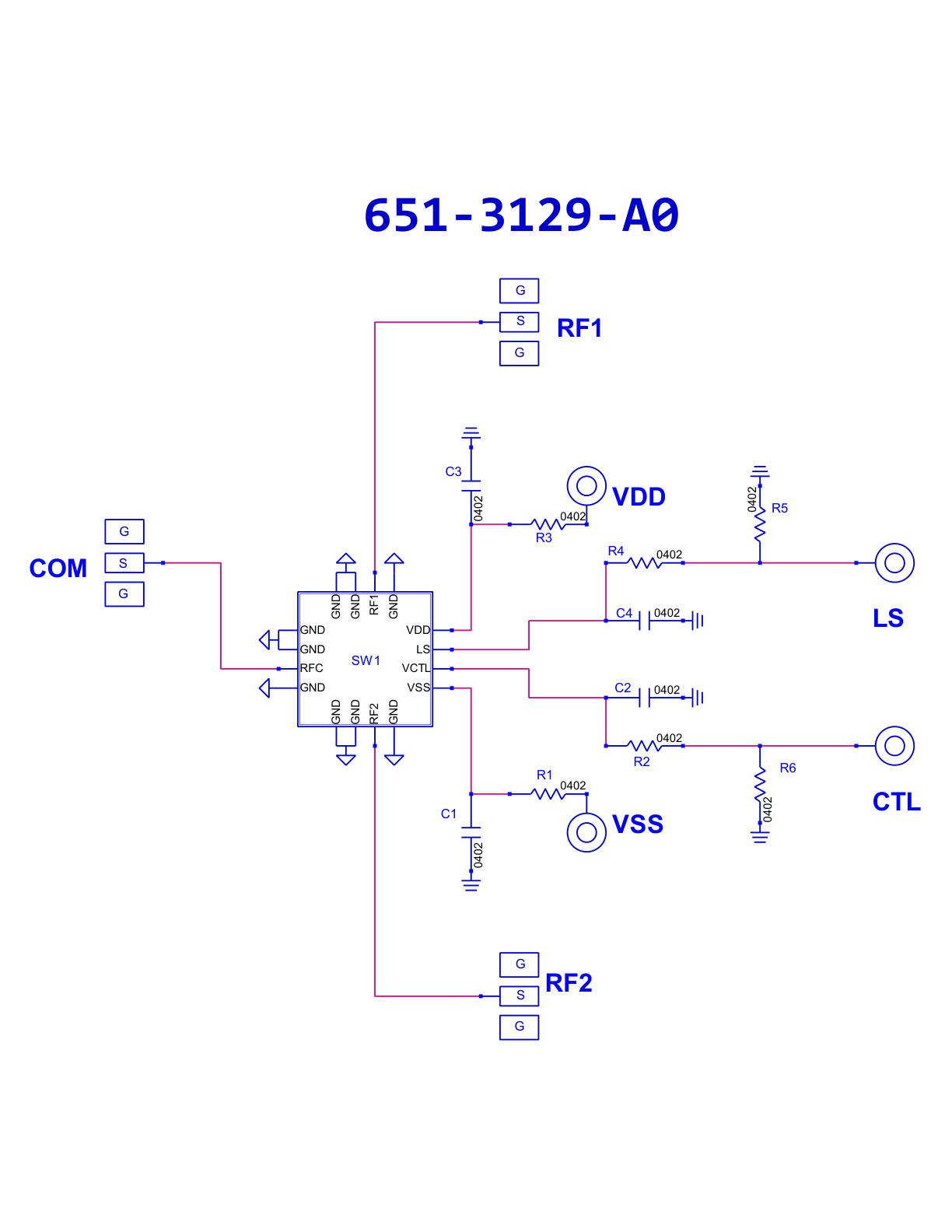

Switch, ADRF5019 [PCB: 3129]
Recommended Bias Controller: XM-C8L8-0409D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A ADRF5019

Low Freq

 N/A 100 MHz

High Freq

 N/A 13000 MHz

IL

 N/A 0.8 dB

P1dB

 N/A 39 dBm

IP3

 N/A 60 dBm

N/A

Bias Instruction

 N/A

Notes: VDD = +3.3V @20uA
VSS = -2.5V @0.5uA
VCTL, LS = 0V (LOW) or +3.3V (HIGH) @<1uA

State 1: [LS = HIGH] [VCTL = LOW] [RF1 = ON] [RF2 = OFF]
State 2: [LS = HIGH] [VCTL = HIGH] [RF1 = OFF] [RF2 = ON]
State 3: [LS = LOW] [VCTL = LOW] [RF1 = OFF] [RF2 = ON]
State 4: [LS = LOW] [VCTL = HIGH] [RF1 = ON] [RF2 = OFF]

Part Number

 N/A XR-D8B9-0409D
