XM-D8A4-0409D
XR-D8A4-0409D ROHS

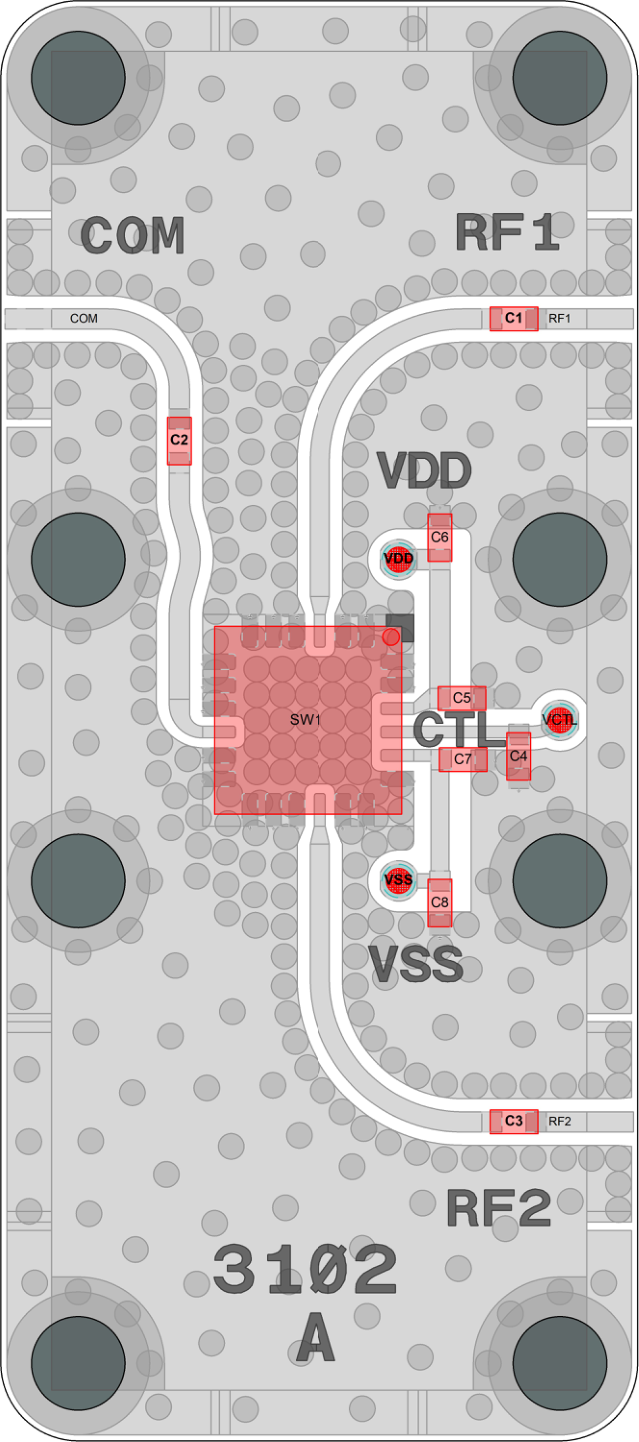

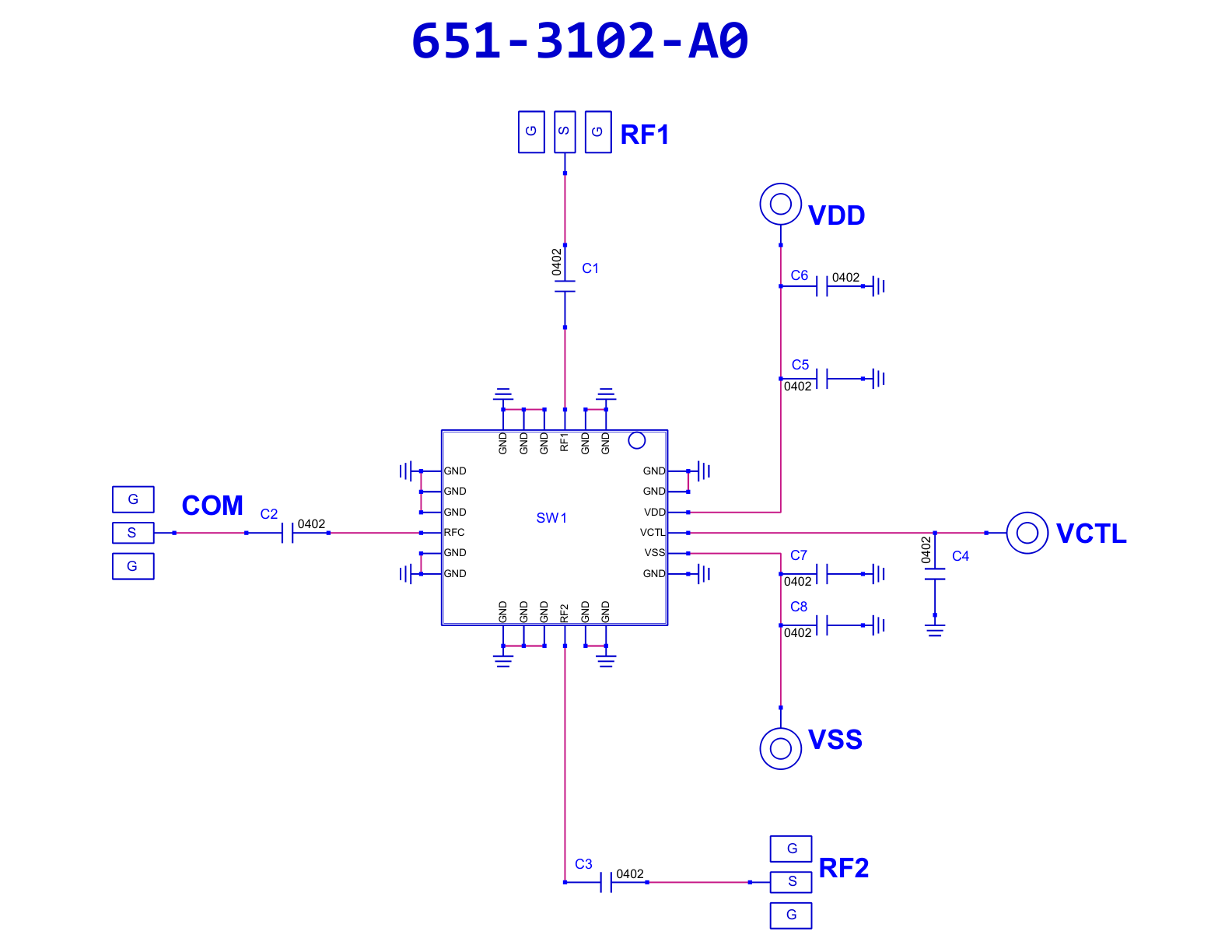

Switch, ADRF5162BCPZN-R7 [PCB: 3102]

Product Page

 N/A ADI

Spec Sheet

 N/A ADRF5162BCPZN-R7

Low Freq

 N/A 400 MHz

High Freq

 N/A 8000 MHz

IL

 N/A 0.6 dB

P1dB

 N/A 50 dBm

IP3

 N/A 76 dBm

N/A

Bias Instruction

 N/A

Notes: VDD = +3.3V @130uA
VSS = -3.3V @500uA
VCTL HIGH = +1.2V to +3.3V @<0.1uA
VCTL LOW = 0V to +0.8V @<0.1uA

State 1: [CTL = LOW] [RF1 = ON] [RF2 = OFF]
State 2: [CTL = HIGH] [RF1 = OFF] [RF2 = ON]

Part Number

 N/A XR-D8A4-0409D
