XM-D8A2-0409D
XR-D8A2-0409D ROHS

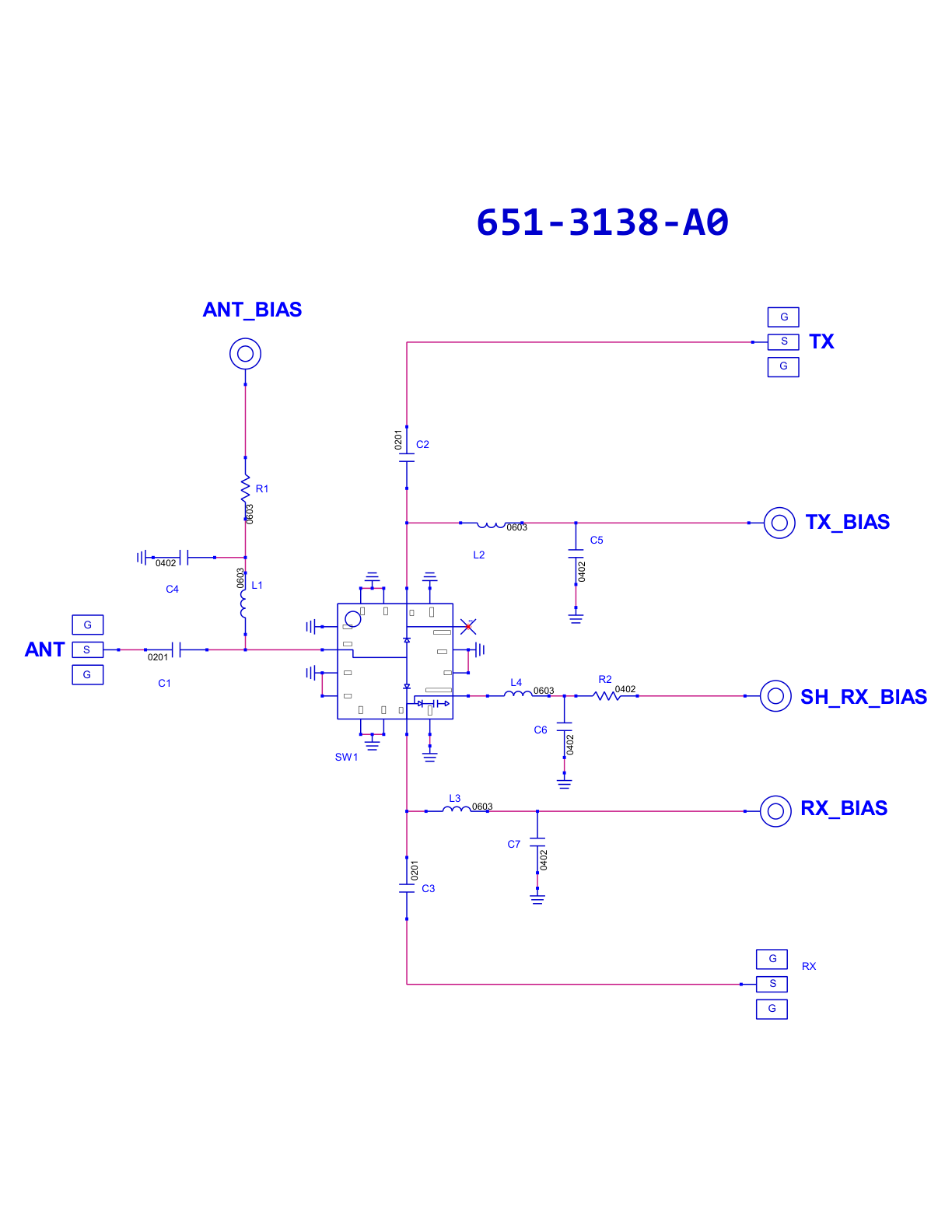

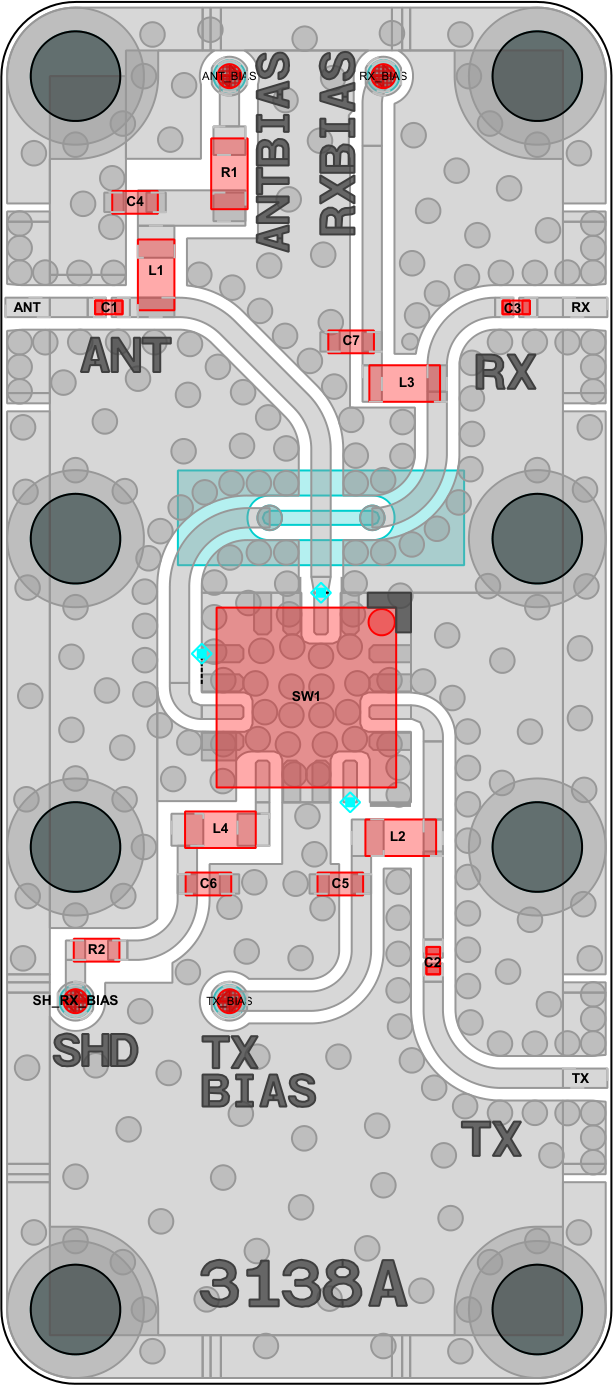

Switch, MASW-000932-13560T [PCB: 3138]

Product Page

 N/A Macom

Spec Sheet

 N/A MASW-000932-13560T

Low Freq

 N/A 10 MHz

High Freq

 N/A 6000 MHz

IL

 N/A 0.25 dB

P1dB

 N/A 49 dBm

IP3

 N/A 72 dBm

N/A

Bias Instruction

 N/A

Bias Table
RX to ANT ON: [TXBIAS = +28V, 0mA] [RX BIAS = -100mA] [SHD = +28V, 0mA] [ANTBIAS = 0V, +100mA]
TX to ANT ON: [TXBIAS = -100mA] [RX BIAS = +28V, +50mA] [SHD = -50mA] [ANTBIAS = 0V, +100mA]

Part Number

 N/A XR-D8A2-0409D
