XM-D6W5-0619D
XR-D6W5-0619D ROHS

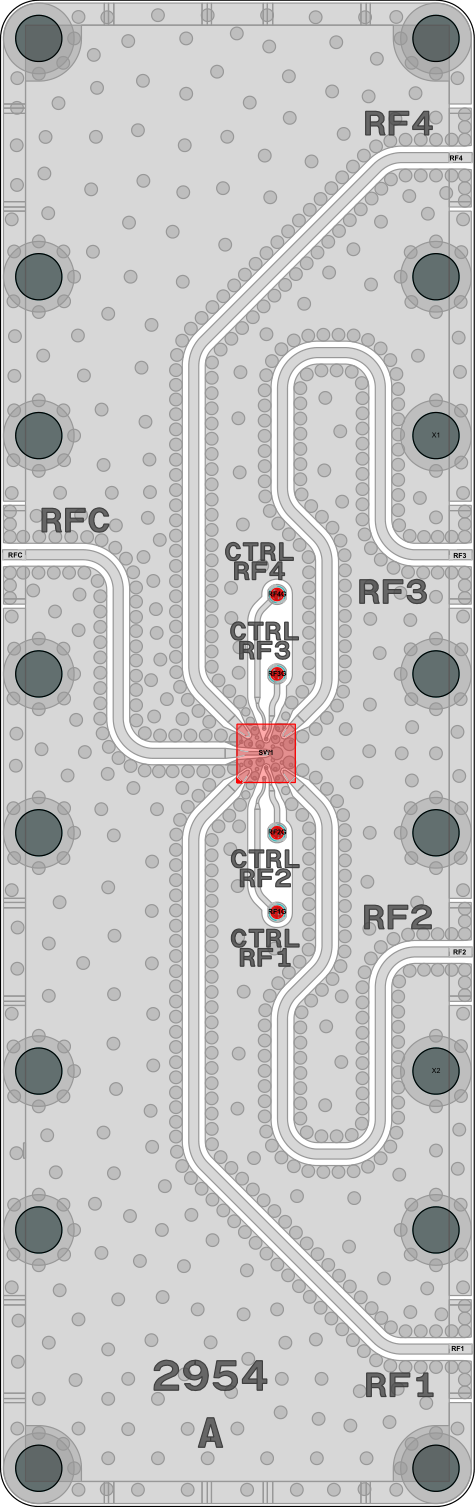

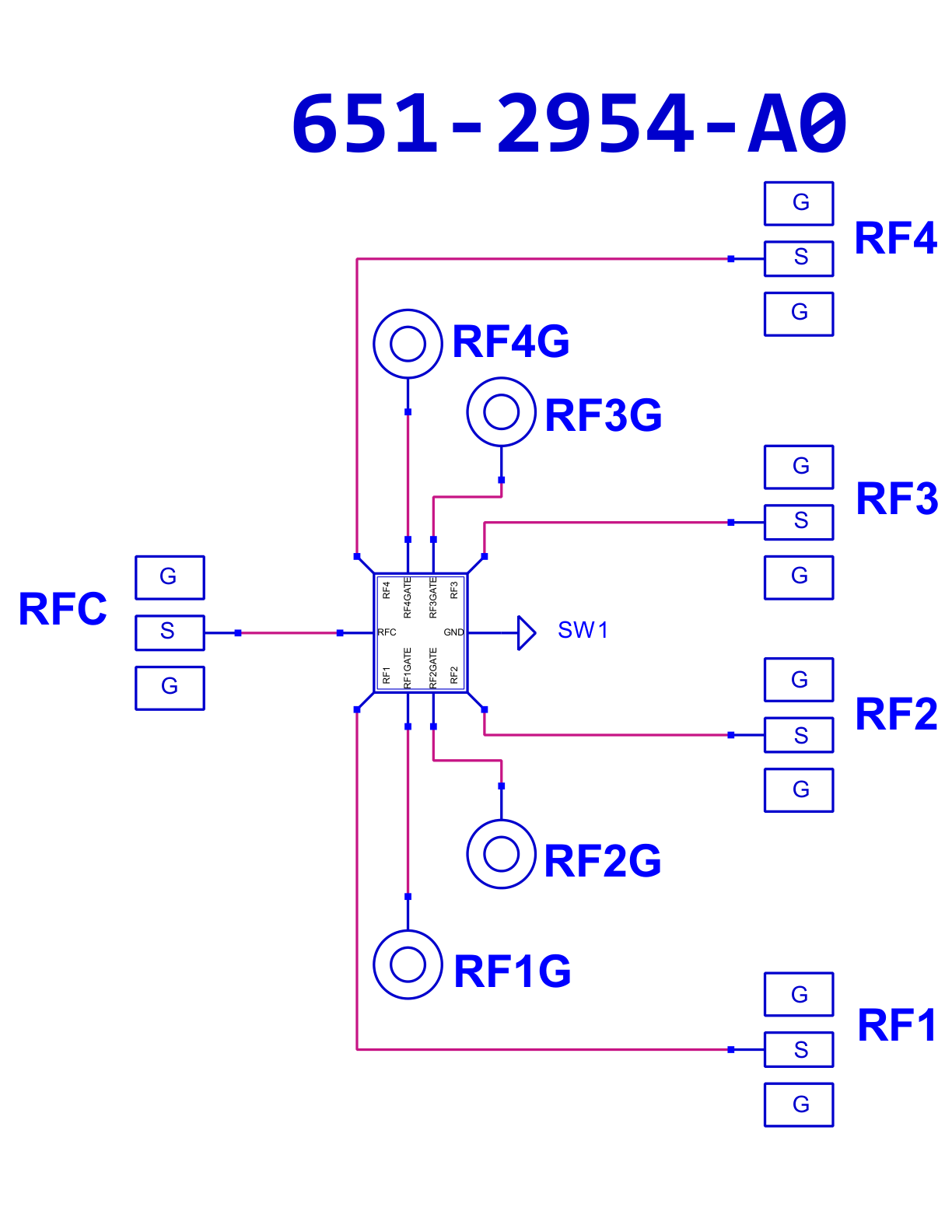

Switch, MM5130 [PCB: 2954]

Product Page

 N/A Menlo Micro

Spec Sheet

 N/A MM5130

Low Freq

 N/A 0 MHz

High Freq

 N/A 26000 MHz

IL

 N/A 0.3 dB

IP3

 N/A 95 dBm

N/A

Bias Instruction

 N/A

Notes: V(CTRLRF1,2,3,4) = +89V@2nA (HIGH) or 0 (LOW)

Normal SP4T Mode:
State 1: [CTRLRF4 = LOW] [CTRLRF3 = LOW] [CTRLRF2 = LOW] [CTRLRF1 = HIGH] [RF1 = ON] [RF2-4 = OFF]
State 2: [CTRLRF4 = LOW] [CTRLRF3 = LOW] [CTRLRF2 = HIGH] [CTRLRF1 =LOW ] [RF2 = ON] [RF1,3,4 = OFF]
State 3: [CTRLRF4 = LOW] [CTRLRF3 = HIGH] [CTRLRF2 = LOW] [CTRLRF1 = LOW] [RF3 = ON] [RF1,2,4 = OFF]
State 4: [CTRLRF4 = HIGH] [CTRLRF3 = LOW] [CTRLRF2 = LOW] [CTRLRF1 = LOW] [RF4 = ON] [RF1-3 = OFF]
State 5: [CTRLRF4 = LOW] [CTRLRF3 = LOW] [CTRLRF2 = LOW] [CTRLRF1 = LOW] [All OFF]

Part Number

 N/A XR-D6W5-0619D
