XM-D6U9-0409D
XR-D6U9-0409D ROHS

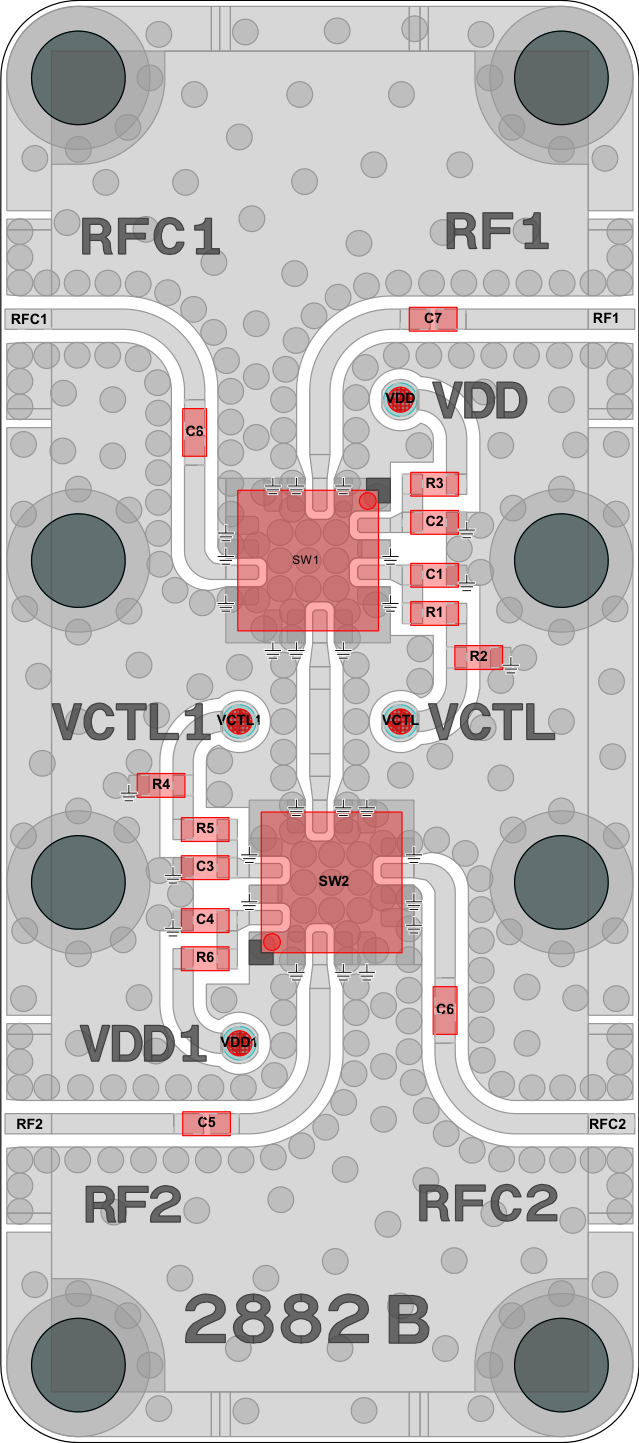

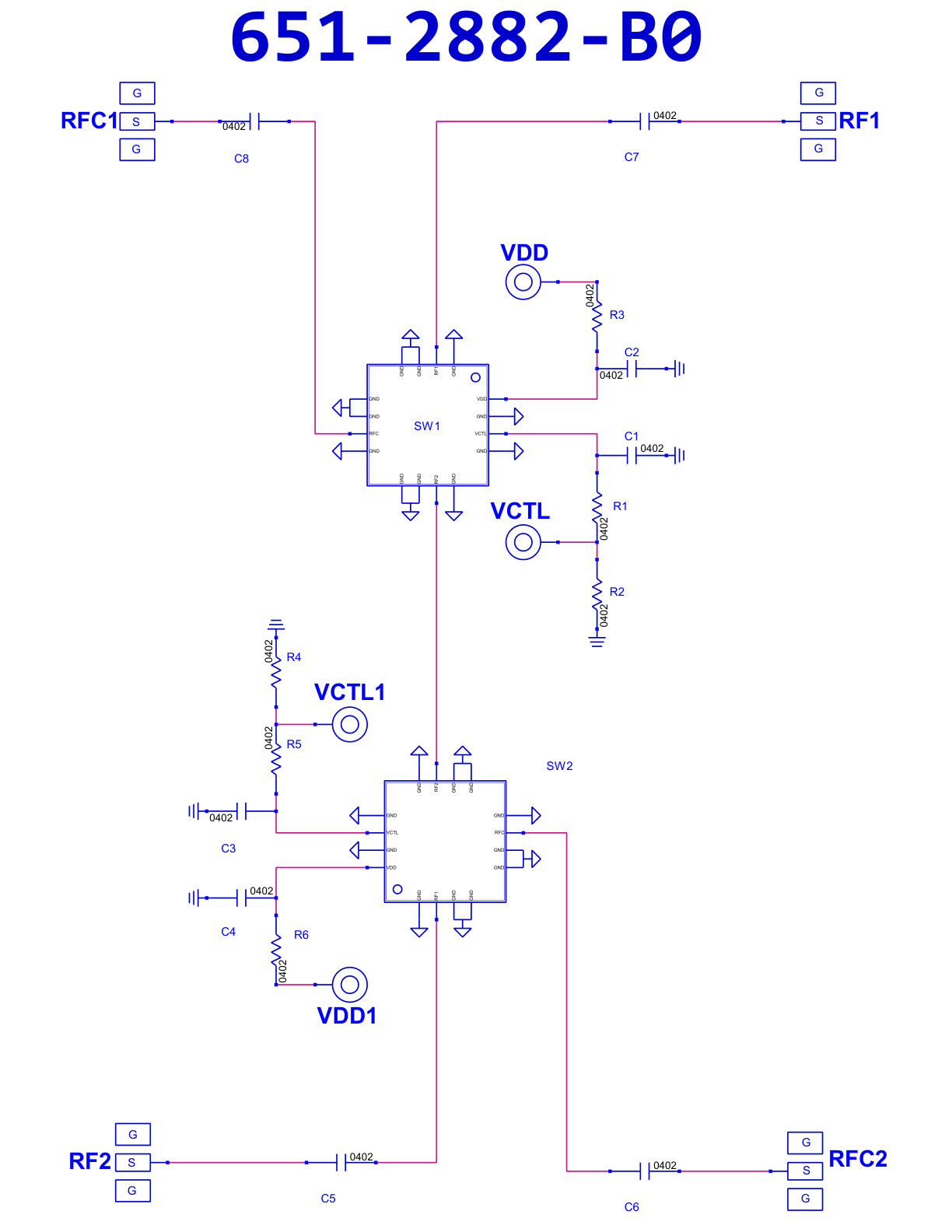

Switch, ADRF5132BCPZN [PCB: 2882]

Product Page

 N/A ADI

Spec Sheet

 N/A ADRF5132BCPZN

Low Freq

 N/A 700 MHz

High Freq

 N/A 5000 MHz

IL

 N/A 0.6 dB

P1dB

 N/A 42.5 dBm

IP3

 N/A 65 dBm

Bias Instruction

 N/A

Notes: VDD = +5V
VCTL = 0V (LOW) or VDD (HIGH)

State 1: [VCTL = LOW] [VCTL1 = LOW] [RF1 to RFC1 ON] [RF2 to RFC2 ON]
State 2: [VCTL = LOW] [VCTL1 = HIGH] [RF1 to RFC1 ON]
State 3: [VCTL = HIGH] [VCTL1 = LOW] [RF2 to RFC2 ON]
State 4: [VCTL = HIGH] [VCTL1 = HIGH] [RFC1 to RFC2 ON]

Part Number

 N/A XR-D6U9-0409D
