XM-D6T7-0409D
XR-D6T7-0409D ROHS

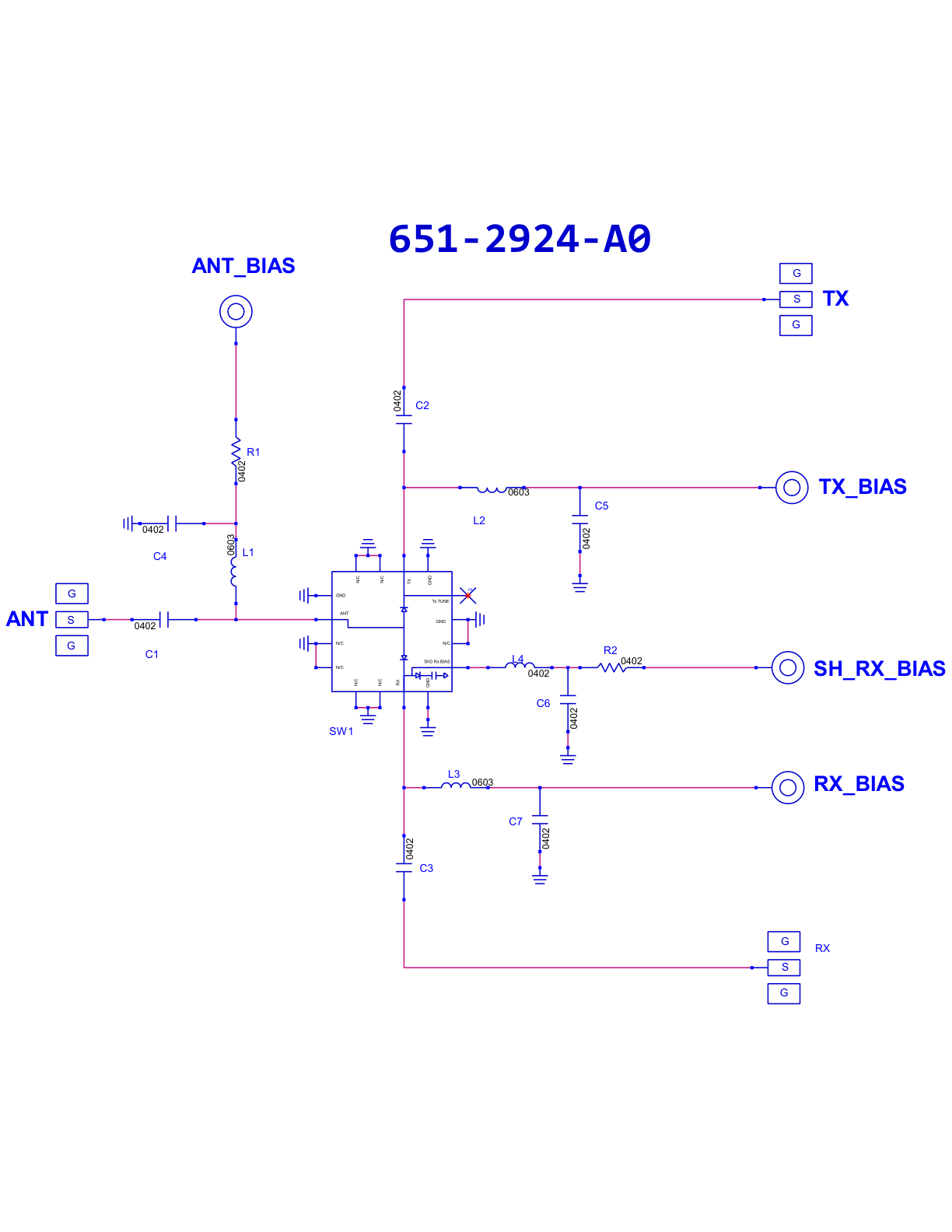

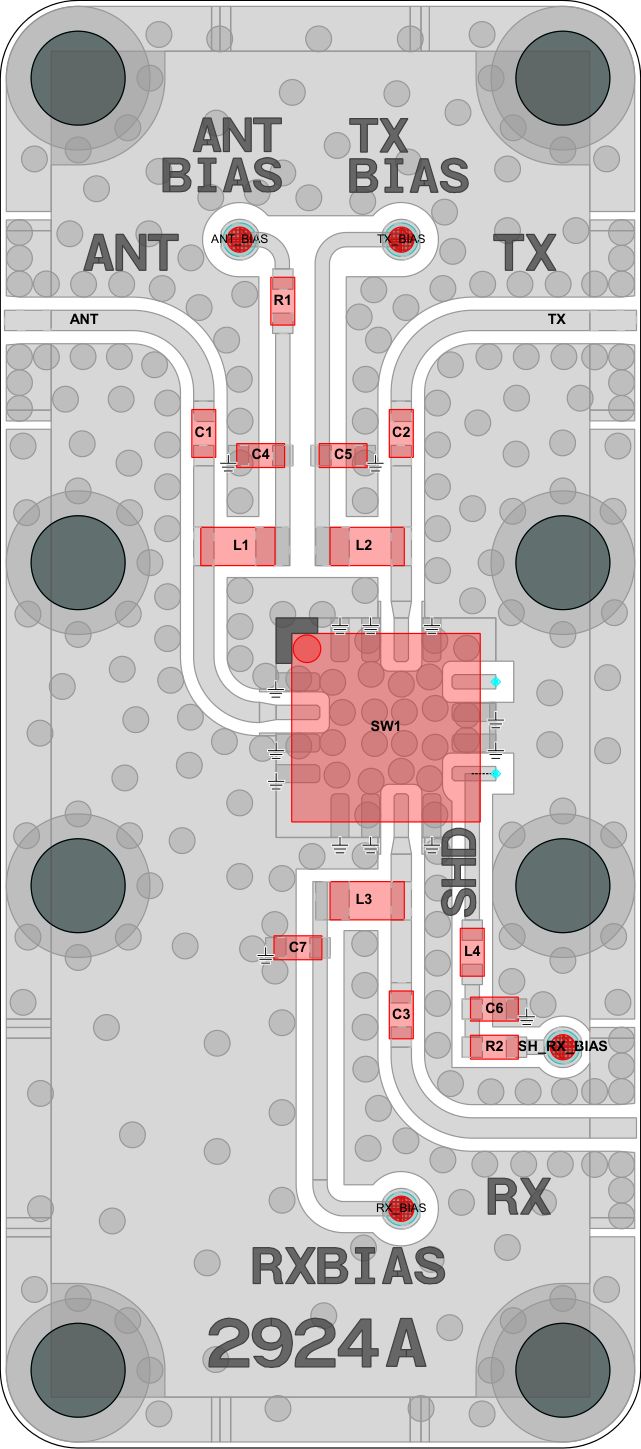

Switch, MASW-000932-13560T [PCB: 2924]

Product Page

 N/A Macom

Spec Sheet

 N/A MASW-000932-13560T

Low Freq

 N/A 10 MHz

High Freq

 N/A 6000 MHz

IL

 N/A 0.25 dB

P1dB

 N/A 49 dBm

IP3

 N/A 72 dBm

N/A

Bias Instruction

 N/A

Notes: See minimum reverse bias voltage requirement by frequency on datasheet

TX to ANT: [TX BIAS = -100mA] [RX BIAS = +28V, +50mA] [SH_RX_BIAS = -50mA] [ANT BIAS = 0V, +100mA]
RX to ANT: [TX BIAS = +28V, 0mA] [RX BIAS = -100mA] [SH_RX_BIAS = +28V, 0mA] [ANT BIAS = 0V, +100mA]

Part Number

 N/A XR-D6T7-0409D
