XM-D6N3-0609D
XR-D6N3-0609D ROHS

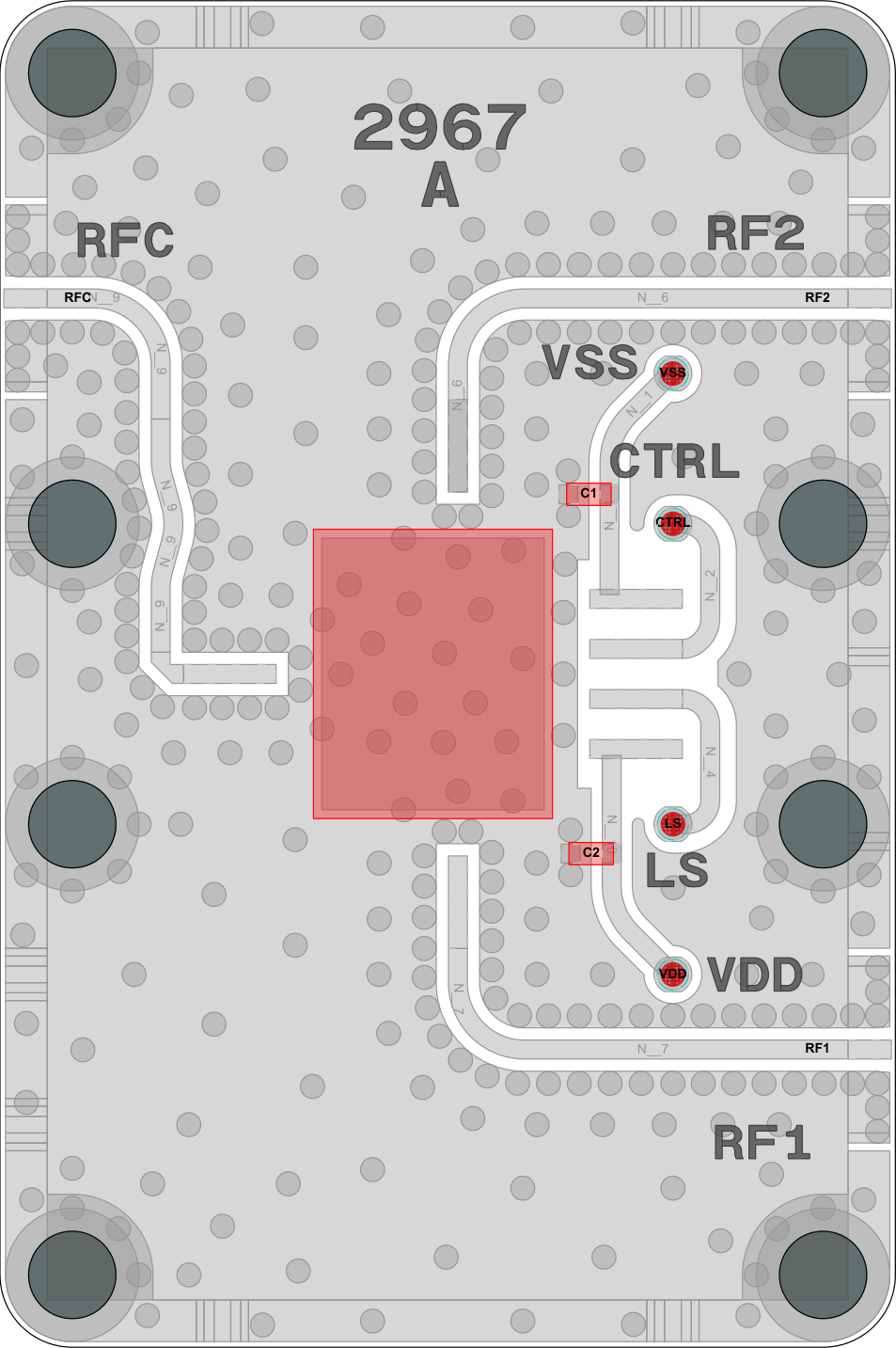

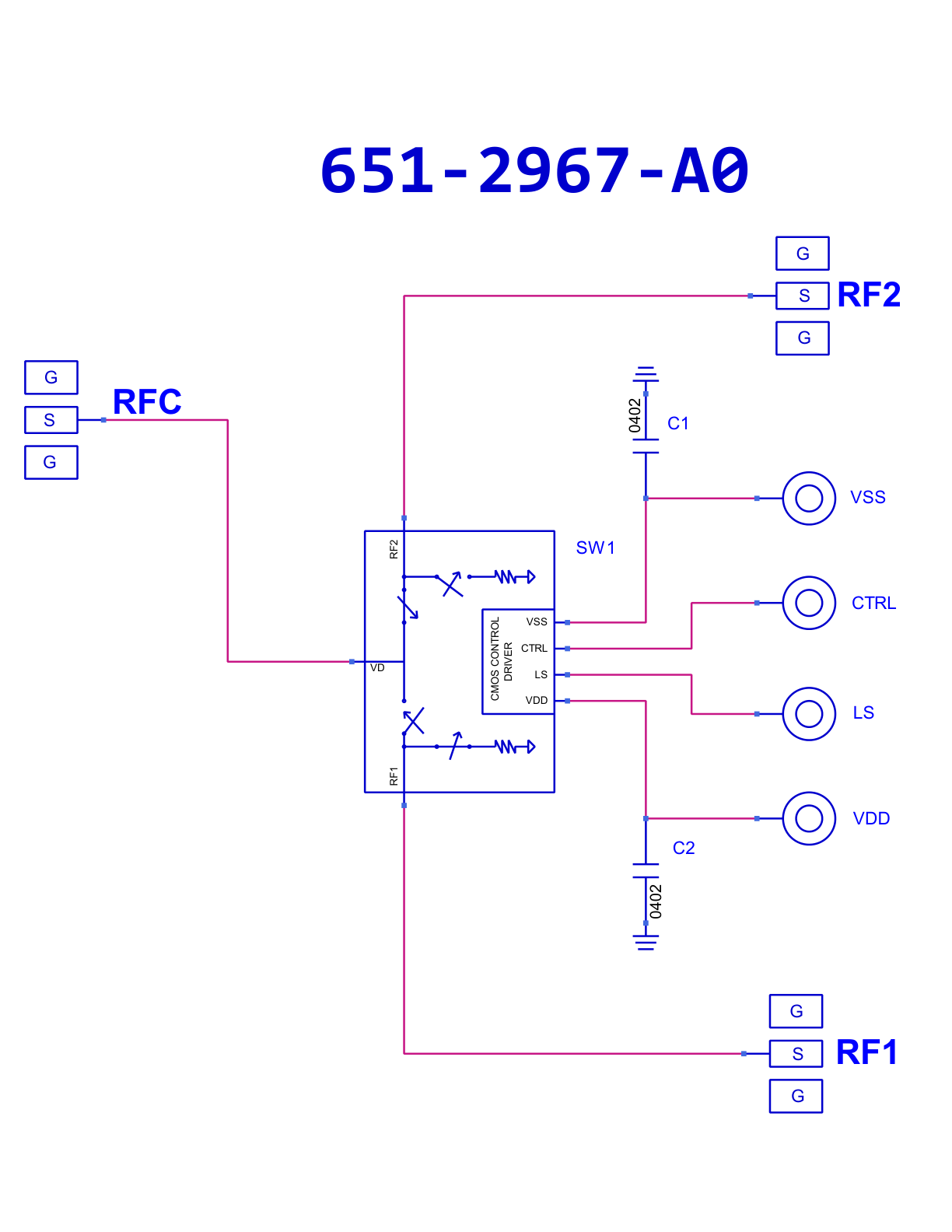

Switch, PE95421 [PCB: 2967]

Product Page

 N/A Teledyne

Spec Sheet

 N/A PE95421

Low Freq

 N/A 1 MHz

High Freq

 N/A 8500 MHz

IL

 N/A 1 dB

P1dB

 N/A 33 dBm

IP3

 N/A 60 dBm

N/A

Bias Instruction

 N/A

Notes: VDD = +3V to +3.6V (+3.3V @1uA typ)
VSS = -3V to -3.6V (-3.3V @1uA typ)
CTRL = Unused
LS LOW = 0.3 x VDD
LS HIGH = 0.7 x VDD

State 1: [LS = LOW] [RF1 = OFF] [RF2 = ON]
State 2: [LS = HIGH] [RF1 = ON] [RF2 = OFF]

Part Number

 N/A XR-D6N3-0609D
