XM-D681-0409D
XR-D681-0409D ROHS

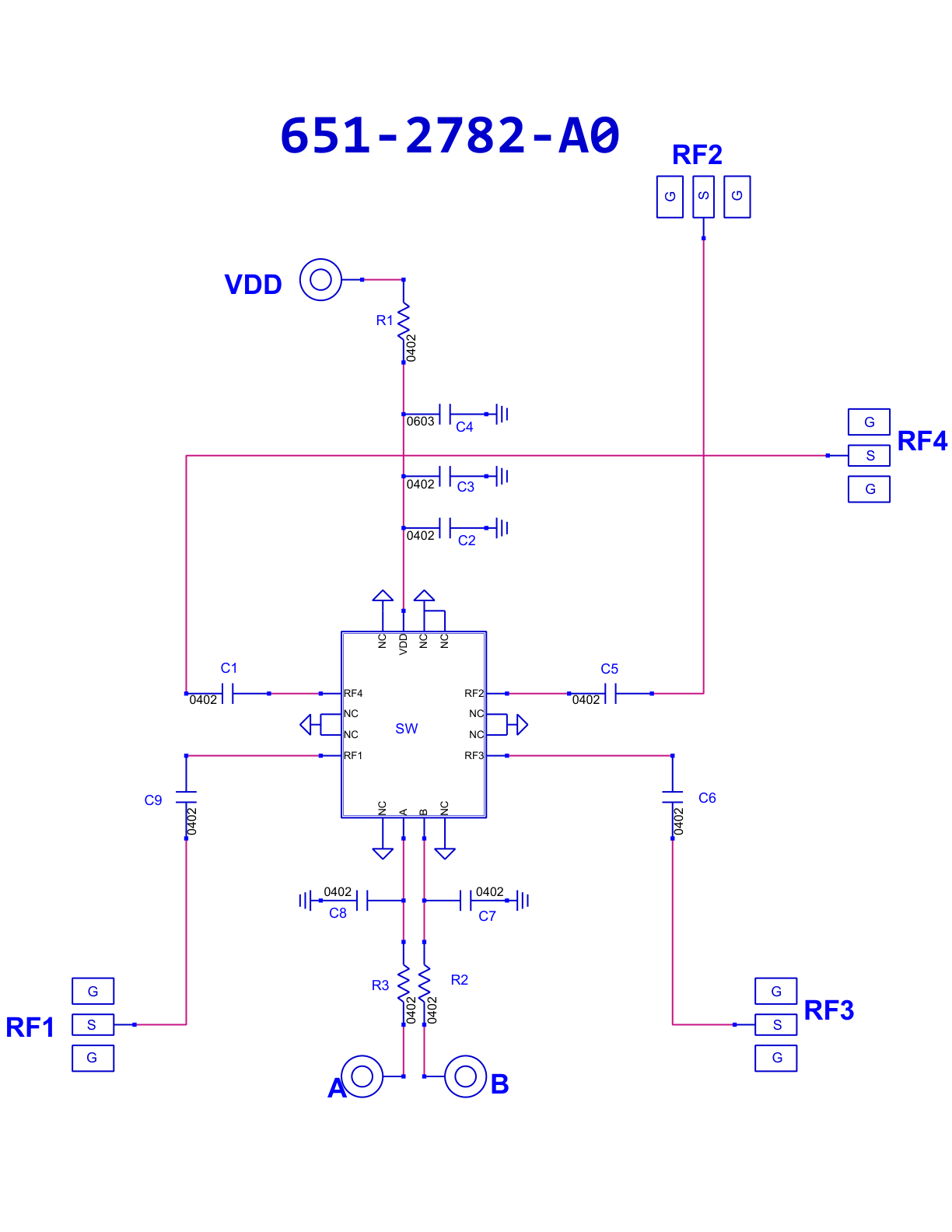

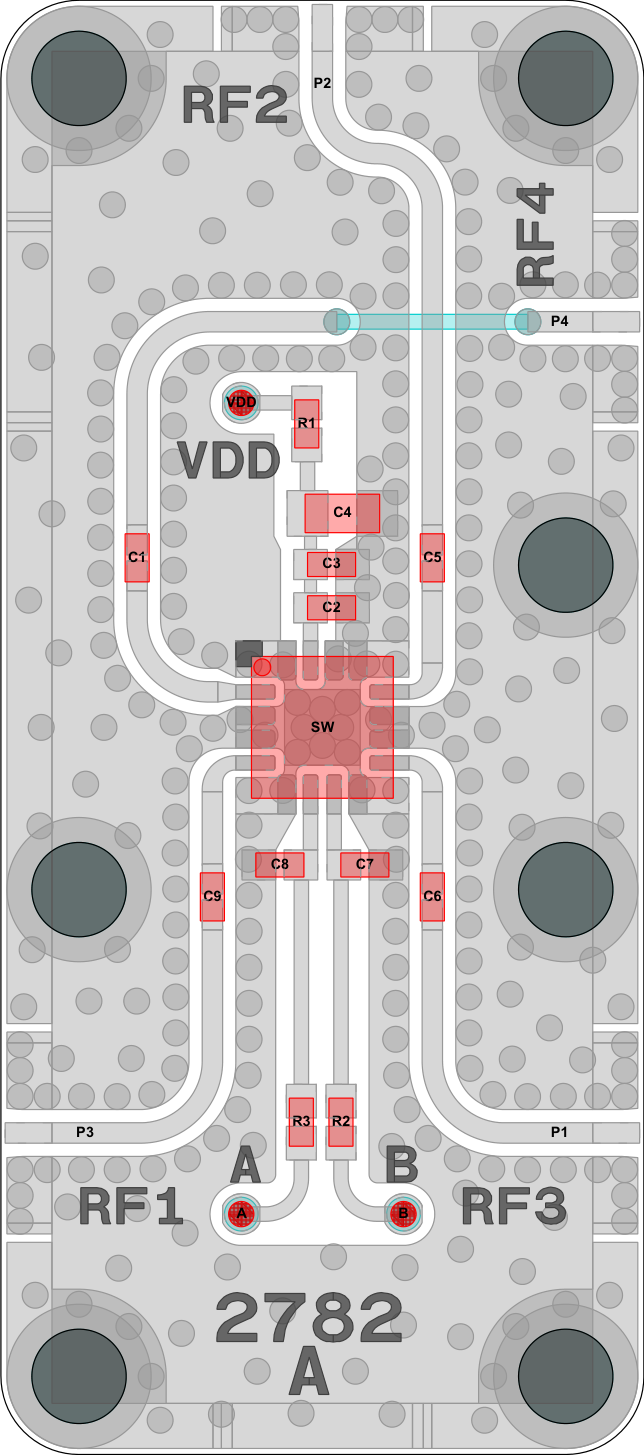

Switch, CMD272P3 [PCB: 2782]

Product Page

 N/A Qorvo

Spec Sheet

 N/A CMD272P3

Low Freq

 N/A 0 MHz

High Freq

 N/A 10000 MHz

IL

 N/A 1.6 dB

P1dB

 N/A 25 dBm

IP3

 N/A 38 dBm

Bias Instruction

 N/A

Notes: VDD = +5V@5uA typ.
VA,B LOW = 0V to +0.2V @1uA typ.
VA,B HIGH = VDD +/- 0.2V @1uA typ.

State 1: [VA = LOW] [VB = HIGH] [RF4 to RF2 ON] [RF1 to RF3 ON]
State 2: [VA = HIGH] [VB = LOW] [RF4 to RF1 ON] [RF2 to RF3 ON]

Part Number

 N/A XR-D681-0409D
