XM-D5G9-0409D
XR-D5G9-0409D ROHS

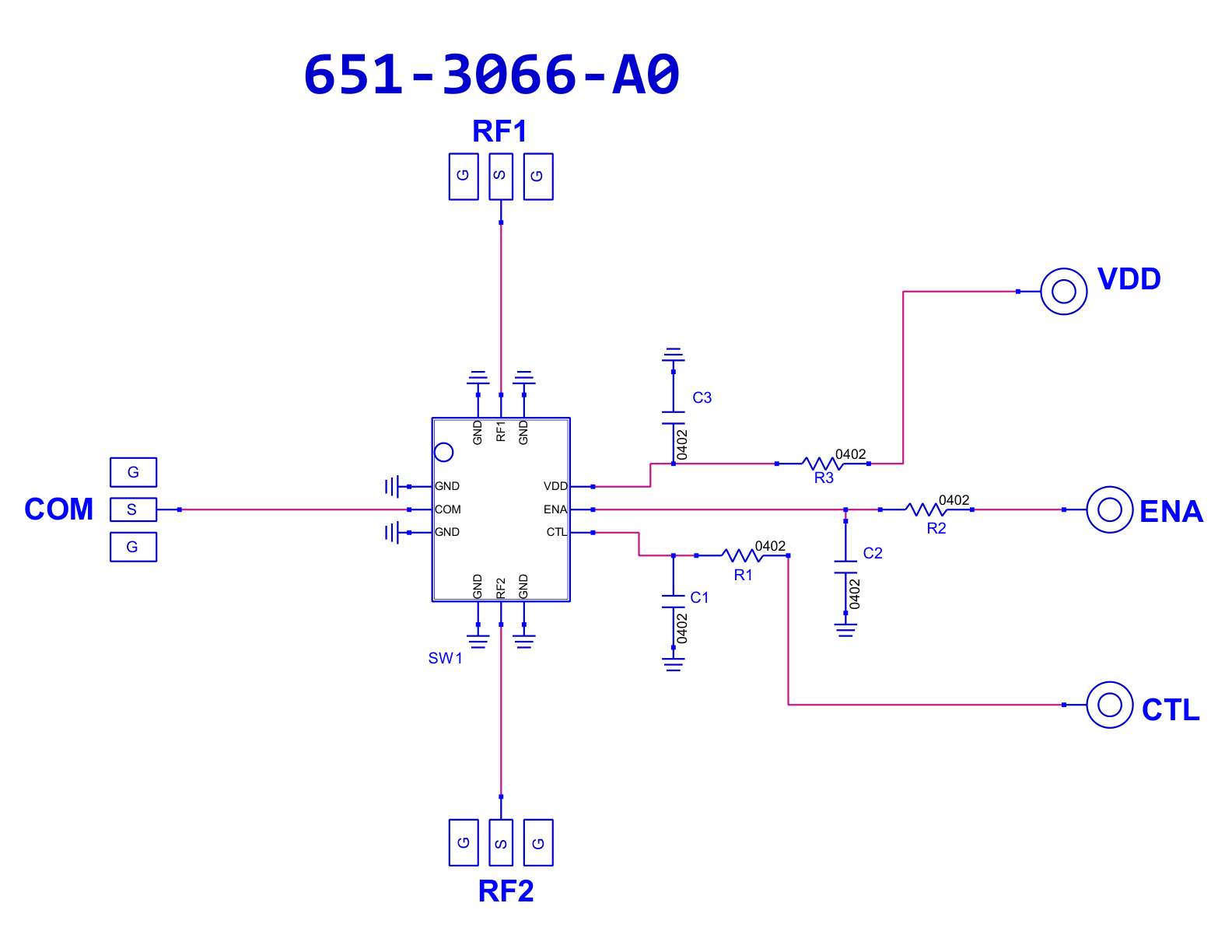

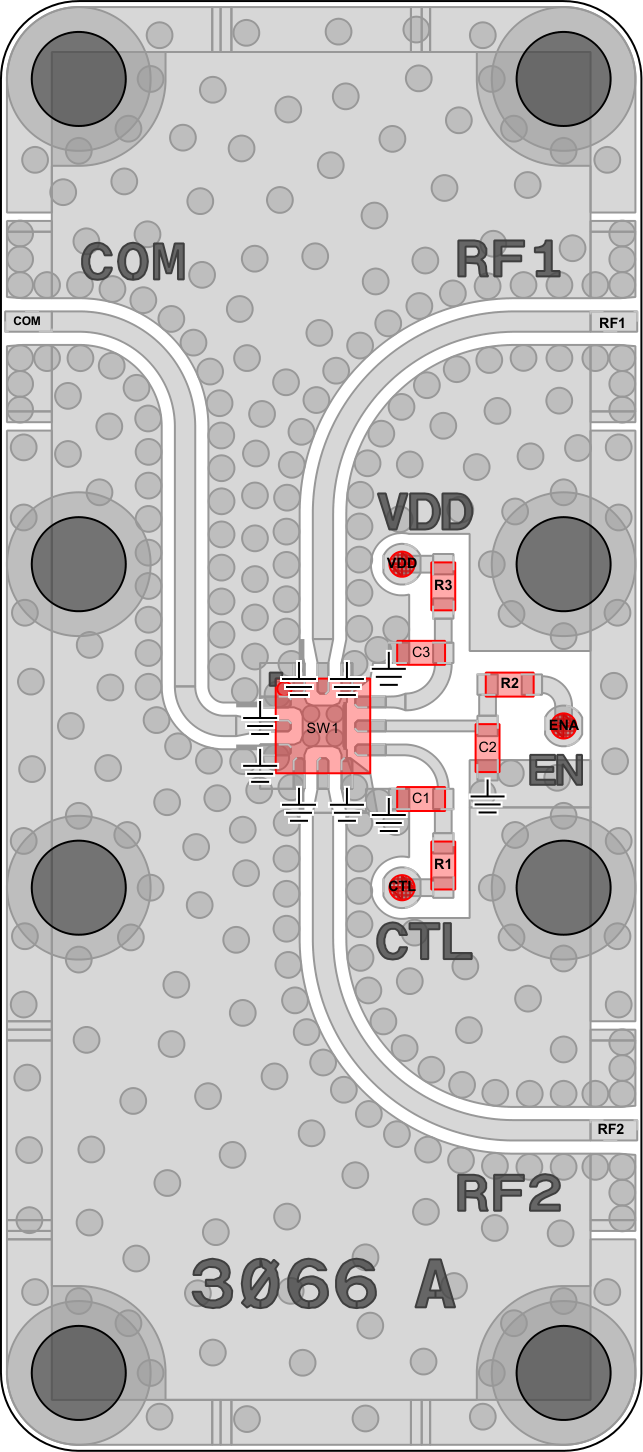

Switch, JSW2-63DR+ [PCB: 3066]

Product Page

 N/A Mini-Circuits

Spec Sheet

 N/A JSW2-63DR+

Low Freq

 N/A 5 MHz

High Freq

 N/A 6000 MHz

IL

 N/A 0.33 dB

P1dB

 N/A 62 dBm

IP3

 N/A 55 dBm

Bias Instruction

 N/A

Notes: VDD = +2.3 to 4.8V @37uA
CTL,EN LOW = 0V to +0.4V
Ctrl,EN HIGH = +1.65V to VDD
All OFF when EN low

State 1: [EN = HIGH] [CTL = HIGH] [RF1 = ON] [RF2 = OFF]
State 2: [EN = HIGH] [CTL = LOW] [RF1 = OFF] [RF2 = ON]

Part Number

 N/A XR-D5G9-0409D
