XM-D5C7-0409D
XR-D5C7-0409D ROHS

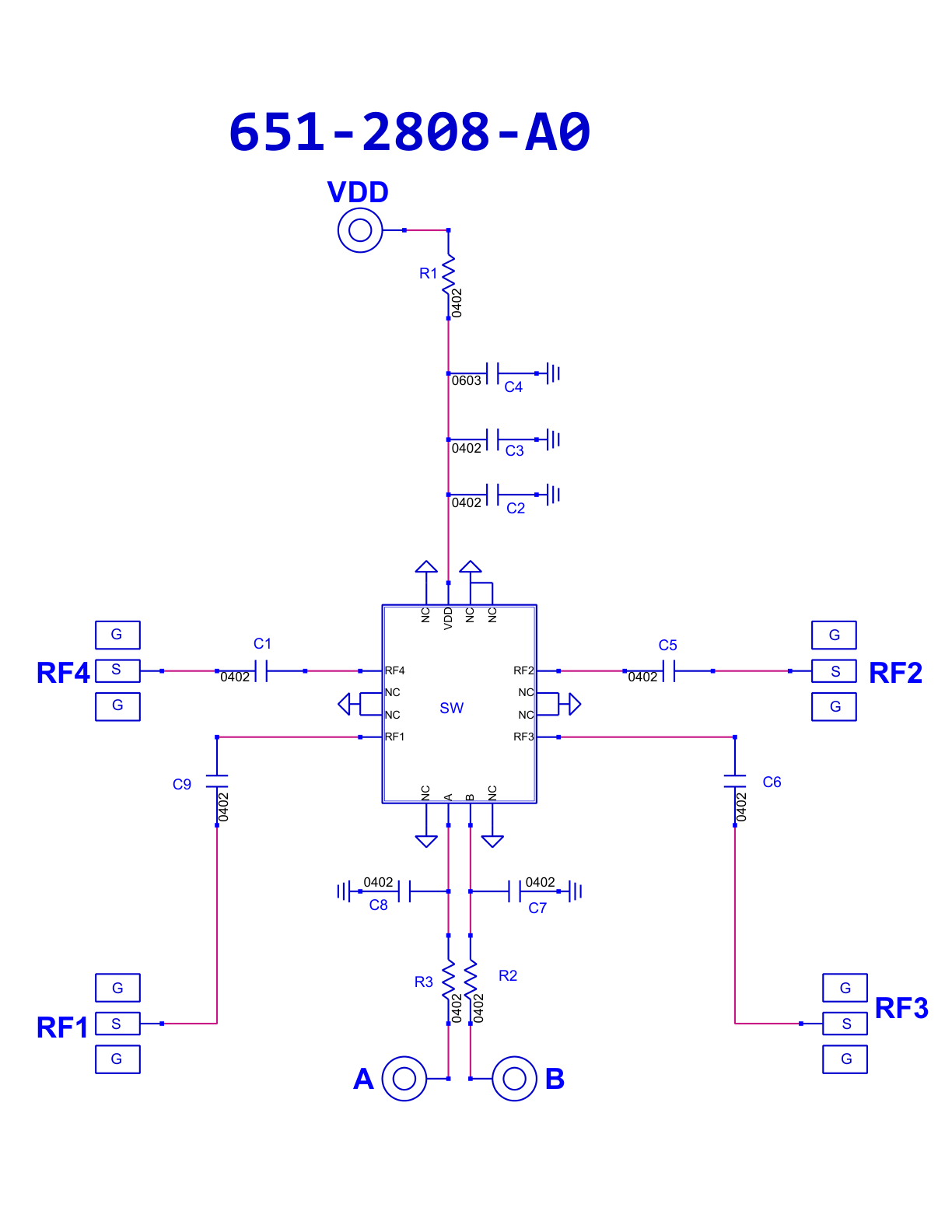

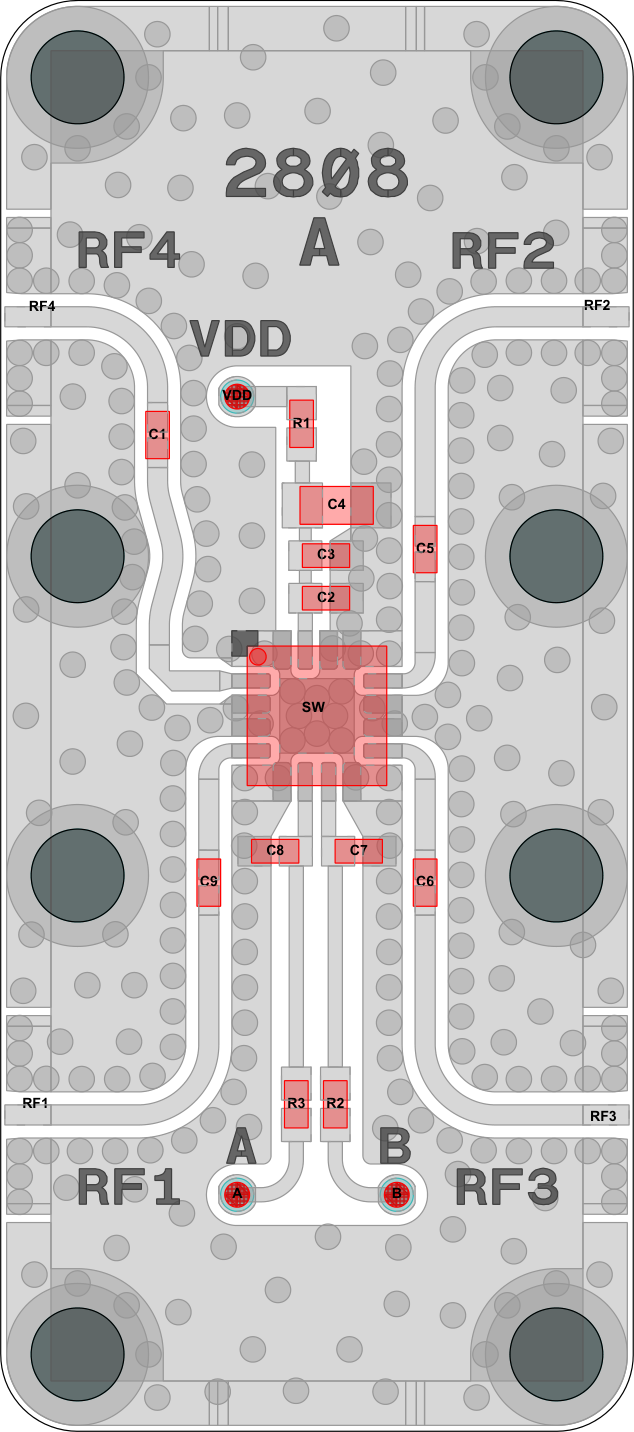

Switch, HMC427ALP3E [PCB: 2808]

Product Page

 N/A ADI

Spec Sheet

 N/A HMC427ALP3E

Low Freq

 N/A 0 MHz

High Freq

 N/A 8000 MHz

IL

 N/A 1.5 dB

P1dB

 N/A 26 dBm

IP3

 N/A 43 dBm

Bias Instruction

 N/A

Notes: VDD = +5V
VA,B = 0V (LOW) or VDD (HIGH)

State 1: [A = LOW] [B = HIGH] [RF2 to RF4 ON] [RF1 to RF3 ON]
State 2: [A = HIGH] [B = LOW] [RF1 to RF4 ON] [RF2 to RF3 ON]

Part Number

 N/A XR-D5C7-0409D
