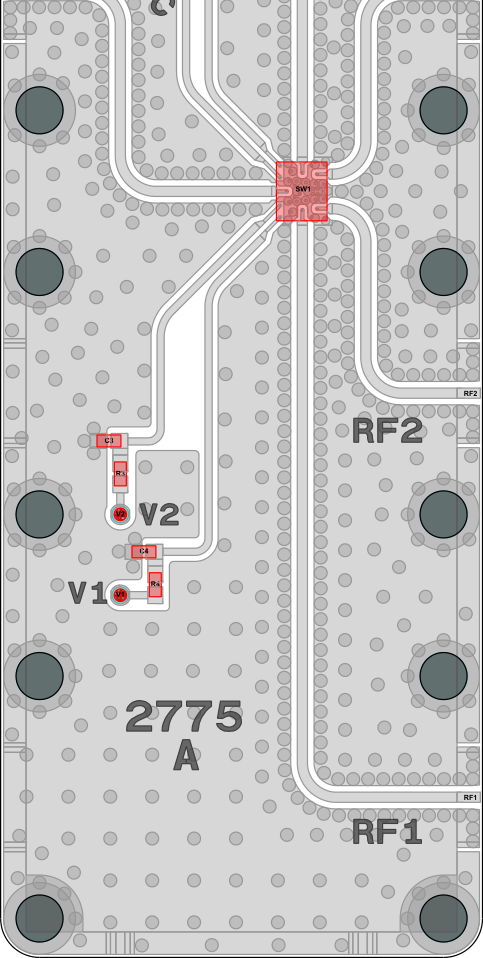

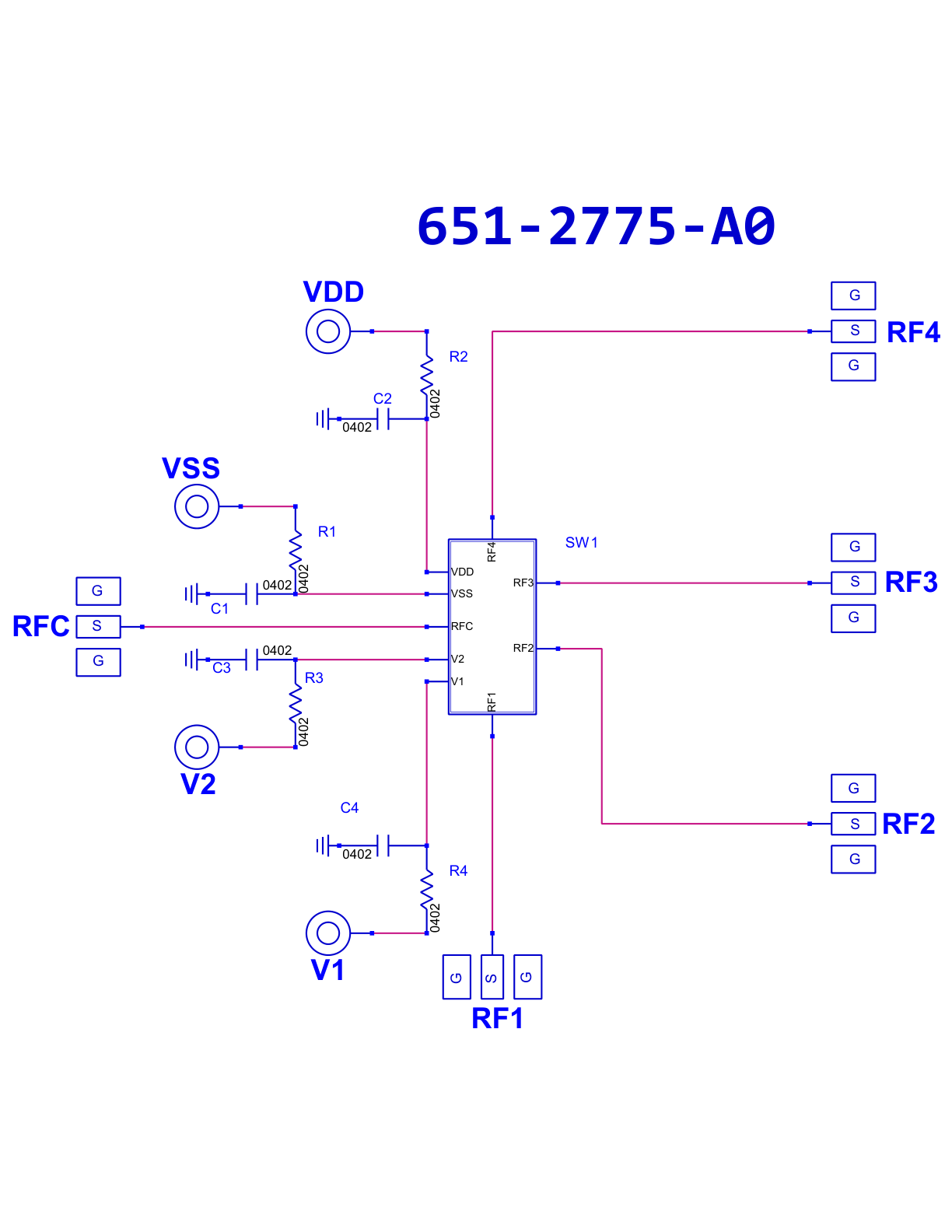

Switch, PE42545A-Z [PCB: 2775]

Product Page

 N/A pSemi

Spec Sheet

 N/A PE42545A-Z

Low Freq

 N/A 0.01 MHz

High Freq

 N/A 67000 MHz

IL

 N/A 1.7 dB

P1dB

 N/A 33.5 dBm

IP3

 N/A 52 dBm

N/A

Bias Instruction

 N/A

Notes: VDD = +3.3V @ 175uA
VSS = -3.3V @ 128nA
V1,2 LOW = 0V
V1,2 HIGH = +3.3V

State 1: [V1 = LOW] [V2 = LOW] [RF1 = ON] [RF2-4 = OFF]
State 2: [V1 = HIGH] [V2 = LOW] [RF2 = ON] [RF1,3,4 = OFF]
State 3: [V1 = LOW] [V2 = HIGH] [RF3 = ON] [RF1,2,4 = OFF]
State 4: [V1 = HIGH] [V2 = HIGH] [RF4 = ON] [RF1-3 = OFF]

Part Number

 N/A XR-D598-0619D
