XM-D577-0404D
XR-D577-0404D ROHS

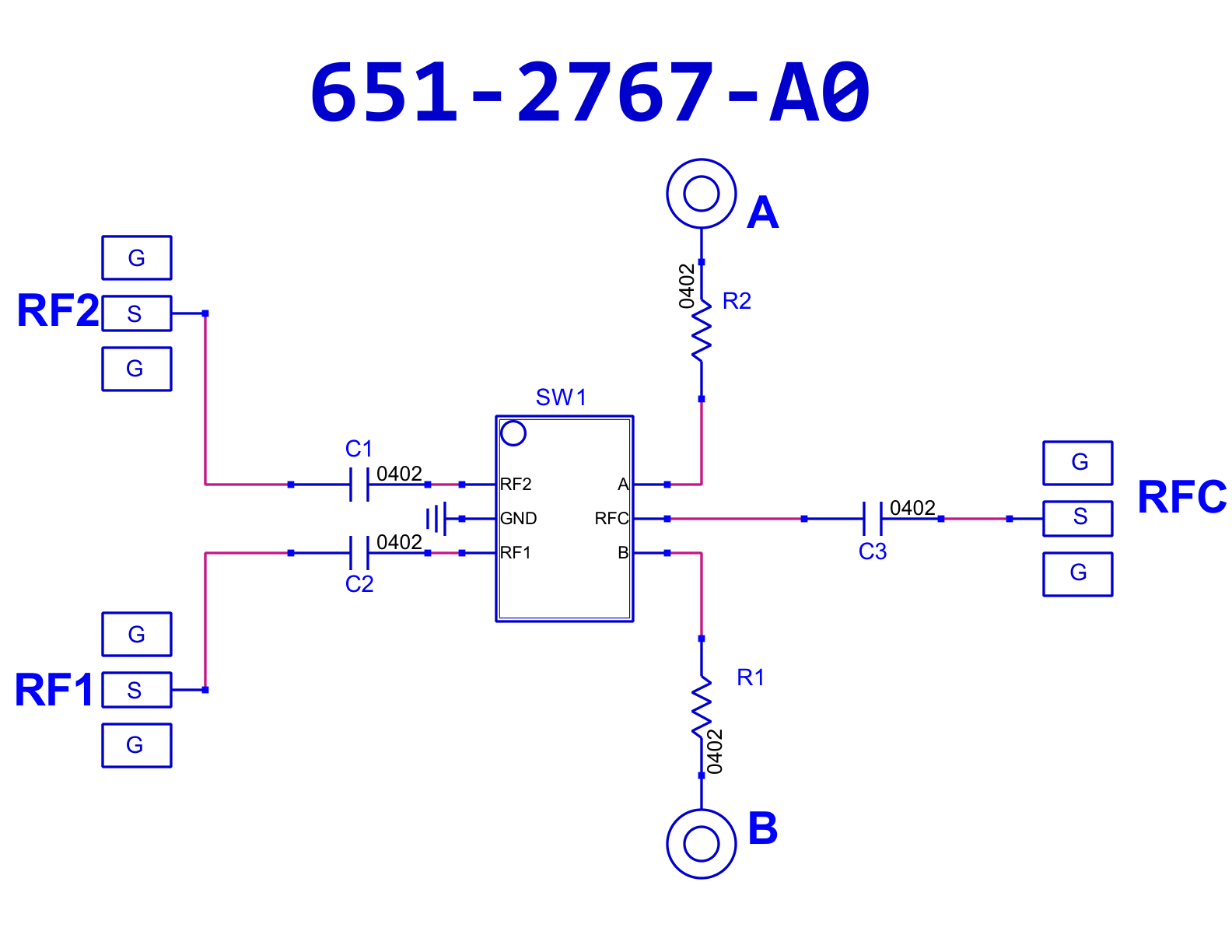

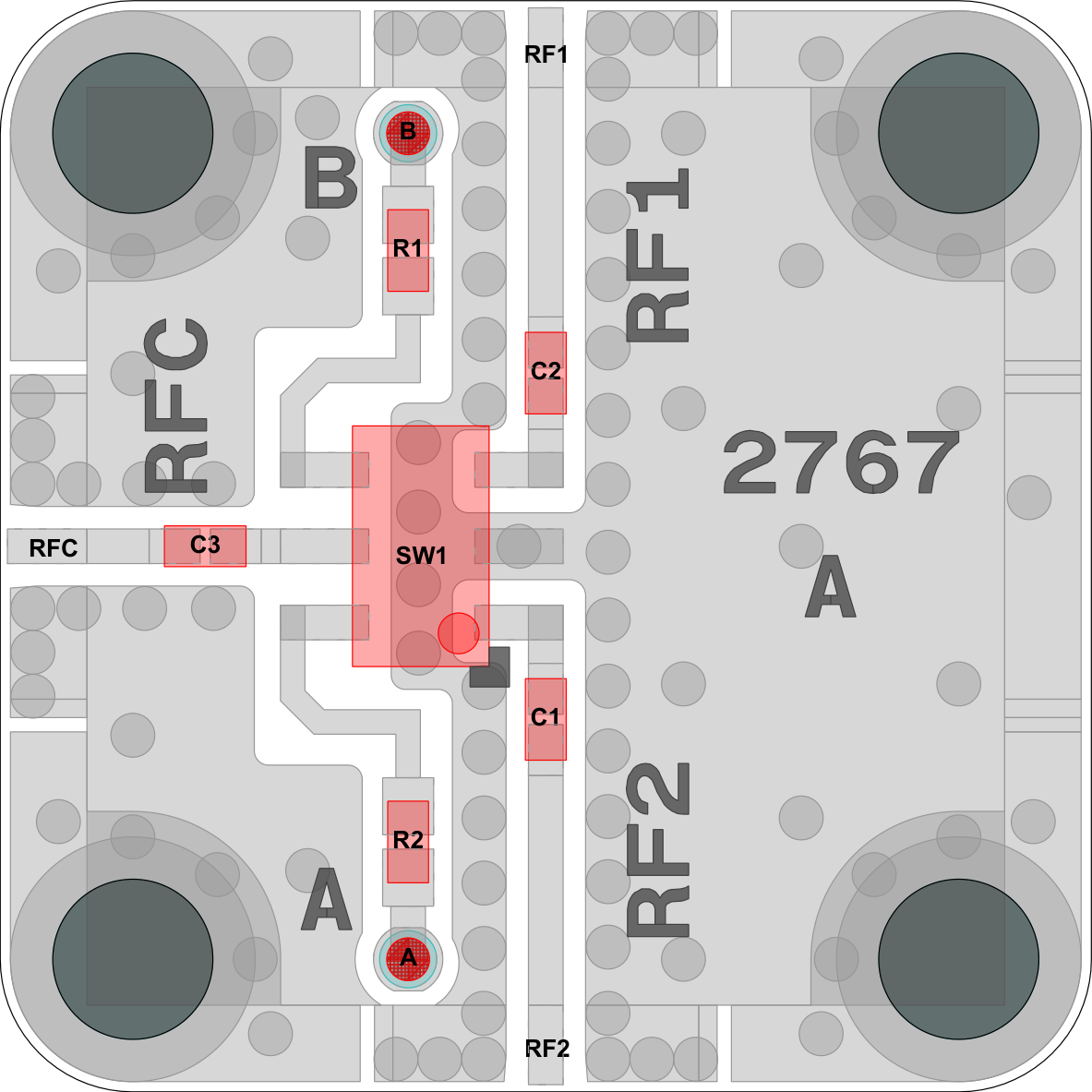

Switch, HMC595AE [PCB: 2767]
Recommended Bias Controller: XM-D578-0404D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A HMC595AE

Low Freq

 N/A 0 MHz

High Freq

 N/A 3000 MHz

IL

 N/A 0.3 dB

P1dB

 N/A 35 dBm

IP3

 N/A 63 dBm

N/A

Bias Instruction

 N/A

Notes: VA,B LOW = 0 to +0.2V @10uA
VA,B HIGH = +3V@2uA to +8V@100uA

State 1: [A = HIGH] [B = LOW] [RF1 = OFF] [RF2 = ON]
State 2: [A = LOW] [B = HIGH] [RF1 = ON] [RF2 = OFF]

Part Number

 N/A XR-D577-0404D
