XM-D523-0409D
XR-D523-0409D ROHS

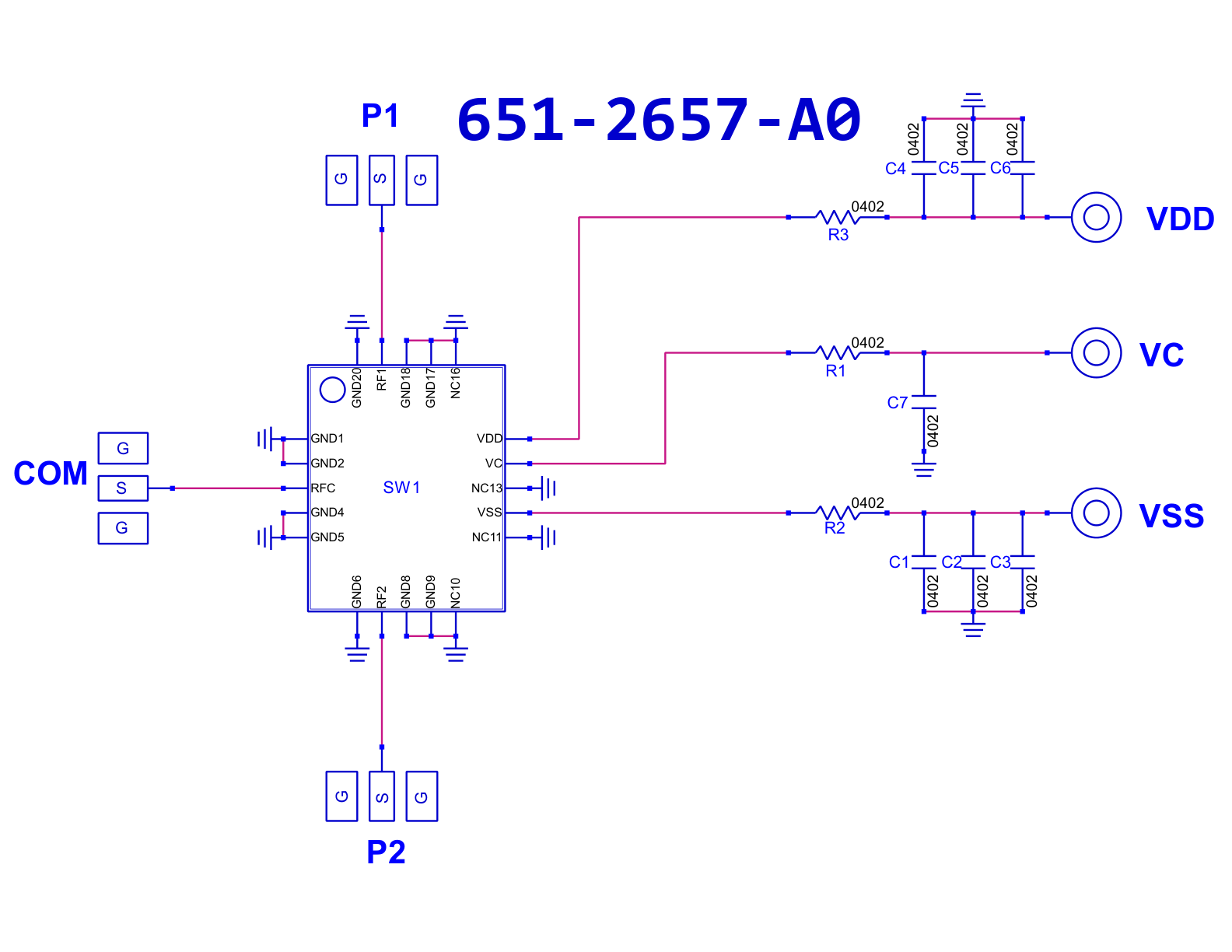

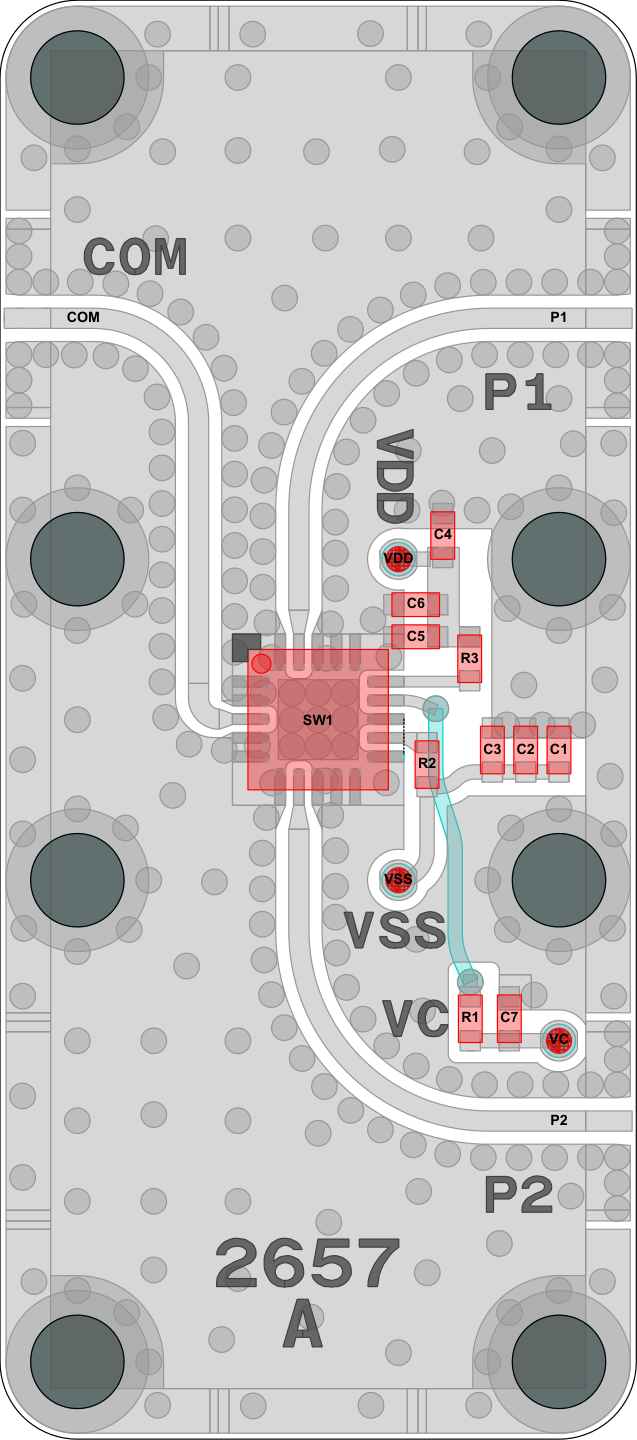

Switch, MASW-011145 [PCB: 2657]
Recommended Bias Controller: XM-D5K1-0409D-SP

Product Page

 N/A Macom

Spec Sheet

 N/A MASW-011145

Low Freq

 N/A 27000 MHz

High Freq

 N/A 31000 MHz

IL

 N/A 1.3 dB

P1dB

 N/A 37 dBm

IP3

 N/A 60 dBm

N/A

Bias Instruction

 N/A

Notes: VDD = +3.3V @0.2mA typ.
VSS = -3.3Vext @3µA
VC = +3.3V (HIGH) or 0V (LOW)

State 1: [VC = HIGH] [P1 = ON] [P2 = OFF]
State 2: [VC = LOW] [P1 = OFF] [P2 = ON]

Part Number

 N/A XR-D523-0409D
