XM-D4K1-0409D
XR-D4K1-0409D ROHS

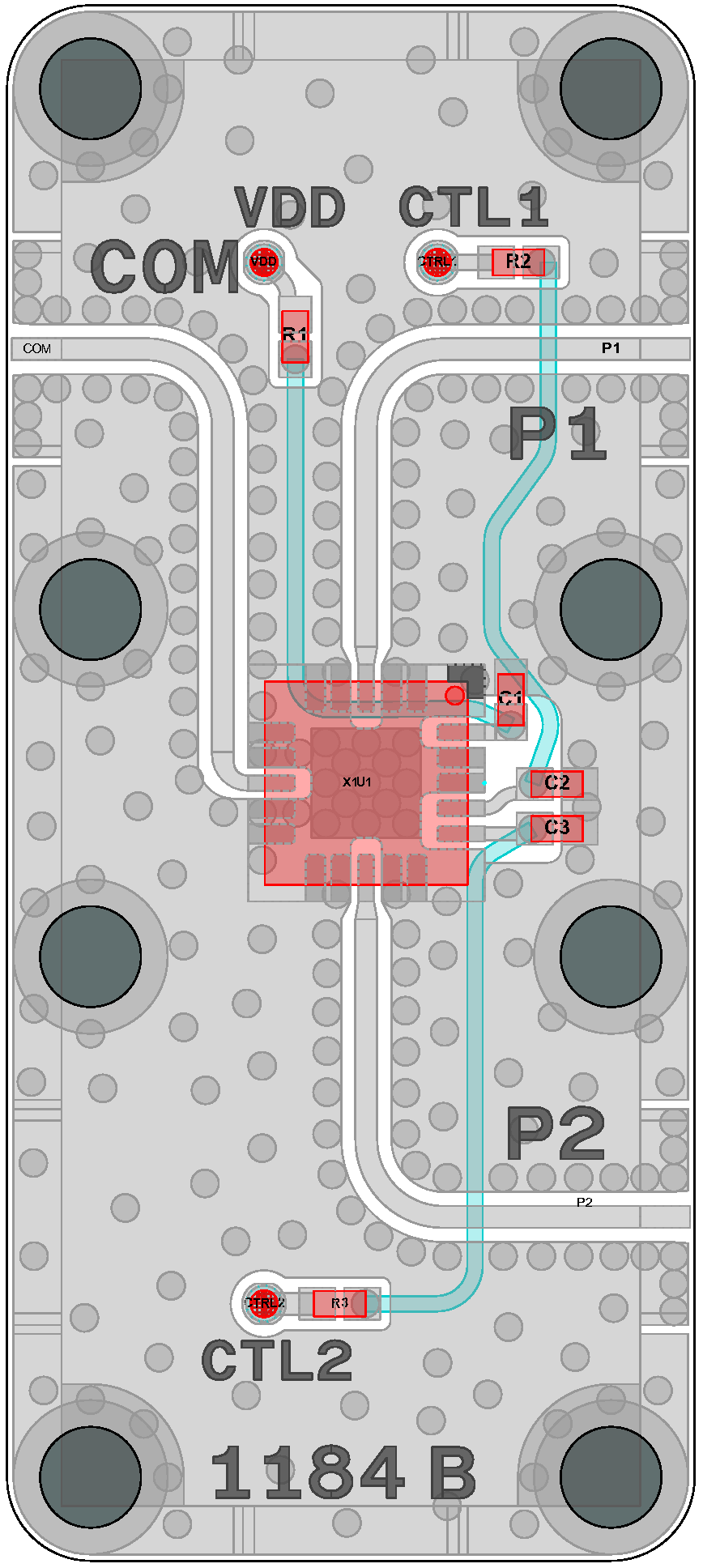

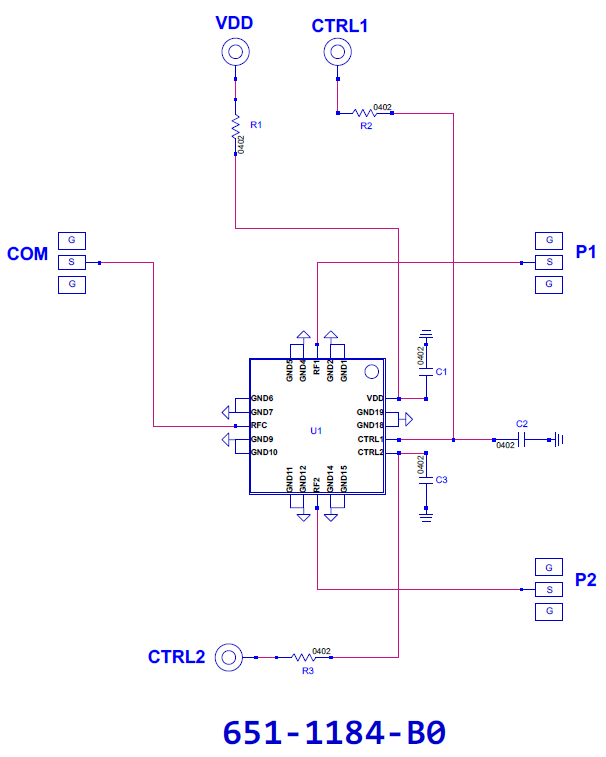

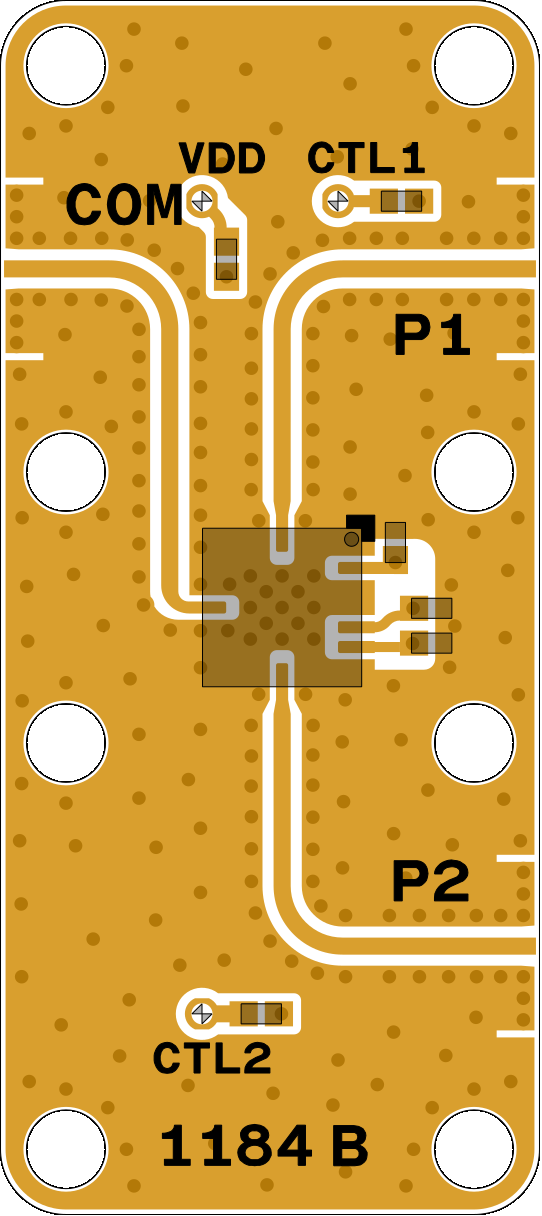

Switch, HSWA2-63DR+ [PCB: 1184]
Recommended Bias Controller: XM-D4M4-0409D-SP

Product Page

 N/A Mini-Circuits

Spec Sheet

 N/A HSWA2-63DR+

Low Freq

 N/A 100 MHz

High Freq

 N/A 6000 MHz

IL

 N/A 0.95 dB

P1dB

 N/A 35 dBm

IP3

 N/A 65 dBm

N/A

Bias Instruction

 N/A

Notes: VDD = +3V@120µA
CTL1,2 = 0V(LOW) or +1.8V(HIGH)

State 1: [CTL1 = HIGH] [CTL2 = LOW] [P1 = ON] [P2 = OFF]
State 2: [CTL1 = LOW] [CTL2 = HIGH] [P1 = OFF] [P2 = ON]
State 3: [CTL1 = LOW] [CTL2 = LOW] [P1 = OFF] [P2 = OFF]

Part Number

 N/A XR-D4K1-0409D
