XM-D4J3-0409D
XR-D4J3-0409D ROHS

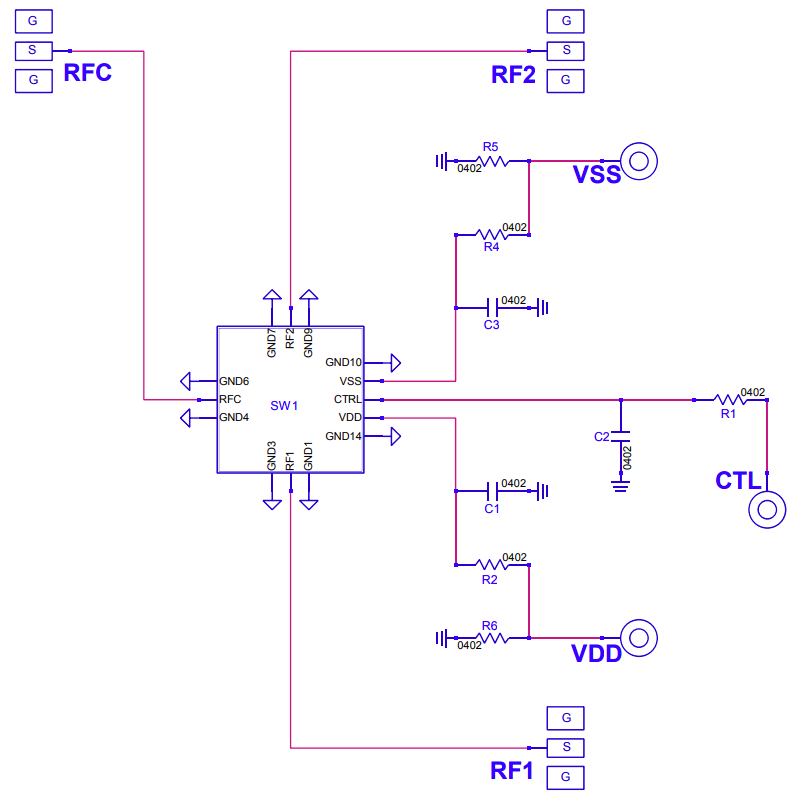

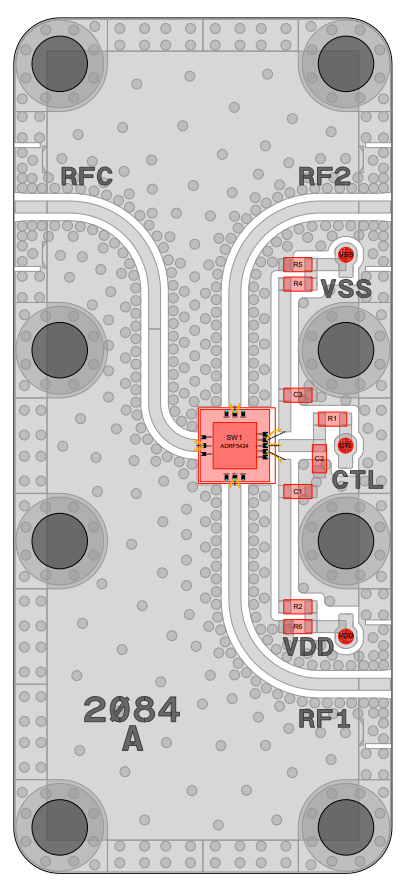

Switch, ADRF5424BCZ-SX [PCB: 2084]
Recommended Bias Controller: XM-D5W4-0409D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A ADRF5424BCZ-SX

Low Freq

 N/A 100 MHz

High Freq

 N/A 60000 MHz

IL

 N/A 1 dB

P1dB

 N/A 28 dBm

IP3

 N/A 50 dBm

N/A

Bias Instruction

 N/A

Recommended Power-Up Sequence as follow:
1. GND
2. VDD = +3.3V@14µA
3. VSS = -3.3V@120µA
4. Set VCTL (0V @<1uA(LOW), +3.3V @<1uA(HIGH))

State 1: [CTL = LOW] [RF1 = OFF] [RF2 = ON]
State 2: [CTL = HIGH] [RF1 = ON] [RF2 = OFF]

Part Number

 N/A XR-D4J3-0409D
