XM-D4F9-0419D
XR-D4F9-0419D ROHS

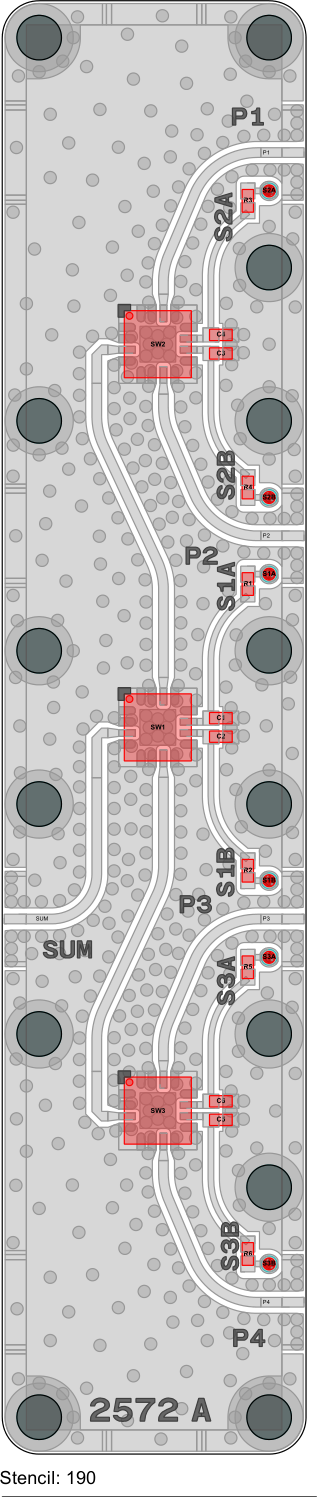

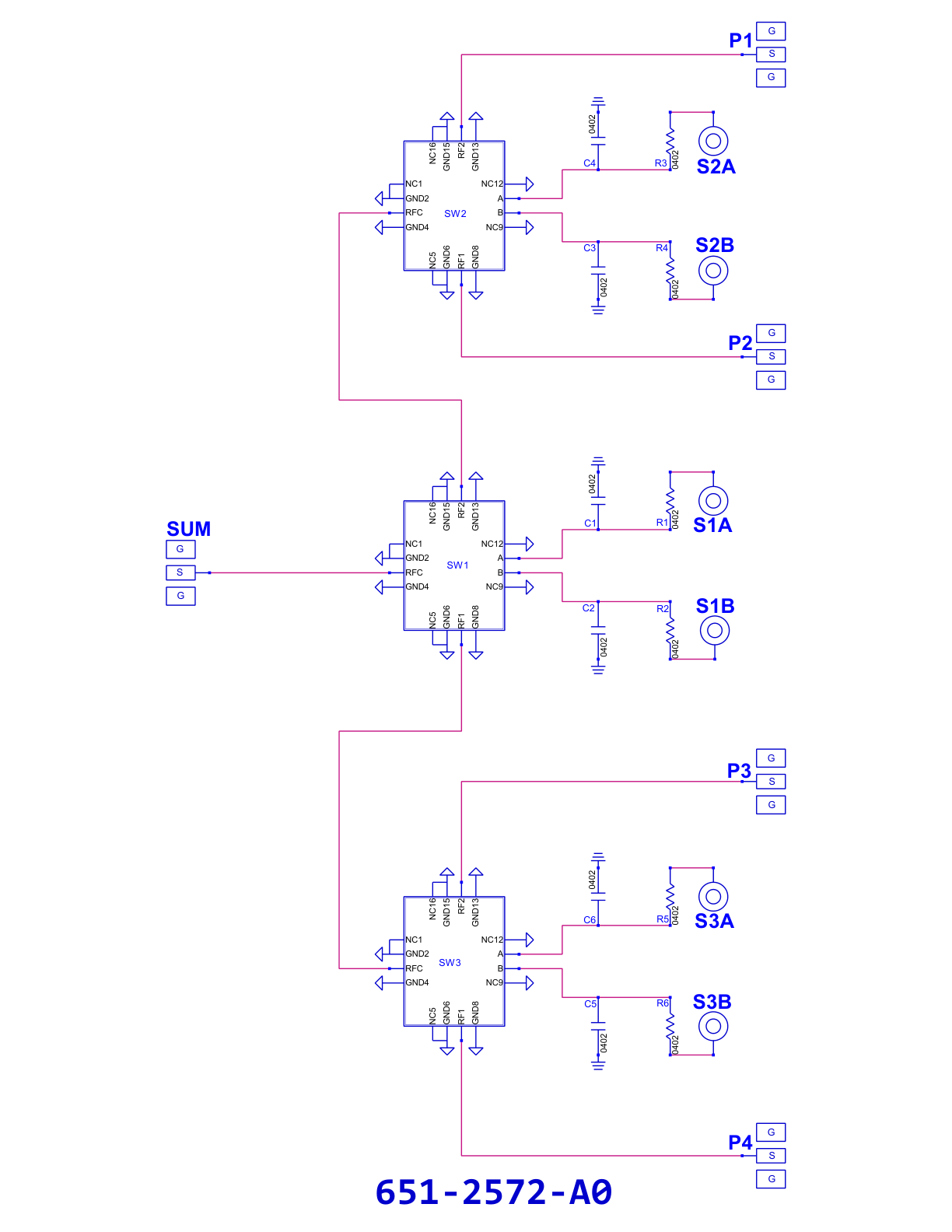

Switch, CMD196C3 [PCB: 2572]
Recommended Bias Controller: XM-A5A5-0419D-SP

Product Page

 N/A Qorvo

Spec Sheet

 N/A CMD196C3

Low Freq

 N/A 0 MHz

High Freq

 N/A 18000 MHz

IL

 N/A 1.5 dB

P1dB

 N/A 23 dBm

IP3

 N/A 38 dBm

N/A

Bias Instruction

 N/A

Notes: VA,B = -5V (HIGH) or 0V (LOW)

SUM to P1: [S1A = LOW] [S1B = HIGH] [S2A = LOW] [S2B = HIGH] [S3A = X] [S3B = X]
SUM to P2: [S1A = LOW] [S1B = HIGH] [S2A = HIGH] [S2B = LOW] [S3A = X] [S3B = X]
SUM to P3: [S1A = HIGH] [S1B = LOW] [S2A = X] [S2B = X] [S3A = LOW] [S3B = HIGH]
SUM to P4: [S1A = HIGH] [S1B = LOW] [S2A = X] [S2B = X] [S3A = HIGH] [S3B = LOW]

Part Number

 N/A XR-D4F9-0419D
