XM-D416-0409D
XR-D416-0409D ROHS

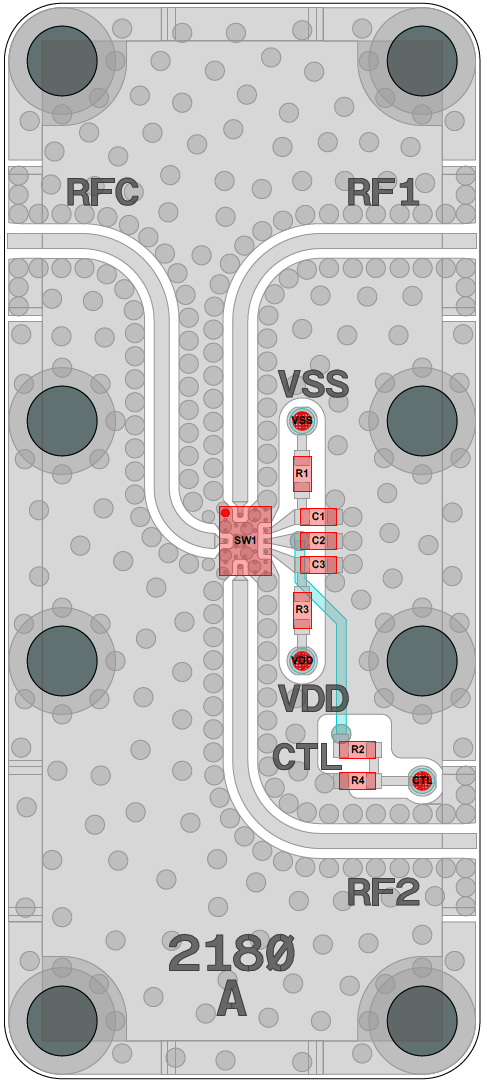

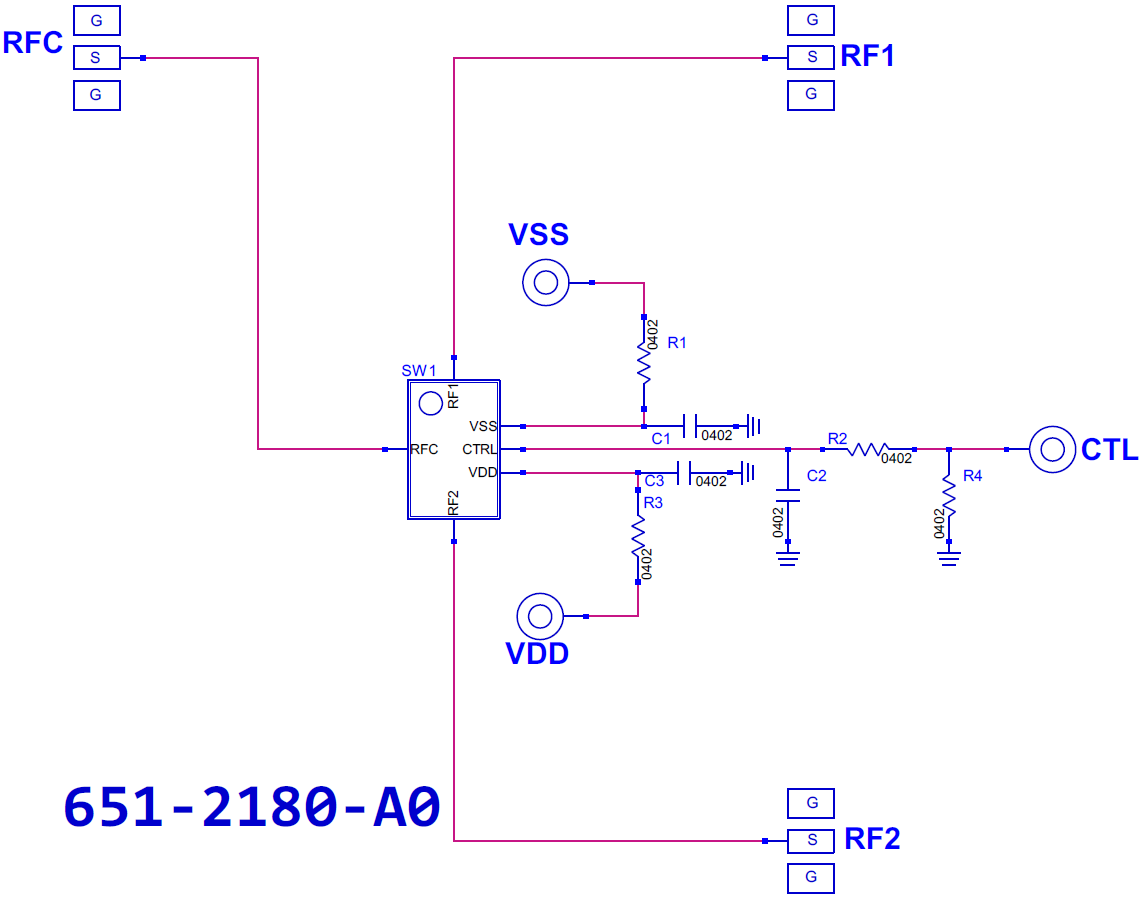

Switch, ADRF5420 [PCB: 2180]

Product Page

 N/A ADI

Spec Sheet

 N/A ADRF5420

Low Freq

 N/A 1000 MHz

High Freq

 N/A 90000 MHz

IL

 N/A 1.2 dB

P1dB

 N/A 24 dBm

IP3

 N/A 45 dBm

Bias Instruction

 N/A

Notes: VDD = +3.3V
VSS = -3.3V
VCTL = 0V (LOW) or VDD

State 1: [CTL = LOW] [RF1 = OFF] [RF2 = ON]
State 2: [CTL = HIGH] [RF1 = ON] [RF2 = OFF]

Part Number

 N/A XR-D416-0409D
