XM-D3N1-0419D
XR-D3N1-0419D ROHS

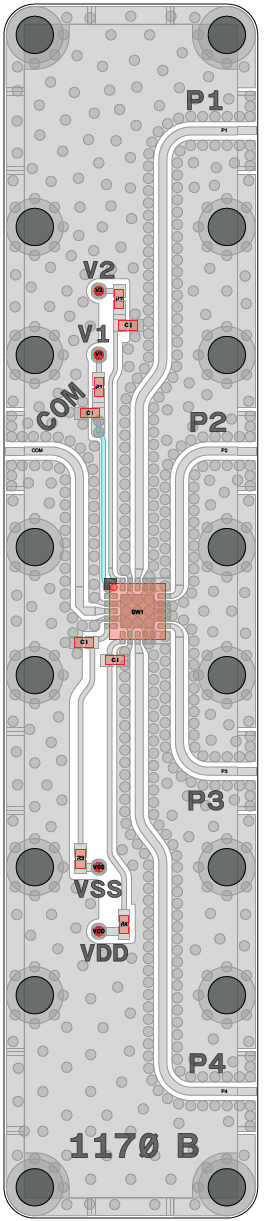

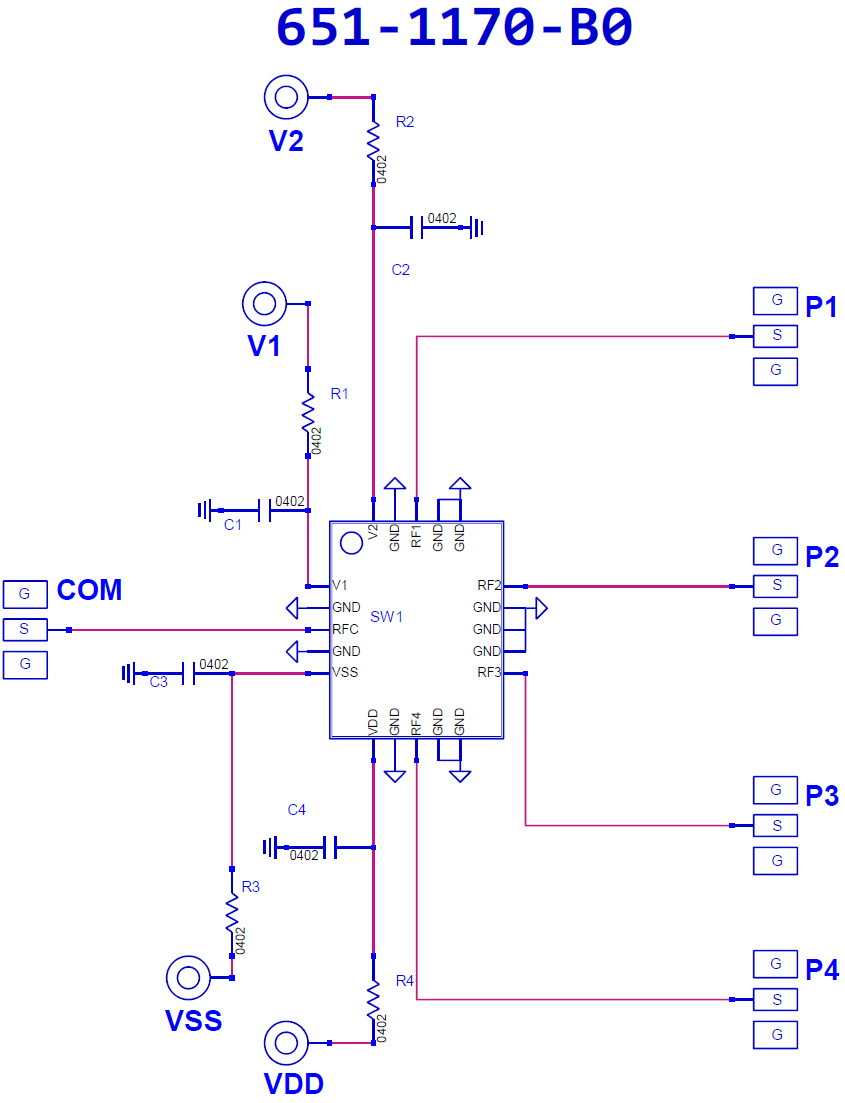

Switch, ADRF5047XCCZN [PCB: 1170]
Recommended Bias Controller: XM-D3N2-0416D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A ADRF5047XCCZN

Low Freq

 N/A 0.01 MHz

High Freq

 N/A 44000 MHz

IL

 N/A 1.5 dB

P1dB

 N/A 26.5 dBm

IP3

 N/A 50 dBm

Bias Instruction

 N/A

Notes: VDD = +3.3V@3µA
VSS = -3.3V@110µA
V1,2= 0V or VDD @35µA max

State 1: [V1 = LOW] [V2 = LOW] [P1 = ON] [P2-4 = OFF]
State 2: [V1 = HIGH] [V2 = LOW] [P2 = ON] [P1,3,4 = OFF]
State 3: [V1 = LOW] [V2 = HIGH] [P3 = ON] [P1,2,4 = OFF]
State 4: [V1 = HIGH] [V2 = HIGH] [P4 = ON] [P1-3 = OFF]

Part Number

 N/A XR-D3N1-0419D
