XM-D324-0409D
XR-D324-0409D ROHS

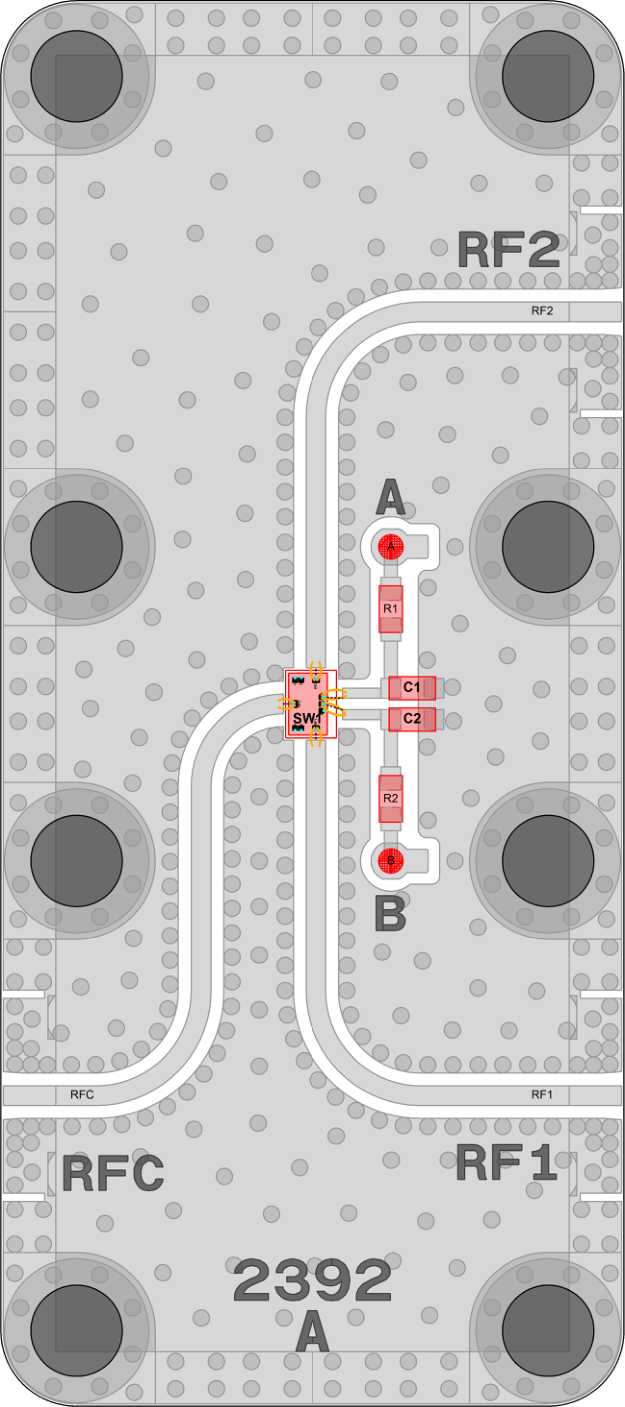

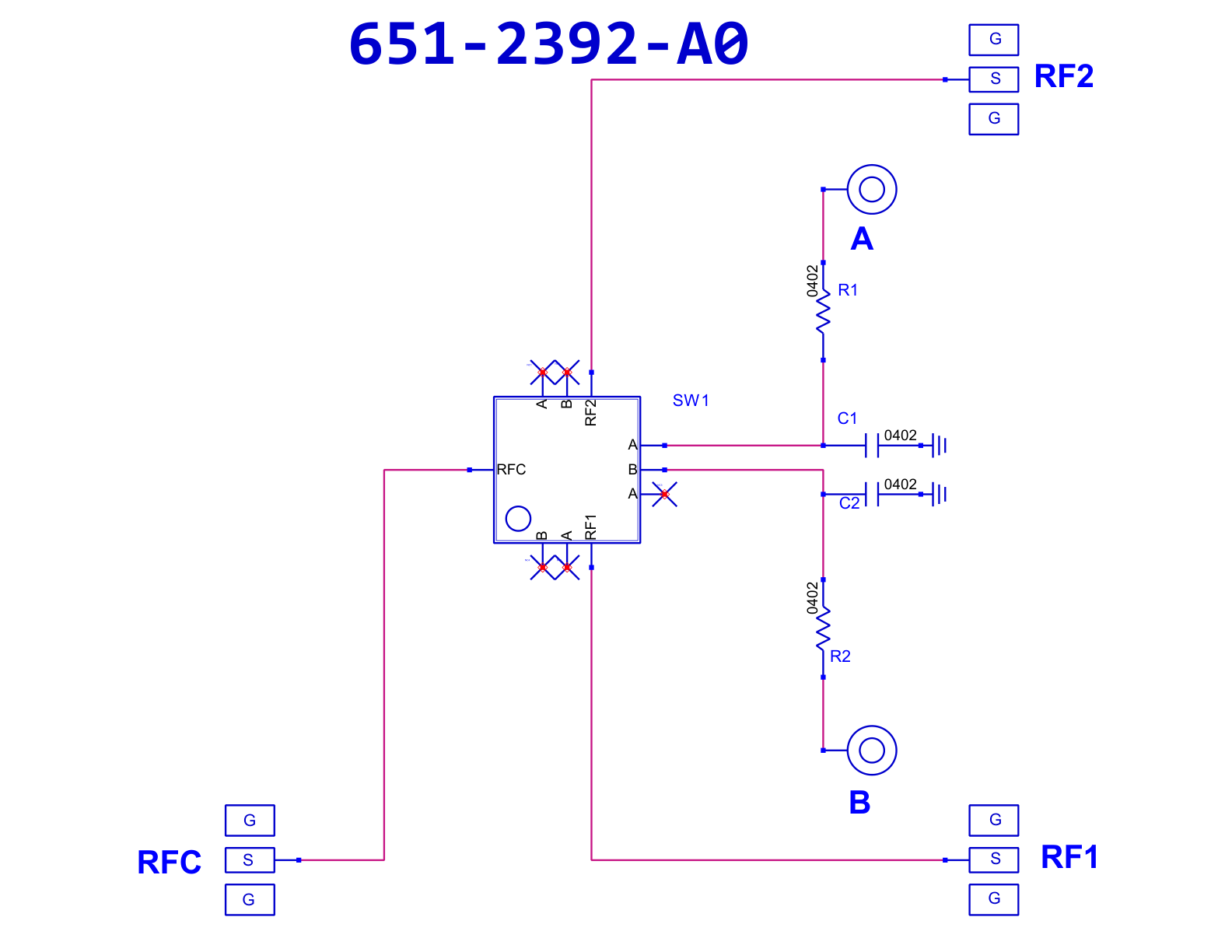

Switch, CMD196 [PCB: 2392]
Recommended Bias Controller: XM-A9S3-0409D-SP

Product Page

 N/A Qorvo

Spec Sheet

 N/A CMD196

Low Freq

 N/A 0 MHz

High Freq

 N/A 28000 MHz

IL

 N/A 1.75 dB

P1dB

 N/A 23 dBm

IP3

 N/A 38 dBm

Bias Instruction

 N/A

Notes: VA,B LOW = 0 to -0.5V @1uA typ.
VA,B HIGH = -3V @1uA to -7V at 6uA

State 1: [A = HIGH] [B = LOW] [RF1 = ON] [RF2 = OFF]
State 2: [A = LOW] [B = HIGH] [RF1 = OFF] [RF2 = ON]

Part Number

 N/A XR-D324-0409D
