XM-D2V1-0409D
XR-D2V1-0409D ROHS

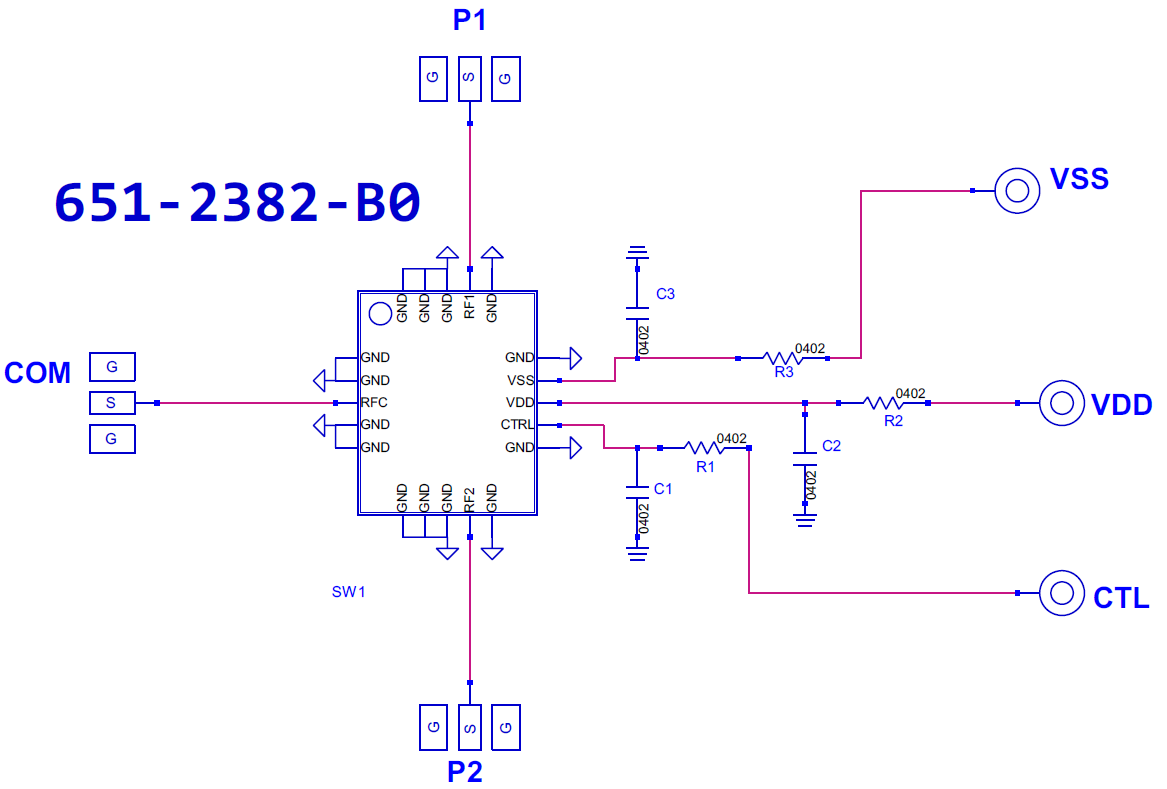

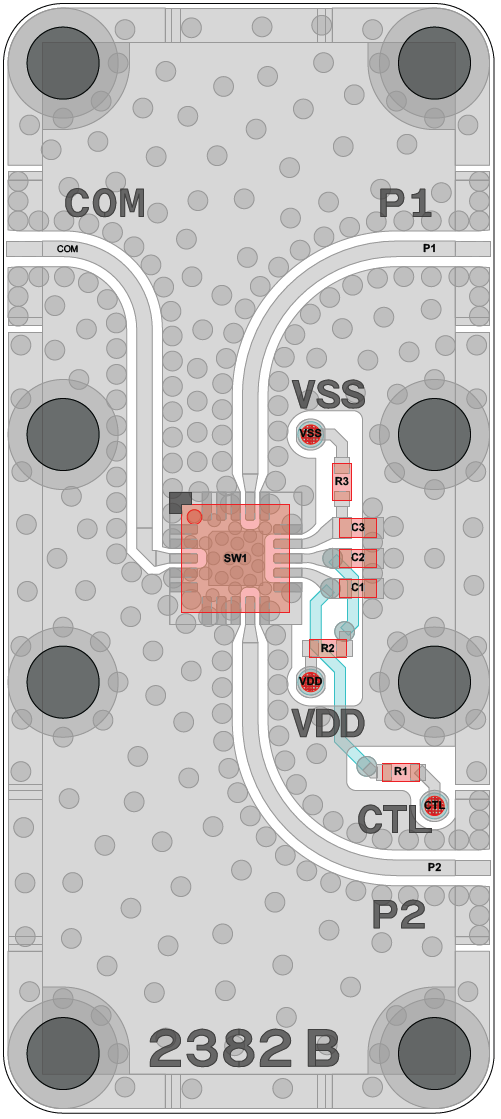

Switch, ADRF5142 [PCB: 2382]
Recommended Bias Controller: XM-B9F3-0409D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A ADRF5142

Low Freq

 N/A 8000 MHz

High Freq

 N/A 11000 MHz

IL

 N/A 1.2 dB

P1dB

 N/A 46 dBm

IP3

 N/A 70 dBm

N/A

Bias Instruction

 N/A

Notes: VDD = +3.3V @ ~150 nA
VSS = -3.3V @ ~503 nA
VCTL = 0V (LOW) or VDD (HIGH) @ 0.350uA

State 1: [VCTL = LOW] [P1 = ON] [P2 = OFF]
State 2: [VCTL = HIGH] [P1 = OFF] [P2 = ON]

Part Number

 N/A XR-D2V1-0409D
