XM-D2T1-0409D
XR-D2T1-0409D ROHS

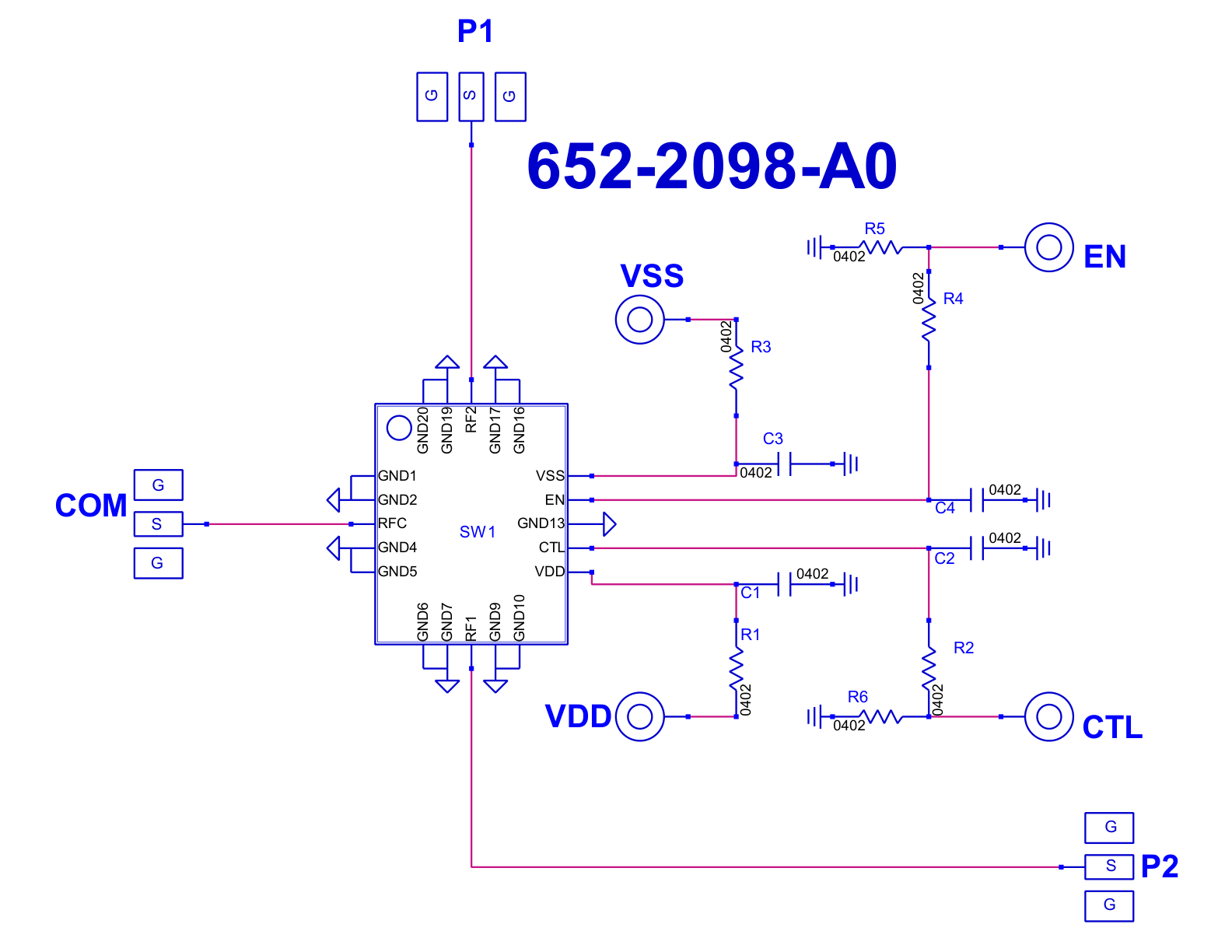

Switch, ADRF5026BCCZN [PCB: 2098]

Product Page

 N/A ADI

Spec Sheet

 N/A ADRF5026BCCZN

Low Freq

 N/A 100 MHz

High Freq

 N/A 44000 MHz

IL

 N/A 1.2 dB

P1dB

 N/A 27 dBm

IP3

 N/A 53 dBm

N/A

Bias Instruction

 N/A

Notes: VDD = +3.3V@2uA
VSS = -3.3V@100uA
VCTRL/VEN = 0V (LOW) or VDD(HIGH) @ <1uA.

State 1: [CTL = LOW] [EN = LOW] [P1 = ON] [P2 = OFF]
State 2: [CTL = HIGH] [EN = LOW] [P1 = OFF] [P2 = ON]
State 3: [CTL = LOW] [EN = HIGH] [P1 = OFF] [P2 = OFF]
State 4: [CTL = HIGH] [EN = HIGH] [P1 = OFF] [P2 = OFF]

Part Number

 N/A XR-D2T1-0409D
