XM-D2P4-0409D
XR-D2P4-0409D ROHS

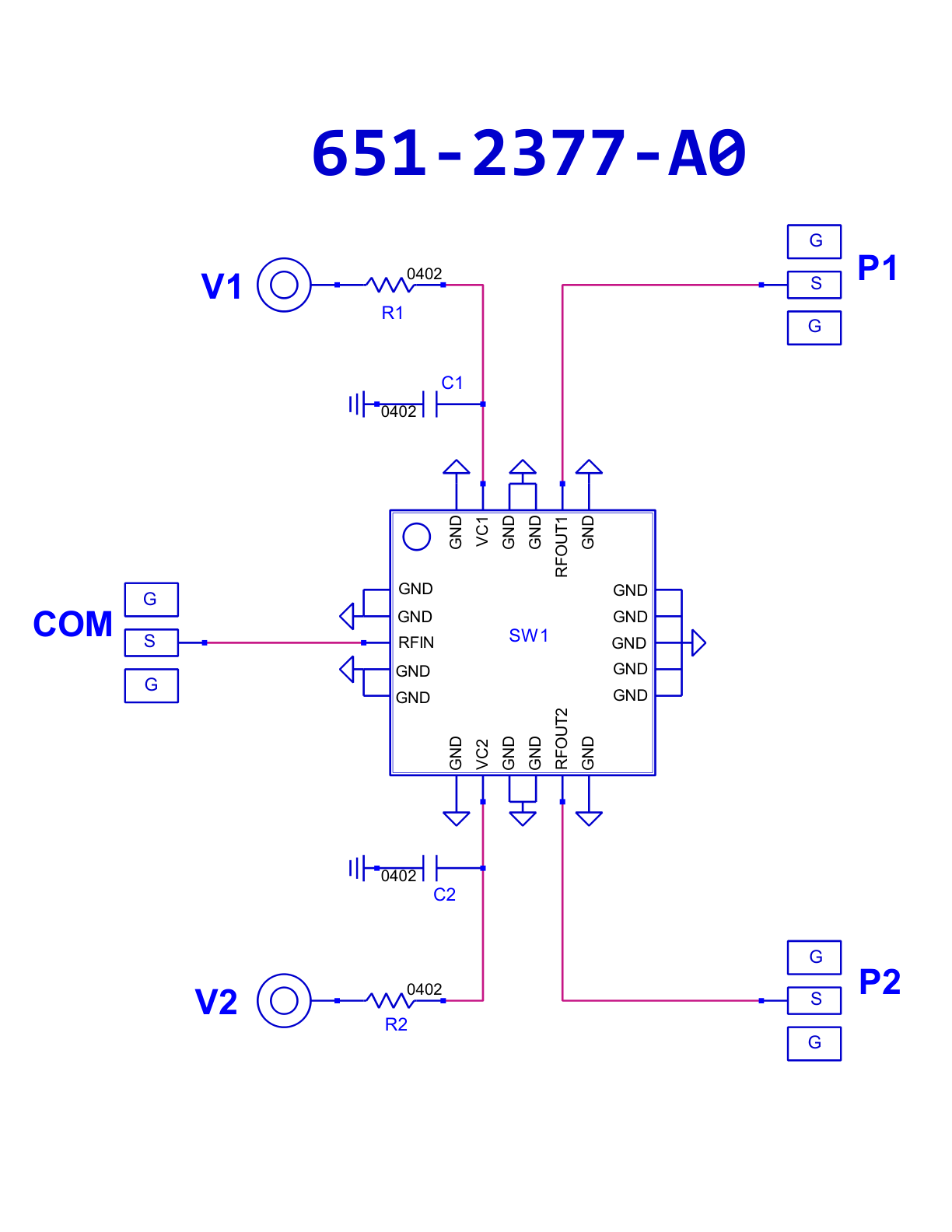

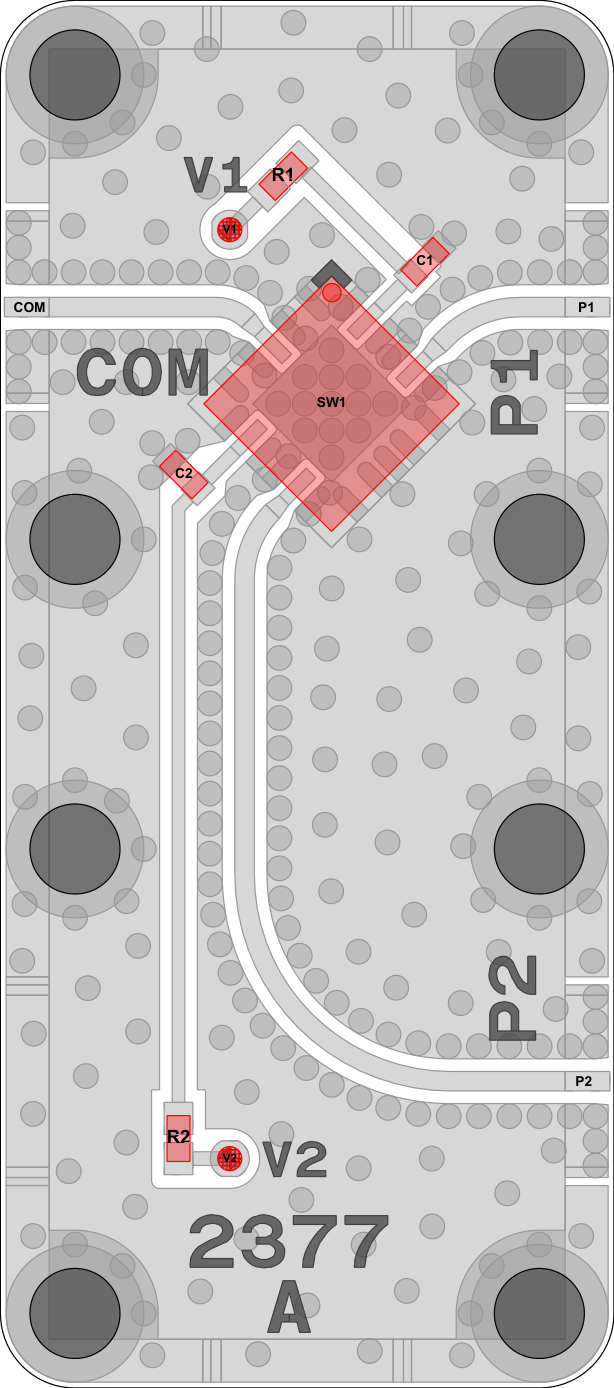

Switch, TGS2353-2-SM [PCB: 2377]
Recommended Bias Controller: XM-C435-0409D-SP

Product Page

 N/A Qorvo

Spec Sheet

 N/A TGS2353-2-SM

Low Freq

 N/A 500 MHz

High Freq

 N/A 18000 MHz

IL

 N/A 1.5 dB

IP3

 N/A 62 dBm

N/A

Bias Instruction

 N/A

Notes: V1,2 = 0V/-40V @ -0.25 to 0.1 mA

State 1: [V1 = 0V] [V2 = -40V] [P1 = ON] [P2 = OFF]
State 2: [V1 = -40V] [V2 = 0V] [P1 = OFF] [P2 = ON]

Part Number

 N/A XR-D2P4-0409D
