XM-D2L6-0409D
XR-D2L6-0409D ROHS

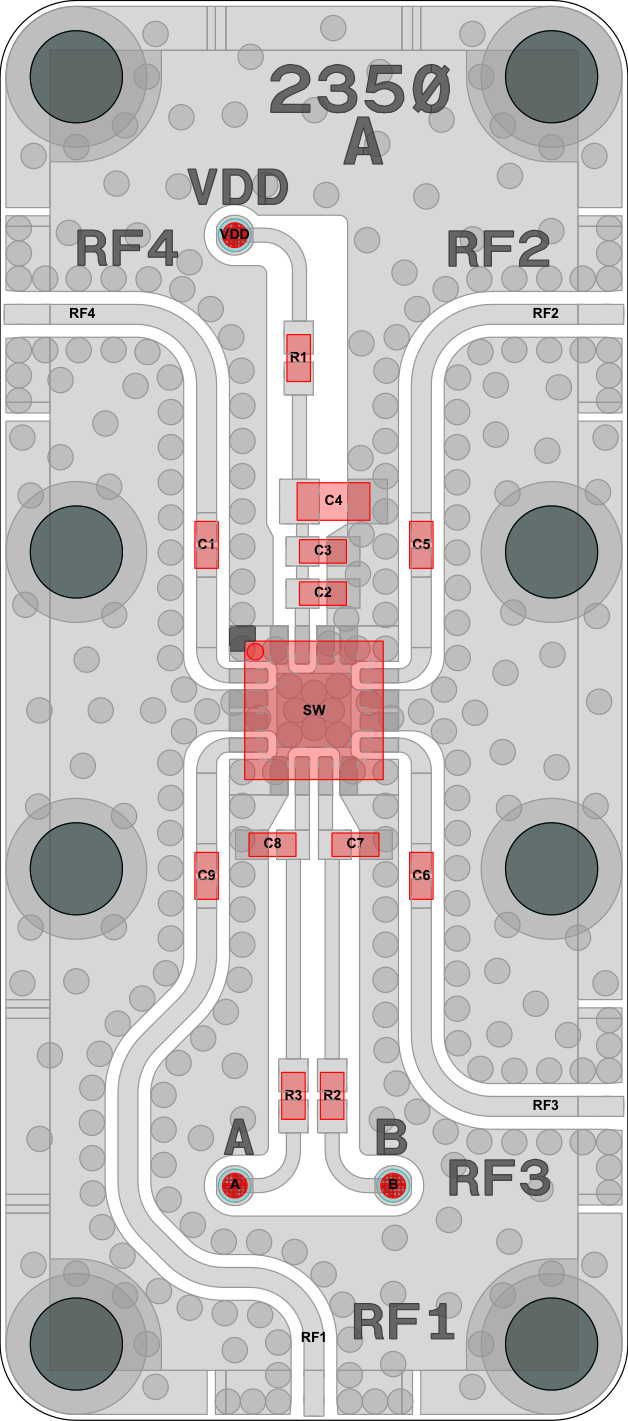

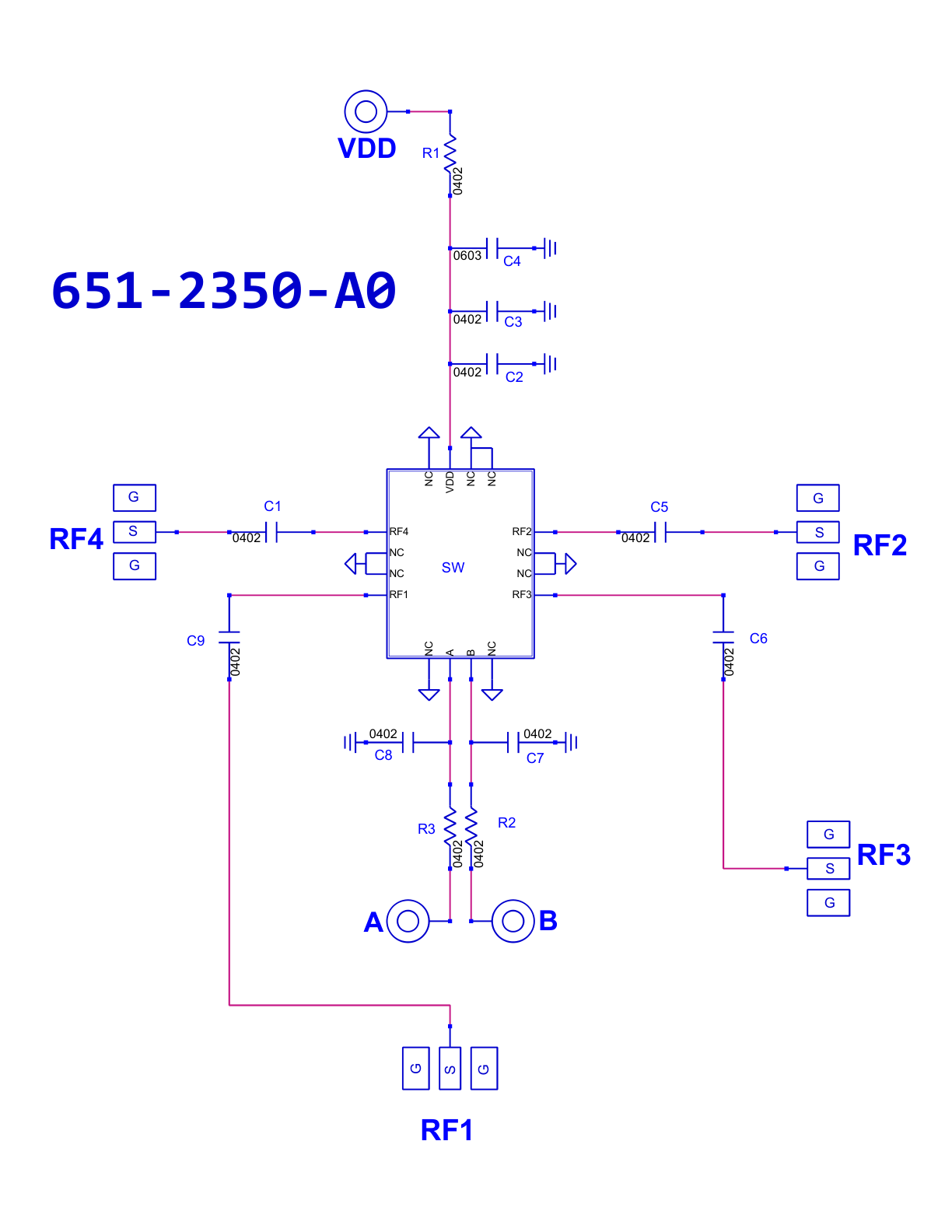

Switch, CMD273P3 [PCB: 2350]

Product Page

 N/A Qorvo

Spec Sheet

 N/A CMD273P3

Low Freq

 N/A 0 MHz

High Freq

 N/A 12000 MHz

IL

 N/A 1.7 dB

P1dB

 N/A 25 dBm

IP3

 N/A 44 dBm

Bias Instruction

 N/A

Notes: VDD = +5V@5uA
VA,B = 0V (LOW) or 5V (HIGH) @ 1uA

State 1: [VA = LOW] [VB = HIGH] [RF4 to RF2 ON] [RF1 to RF3 ON]
State 2: [VA = HIGH] [VB = LOW] [RF4 to RF1 ON] [RF2 to RF3 ON]

Part Number

 N/A XR-D2L6-0409D
