XM-D235-0404D
XR-D235-0404D ROHS

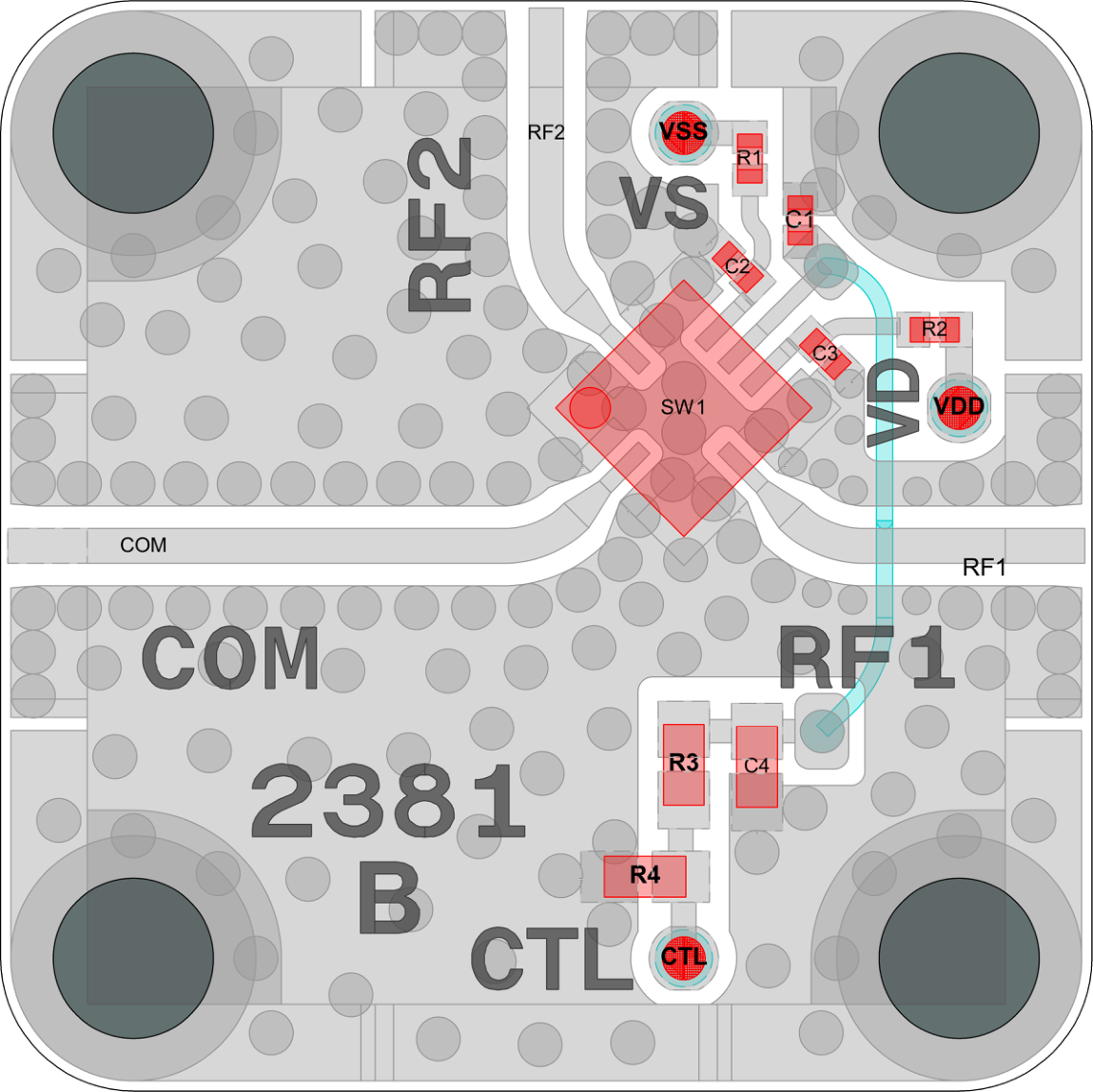

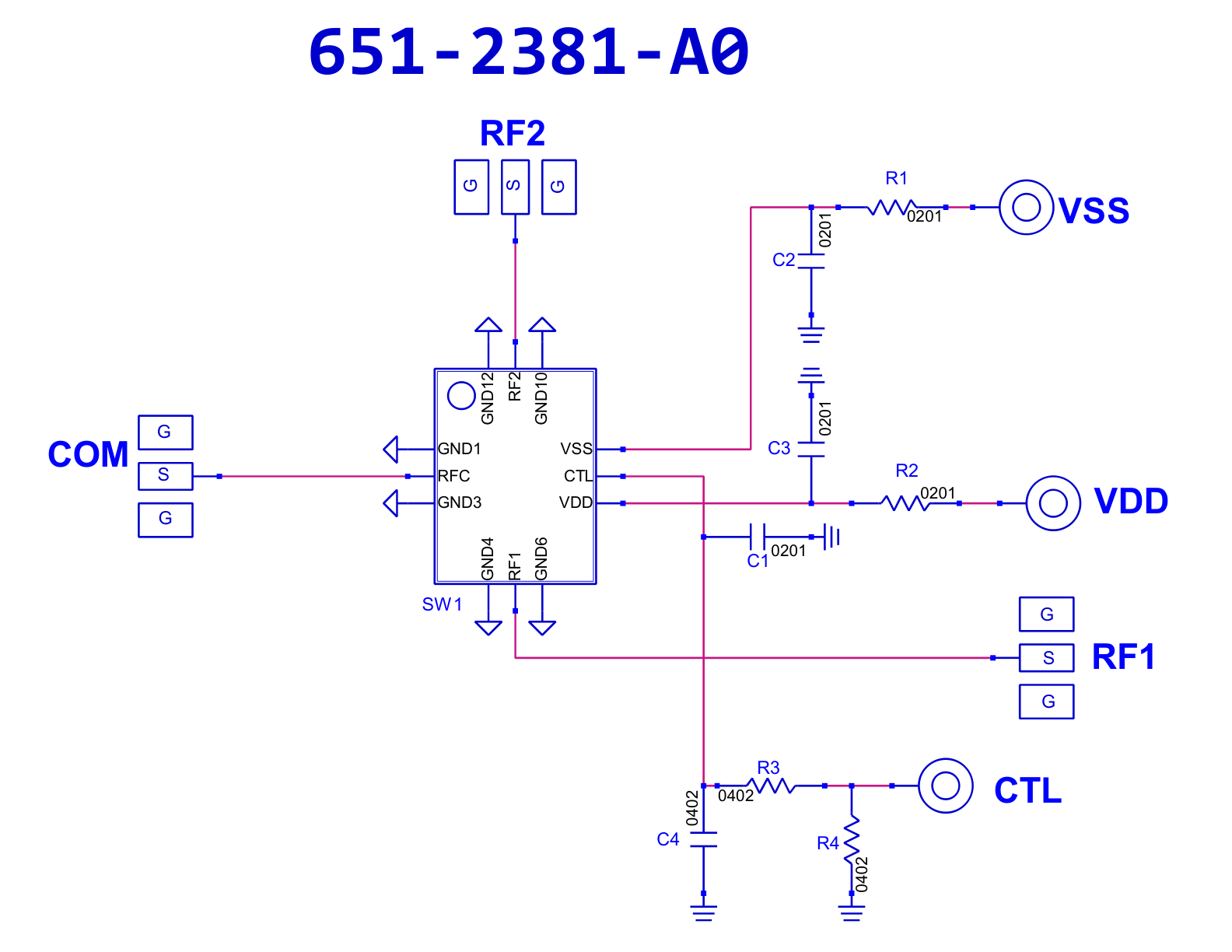

Switch, ADRF5024BCCZN [PCB: 2381]
Recommended Bias Controller: XM-B9P2-0404D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A ADRF5024BCCZN

Low Freq

 N/A 100 MHz

High Freq

 N/A 4400 MHz

IL

 N/A 0.9 dB

P1dB

 N/A 27.5 dBm

IP3

 N/A 50 dBm

N/A

Bias Instruction

 N/A

Notes:
VD = +3.3V@14uA
VS = -3.3V@120uA
VCTL LOW = 0V (RFC-RF2) @ <1uA
VCTL HIGH = +3.3V (RFC-RF1) @ <1uA

State 1: [CTL = LOW] [RF1 = OFF] [RF2 = ON]
State 2: [CTL = HIGH] [RF1 = ON] [RF2 = OFF]

Part Number

 N/A XR-D235-0404D
