XM-D1W9-0729D
XR-D1W9-0729D ROHS

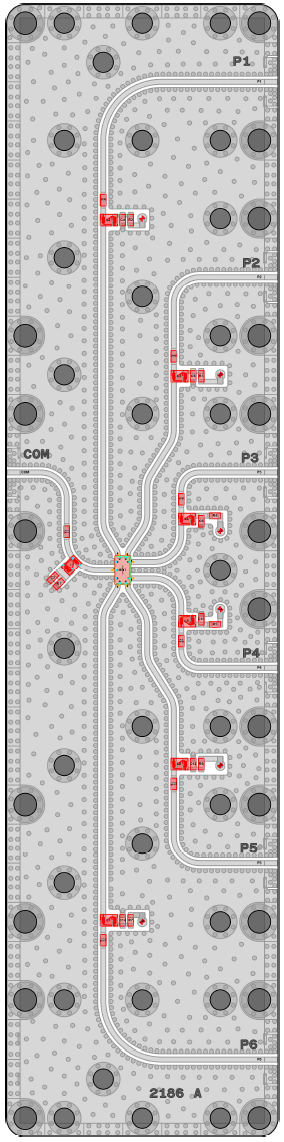

Switch, MA4AGSW8-1 [PCB: 2186]
Recommended Bias Controller: XM-D1Y2-0720D-SP

Product Page

 N/A Macom

Spec Sheet

 N/A MA4AGSW8-1

Low Freq

 N/A 50 MHz

High Freq

 N/A 50000 MHz

IL

 N/A 1.5 dB

Bias Instruction

 N/A

Notes: +/-15mA bias current and 0V
J2,9 = NC
Low Loss = -15mA applied at the specified Output Port

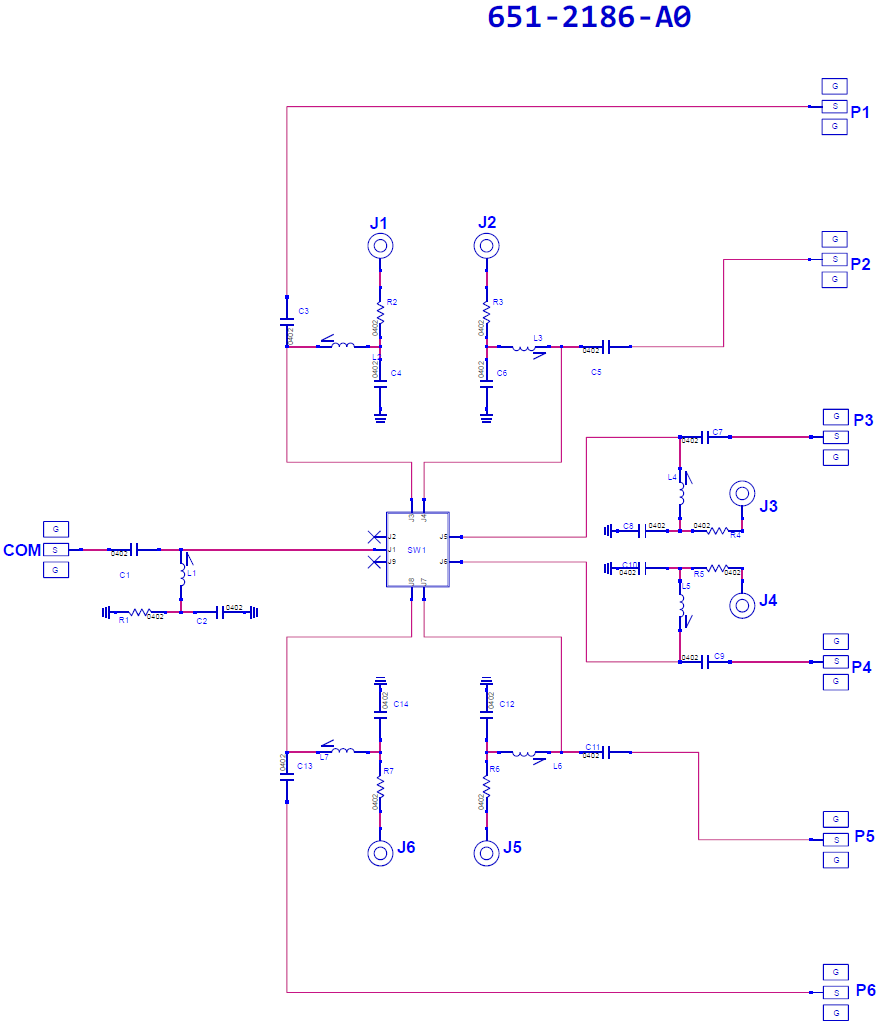

Path to datasheet mappings:
P1 = J3
P2 = J4
P3 = J5
P4 = J6
P5 = J7
P6 = J8

Part Number

 N/A XR-D1W9-0729D
