XM-D1U5-0409D
XR-D1U5-0409D ROHS

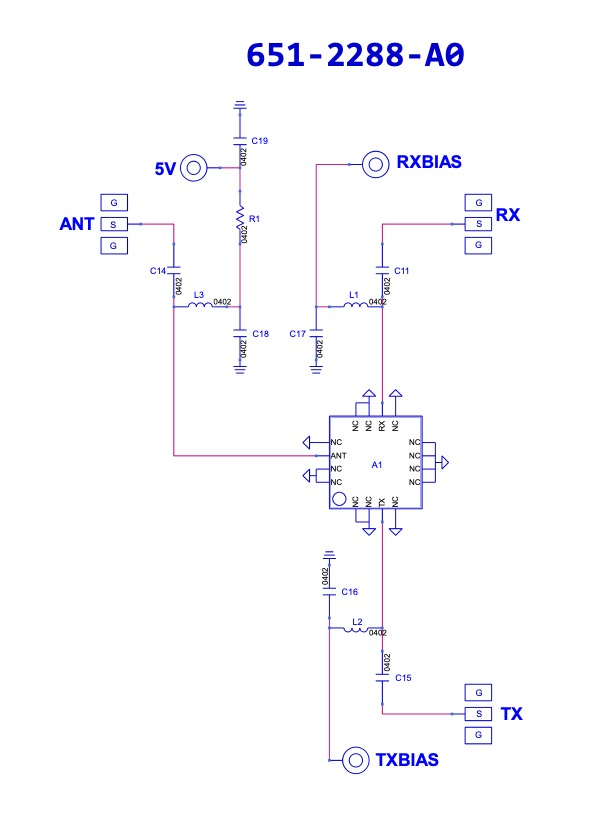

Switch, MASW-000822-12770T [PCB: 2288]
Recommended Bias Controller: XM-D1U6-0409D-SP

Product Page

 N/A Macom

Spec Sheet

 N/A MASW-000822-12770T

Low Freq

 N/A 50 MHz

High Freq

 N/A 6000 MHz

IL

 N/A 0.4 dB

P1dB

 N/A 45 dBm

IP3

 N/A 65 dBm

N/A

Bias Instruction

 N/A

RX to ANT: [C(TTL) = 0V] [RXBIAS = +5V@22mA] []TXBIAS = +12V@0mA]
TX to ANT: [C(TTL) = +3.3V] [RXBIAS = +12V@0mA] []TXBIAS = +5V@22mA]

Part Number

 N/A XR-D1U5-0409D
