XM-D1H7-0609D
XR-D1H7-0609D ROHS

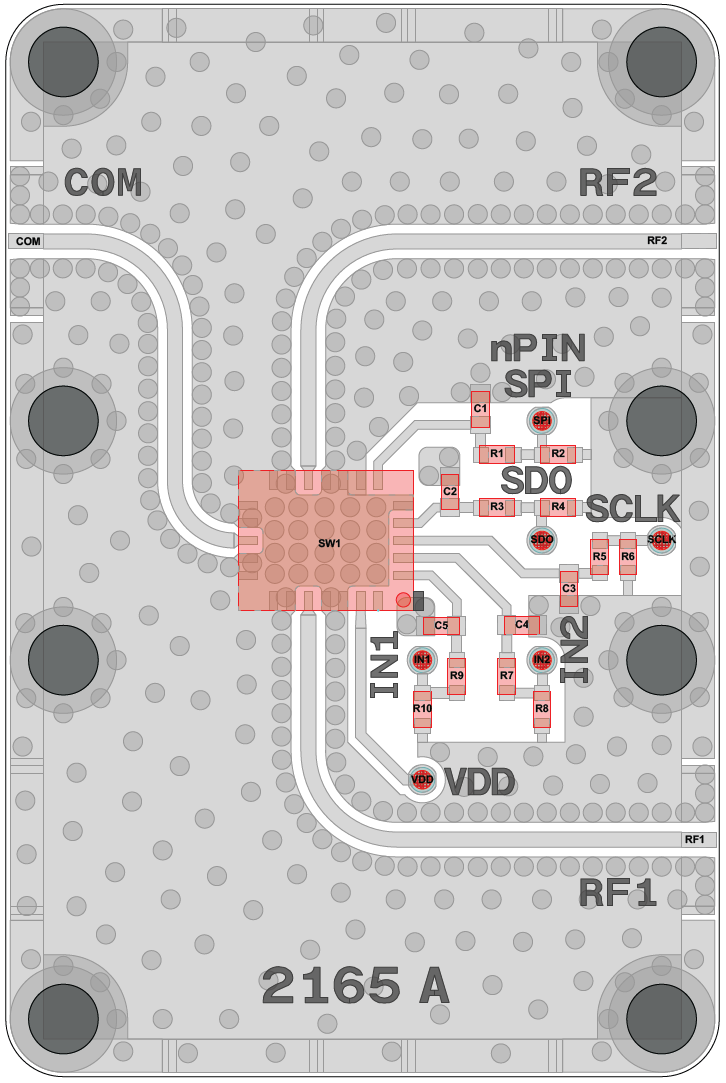

Switch, ADGM1001BCCZ [PCB: 2165]

Product Page

 N/A ADI

Spec Sheet

 N/A ADGM1001BCCZ

Low Freq

 N/A 0 MHz

High Freq

 N/A 34000 MHz

IL

 N/A 0.8 dB

IP3

 N/A 76 dBm

Bias Instruction

 N/A

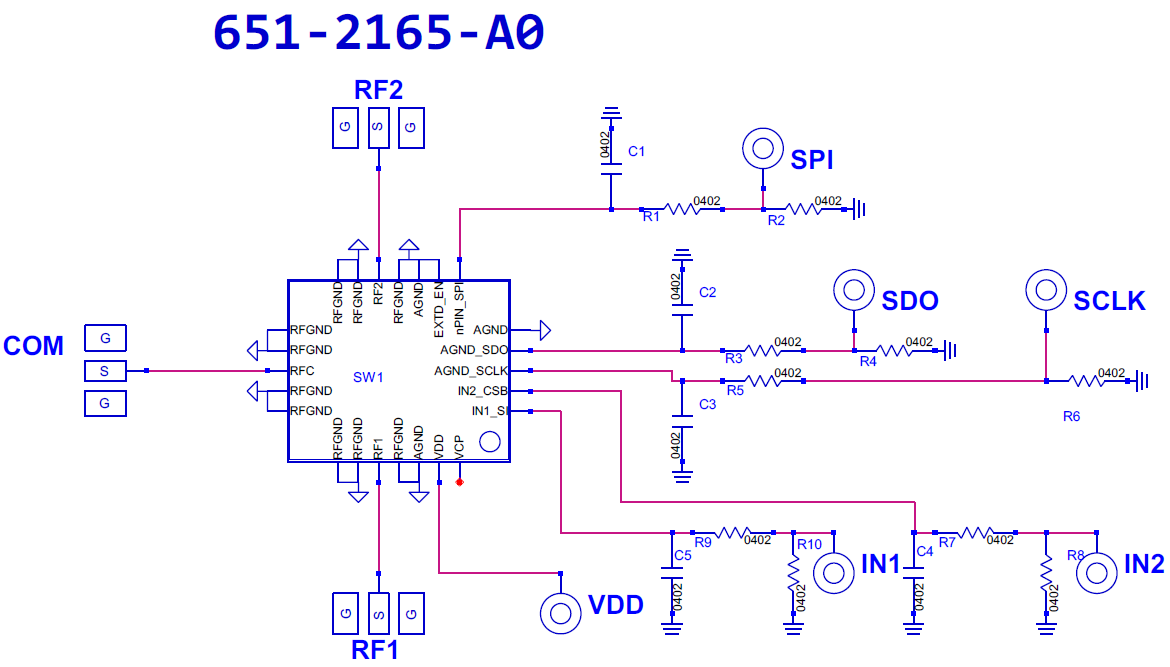

Notes: VDD = +3.3V
IN1,2 = +3.3V(HIGH) or 0V (LOW)
Parallel CTL: nPIN = 0V
SPI CTL: nPIN = +3.3V

State 1: [IN1 = LOW] [IN2 = LOW] [RF1 = OFF] [RF2 = OFF]
State 2: [IN1 = LOW] [IN2 = HIGH] [RF1 = OFF] [RF2 = ON]
State 3: [IN1 = HIGH] [IN2 = LOW] [RF1 = ON] [RF2 = OFF]
State 4: [IN1 = HIGH] [IN2 = HIGH] [RF1 = ON] [RF2 = ON]

Part Number

 N/A XR-D1H7-0609D
