XM-D1H6-0409D
XR-D1H6-0409D ROHS

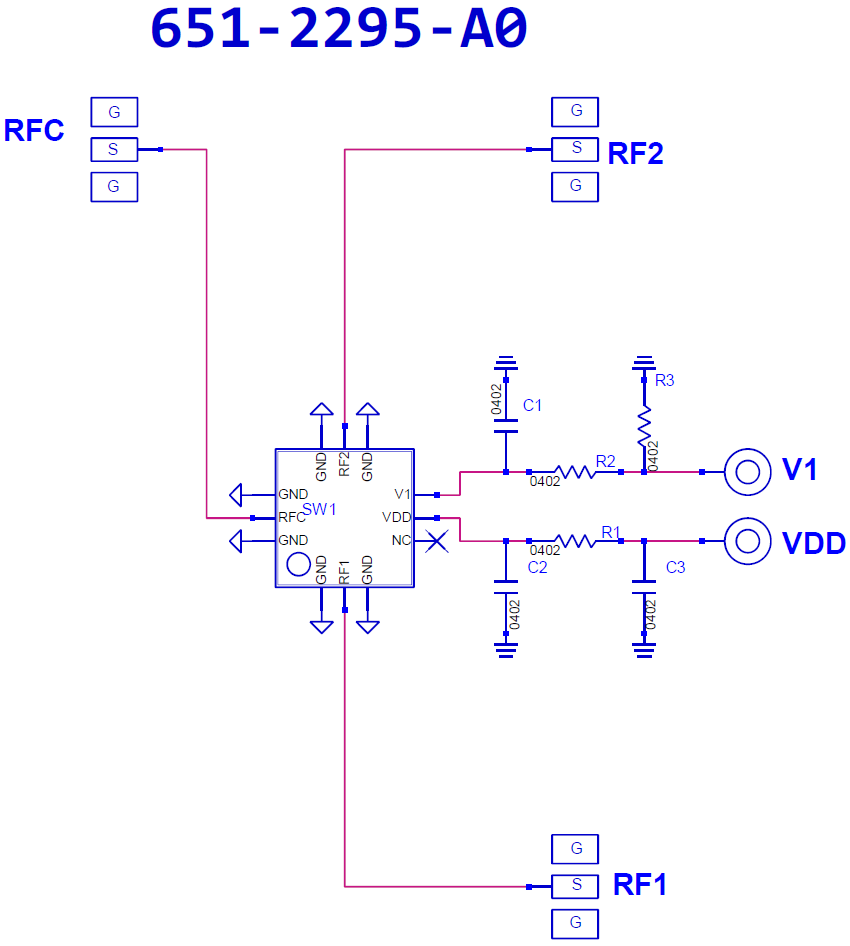

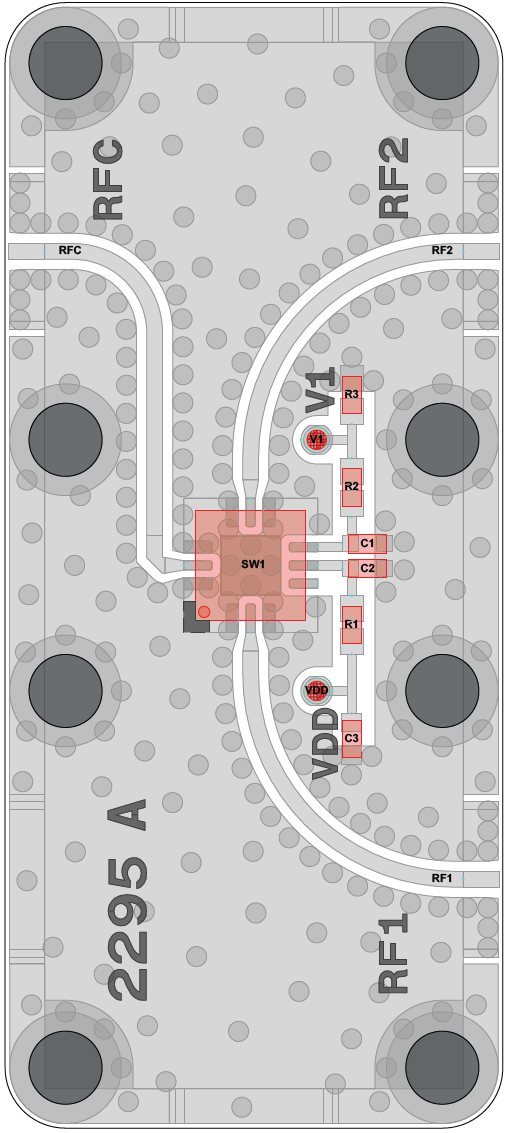

Switch, PE42426A-Z [PCB: 2295]
Recommended Bias Controller: XM-D2C3-0409D-SP

Product Page

 N/A pSemi

Spec Sheet

 N/A PE42426A-Z

Low Freq

 N/A 5 MHz

High Freq

 N/A 6000 MHz

IL

 N/A 0.3 dB

P1dB

 N/A 40 dBm

IP3

 N/A 83 dBm

N/A

Bias Instruction

 N/A

Notes: VDD = +3.3V@130µA
V1 = 0V (LOW) or +3.3V (HIGH)

State 1: [V1 = LOW] [RF1 = OFF] [RF2 = ON]
State 2: [V1 = HIGH] [RF1 = ON] [RF2 = OFF]

Part Number

 N/A XR-D1H6-0409D
