XM-D1F6-0409D
XR-D1F6-0409D ROHS

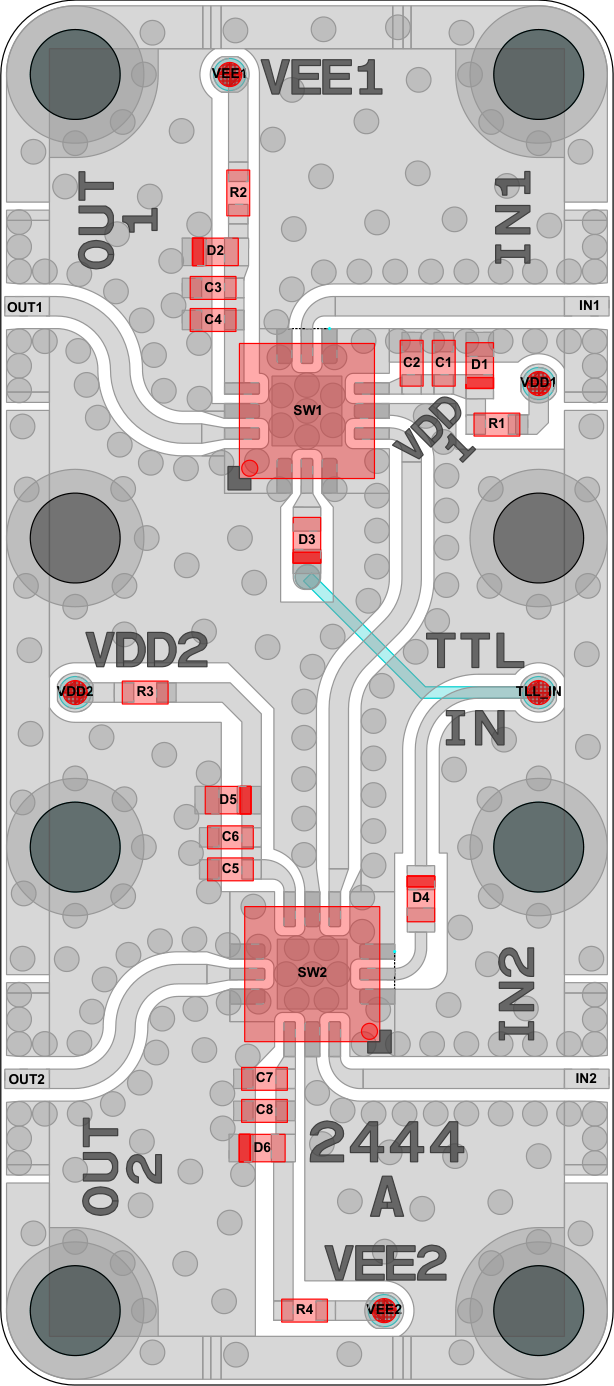

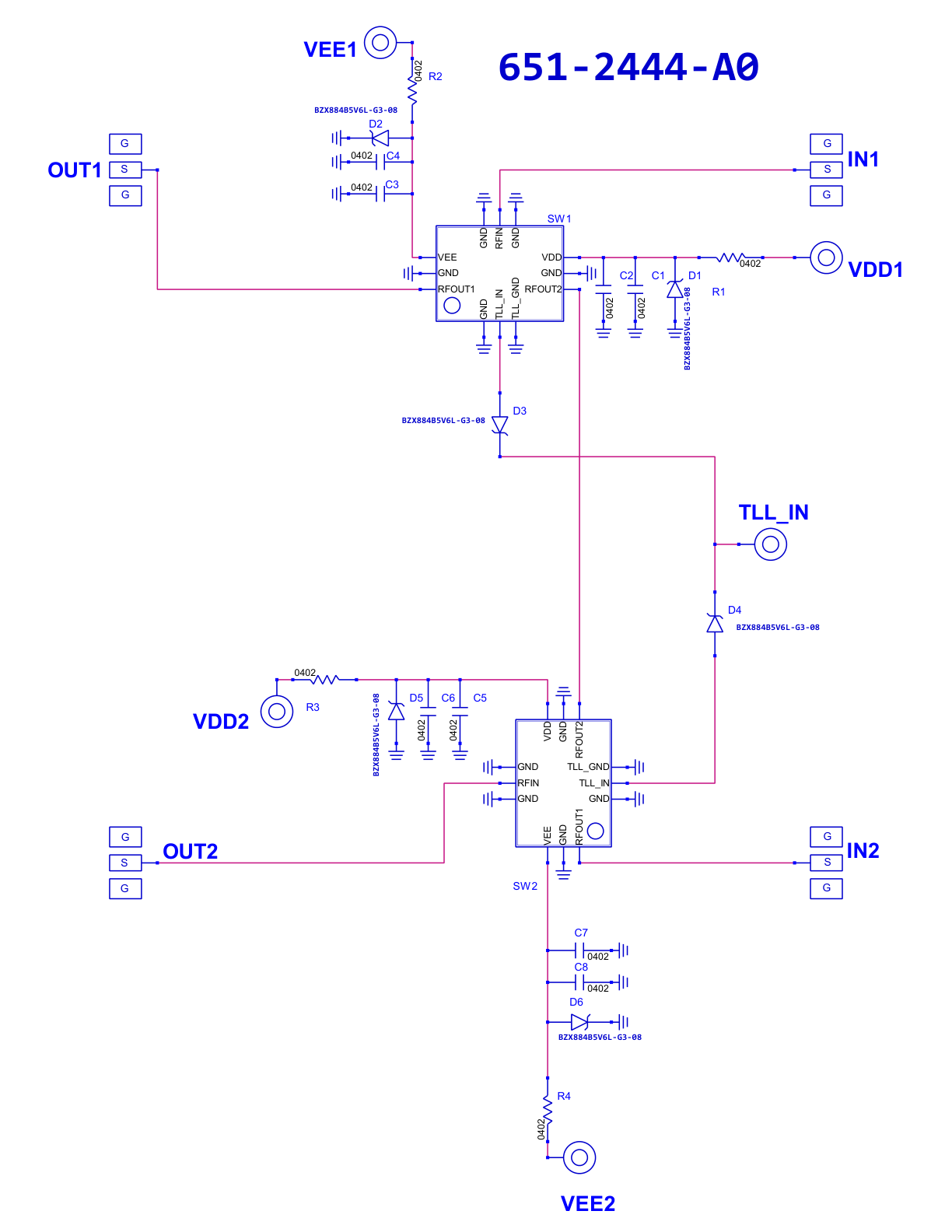

Switch, M3SWA2-63DRC+ [PCB: 2444]
Recommended Bias Controller: XM-D3H1-0409D-SP

Product Page

 N/A Mini-Circuits

Spec Sheet

 N/A M3SWA2-63DRC+

Low Freq

 N/A 0 MHz

High Freq

 N/A 6000 MHz

IL

 N/A 0.5 dB

P1dB

 N/A 26.2 dBm

IP3

 N/A 44 dBm

Bias Instruction

 N/A

Notes: VDD = +5V@4mA
VEE = -5V@3mA
V(TTL_IN) LOW = 0V@2uA
V(TTL_IN) HIGH = VDD max@0.4mA

State 1: [TTL_IN = LOW] [IN1 = OUT1] [IN2 = OUT2]
State 1: [TTL_IN = HIGH] [IN1 = OUT2]

Part Number

 N/A XR-D1F6-0409D
