XM-D1B8-0414D
XR-D1B8-0414D ROHS

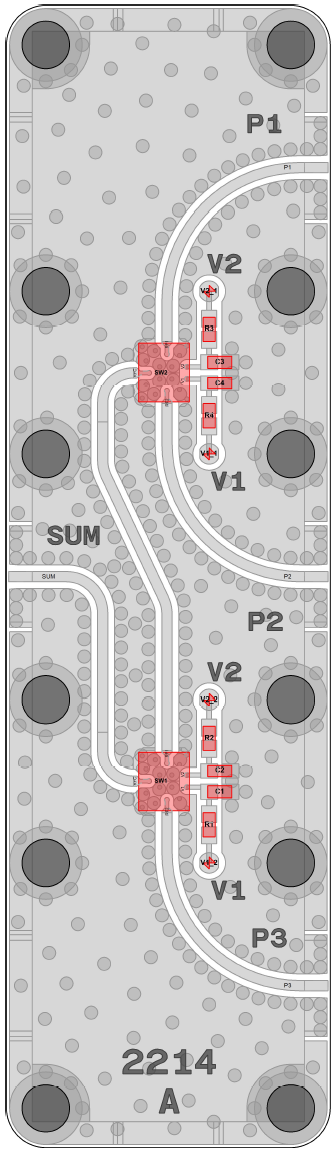

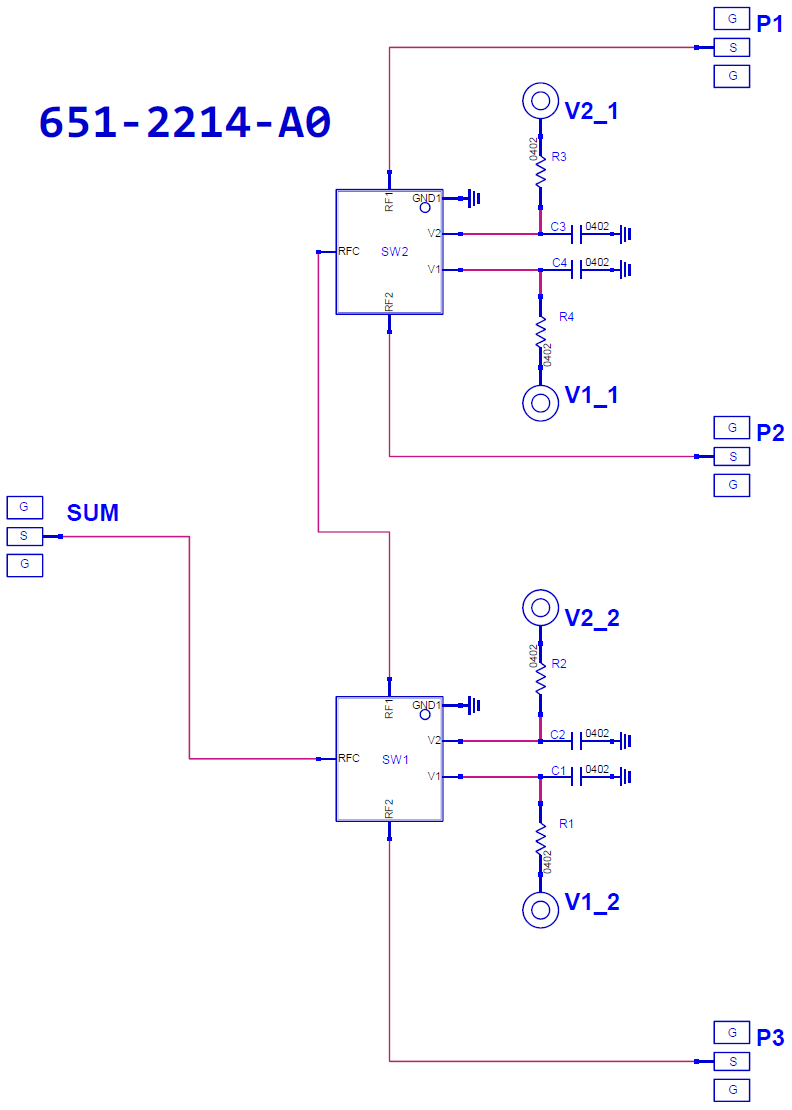

Switch, PE42525A [PCB: 2214]
Recommended Bias Controller: XM-D1W5-0414D-SP

Product Page

 N/A pSemi

Spec Sheet

 N/A PE42525A

Low Freq

 N/A 0.01 MHz

High Freq

 N/A 60000 MHz

IL

 N/A 1.3 dB

P1dB

 N/A 35 dBm

IP3

 N/A 48 dBm

Bias Instruction

 N/A

Contact Us

Part Number

 N/A XR-D1B8-0414D
