XM-D119-0619D
XR-D119-0619D ROHS

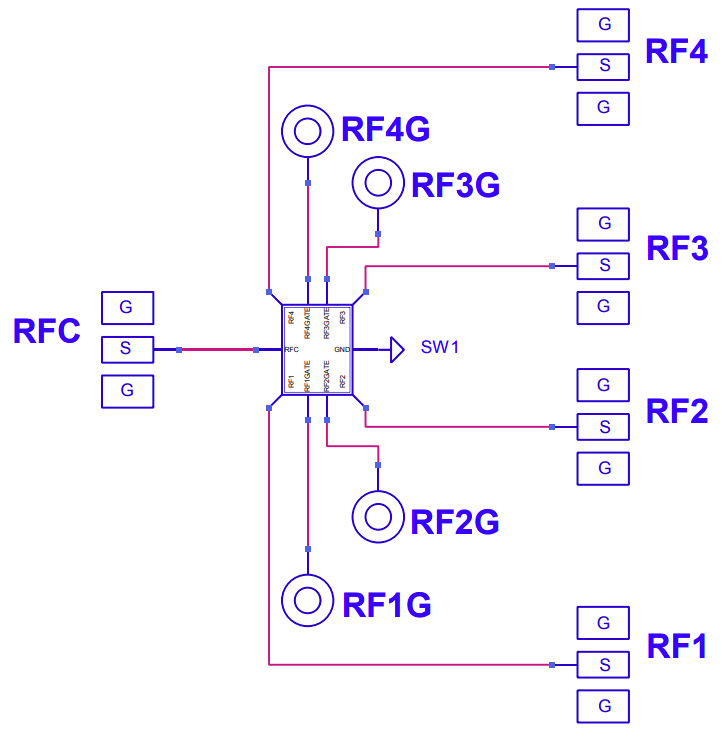

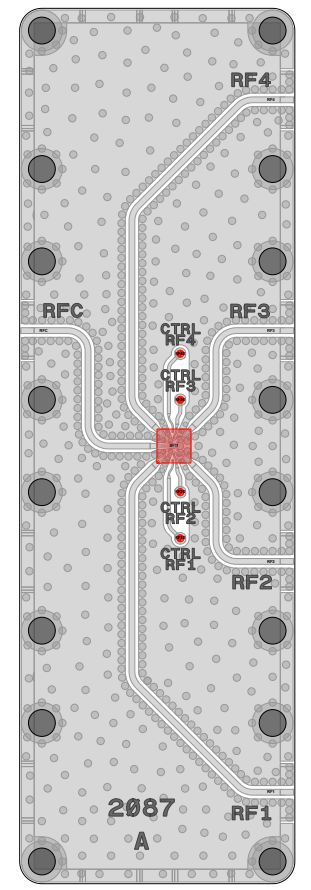

Switch, MM5130 [PCB: 2087]
Recommended Bias Controller: XM-D118-0609D-SP

Product Page

 N/A Menlo Micro

Spec Sheet

 N/A MM5130

Low Freq

 N/A 0 MHz

High Freq

 N/A 26000 MHz

IL

 N/A 0.3 dB

IP3

 N/A 95 dBm

N/A

Bias Instruction

 N/A

Notes: V(CTRLRF1,2,3,4) = +89V @2nA

Normal SP4T Mode:

State 1: [CTRLRF1 = LOW] [CTRLRF2 = LOW] [CTRLRF3 = LOW] [CTRLRF4 = HIGH] [RF1 = ON] [RF2-4 = OFF]
State 2: [CTRLRF1 = LOW] [CTRLRF2 = LOW] [CTRLRF3 = HIGH] [CTRLRF4 = LOW] [RF2 = ON] [RF1,3,4 = OFF]
State 3: [CTRLRF1 = LOW] [CTRLRF2 = HIGH] [CTRLRF3 = LOW] [CTRLRF4 = LOW] [RF3 = ON] [RF1,2,3 = OFF]
State 4: [CTRLRF1 = HIGH] [CTRLRF2 = LOW] [CTRLRF3 = LOW] [CTRLRF4 = LOW] [RF4 = ON] [RF1-3 = OFF]
State 5: [CTRLRF1 = LOW] [CTRLRF2 = LOW] [CTRLRF3 = LOW] [CTRLRF4 = LOW] [RF1-4 = OFF]

Part Number

 N/A XR-D119-0619D
