XM-C9K1-0604D
XR-C9K1-0604D ROHS

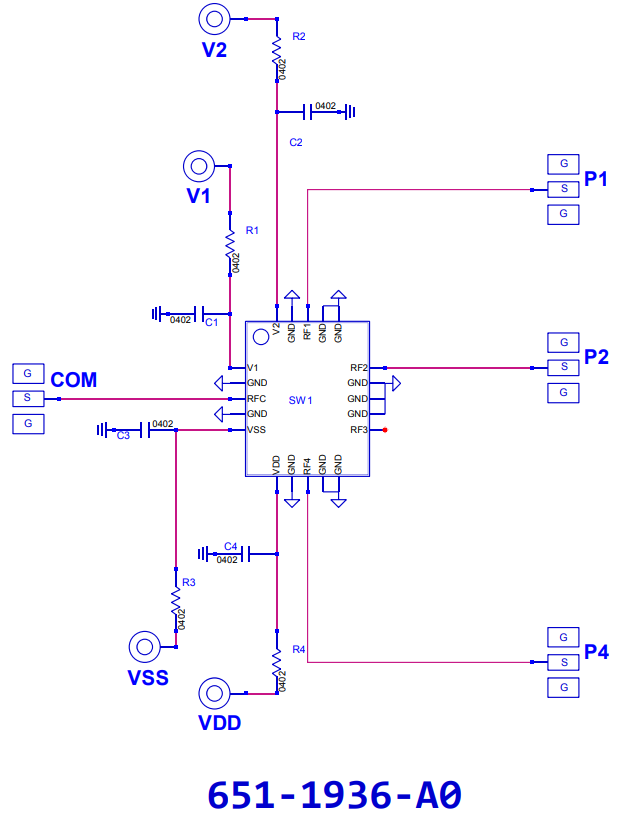

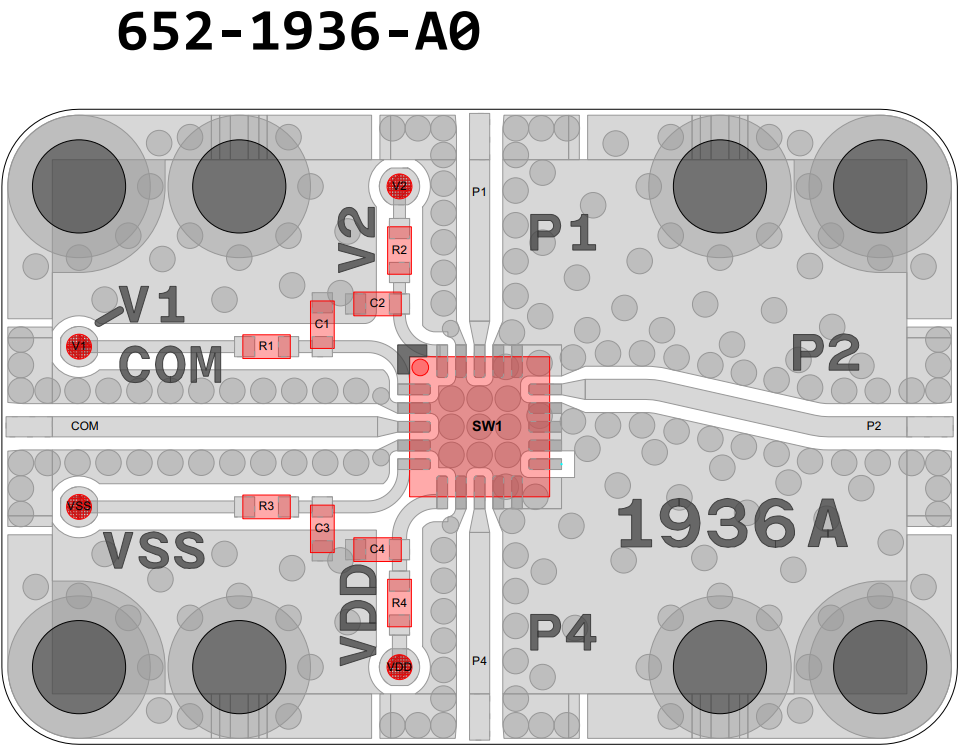

Switch, ADRF5046BCCZN [PCB: 1936]
Recommended Bias Controller: XM-C9K3-0604D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A ADRF5046BCCZN

Low Freq

 N/A 100 MHz

High Freq

 N/A 44000 MHz

IL

 N/A 1.5 dB

P1dB

 N/A 27.5 dBm

IP3

 N/A 50 dBm

N/A

Bias Instruction

 N/A

Notes: VDD = +3.3V@3uA
VSS = -3.3V@-110uA
VCTL = 0V@1uA max or +3.3V@35uA
RF3 = NC

State 1: [V1 = LOW] [V2 = LOW] [P1 = ON] [P2,4 = OFF]
State 2: [V1 = HIGH] [V2 = LOW] [P2 = ON] [P1,4 = OFF]
State 3: [V1 = LOW] [V2 = HIGH] [P1,2,4 = OFF]
State 4: [V1 = HIGH] [V2 = HIGH] [P4 = ON] [P1,2 = OFF]

Part Number

 N/A XR-C9K1-0604D
