XM-C9G7-0724D
XR-C9G7-0724D ROHS

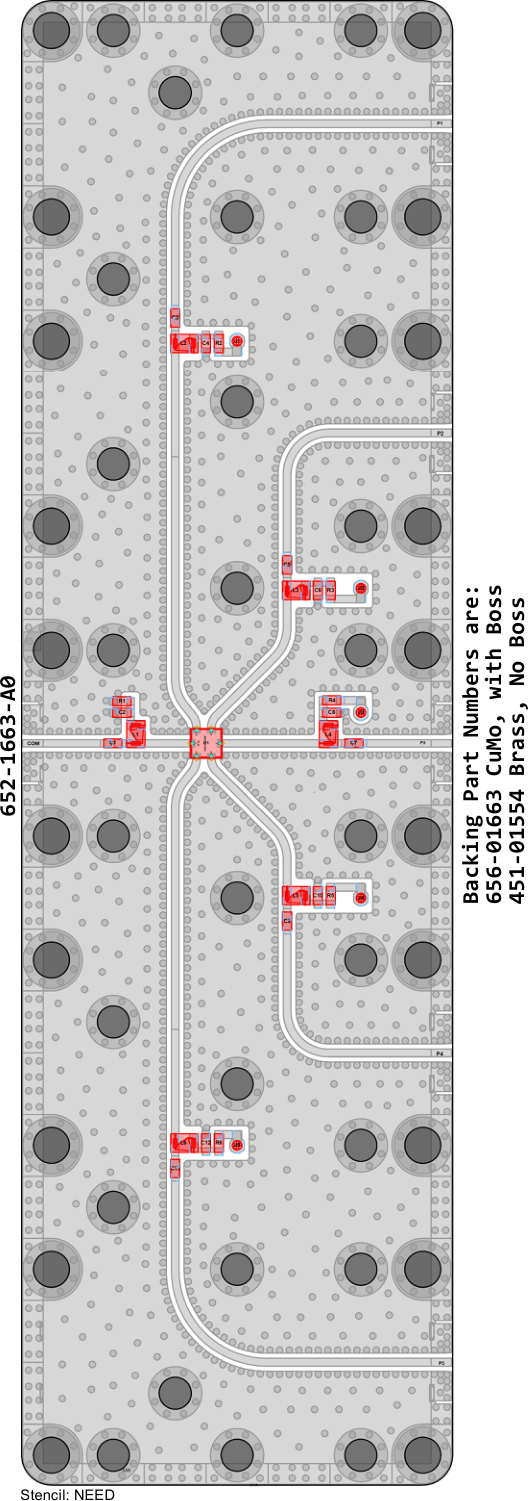

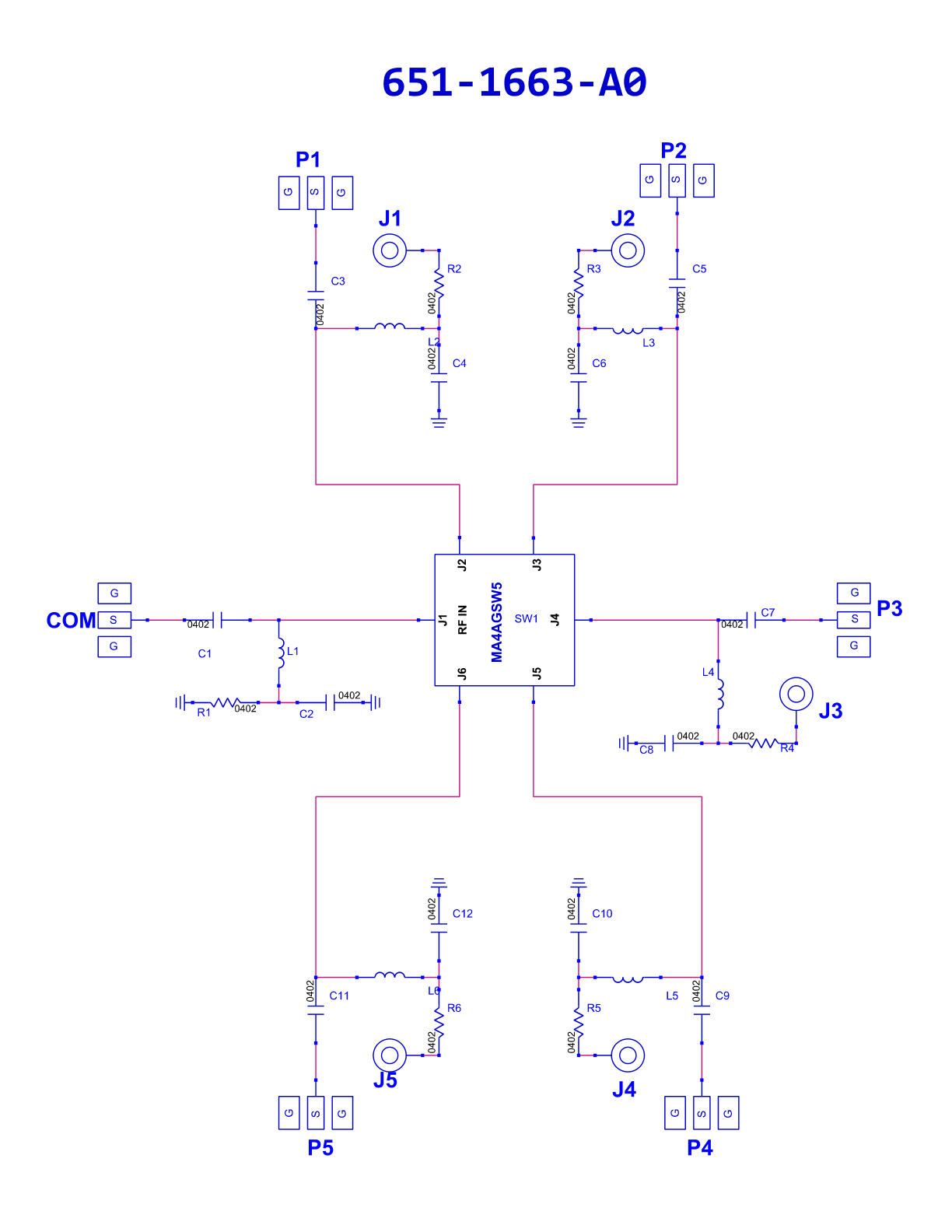

Switch, MA4AGSW5 [PCB: 1663]
Recommended Bias Controller: XM-C9G6-0716D-SP

Product Page

 N/A Macom

Spec Sheet

 N/A MA4AGSW5

Low Freq

 N/A 50 MHz

High Freq

 N/A 70000 MHz

IL

 N/A 1.7 dB

Bias Instruction

 N/A

Notes: +/-10mA bias current

COM to P1: [P1 = -10mA] [P2-5 = +10mA]
COM to P2: [P2 = -10mA] [P1,3,4,5 = +10mA]
COM to P3: [P3 = -10mA] [P1,2,4,5 = +10mA]
COM to P4: [P4 = -10mA] [P1,2,3,5 = +10mA]
COM to P5: [P5 = -10mA] [P1-4 = +10mA]

Part Number

 N/A XR-C9G7-0724D
