XM-C8L7-0409D
XR-C8L7-0409D ROHS

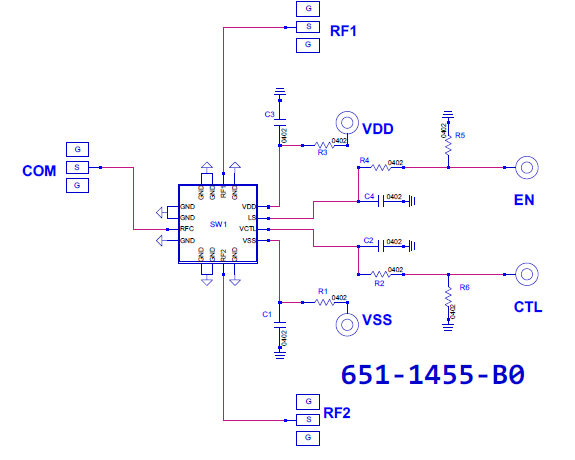

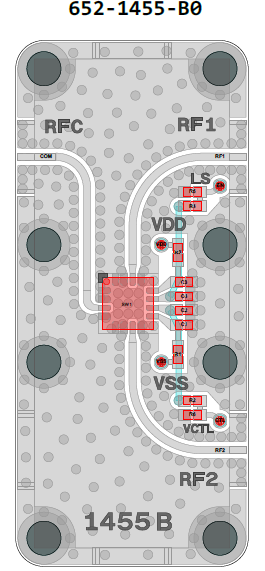

Switch, ADRF5019 [PCB: 1455]
Recommended Bias Controller: XM-C8L8-0409D-SP

Configurations

Product Page

 N/A ADI

Spec Sheet

 N/A ADRF5019

Low Freq

 N/A 100 MHz

High Freq

 N/A 13000 MHz

IL

 N/A 0.8 dB

P1dB

 N/A 39 dBm

IP3

 N/A 60 dBm

N/A

Bias Instruction

 N/A

Notes: VDD = +3.3V@20µA
VSS = -2.5V@0.5µA
VCTL, EN = 0V or VDD @ <1µA

State 1: [LS = HIGH] [CTL = LOW] [RF1 = ON] [RF2 = OFF]
State 2: [LS = HIGH] [CTL = HIGH] [RF1 = OFF] [RF2 = ON]
State 3: [LS = LOW] [CTL = LOW] [RF1 = OFF] [RF2 = ON]
State 4: [LS = LOW] [CTL = HIGH] [RF1 = ON] [RF2 = OFF]

Part Number

 N/A XR-C8L7-0409D
