XM-C8A8-0604D
XR-C8A8-0604D ROHS

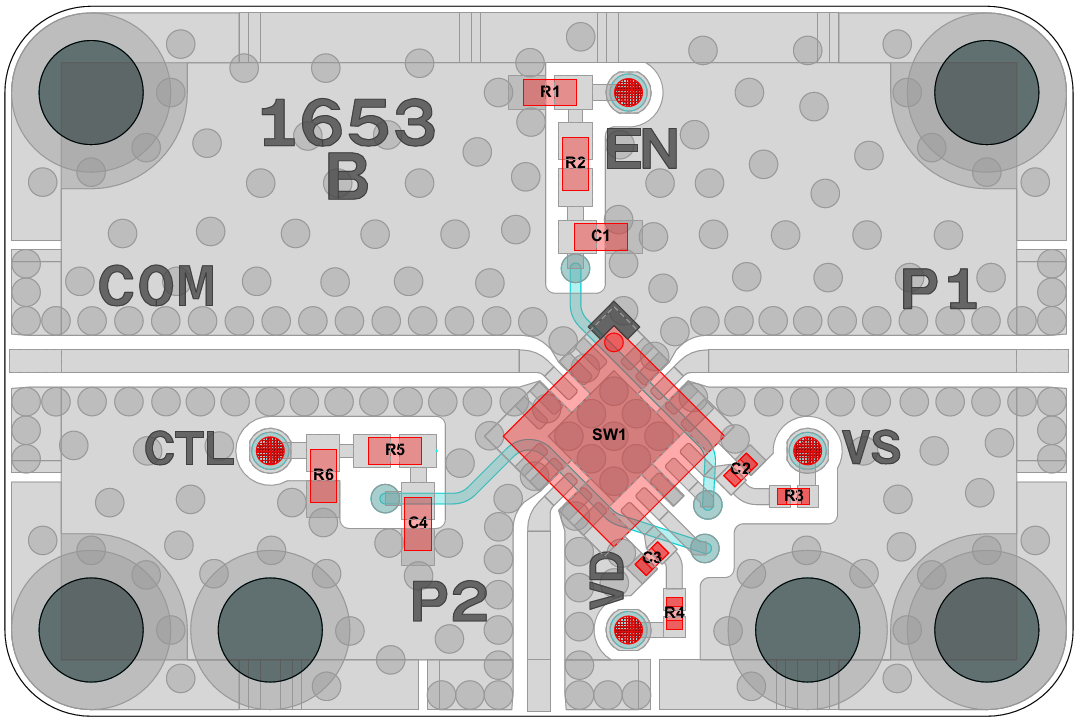

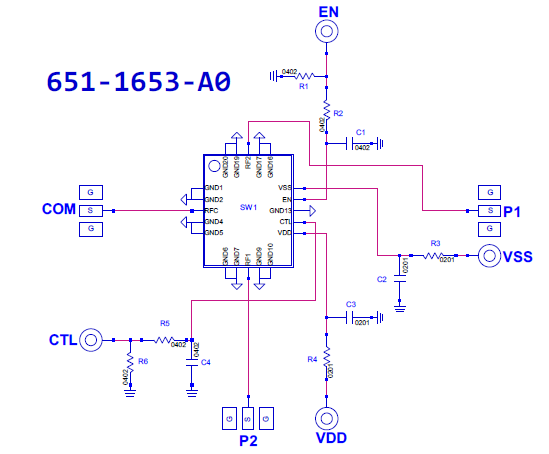

Switch, ADRF5020BCCZN [PCB: 1653]
Recommended Bias Controller: XM-C8A9-0404D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A ADRF5020BCCZN

Low Freq

 N/A 100 MHz

High Freq

 N/A 30000 MHz

IL

 N/A 2 dB

P1dB

 N/A 28 dBm

IP3

 N/A 52 dBm

N/A

Bias Instruction

 N/A

Notes: VDD = +3.3V to 5V@80-100µA
VSS = -2.5V@<1µA
VCTRL=0V (LOW) or 3.3V to 5V (HIGH) @<1µA
VEN =0V (LOW) or 3.3V to 5V (HIGH)

State 1: [EN = LOW] [CTL = LOW] [P1 = ON] [P2 = OFF]
State 2: [EN = LOW] [CTL = HIGH] [P1 = OFF] [P2 = ON]
State 3: [EN = HIGH] [CTL = LOW] [P1 = OFF] [P2 = OFF]
State 4: [EN = HIGH] [CTL = HIGH] [P1 = OFF] [P2 = OFF]

Part Number

 N/A XR-C8A8-0604D
