XM-C7N3-0809D
XR-C7N3-0809D ROHS

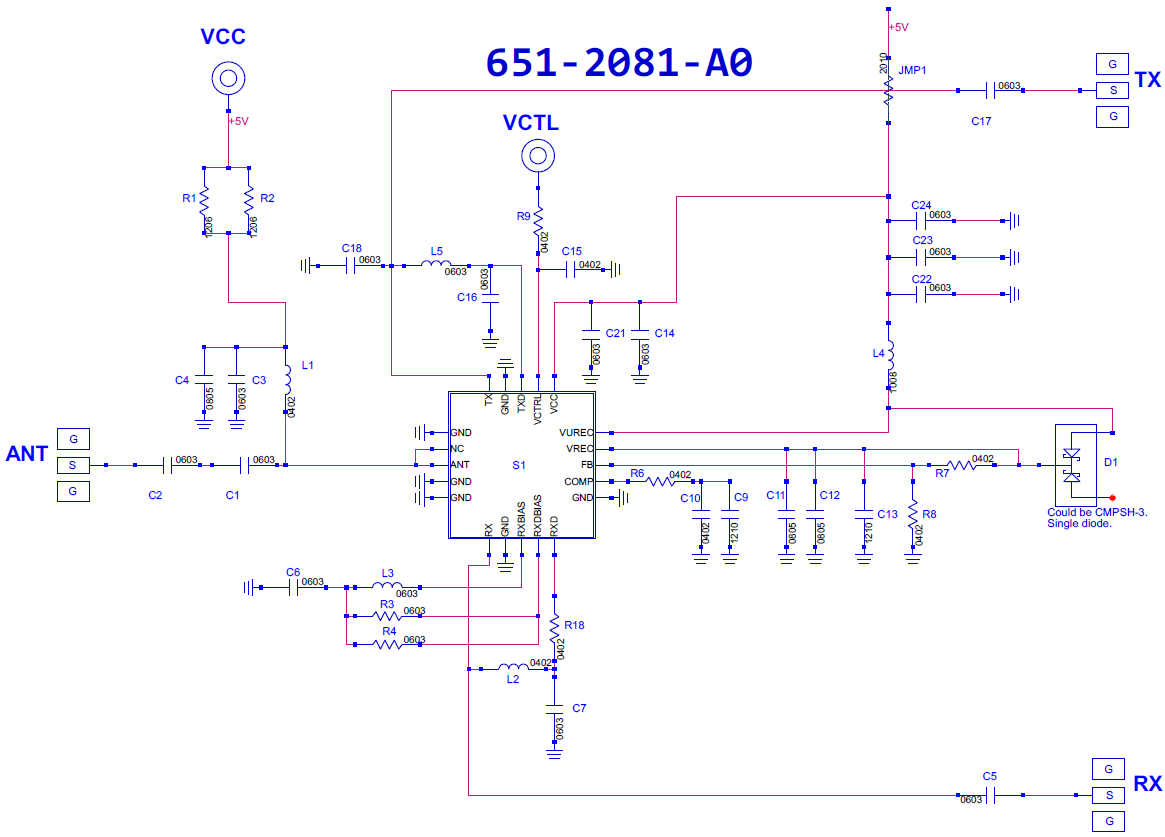

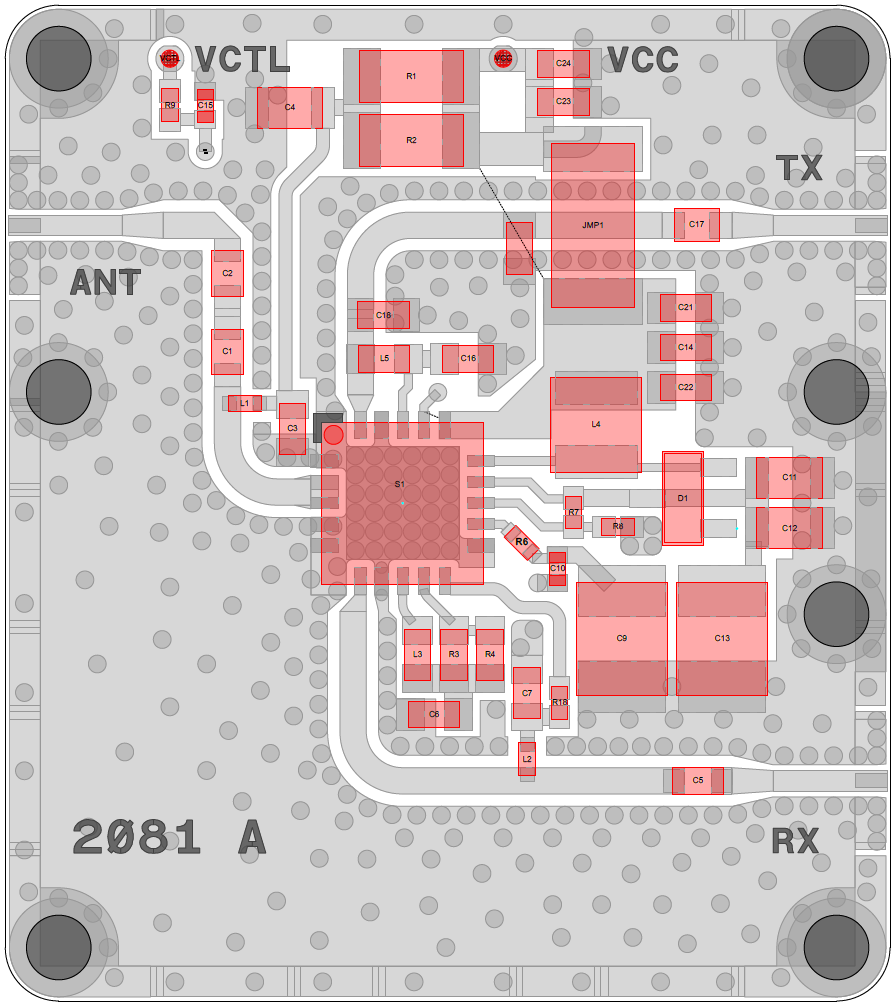

Switch, MAMF-011070-TR1000 [PCB: 2081]
Recommended Bias Controller: XM-C7N4-0604D-SP

Product Page

 N/A Macom

Spec Sheet

 N/A MAMF-011070-TR1000

Low Freq

 N/A 30 MHz

High Freq

 N/A 6000 MHz

IL

 N/A 0.3 dB

P1dB

 N/A 50.5 dBm

IP3

 N/A 68.5 dBm

N/A

Bias Instruction

 N/A

Notes: VCC = +5V
VCTL HIGH = +1.2V to +3.6V @170mA
VCTL LOW = 0V to 0.6V @ 100mA

State 1: [VCTL = HIGH] [TX = ON] [RX = OFF]
State 2: [VCTL = LOW] [TX = OFF] [RX = ON]

Part Number

 N/A XR-C7N3-0809D
