XM-C793-0409D
XR-C793-0409D ROHS

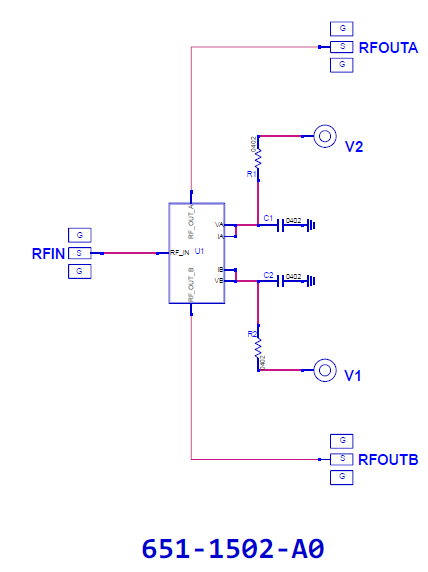

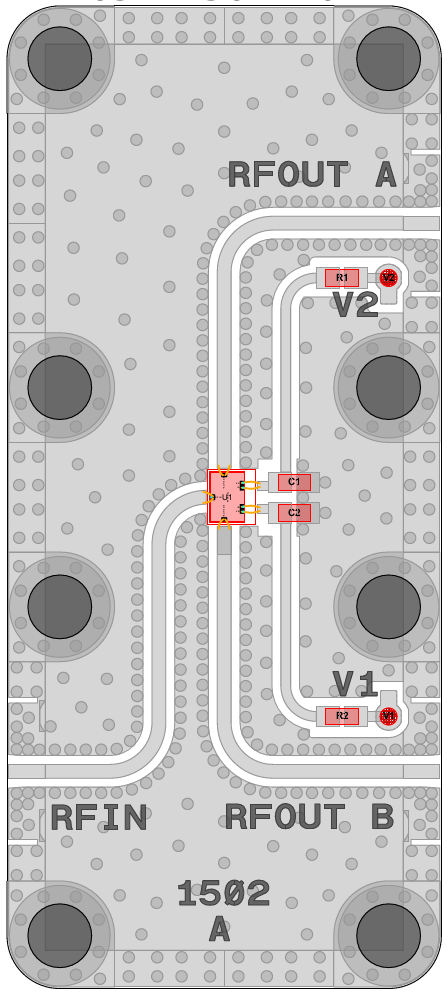

Switch, TGS4304 [PCB: 1502]

Product Page

 N/A Qorvo

Spec Sheet

 N/A TGS4304

Low Freq

 N/A 32000 MHz

High Freq

 N/A 40000 MHz

IL

 N/A 1 dB

P1dB

 N/A 33 dBm

Bias Instruction

 N/A

Notes: V1,2 HIGH = +5V @ 0mA
V1,2 LOW = -4V @ 30mA

State 1: [V2 = HIGH] [V1 = LOW] [RFOUTA = ON] [RFOUTB = OFF]
State 2: [V2 = LOW] [V1 = HIGH] [RFOUTA = OFF] [RFOUTB = ON]

Part Number

 N/A XR-C793-0409D
